BEA11L-AWDFSA (1997)

Toyota Rav4 Ev

Production Sep 1997 - Nov 1999
Engine EM
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9709- )

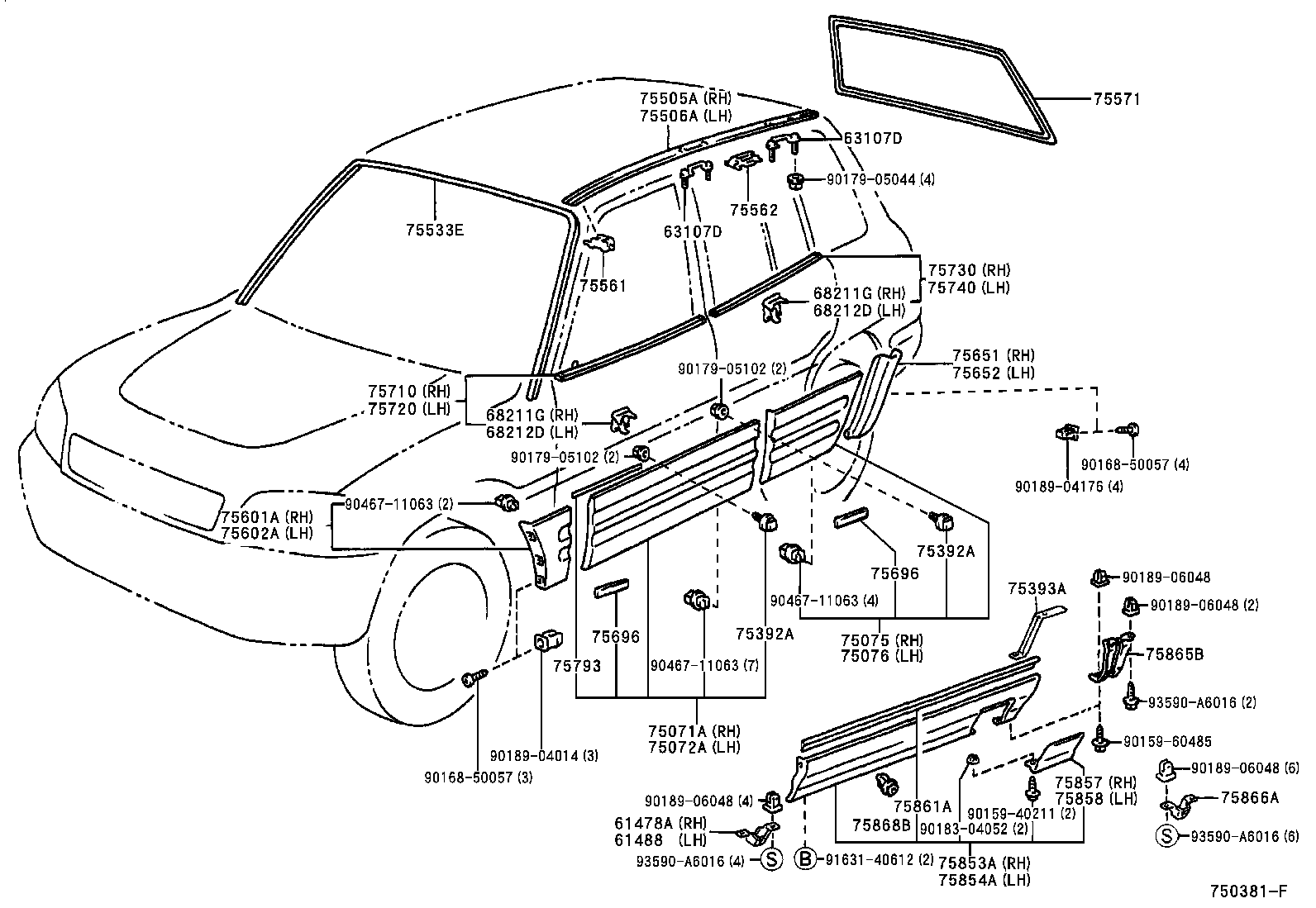

Click highlighted areas on diagram

diagram 61478A 61488 63107D 63107D 68211G 68211G 68212D 68212D 75071A 75072A 75075 75076 75392A 75392A 75393A 75505A 75506A 75533E 75561 75562 75571 75601A 75602A 75651 75652 75696 75696 75710 75720 75730 75740 75793 75853A 75854A 75857 75858 75861A 75865B 75866A 75868B 9015940211 9015960485 9016850057 9016850057 9017905044 9017905102 9017905102 9018304052 9018904014 9018904176 9018906048 9018906048 9018906048 9018906048 9046711063 9046711063 9046711063 9163140612 93590A6016 93590A6016 93590A6016
Part # Description Qty Price
61478A - BRACKET, MUDGUARD, FRONT RH
61478-42010

BEA11

 2
61488 - BRACKET, MUDGUARD, FRONT LH
61488-42010

BEA11

 2
63107D - BRACKET SUB-ASSY, ROOF MOULDING
63107-42011

BEA11

 4
63107D - BRACKET SUB-ASSY, ROOF MOULDING
63107-42011

BEA11

 4
68211G - CLIP(DOOR BELT MOULDING RH)
68212-16010

BEA11

 9
68211G - CLIP(DOOR BELT MOULDING RH)
68212-16010

BEA11

 9
68212D - CLIP(DOOR BELT MOULDING LH)
68212-16010

BEA11

 9
68212D - CLIP(DOOR BELT MOULDING LH)
68212-16010

BEA11

 9
75071A - MOULDING SUB-ASSY, FRONT DOOR, OUTSIDE RH
75071-42021

BEA11

 1
75072A - MOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LH
75072-42021

BEA11

 1
75075 - MOULDING SUB-ASSY, REAR DOOR, OUTSIDE RH
75075-42011

BEA11

 1
75076 - MOULDING SUB-ASSY, REAR DOOR, OUTSIDE LH
75076-42011

BEA11

 1
75392A - RETAINER, OUTSIDE MOULDING, NO.1
75392-42011

BEA11

 8
75392A - RETAINER, OUTSIDE MOULDING, NO.1
75392-42011

BEA11

 8
75393A - RETAINER, OUTSIDE MOULDING, NO.2 RH
75393-42010

BEA11

 2
75505A - MOULDING SUB-ASSY, ROOF DRIP SIDE FINISH, RH
75505-42020

BEA11

 1
75506A - MOULDING SUB-ASSY, ROOF DRIP SIDE FINISH, LH
75506-42020

BEA11

 1
75533E - MOULDING, WINDSHIELD, OUTSIDE
75533-42030

BEA11

 1
75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75561-42020

BEA11

 1
75562 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.2
75562-42020

BEA11

 1
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75573-42010

BEA11

 1
75601A - MOULDING SUB-ASSY, FRONT FENDER, RH
75601-42011

BEA11

 1
75602A - MOULDING SUB-ASSY, FRONT FENDER, LH
75602-42011

BEA11

 1
75651 - MOULDING, QUARTER, OUTSIDE RH
75651-42020

BEA11

 1
75652 - MOULDING, QUARTER, OUTSIDE LH
75652-42020

BEA11

 1
75696 - PAD, BODY OUTSIDE MOULDING, NO.1
75696-42010

BEA11

T=1.5

 10
75696-42010

BEA11

 10
75696-42010

BEA11

T=1.5

 12
75696-42030

BEA11

T=5.0

 2
75696 - PAD, BODY OUTSIDE MOULDING, NO.1
75696-42010

BEA11

T=1.5

 10
75696-42010

BEA11

 10
75696-42010

BEA11

T=1.5

 12
75696-42030

BEA11

T=5.0

 2
75710 - MOULDING ASSY, FRONT DOOR BELT, RH
75710-42020

BEA11

 1
75720 - MOULDING ASSY, FRONT DOOR BELT, LH
75720-42020

BEA11

 1
75730 - MOULDING ASSY, REAR DOOR BELT, RH
75730-42010

BEA11

 1
75740 - MOULDING ASSY, REAR DOOR BELT, LH
75740-42010

BEA11

 1
75793 - PAD, FRONT DOOR OUTSIDE MOULDING, UPPER
75793-42020

BEA11

 2
75793-42020

BEA11

 4
75853A - MOULDING, ROCKER PANEL, CENTER RH
75850-42020

BEA11

 1
75854A - MOULDING, ROCKER PANEL, CENTER LH
75860-42020

BEA11

 1
75857 - COVER, ROCKER PANEL MOULDING, RH
75857-42020

BEA11

 1
75858 - COVER, ROCKER PANEL MOULDING, LH
75858-42020

BEA11

 1
75861A - PROTECTOR, ROCKER PANEL MOULDING, NO.1
75861-42020

BEA11

 2
75865B - RETAINER, ROCKER PANEL MOULDING, NO.2
75865-42020

BEA11

 2
75866A - RETAINER, ROCKER PANEL MOULDING
75866-42010

BEA11

 6
75868B - CLIP, ROCKER PANEL MOULDING, NO.2
75868-30020

BEA11

 28
Common parts
90159-40211
90159-60485
90168-50057
90179-05044
90179-05102
90183-04052
90189-04014
90189-04176
90189-06048
90467-11063
91631-40612
93590-A6016
