GSA38L-CNASKA (2008)
Toyota Rav4 (Nap)
ILLUST NO. 1 OF10(0811- )NAP
ENGINE ROOM 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-0R030 |
GSA3#..NAP..USA WITH(TOWING PACKAGE) |
1 | ||
| 82111-0R020 |
GSA3#..NAP |
1 | ||
| 82111-0R100 |
GSA3#..NAP..USA WITH(TOWING PACKAGE) |
1 | ||
| 82111-0R030 |
GSA3#..NAP..USA PART NUMBER LABEL=82111-0R030 |
1 | ||
| 82111-0R100 |
GSA3#..NAP..USA PART NUMBER LABEL=82111-0R100 |
1 | ||
| 82111-0R020 |
GSA3#..NAP PART NUMBER LABEL=82111-0R020 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30360 |
ASA3#,GSA3#..NAP |
1 | ||
| 82671-30360 |
ASA3#,GSA3#..NAP |
2 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30360 |
ASA3#,GSA3#..NAP |
1 | ||
| 82671-30360 |
ASA3#,GSA3#..NAP |
2 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30360 |
ASA3#,GSA3#..NAP |
1 | ||
| 82671-30360 |
ASA3#,GSA3#..NAP |
2 | ||
| 82671J - BLOCK, JUNCTION, NO.2 | ||||
| 82671-30370 |
ASA3#,GSA3#..NAP |
2 | ||
| 82671-30370 |
ASA3#,GSA3#..NAP |
1 | ||
| 82671J - BLOCK, JUNCTION, NO.2 | ||||
| 82671-30370 |
ASA3#,GSA3#..NAP |
2 | ||
| 82671-30370 |
ASA3#,GSA3#..NAP |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-47210 |
ASA3#,GSA3#..NAP |
2 | ||
| 82824-47210 |
ASA3#,GSA3#..NAP |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-47210 |
ASA3#,GSA3#..NAP |
2 | ||
| 82824-47210 |
ASA3#,GSA3#..NAP |
1 | ||
| 82824A - CONNECTOR, WIRING HARNESS | ||||
| 82824-50340 |
ASA3#,GSA3#..NAP |
1 | ||
| 82824A - CONNECTOR, WIRING HARNESS | ||||
| 82824-50340 |
ASA3#,GSA3#..NAP |
1 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-30220 |
ASA3#,GSA3#..NAP |
1 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-30220 |
ASA3#,GSA3#..NAP |
1 | ||
| Common parts | ||||
| 90080-11545 | ||||
| 90179-06274 | ||||
ILLUST NO. 2 OF10(0811- )GSA3#..NAP

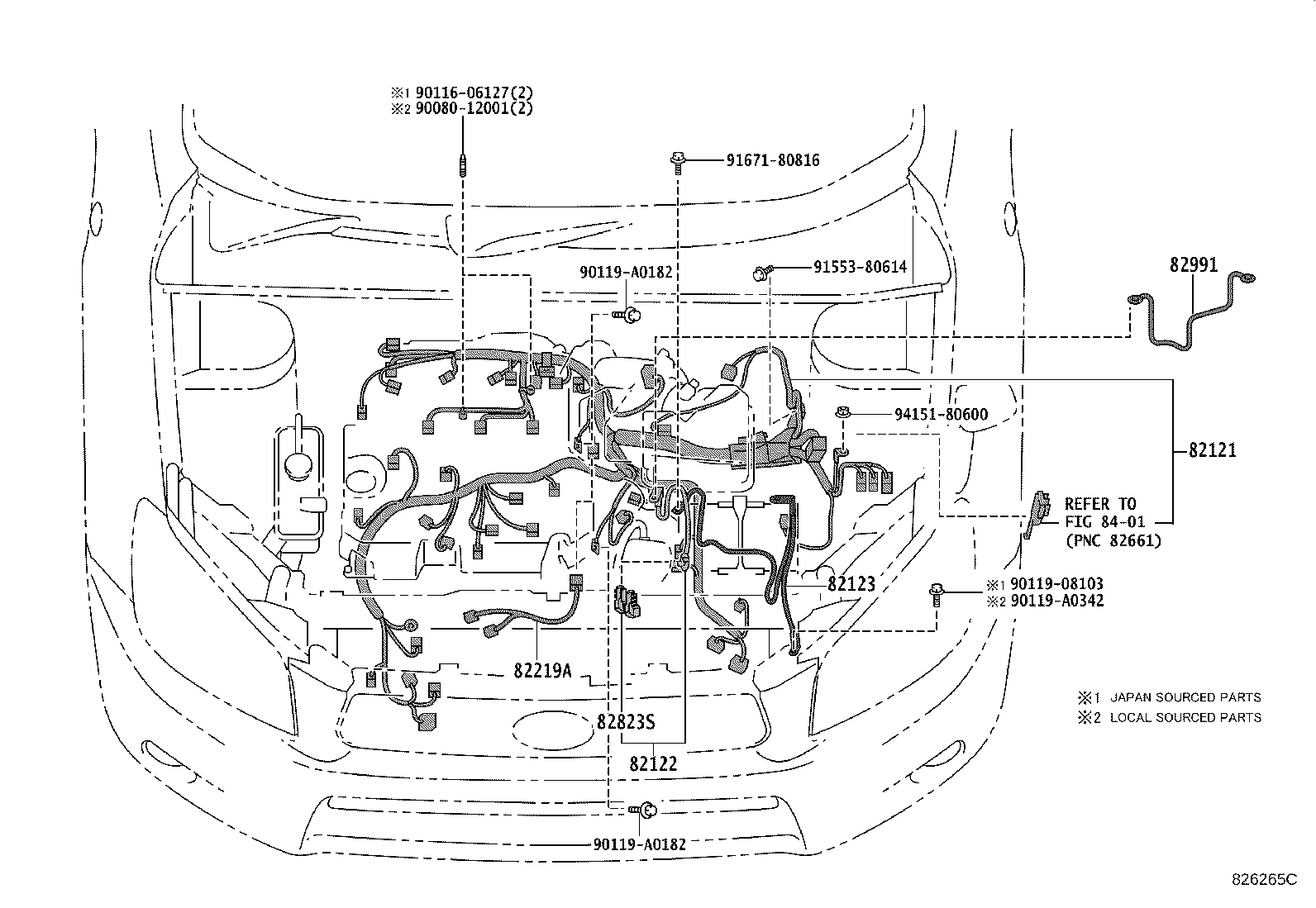

ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-0R030 |
GSA3#..NAP WITH(TOWING PACKAGE) |
1 | ||
| 82121-0R031 |
GSA3#..NAP WITH(TOWING PACKAGE) |
1 | ||
| 82121-0R021 |
GSA3#..NAP |
1 | ||
| 82121-0R020 |
GSA3#..NAP |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-0R020 |
GSA3#..NAP |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-0R020 |
GSA3#..NAP |
1 | ||
| 82123-0R021 |
GSA3#..NAP |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-41010 |
GSA3#..NAP |
1 | ||
| 82219-06010 |
GSA3#..NAP (L) |
1 | ||
| 82219-41010 |
GSA3#..NAP (J) |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-20080 |
ASA3#,GSA3#..NAP |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-0R020 |
ASA3#,GSA3#..NAP |
1 | ||
| Common parts | ||||
| 90080-12001 | ||||
| 90116-06127 | ||||
| 90119-08103 | ||||
| 90119-A0182 | ||||
| 90119-A0342 | ||||
| 91553-80614 | ||||
| 91671-80816 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF10(0811- )NAP
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-0R280 |
ASA38,GSA38..NAP..SPO MOON ROOF-WITH&AUDIO-DVD-NAVIGATION,CD,MULTI-PANEL |
1 | ||
| 82141-0R280 |
ASA38,GSA38..NAP..SPO MOON ROOF-WITH&AUDIO-6CD CHANGER,SDARS,UNIQUE-PANEL |
1 | ||
| 82141-0R280 |
ASA38,GSA38..NAP..SPO SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 82141-0R280 |
ASA38,GSA38..NAP..SPO MOON ROOF-WITH&SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-6CD CHANGER,SDARS,UNIQUE-PANEL |
1 | ||
| 82141-0R280 |
ASA38,GSA38..NAP..SPO MOON ROOF-WITH&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 82141-0R310 |
ASA38,GSA38..NAP..SPO |
1 | ||
| 82141-0R280 |
ASA38,GSA38..NAP..SPO SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-DVD-NAVIGATION,CD,MULTI-PANEL |
1 | ||
| 82141-0R280 |
ASA38,GSA38..NAP..SPO MOON ROOF-WITH |
1 | ||
| 82141-0R280 |
ASA38,GSA38..NAP..SPO SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-6CD CHANGER,SDARS,UNIQUE-PANEL |
1 | ||
| 82141-0R280 |
ASA38,GSA38..NAP..SPO AUDIO-DVD-NAVIGATION,CD,MULTI-PANEL |
1 | ||
| 82141-0R280 |
ASA38,GSA38..NAP..SPO MOON ROOF-WITH&SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-DVD-NAVIGATION,CD,MULTI-PANEL |
1 | ||
| 82141-0R280 |
ASA38,GSA38..NAP..SPO AUDIO-6CD CHANGER,SDARS,UNIQUE-PANEL |
1 | ||
| 82141-0R280 |
ASA38,GSA38..NAP..SPO..USA |
1 | ||
| 82141-0R500 |
ASA38,GSA38..NAP..SPO..USA AUDIO-JBL,6CD CHANGER,SDARS,BLUETOOTH,UNIQUE&BACK MONITOR-WITH |
1 | ||
| 82141-0R500 |
ASA38,GSA38..NAP..SPO..USA SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-JBL,6CD CHANGER,SDARS,BLUETOOTH,UNIQUE |
1 | ||
| 82141-0R500 |
ASA38,GSA38..NAP..SPO..USA SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-JBL,6CD CHANGER,SDARS,BLUETOOTH,UNIQUE&BACK MONITOR-WITH |
1 | ||
| 82141-0R282 |
ASA38,GSA38..NAP..SPO..USA SEAT COVER MATERIAL-NATURAL LEATHER&BACK MONITOR-WITH |
1 | ||
| 82141-0R500 |
ASA38,GSA38..NAP..SPO AUDIO-JBL,6CD CHANGER,SDARS,BLUETOOTH,UNIQUE |
1 | ||
| 82141-0R452 |
ASA38,GSA38..NAP..SPO..USA SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 82141-0R283 |
ASA38,GSA38..NAP..SPO..USA SEAT COVER MATERIAL-NATURAL LEATHER&BACK MONITOR-WITH |
1 | ||
| 82141-0R462 |
ASA38,GSA38..NAP..(SPO,STD)..USA BACK MONITOR-WITH |
1 | ||
| 82141-0R472 |
ASA38,GSA38..NAP..(SPO,STD)..USA |
1 | ||
| 82141-0R310 |
ASA38,GSA38..NAP..SPO PART NUMBER LABEL=82141-0R070 OR 82141-0R310 |
1 | ||
| 82141-0R280 |
ASA38,GSA38..NAP..SPO PART NUMBER LABEL=82141-0R130 OR 82141-0R280 |
1 | ||
| 82141-0R453 |
ASA38,GSA38..NAP..SPO..USA SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 82141-0R473 |
ASA38,GSA38..NAP..(SPO,STD)..USA |
1 | ||
| 82141-0R463 |
ASA38,GSA38..NAP..(SPO,STD)..USA BACK MONITOR-WITH |
1 | ||
| 82141-0R500 |
ASA38,GSA38..NAP..SPO PART NUMBER LABEL=82141-0R480 OR 82141-0R500 |
1 | ||
| 82141-0R280 |
ASA38,GSA38..NAP..SPO..USA PART NUMBER LABEL=82141-0R130 OR 82141-0R280 |
1 | ||
| 82141-0R500 |
ASA38,GSA38..NAP..SPO..USA PART NUMBER LABEL=82141-0R480 OR 82141-0R500 |
1 | ||
| 82141-0R452 |
ASA38,GSA38..NAP..SPO..USA PART NUMBER LABEL=82141-0R422 OR 82141-0R452 |
1 | ||
| 82141-0R472 |
ASA38,GSA38..NAP..(SPO,STD)..USA PART NUMBER LABEL=82141-0R442 OR 82141-0R472 |
1 | ||
| 82141-0R282 |
ASA38,GSA38..NAP..SPO..USA PART NUMBER LABEL=82141-0R132 OR 82141-0R282 |
1 | ||
| 82141-0R462 |
ASA38,GSA38..NAP..(SPO,STD)..USA PART NUMBER LABEL=82141-0R432 OR 82141-0R462 |
1 | ||
| 82141-0R283 |
ASA38,GSA38..NAP..SPO..USA PART NUMBER LABEL=82141-0R133 OR 82141-0R283 |
1 | ||
| 82141-0R473 |
ASA38,GSA38..NAP..(SPO,STD)..USA PART NUMBER LABEL=82141-0R443 OR 82141-0R473 |
1 | ||
| 82141-0R453 |
ASA38,GSA38..NAP..SPO..USA PART NUMBER LABEL=82141-0R423 OR 82141-0R453 |
1 | ||
| 82141-0R463 |
ASA38,GSA38..NAP..(SPO,STD)..USA PART NUMBER LABEL=82141-0R433 OR 82141-0R463 |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-0R030 |
ASA3#,GSA3#..NAP..SPO LIGHT CONTROL SYSTEM-WITH |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-42231 |
ASA33..NAP..STD..USA;ASA38,GSA38..NAP..(SPO,STD)..USA |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-42241 |
ASA33..NAP..STD..USA;ASA38,GSA38..NAP..(SPO,STD)..USA |
1 | ||
| 82666N - HOLDER, CONNECTOR NO.10 | ||||
| 82666-42171 |
ASA33..NAP..STD..USA;ASA38,GSA38..NAP..(SPO,STD)..USA |
1 | ||
| 82671K - BLOCK, JUNCTION, NO.3 | ||||
| 82671-30370 |
ASA3#,GSA3#..NAP |
1 | ||
| 82671M - BLOCK, JUNCTION, NO.5 | ||||
| 82671-42150 |
ASA33..NAP..STD..USA;ASA38,GSA38..NAP..(SPO,STD)..USA |
1 | ||
| 82671N - BLOCK, JUNCTION, NO.6 | ||||
| 82671-42160 |
ASA33..NAP..STD..USA;ASA38,GSA38..NAP..(SPO,STD)..USA |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-50340 |
ASA33..NAP..STD..USA;ASA38,GSA38..NAP..(SPO,STD)..USA |
2 | ||
| 82824-47210 |
ASA3#,GSA3#..NAP |
2 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-50340 |
ASA33..NAP..STD..USA;ASA38,GSA38..NAP..(SPO,STD)..USA |
2 | ||
| 82824-47210 |
ASA3#,GSA3#..NAP |
2 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-52080 |
ASA3#,GSA3#..NAP NO.5 |
2 | ||
| 82824-42190 |
ASA33..NAP..STD..USA;ASA38,GSA38..NAP..(SPO,STD)..USA NO.4 |
4 | ||
| 82824-42180 |
ASA33..NAP..STD..USA;ASA38,GSA38..NAP..(SPO,STD)..USA NO.1 |
4 | ||
| 82824-42210 |
ASA33..NAP..STD..USA;ASA38,GSA38..NAP..(SPO,STD)..USA NO.3 |
24 | ||
| 82824-42200 |
ASA33..NAP..STD..USA;ASA38,GSA38..NAP..(SPO,STD)..USA NO.2 |
28 | ||
| 82824-52080 |
ASA33..NAP..STD..USA;ASA38,GSA38..NAP..(SPO,STD)..USA NO.5 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-52080 |
ASA3#,GSA3#..NAP NO.5 |
2 | ||
| 82824-42190 |
ASA33..NAP..STD..USA;ASA38,GSA38..NAP..(SPO,STD)..USA NO.4 |
4 | ||
| 82824-42180 |
ASA33..NAP..STD..USA;ASA38,GSA38..NAP..(SPO,STD)..USA NO.1 |
4 | ||
| 82824-42210 |
ASA33..NAP..STD..USA;ASA38,GSA38..NAP..(SPO,STD)..USA NO.3 |
24 | ||
| 82824-42200 |
ASA33..NAP..STD..USA;ASA38,GSA38..NAP..(SPO,STD)..USA NO.2 |
28 | ||
| 82824-52080 |
ASA33..NAP..STD..USA;ASA38,GSA38..NAP..(SPO,STD)..USA NO.5 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-52080 |
ASA3#,GSA3#..NAP NO.5 |
2 | ||
| 82824-42190 |
ASA33..NAP..STD..USA;ASA38,GSA38..NAP..(SPO,STD)..USA NO.4 |
4 | ||
| 82824-42180 |
ASA33..NAP..STD..USA;ASA38,GSA38..NAP..(SPO,STD)..USA NO.1 |
4 | ||
| 82824-42210 |
ASA33..NAP..STD..USA;ASA38,GSA38..NAP..(SPO,STD)..USA NO.3 |
24 | ||
| 82824-42200 |
ASA33..NAP..STD..USA;ASA38,GSA38..NAP..(SPO,STD)..USA NO.2 |
28 | ||
| 82824-52080 |
ASA33..NAP..STD..USA;ASA38,GSA38..NAP..(SPO,STD)..USA NO.5 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-52080 |
ASA3#,GSA3#..NAP NO.5 |
2 | ||
| 82824-42190 |
ASA33..NAP..STD..USA;ASA38,GSA38..NAP..(SPO,STD)..USA NO.4 |
4 | ||
| 82824-42180 |
ASA33..NAP..STD..USA;ASA38,GSA38..NAP..(SPO,STD)..USA NO.1 |
4 | ||
| 82824-42210 |
ASA33..NAP..STD..USA;ASA38,GSA38..NAP..(SPO,STD)..USA NO.3 |
24 | ||
| 82824-42200 |
ASA33..NAP..STD..USA;ASA38,GSA38..NAP..(SPO,STD)..USA NO.2 |
28 | ||
| 82824-52080 |
ASA33..NAP..STD..USA;ASA38,GSA38..NAP..(SPO,STD)..USA NO.5 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-52080 |
ASA3#,GSA3#..NAP NO.5 |
2 | ||
| 82824-42190 |
ASA33..NAP..STD..USA;ASA38,GSA38..NAP..(SPO,STD)..USA NO.4 |
4 | ||
| 82824-42180 |
ASA33..NAP..STD..USA;ASA38,GSA38..NAP..(SPO,STD)..USA NO.1 |
4 | ||
| 82824-42210 |
ASA33..NAP..STD..USA;ASA38,GSA38..NAP..(SPO,STD)..USA NO.3 |
24 | ||
| 82824-42200 |
ASA33..NAP..STD..USA;ASA38,GSA38..NAP..(SPO,STD)..USA NO.2 |
28 | ||
| 82824-52080 |
ASA33..NAP..STD..USA;ASA38,GSA38..NAP..(SPO,STD)..USA NO.5 |
1 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-30130 |
ASA33..NAP..STD..USA;ASA38,GSA38..NAP..(SPO,STD)..USA |
2 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-30130 |
ASA33..NAP..STD..USA;ASA38,GSA38..NAP..(SPO,STD)..USA |
2 | ||
| 82824H - CONNECTOR, WIRING HARNESS | ||||
| 82824-20110 |
ASA33..NAP..STD..USA;ASA38,GSA38..NAP..(SPO,STD)..USA |
1 | ||
| Common parts | ||||
| 90080-11545 | ||||
| 90159-70004 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 4 OF10(0811- )NAP
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-0R070 |
ASA3#,GSA3#..NAP..SPO AUDIO-JBL,6CD CHANGER,SDARS,BLUETOOTH,UNIQUE |
1 | ||
| 82151-0R010 |
ASA3#,GSA3#..NAP..(SPO,STD) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-0R010 |
ASA3#,GSA3#..NAP..(SPO,STD) |
1 | ||
| 82152-0R070 |
ASA3#,GSA3#..NAP..SPO AUDIO-JBL,6CD CHANGER,SDARS,BLUETOOTH,UNIQUE |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-0R010 |
ASA3#,GSA3#..NAP |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82153-0R010 |
ASA3#,GSA3#..NAP |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-0R020 |
ASA3#,GSA3#..NAP..SPO BACK MONITOR-WITH |
1 | ||
| 82184-0R090 |
ASA3#,GSA3#..NAP..SPO AUDIO-JBL,6CD CHANGER,SDARS,BLUETOOTH,UNIQUE |
1 | ||
| 82184-0R100 |
ASA3#,GSA3#..NAP..SPO AUDIO-JBL,6CD CHANGER,SDARS,BLUETOOTH,UNIQUE&BACK MONITOR-WITH |
1 | ||
| 82184-0R010 |
ASA3#,GSA3#..NAP..(SPO,STD) |
1 | ||
| Common parts | ||||
| 90080-11545 | ||||
| Linked diagrams | ||||
| 8504 | ||||
ILLUST NO. 5 OF10(0811- )NAP
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-0R080 |
ASA3#,GSA3#..NAP..SPO..USA SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 82161-0R010 |
ASA3#,GSA3#..NAP..(SPO,STD)..USA SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE) |
1 | ||
| 82161-0R140 |
ASA3#,GSA3#..NAP..SPO..USA SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 82161-0R070 |
ASA3#,GSA3#..NAP..SPO..USA SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE) |
1 | ||
| 82161-0R030 |
ASA3#,GSA3#..NAP..(SPO,STD)..USA |
1 | ||
| 82161-0R010 |
ASA3#,GSA3#..NAP..(SPO,STD)..USA PART NUMBER LABEL=82161-0R010 |
1 | ||
| 82161-0R030 |
ASA3#,GSA3#..NAP..(SPO,STD)..USA PART NUMBER LABEL=82161-0R030 |
1 | ||
| 82161-0R070 |
ASA3#,GSA3#..NAP..SPO..USA PART NUMBER LABEL=82161-0R070 |
1 | ||
| 82161-0R140 |
ASA3#,GSA3#..NAP..SPO..USA PART NUMBER LABEL=82161-0R140 |
1 | ||
| 82161-0R080 |
ASA3#,GSA3#..NAP..SPO..USA PART NUMBER LABEL=82161-0R080 |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-0R040 |
ASA3#,GSA3#..NAP..(SPO,STD)..USA |
1 | ||
| 82162-0R240 |
ASA3#,GSA3#..NAP..SPO..USA SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE)&AUDIO-JBL,6CD CHANGER,SDARS,BLUETOOTH,UNIQUE |
1 | ||
| 82162-0R250 |
ASA3#,GSA3#..NAP..SPO..USA AUDIO-JBL,6CD CHANGER,SDARS,BLUETOOTH,UNIQUE&BACK MONITOR-WITH |
1 | ||
| 82162-0R250 |
ASA3#,GSA3#..NAP..SPO..USA AUDIO-JBL,6CD CHANGER,SDARS,BLUETOOTH,UNIQUE |
1 | ||
| 82162-0R041 |
ASA3#,GSA3#..NAP..(SPO,STD)..USA BACK MONITOR-WITH |
1 | ||
| 82162-0R010 |
ASA3#,GSA3#..NAP..(SPO,STD)..USA SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE)&BACK MONITOR-WITH |
1 | ||
| 82162-0R240 |
ASA3#,GSA3#..NAP..SPO..USA SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE)&AUDIO-JBL,6CD CHANGER,SDARS,BLUETOOTH,UNIQUE&BACK MONITOR-WITH |
1 | ||
| 82162-0R221 |
ASA3#,GSA3#..NAP..(SPO,STD)..USA |
1 | ||
| 82162-0R042 |
ASA3#,GSA3#..NAP..(SPO,STD) BACK MONITOR-WITH |
1 | ||
| 82162-0R011 |
ASA3#,GSA3#..NAP..(SPO,STD)..USA SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE) |
1 | ||
| 82162-0R040 |
ASA3#,GSA3#..NAP..(SPO,STD)..USA PART NUMBER LABEL=82162-0R040 |
1 | ||
| 82162-0R222 |
ASA3#,GSA3#..NAP..(SPO,STD) |
1 | ||
| 82162-0R011 |
ASA3#,GSA3#..NAP..(SPO,STD)..USA SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE)&BACK MONITOR-WITH |
1 | ||
| 82162-0R010 |
ASA3#,GSA3#..NAP..(SPO,STD)..USA SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE) |
1 | ||
| 82162-0R240 |
ASA3#,GSA3#..NAP..SPO..USA PART NUMBER LABEL=82162-0R240 |
1 | ||
| 82162-0R041 |
ASA3#,GSA3#..NAP..(SPO,STD)..USA PART NUMBER LABEL=82162-0R041 |
1 | ||
| 82162-0R250 |
ASA3#,GSA3#..NAP..SPO..USA PART NUMBER LABEL=82162-0R250 |
1 | ||
| 82162-0R221 |
ASA3#,GSA3#..NAP..(SPO,STD)..USA PART NUMBER LABEL=82162-0R221 |
1 | ||
| 82162-0R010 |
ASA3#,GSA3#..NAP..(SPO,STD)..USA PART NUMBER LABEL=82162-0R010 |
1 | ||
| 82162-0R010 |
ASA3#,GSA3#..NAP..(SPO,STD)..USA PART NUMBER LABEL=82162-0R010 |
1 | ||
| 82162-0R042 |
ASA3#,GSA3#..NAP..(SPO,STD) PART NUMBER LABEL=82162-0R042 |
1 | ||
| 82162-0R222 |
ASA3#,GSA3#..NAP..(SPO,STD) PART NUMBER LABEL=82162-0R222 |
1 | ||
| 82162-0R011 |
ASA3#,GSA3#..NAP..(SPO,STD)..USA PART NUMBER LABEL=82162-0R011 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-0R080 |
ASA3#,GSA3#..NAP..SPO MOON ROOF-WITH&AUDIO-JBL,6CD CHANGER,SDARS,BLUETOOTH,UNIQUE&BACK MONITOR-WITH |
1 | ||
| 82171-0R020 |
ASA3#,GSA3#..NAP..SPO AUDIO-JBL,6CD CHANGER,SDARS,BLUETOOTH,UNIQUE&BACK MONITOR-WITH |
1 | ||
| 82171-0R080 |
ASA3#,GSA3#..NAP..(LIMD,SPO) MOON ROOF-WITH&BACK MONITOR-WITH |
1 | ||
| 82171-0R090 |
ASA3#,GSA3#..NAP..SPO AUDIO-JBL,6CD CHANGER,SDARS,BLUETOOTH,UNIQUE |
1 | ||
| 82171-0R030 |
ASA3#,GSA3#..NAP..SPO MOON ROOF-WITH&AUDIO-JBL,6CD CHANGER,SDARS,BLUETOOTH,UNIQUE |
1 | ||
| 82171-0R030 |
ASA3#,GSA3#..NAP..(LIMD,SPO) MOON ROOF-WITH |
1 | ||
| 82171-0R020 |
ASA3#,GSA3#..NAP..(LIMD,SPO) BACK MONITOR-WITH |
1 | ||
| 82171-0R010 |
ASA3#,GSA3#..NAP |
1 | ||
| 82171-0R020 |
ASA3#,GSA3#..NAP..SPO PART NUMBER LABEL=82171-0R020 |
1 | ||
| 82171-0R090 |
ASA3#,GSA3#..NAP |
1 | ||
| 82171-0R020 |
ASA3#,GSA3#..NAP..(LIMD,SPO) PART NUMBER LABEL=82171-0R020 |
1 | ||
| 82171-0R010 |
ASA3#,GSA3#..NAP PART NUMBER LABEL=82171-0R010 |
1 | ||
| 82171-0R030 |
ASA3#,GSA3#..NAP..(LIMD,SPO) PART NUMBER LABEL=82171-0R030 |
1 | ||
| 82171-0R030 |
ASA3#,GSA3#..NAP..SPO PART NUMBER LABEL=82171-0R030 |
1 | ||
| 82171-0R080 |
ASA3#,GSA3#..NAP..(LIMD,SPO) PART NUMBER LABEL=82171-0R080 |
1 | ||
| 82171-0R090 |
ASA3#,GSA3#..NAP..SPO PART NUMBER LABEL=82171-0R090 |
1 | ||
| 82171-0R090 |
ASA3#,GSA3#..NAP PART NUMBER LABEL=82171-0R090 |
1 | ||
| 82171-0R080 |
ASA3#,GSA3#..NAP..SPO PART NUMBER LABEL=82171-0R080 |
1 | ||
| 82412 - WIRE, FUEL GAGE | ||||
| 82412-0R010 |
ASA3#,GSA3#..NAP |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-42200 |
ASA3#,GSA3#..NAP |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-42260 |
ASA3#,GSA3#..NAP |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-42210 |
ASA3#,GSA3#..NAP |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-42280 |
ASA3#,GSA3#..NAP |
1 | ||
| 82671L - BLOCK, JUNCTION, NO.4 | ||||
| 82671-30360 |
ASA3#,GSA3#..NAP |
1 | ||
| 82824J - CONNECTOR, WIRING HARNESS | ||||
| 82824-22080 |
ASA3#,GSA3#..NAP |
1 | ||
| Common parts | ||||
| 90080-11545 | ||||
| Linked diagrams | ||||
| 4101 | ||||
| 8121 | ||||
ILLUST NO. 6 OF10(0811- )NAP
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-33140 |
ASA3#,GSA3#..NAP |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-0R010 |
ASA3#,GSA3#..NAP..SPO SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
ILLUST NO. 7 OF10(0811- )NAP
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-16790 | ||||
| 82711-35520 | ||||
| 82711-3F480 | ||||
| 82715-07110 | ||||
| 82715-0R010 | ||||
| 82715-0R020 | ||||
| 82715-0R030 | ||||
| 82715-0R040 | ||||
| 82715-0R050 | ||||
| 82715-0R090 | ||||
| 82715-0R100 | ||||
| 82715-0R110 | ||||
| 82715-0R120 | ||||
| 82715-0R130 | ||||
| 82715-0R140 | ||||
| 82715-0R150 | ||||
| 82715-0R170 | ||||
| 82715-0R180 | ||||
| 82715-0R200 | ||||
| 82715-0R210 | ||||
| 82715-0R230 | ||||
| 82715-41100 | ||||
| 82715-42C20 | ||||
| 82715-42C30 | ||||
| 82715-42C40 | ||||
| 82715-42C50 | ||||
| 82715-42C60 | ||||
| 82715-73080 | ||||
| 82715-73090 | ||||
| 82715-73100 | ||||
| 90119-A0142 | ||||
| 90119-A0165 | ||||
| 90119-A0182 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91671-80814 | ||||
| 91671-80816 | ||||
| 91671-80820 | ||||
| 91672-81020 | ||||
ILLUST NO. 9 OF10(0811- )NAP
CONNECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90980-10619 | ||||
| 90980-10797 | ||||
| 90980-10942 | ||||
| 90980-11003 | ||||
| 90980-11060 | ||||
| 90980-11070 | ||||
| 90980-11073 | ||||
| 90980-11095 | ||||
| 90980-11096 | ||||
| 90980-11856 | ||||
| 90980-12225 | ||||
| 90980-12390 | ||||
| 90980-12391 | ||||
| 90980-12392 | ||||
| 90980-12449 | ||||
| 90980-12450 | ||||
| 90980-12490 | ||||
| 90980-12699 | ||||
ILLUST NO.10 OF10(0811- )NAP
CONNECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10801 | ||||
| 90980-10803 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-11292 | ||||
| 90980-11909 | ||||
| 90980-12038 | ||||
| 90980-12382 | ||||
| 90980-12404 | ||||
| 90980-12460 | ||||
| 90980-12551 | ||||
| 90980-12554 | ||||
ILLUST NO. 8 OF10(0811- )NAP
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-A7020 |
GSA3#..NAP |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-A7020 |
GSA3#..NAP |
1 | ||
| 82001C - CABLE, BOND, NO.2 | ||||
| 90980-A7021 |
GSA3#..NAP |
1 | ||
| Common parts | ||||
| 90080-11545 | ||||
| 90105-A0105 | ||||
| 90119-A0160 | ||||
ILLUST NO. 1 OF10(0811- )NAP
ENGINE ROOM 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
