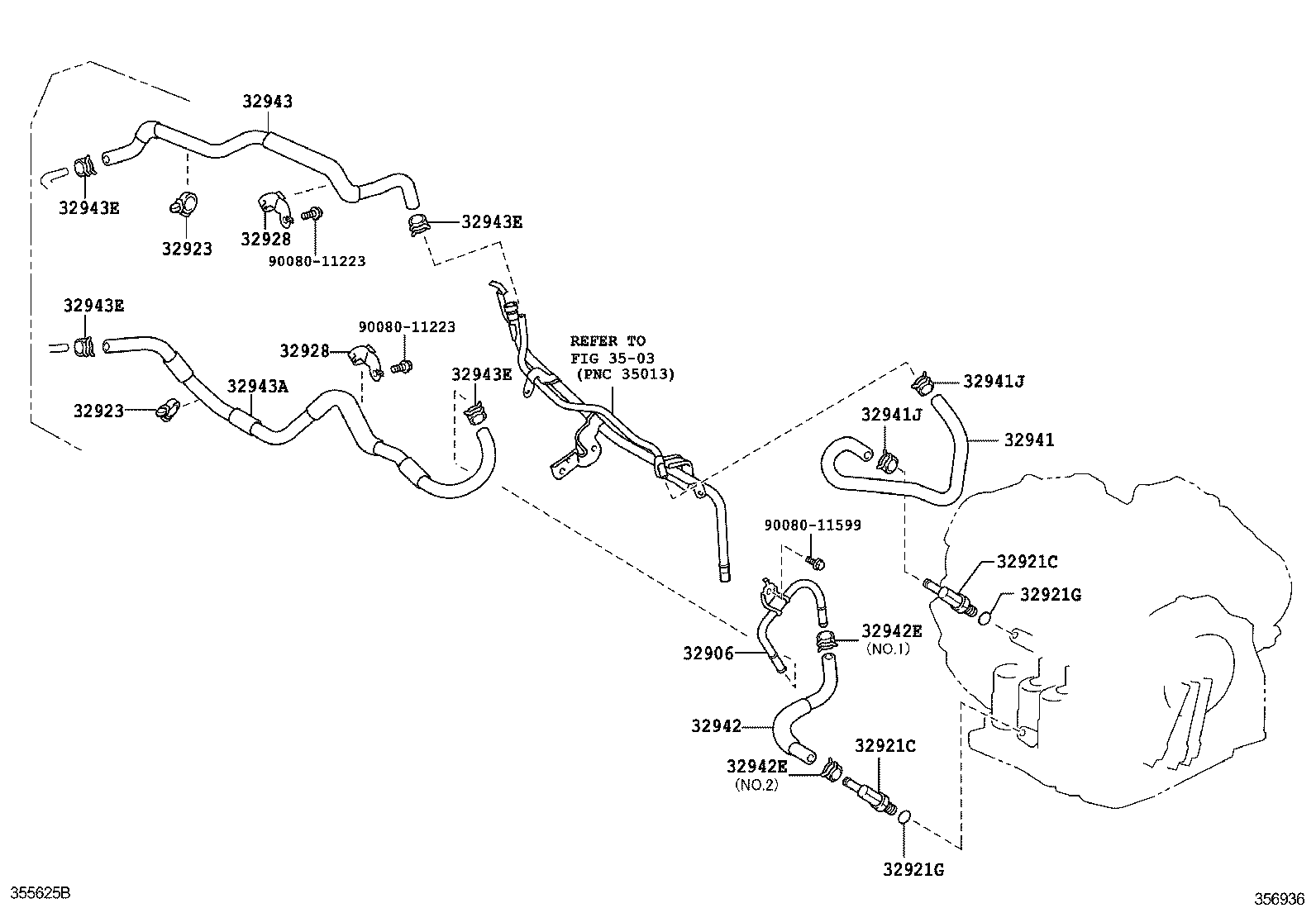

Toyota Rav4 (nap) GSA38 OIL COOLER & TUBE (ATM)

Part #	Description	Period	Qty
32906 - TUBE SUB-ASSY, OIL COOLER
32907-42030	GSA3#..NAP	11/2008 - 12/2999	1
32921C - UNION(FOR OIL COOLER TUBE)
90407-13009	GSA3#..NAP	11/2008 - 12/2999	2
32921C - UNION(FOR OIL COOLER TUBE)
90407-13009	GSA3#..NAP	11/2008 - 12/2999	2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189	ASA3#,GSA3#..NAP	11/2008 - 12/2999	2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189	ASA3#,GSA3#..NAP	11/2008 - 12/2999	2
32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
82711-51020	GSA3#..NAP	11/2008 - 12/2999	2
32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
82711-51020	GSA3#..NAP	11/2008 - 12/2999	2
32928 - CLAMP, FLEXIBLE HOSE, NO.1
32928-42010	GSA3#..NAP	11/2008 - 12/2999	2
32928 - CLAMP, FLEXIBLE HOSE, NO.1
32928-42010	GSA3#..NAP	11/2008 - 12/2999	2
32941 - HOSE, OIL COOLER INLET, NO.1
32941-42030	GSA3#..NAP	11/2008 - 12/2999	1
32941J - CLIP, NO.1(FOR OIL COOLER HOSE)
90466-16004	GSA3#..NAP	11/2008 - 04/2010	2
90466-16004	GSA3#..NAP (J)	04/2010 - 12/2999	2
90466-A0014	GSA3#..NAP (L)	04/2010 - 12/2999	2
32941J - CLIP, NO.1(FOR OIL COOLER HOSE)
90466-16004	GSA3#..NAP	11/2008 - 04/2010	2
90466-16004	GSA3#..NAP (J)	04/2010 - 12/2999	2
90466-A0014	GSA3#..NAP (L)	04/2010 - 12/2999	2
32942 - HOSE, OIL COOLER OUTLET, NO.1
32942-42020	GSA3#..NAP	11/2008 - 12/2999	1
32942E - CLIP, NO.2(FOR OIL COOLER HOSE)
90467-16022	GSA3#..NAP NO.1	11/2008 - 01/2009	1
90466-A0014	GSA3#..NAP (L),NO.2	04/2010 - 12/2999	1
90466-16004	GSA3#..NAP (J),NO.2	04/2010 - 12/2999	1
90466-16004	GSA3#..NAP NO.2	11/2008 - 04/2010	1
90466-16004	GSA3#..NAP NO.1	02/2009 - 12/2999	1
32942E - CLIP, NO.2(FOR OIL COOLER HOSE)
90467-16022	GSA3#..NAP NO.1	11/2008 - 01/2009	1
90466-A0014	GSA3#..NAP (L),NO.2	04/2010 - 12/2999	1
90466-16004	GSA3#..NAP (J),NO.2	04/2010 - 12/2999	1
90466-16004	GSA3#..NAP NO.2	11/2008 - 04/2010	1
90466-16004	GSA3#..NAP NO.1	02/2009 - 12/2999	1
32943 - HOSE, TRANSMISSION OIL COOLER, NO.1
32943-42030	GSA3#..NAP	11/2008 - 12/2999	1
32943A - HOSE, TRANSMISSION OIL COOLER, NO.2
32943-0R010	GSA3#..NAP	11/2008 - 12/2999	1
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
90466-16004	GSA3#..NAP	11/2008 - 04/2010	4
90466-16004	GSA3#..NAP (J)	04/2010 - 12/2999	4
90466-A0014	GSA3#..NAP (L)	04/2010 - 12/2999	4
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
90466-16004	GSA3#..NAP	11/2008 - 04/2010	4
90466-16004	GSA3#..NAP (J)	04/2010 - 12/2999	4
90466-A0014	GSA3#..NAP (L)	04/2010 - 12/2999	4
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
90466-16004	GSA3#..NAP	11/2008 - 04/2010	4
90466-16004	GSA3#..NAP (J)	04/2010 - 12/2999	4
90466-A0014	GSA3#..NAP (L)	04/2010 - 12/2999	4
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
90466-16004	GSA3#..NAP	11/2008 - 04/2010	4
90466-16004	GSA3#..NAP (J)	04/2010 - 12/2999	4
90466-A0014	GSA3#..NAP (L)	04/2010 - 12/2999	4
Common parts
90080-11223
90080-11599
Linked diagrams
3503

GSA38L-CNASKA (2008)

(0811- )GSA3#..NAP
