GSA38L-CNASKA (2008)
Toyota Rav4 (Nap)
(0811- )2GRFE..NAP
12V 100A,12V 150A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

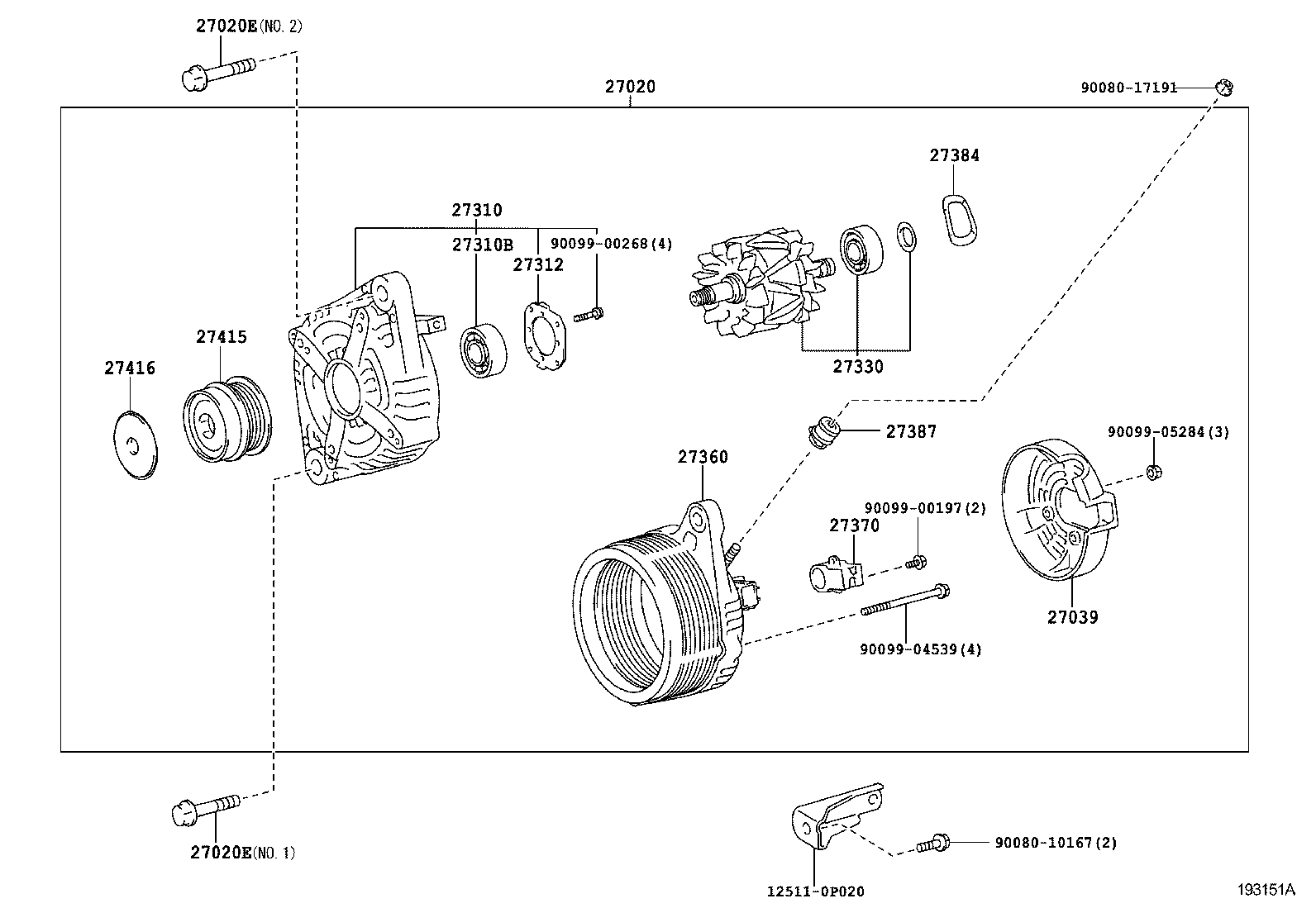

| 27020 - ALTERNATOR ASSY | ||||
| 27060-0P241 |
2GRFE..GSA3#..NAP 12V 150A,WITH(TOWING PACKAGE) |
1 | ||
| 27060-0P141 |
2GRFE..GSA3#..NAP 12V 100A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-A0129 |
2GRFE..GSA3#..NAP NO.2 |
1 | ||
| 90105-A0166 |
2GRFE..GSA3#..NAP NO.1 |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-A0129 |
2GRFE..GSA3#..NAP NO.2 |
1 | ||
| 90105-A0166 |
2GRFE..GSA3#..NAP NO.1 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-0A110 |
2GRFE..GSA3#..NAP |
1 | ||
| 27039-0T040 |
2GRFE..GSA3#..NAP |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-0P140 |
2GRFE..GSA3#..NAP |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90068-10033 |
2ARFE,2GRFE..ASA3#,GSA3#..NAP |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
2ARFE,2GRFE..ASA3#,GSA3#..NAP |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-0A110 |
2GRFE..GSA3#..NAP WITH(TOWING PACKAGE) |
1 | ||
| 27330-0F060 |
2ARFE,2GRFE..ASA3#,GSA3#..NAP |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-0P240 |
2GRFE..GSA3#..NAP WITH(TOWING PACKAGE) |
1 | ||
| 27360-0P140 |
2GRFE..GSA3#..NAP |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-0P020 |
2ARFE,2GRFE..ASA3#,GSA3#..NAP |
1 | ||
| 27384 - WASHER | ||||
| 27384-0A020 |
2ARFE,2GRFE..ASA3#,GSA3#..NAP |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-20130 |
2ARFE,2GRFE..ASA3#,GSA3#..NAP |
1 | ||
| 27387-0V060 |
2ARFE,2GRFE..ASA3#,GSA3#..NAP |
1 | ||
| 27415 - PULLEY, ALTERNATOR W/CLUTCH | ||||
| 27415-0W130 |
2GRFE..GSA3#..NAP |
1 | ||
| 27416 - CAP, ALTERNATOR PULLEY | ||||
| 27416-0W050 |
2ARFE,2GRFE..ASA3#,GSA3#..NAP |
1 | ||
| Common parts | ||||
| 12511-0P020 | ||||
| 90080-10167 | ||||
| 90080-17191 | ||||
| 90099-00197 | ||||
| 90099-00268 | ||||
| 90099-04539 | ||||
| 90099-05284 | ||||
