GSA38L-CNASKA (2008)
Toyota Rav4 (Nap)
(0811- )2GRFE..NAP

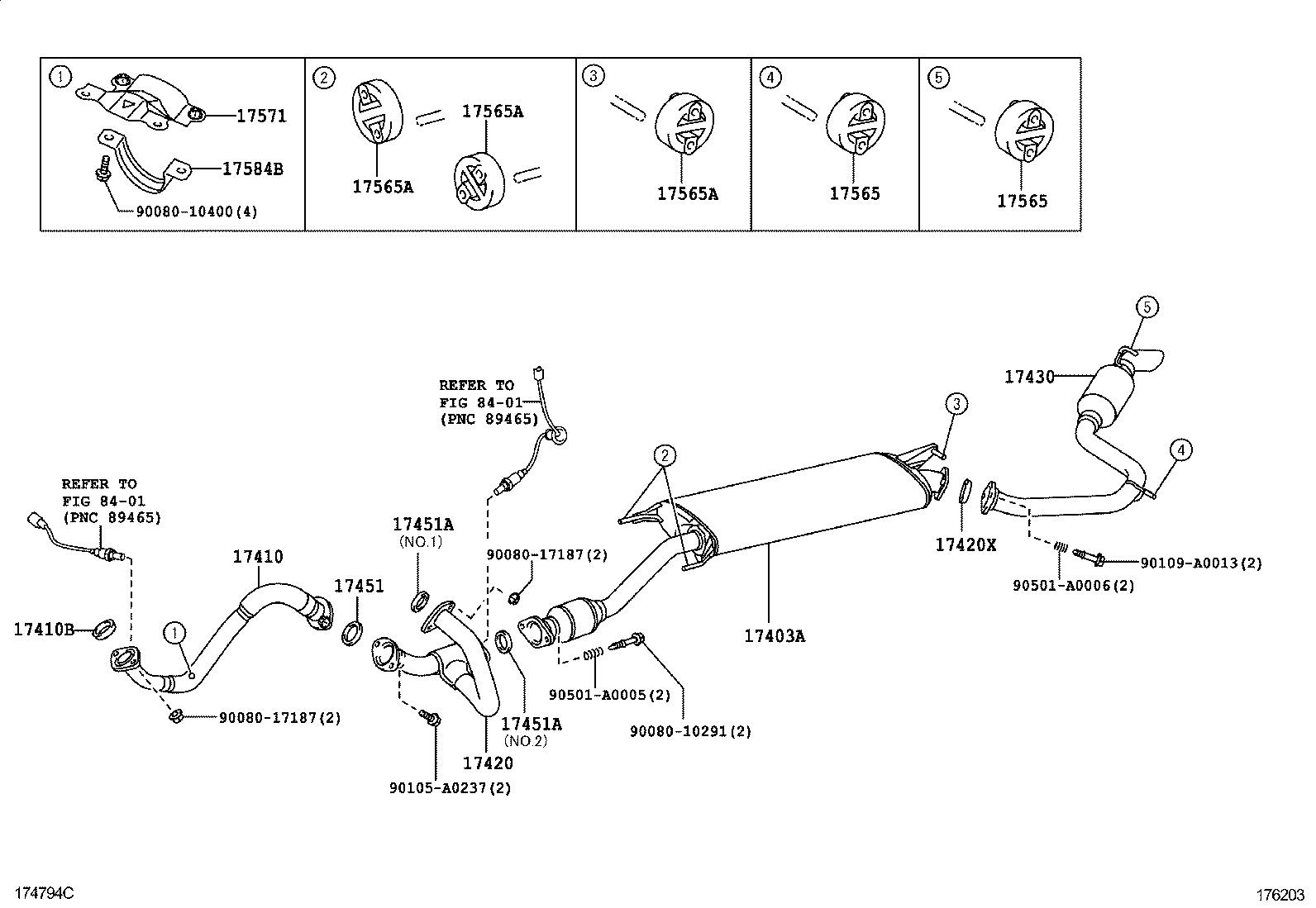

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17403A - PIPE SUB-ASSY, EXHAUST, CENTER NO.2 | ||||
| 17404-0P020 |
2GRFE..GSA3#..NAP |
1 | ||
| 17404-0P022 |
2GRFE..GSA3#..NAP |
1 | ||
| 17404-0P021 |
2GRFE..GSA3#..NAP |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-0P241 |
2GRFE..GSA3#..NAP |
1 | ||
| 17410-0P240 |
2GRFE..GSA3#..NAP |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06089 |
2GRFE..GSA3#..NAP |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17403-0P080 |
2GRFE..GSA3#..NAP |
1 | ||
| 17403-0P081 |
2GRFE..GSA3#..NAP |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 17451-0P021 |
2ARFE,2GRFE..ASA3#,GSA3#..NAP |
1 | ||
| 17451-0P022 |
2ARFE,2GRFE..ASA3#,GSA3#..NAP |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-0P191 |
2GRFE..GSA3#..NAP |
1 | ||
| 17430-0P190 |
2GRFE..GSA3#..NAP |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06078 |
2ARFE,2GRFE..ASA3#,GSA3#..NAP |
1 | ||
| 17451A - GASKET, EXHAUST PIPE, NO.2 | ||||
| 17451-0D140 |
2GRFE..GSA3#..NAP NO.2 |
1 | ||
| 90917-06089 |
2GRFE..GSA3#..NAP NO.1 |
1 | ||
| 17451A - GASKET, EXHAUST PIPE, NO.2 | ||||
| 17451-0D140 |
2GRFE..GSA3#..NAP NO.2 |
1 | ||
| 90917-06089 |
2GRFE..GSA3#..NAP NO.1 |
1 | ||
| 17565 - SUPPORT, EXHAUST PIPE, NO.5 | ||||
| 17565-0P030 |
2ARFE,2GRFE..ASA3#,GSA3#..NAP |
2 | ||
| 17565-0P031 |
2ARFE,2GRFE..ASA3#,GSA3#..NAP |
2 | ||
| 17565 - SUPPORT, EXHAUST PIPE, NO.5 | ||||
| 17565-0P030 |
2ARFE,2GRFE..ASA3#,GSA3#..NAP |
2 | ||
| 17565-0P031 |
2ARFE,2GRFE..ASA3#,GSA3#..NAP |
2 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-0P041 |
2ARFE,2GRFE..ASA3#,GSA3#..NAP |
3 | ||
| 17565-0P040 |
2ARFE,2GRFE..ASA3#,GSA3#..NAP |
3 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-0P041 |
2ARFE,2GRFE..ASA3#,GSA3#..NAP |
3 | ||
| 17565-0P040 |
2ARFE,2GRFE..ASA3#,GSA3#..NAP |
3 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-0P041 |
2ARFE,2GRFE..ASA3#,GSA3#..NAP |
3 | ||
| 17565-0P040 |
2ARFE,2GRFE..ASA3#,GSA3#..NAP |
3 | ||
| 17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17571-0P120 |
2GRFE..GSA3#..NAP |
1 | ||
| 17584B - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17584-0P130 |
2GRFE..GSA3#..NAP |
1 | ||
| Common parts | ||||
| 90080-10291 | ||||
| 90080-10400 | ||||
| 90080-17187 | ||||
| 90105-A0237 | ||||
| 90109-A0013 | ||||
| 90501-A0005 | ||||
| 90501-A0006 | ||||
| Linked diagrams | ||||
| 8401 | ||||
