GSA38L-CNASKA (2008)

Toyota Rav4 (Nap)

Production Nov 2008 - Jan 2013
Engine 2GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )2GRFE..NAP

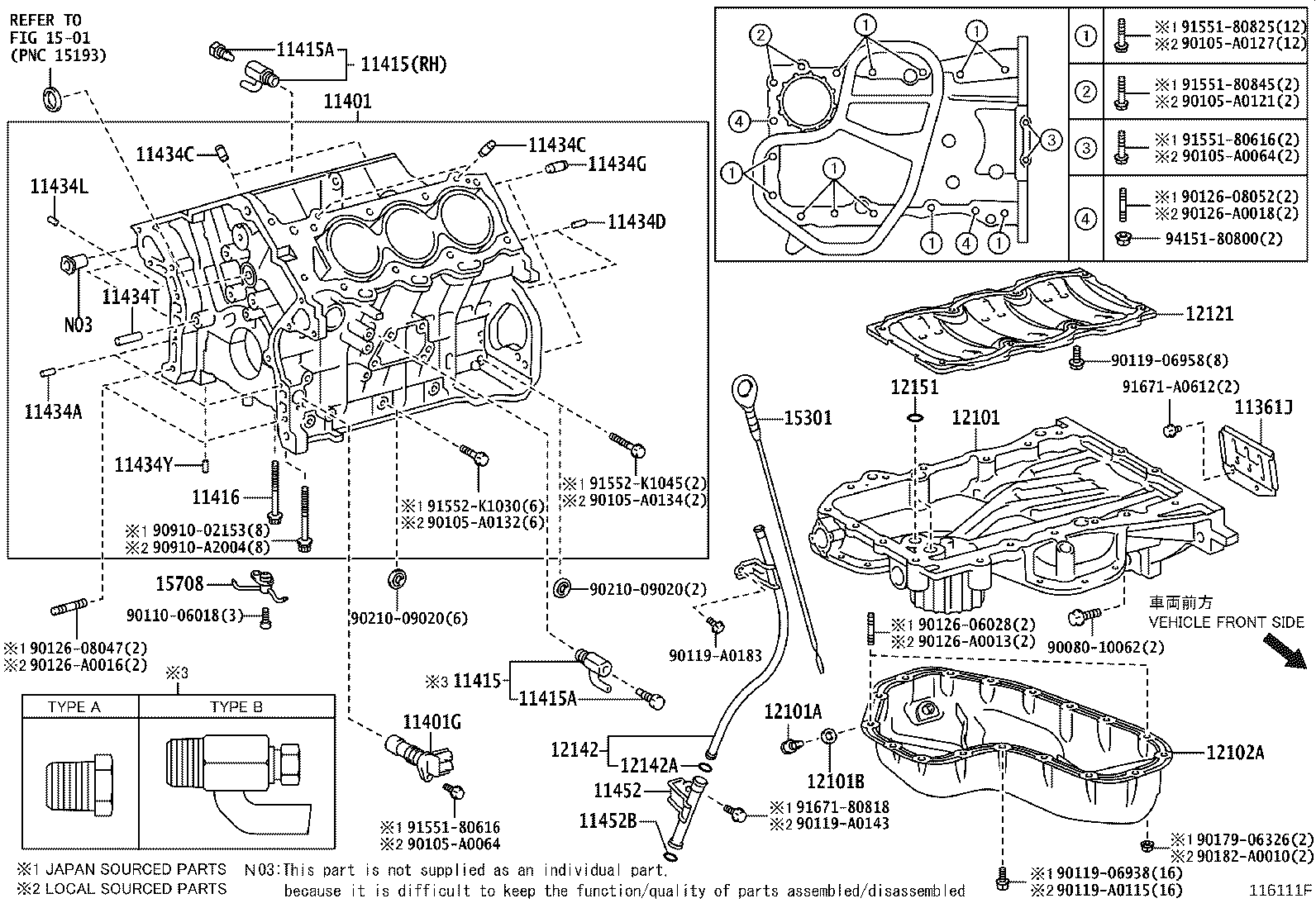

Click highlighted areas on diagram

diagram 11361J 11401 11401G 11415 11415 11415A 11415A 11416 11434A 11434C 11434C 11434D 11434G 11434L 11434T 11434Y 11452 11452B 12101 12101A 12101B 12102A 12121 12142 12142A 12151 1501 15301 15708 9008010062 90105A0064 90105A0064 90105A0121 90105A0127 90105A0132 90105A0134 9011006018 9011906938 9011906958 90119A0115 90119A0143 90119A0183 9012606028 9012608047 9012608052 90126A0013 90126A0016 90126A0018 9017906326 90182A0010 9021009020 9021009020 9091002153 90910A2004 9155180616 9155180616 9155180825 9155180845 91552K1030 91552K1045 9167180818 91671A0612 9415180800
Part # Description Qty Price
11361J - COVER, FLYWHEEL HOUSING UNDER
11361-0P020

2GRFE..GSA3#..NAP

 1
11401 - BLOCK SUB-ASSY, CYLINDER
11401-80774

2GRFE..GSA3#..NAP

(J)

 1
11401-09600

2GRFE..GSA3#..NAP

(L)

 1
11401G - SENSOR, CRANK POSITION
90919-A5003

2GRFE..GSA3#..NAP

(L)

 1
90919-05057

2GRFE..GSA3#..NAP

(J)

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09129

2GRFE..GSA3#..NAP

 2
90910-09129

2GRFE..GSA3#..NAP

LH,TYPE B:REF.ILL.

 1
90345-52001

2GRFE..GSA3#..NAP

LH,TYPE A:REF.ILL.

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09129

2GRFE..GSA3#..NAP

 2
90910-09129

2GRFE..GSA3#..NAP

LH,TYPE B:REF.ILL.

 1
90345-52001

2GRFE..GSA3#..NAP

LH,TYPE A:REF.ILL.

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09087

2GRFE..GSA3#..NAP

 2
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09087

2GRFE..GSA3#..NAP

 2
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02154

2GRFE..GSA3#..NAP

(J)

 8
90910-02154

2GRFE..GSA3#..NAP

(J)

 8
90910-A2005

2GRFE..GSA3#..NAP

(L)

 8
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-04097

2GRFE..GSA3#..NAP

L=12,OD=4.0

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08120

2GRFE..GSA3#..NAP

L=18,OD=8

 4
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08120

2GRFE..GSA3#..NAP

L=18,OD=8

 4
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-04097

2GRFE..GSA3#..NAP

L=12,OD=4.0

 2
11434G - PIN, STRAIGHT(FOR END PLATE)
90250-10113

2GRFE..GSA3#..NAP

 2
11434L - PIN, STRAIGHT(FOR ENGINE MOUNTING)
90250-04097

2GRFE..GSA3#..NAP

 2
11434T - PIN, RING(FOR TIMING BELT IDLER BRACKET SET)
90250-10030

2GRFE..GSA3#..NAP

 1
11434Y - PIN, STRAIGHT(FOR OIL PAN)
90250-04097

2GRFE..GSA3#..NAP

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-0P010

2GRFE..GSA3#..NAP

(L)

 1
11452-31060

2GRFE..GSA3#..NAP

(J)

 1
11452B - RING, O(FOR OIL LEVEL GAGE GUIDE)
90301-12018

2GRFE..GSA3#..NAP

 1
12101 - PAN SUB-ASSY, OIL
12101-0P040

2GRFE..GSA3#..NAP

(L)

 1
12101-31121

2GRFE..GSA3#..NAP

(J)

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

2GRFE..GSA3#..NAP

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

2GRFE..GSA3#..NAP

 1
12102A - PAN SUB-ASSY, OIL, NO.2
12102-31051

2GRFE..GSA3#..NAP

(J)

 1
12102-31050

2GRFE..GSA3#..NAP

(J)

 1
12102-0P020

2GRFE..GSA3#..NAP

(L)

 1
12121 - PLATE, OIL PAN BAFFLE, NO.1
12121-0P010

2GRFE..GSA3#..NAP

(L)

 1
12121-31070

2GRFE..GSA3#..NAP

(J)

 1
12142 - GUIDE, OIL LEVEL GAGE, NO.2
12142-0P010

2GRFE..GSA3#..NAP

 1
12142A - RING, O(FOR OIL LEVEL GAGE GUIDE, NO.2)
96721-19010

2GRFE..GSA3#..NAP

 1
12151 - GASKET, OIL PAN
12151-0P010

2GRFE..GSA3#..NAP

(L)

 2
12151-31010

2GRFE..GSA3#..NAP

(J)

 2
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-0P020

2GRFE..GSA3#..NAP

 1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-31030

2GRFE..GSA3#..NAP

 3
Common parts
90080-10062
90105-A0064
90105-A0121
90105-A0127
90105-A0132
90105-A0134
90110-06018
90119-06938
90119-06958
90119-A0115
90119-A0143
90119-A0183
90126-06028
90126-08047
90126-08052
90126-A0013
90126-A0016
90126-A0018
90179-06326
90182-A0010
90210-09020
90910-02153
90910-A2004
91551-80616
91551-80825
91551-80845
91552-K1030
91552-K1045
91671-80818
91671-A0612
94151-80800
Linked diagrams
1501
