AXAL54L-CNXMBA (2020)

Toyota Rav4 (Nap)

Production Sep 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

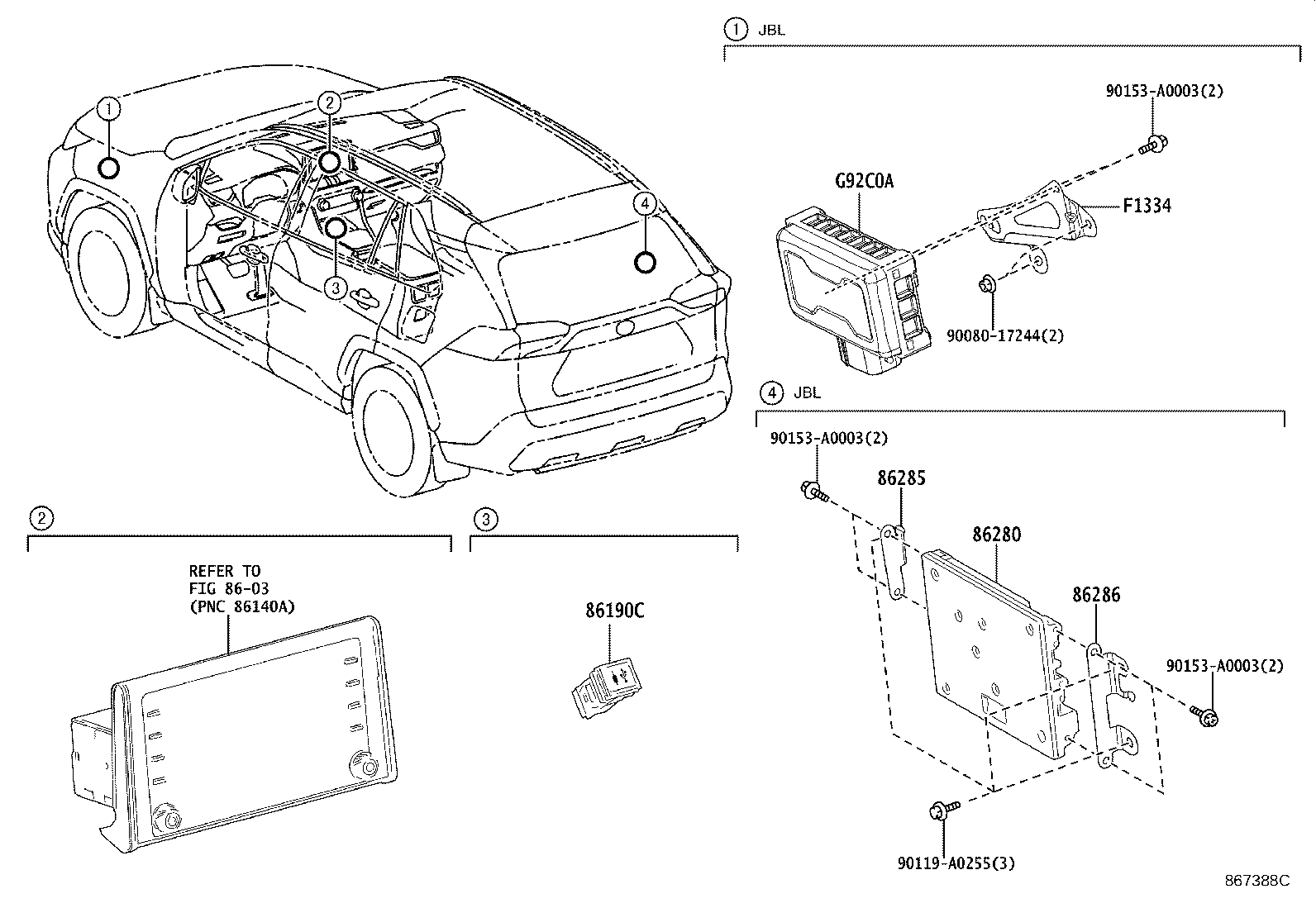

ILLUST NO. 1 OF 2(1812- )

Click highlighted areas on diagram

AMPLIFIER

diagram 8603 86190C 86280 86285 86286 9008017244 90119A0255 90153A0003 90153A0003 90153A0003 F1334 G92C0A
Part # Description Qty Price
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-42031

AXAA5#,AXAH54,AXAL54

 1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-0R060

AXAA5#,AXAH54,AXAL54..M..USA

AUDIO-JBL & 8INCH DISPLAY

 1
86280-0R060

AXAA5#..(G,V)..USA;AXAH54,AXAL54..(G,M)..USA

AUDIO-JBL & 8INCH DISPLAY & AVN

 1
86285 - BRACKET, AMPLIFIER, NO.1
86285-0R030

AXAA5#,AXAH54,AXAL54..M..USA

AUDIO-JBL & 8INCH DISPLAY

 1
86285-0R030

AXAA5#..(G,V)..USA;AXAH54,AXAL54..(G,M)..USA

AUDIO-JBL & 8INCH DISPLAY & AVN

 1
86286 - BRACKET, AMPLIFIER, NO.2
86286-0R030

AXAA5#..(G,V)..USA;AXAH54,AXAL54..(G,M)..USA

AUDIO-JBL & 8INCH DISPLAY & AVN

 1
86286-0R030

AXAA5#,AXAH54,AXAL54..M..USA

AUDIO-JBL & 8INCH DISPLAY

 1
Common parts
90080-17244
90119-A0255
90153-A0003
Linked diagrams
8603

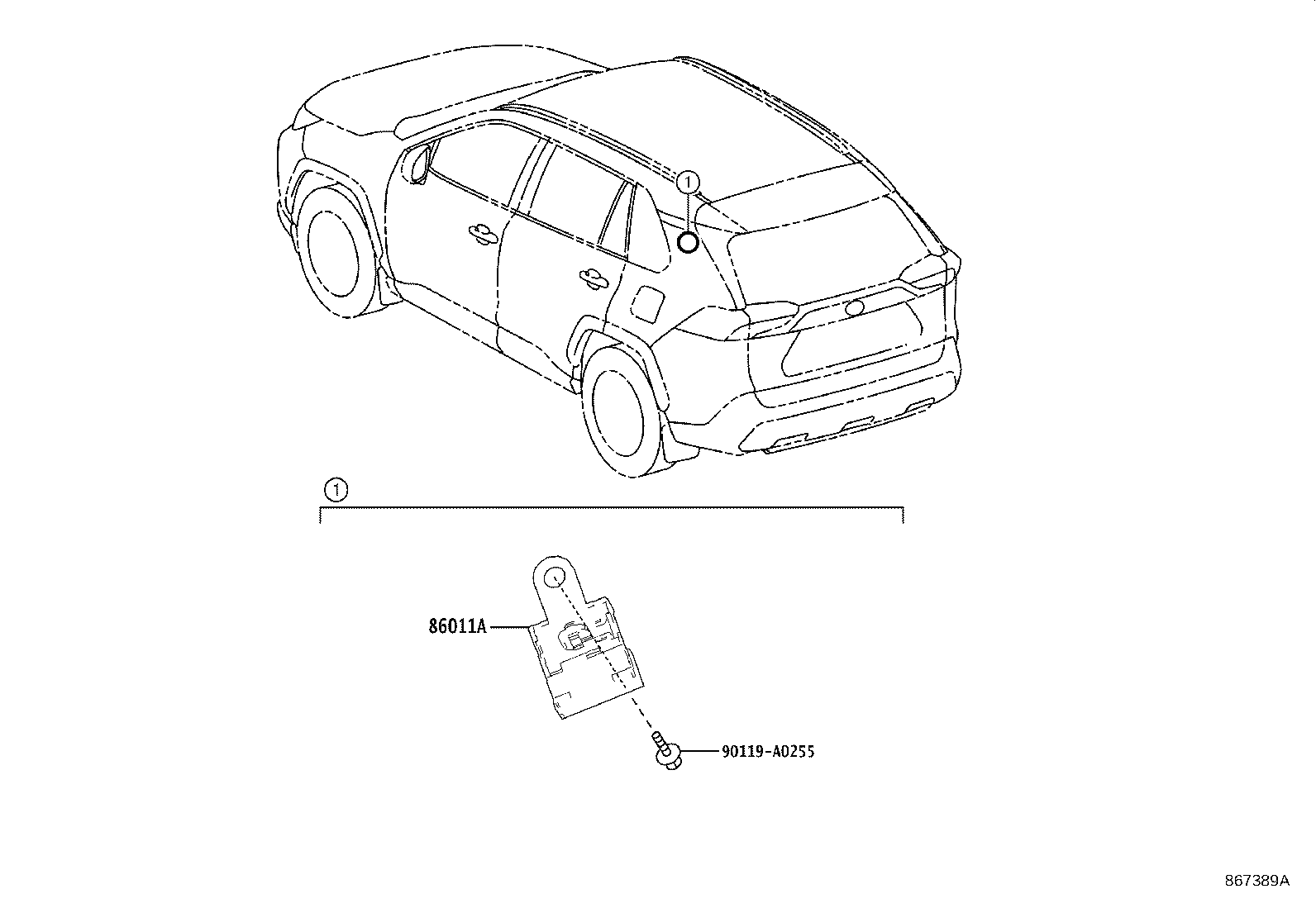

ILLUST NO. 2 OF 2(1812- )

Click highlighted areas on diagram

CONDENSER

diagram 86011A 90119A0255
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04189

AXAA5#,AXAH54,AXAL54

 1
Common parts
90119-A0255
