AXAL54L-CNXMBA (2020)
Toyota Rav4 (Nap)
(1812- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

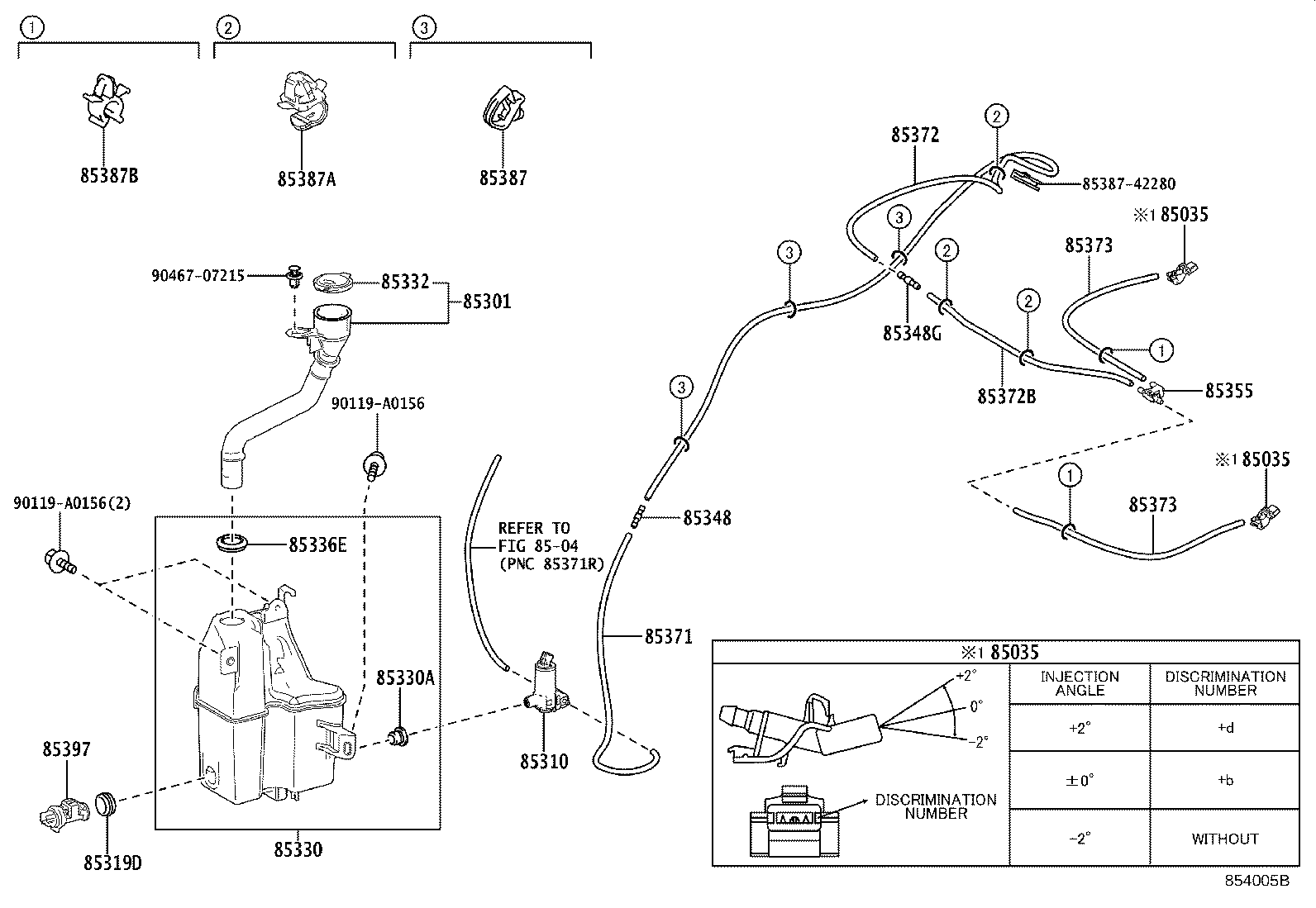

| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-30220 |
AXAA5#,AXAH54,AXAL54 ANGLE 0 |
2 | ||
| 85381-30230 |
AXAA5#,AXAH54,AXAL54 ANGLE -2 |
2 | ||
| 85381-30240 |
AXAA5#,AXAH54,AXAL54 ANGLE +2 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-30220 |
AXAA5#,AXAH54,AXAL54 ANGLE 0 |
2 | ||
| 85381-30230 |
AXAA5#,AXAH54,AXAL54 ANGLE -2 |
2 | ||
| 85381-30240 |
AXAA5#,AXAH54,AXAL54 ANGLE +2 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-30220 |
AXAA5#,AXAH54,AXAL54 ANGLE 0 |
2 | ||
| 85381-30230 |
AXAA5#,AXAH54,AXAL54 ANGLE -2 |
2 | ||
| 85381-30240 |
AXAA5#,AXAH54,AXAL54 ANGLE +2 |
2 | ||
| 85301 - INLET SUB-ASSY, WASHER | ||||
| 85301-0R020 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-0E031 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 85319D - PACKING, FRONT WASHER | ||||
| 85319-AA020 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-0R060 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-24130 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 85336E - PACKING, WINDSHIELD WASHER INLET HOSE | ||||
| 85336-30160 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85375-0E010 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85317-02300 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85321-28020 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90068-33333 |
AXAA5#,AXAH54,AXAL54 L=590 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90068-33334 |
AXAA5#,AXAH54,AXAL54 L=1690 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90068-33094 |
AXAA5#,AXAH54,AXAL54 L=500 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90068-33087 |
AXAA5#,AXAH54,AXAL54 L=470 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90068-33087 |
AXAA5#,AXAH54,AXAL54 L=470 |
2 | ||
| 85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER) | ||||
| 82711-16790 |
AXAA5#,AXAH54,AXAL54 |
3 | ||
| 85387A - CLAMP, WASHER, NO.2 | ||||
| 85371-12040 |
AXAA5#,AXAH54,AXAL54 |
3 | ||
| 85387B - CLAMP, WASHER, NO.3 | ||||
| 90469-07011 |
AXAA5#,AXAH54,AXAL54 |
2 | ||
| 85397 - SWITCH ASSY,LEVEL WARNING | ||||
| 85397-AA040 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| Common parts | ||||
| 85387-42280 | ||||
| 90119-A0156 | ||||
| 90467-07215 | ||||
| Linked diagrams | ||||
| 8504 | ||||
