AXAL54L-CNXMBA (2020)

Toyota Rav4 (Nap)

Production Sep 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1812- )

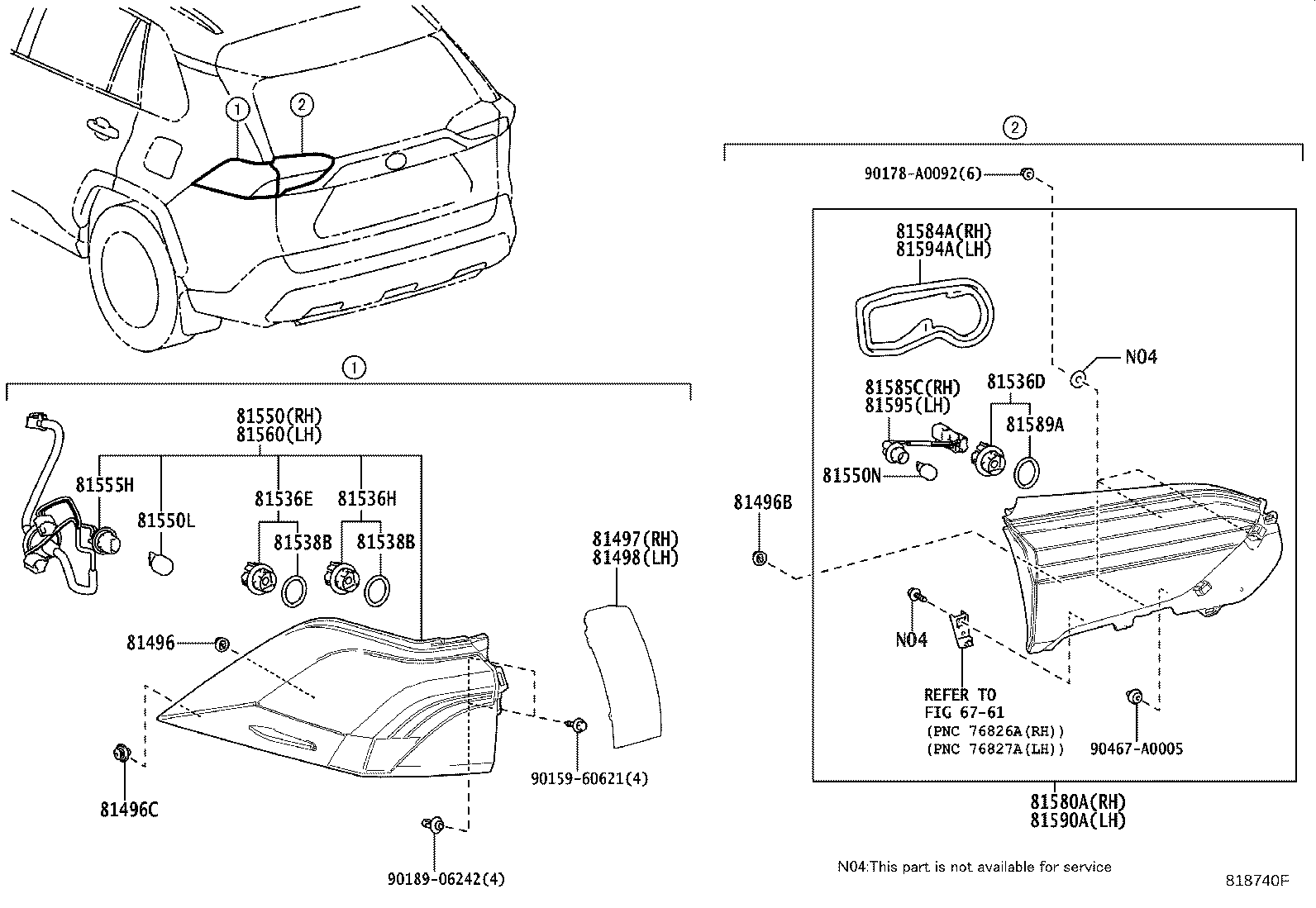

Click highlighted areas on diagram

VALEO

diagram 6761 81496 81496B 81496C 81497 81498 81536D 81536E 81536H 81538B 81538B 81550 81550L 81550N 81555H 81560 81580A 81584A 81585C 81589A 81590A 81594A 81595 9015960621 90178A0092 9018906242 90467A0005
Part # Description Qty Price
81496 - GUIDE, REAR COMBINATION LAMP
81496-0E020

AXAA5#,AXAH54,AXAL54

 2
81496B - GUIDE, REAR LAMP
81496-0E020

AXAA5#,AXAH54,AXAL54

 2
81496C - GUIDE, REAR COMBINATION LAMP, NO.2
81496-60010

AXAA5#,AXAH54,AXAL54

 2
81497 - COVER, REAR COMBINATION LAMP, RH
81497-0R010

AXAA5#,AXAH54,AXAL54

 1
81498 - COVER, REAR COMBINATION LAMP, LH
81498-0R010

AXAA5#,AXAH54,AXAL54

 1
81536D - LED, TAIL LAMP
81536-42200

AXAA5#,AXAH54,AXAL54

 2
81536E - LED, STOP LAMP
81536-42200

AXAA5#,AXAH54,AXAL54

 2
81536H - LED, TAIL LAMP, NO.2
81536-42230

AXAA5#,AXAH54,AXAL54

 2
81538B - GASKET, REAR COMBINATION LAMP, NO.3 RH
81538-42200

AXAA5#,AXAH54,AXAL54

NO.1

 2
81538B - GASKET, REAR COMBINATION LAMP, NO.3 RH
81538-42200

AXAA5#,AXAH54,AXAL54

NO.1

 2
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-0R090

AXAA5#,AXAH54,AXAL54

 1
81550L - BULB, REAR TURN SIGNAL LAMP
90981-15011

AXAA5#,AXAH54,AXAL54

12V 21W,AMBER

 2
81550N - BULB, BACK UP LAMP
90981-11059

AXAA5#,AXAH54,AXAL54

12V 16W

 2
81555H - SOCKET & WIRE, REAR COMBINATION LAMP
81555-42220

AXAA5#,AXAH54,AXAL54

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-0R090

AXAA5#,AXAH54,AXAL54

 1
81580A - LAMP ASSY, REAR
81580-0R060

AXAA5#,AXAH54,AXAL54

 1
81584A - GASKET, REAR LAMP RH
81584-42080

AXAA5#,AXAH54,AXAL54

 1
81585C - SOCKET & WIRE, REAR LAMP, RH
81585-42080

AXAA5#,AXAH54,AXAL54

 1
81589A - GASKET, REAR LAMP
81538-42200

AXAA5#,AXAH54,AXAL54

 1
81590A - LAMP ASSY, REAR, LH
81590-0R060

AXAA5#,AXAH54,AXAL54

 1
81594A - GASKET, REAR LAMP LH
81594-42050

AXAA5#,AXAH54,AXAL54

 1
81595 - SOCKET & WIRE, REAR LAMP, LH
81585-42080

AXAA5#,AXAH54,AXAL54

 1
Common parts
90159-60621
90178-A0092
90189-06242
90467-A0005
Linked diagrams
6761

(2009- )

Click highlighted areas on diagram

ICHIKOH

diagram 81496 81496B 81496C 81497 81498 81536D 81536E 81536H 81538B 81538B 81550L 81550N 81551D 81555H 8155A42220 8155A42220 8155A42220 8155A42220 81561D 81581C 81584A 81584D 81585C 81589A 81591B 81594A 81595 9015960621 90178A0092 9018906242 9046709206
Part # Description Qty Price
81496 - GUIDE, REAR COMBINATION LAMP
81496-0E020

AXAA5#,AXAH54,AXAL54

 2
81496B - GUIDE, REAR LAMP
81496-0E020

AXAA5#,AXAH54,AXAL54

 2
81496C - GUIDE, REAR COMBINATION LAMP, NO.2
81496-60010

AXAA5#,AXAH54,AXAL54

 2
81497 - COVER, REAR COMBINATION LAMP, RH
81497-0R010

AXAA5#,AXAH54,AXAL54

 1
81498 - COVER, REAR COMBINATION LAMP, LH
81498-0R010

AXAA5#,AXAH54,AXAL54

 1
81536D - LED, TAIL LAMP
81536-42200

AXAA5#,AXAH54,AXAL54

 2
81536E - LED, STOP LAMP
81536-42200

AXAA5#,AXAH54,AXAL54

 2
81536H - LED, TAIL LAMP, NO.2
81536-42230

AXAA5#,AXAH54,AXAL54

 2
81538B - GASKET, REAR COMBINATION LAMP, NO.3 RH
81538-42200

AXAA5#,AXAH54,AXAL54

NO.1

 2
81538B - GASKET, REAR COMBINATION LAMP, NO.3 RH
81538-42200

AXAA5#,AXAH54,AXAL54

NO.1

 2
81550L - BULB, REAR TURN SIGNAL LAMP
90981-15011

AXAA5#,AXAH54,AXAL54

12V 21W,AMBER

 2
81550N - BULB, BACK UP LAMP
90981-11059

AXAA5#,AXAH54,AXAL54

12V 16W

 2
81551D - LENS & BODY, REAR COMBINATION LAMP, RH
81551-42221

AXAA5#,AXAH54,AXAL54

 1
81555H - SOCKET & WIRE, REAR COMBINATION LAMP
81555-42220

AXAA5#,AXAH54,AXAL54

 1
81561D - LENS & BODY, REAR COMBINATION LAMP, LH
81561-42221

AXAA5#,AXAH54,AXAL54

 1
81581C - LENS AND BODY, REAR LAMP, RH
81581-42151

AXAA5#,AXAH54,AXAL54

 1
81584A - GASKET, REAR LAMP RH
81584-42080

AXAA5#,AXAH54,AXAL54

 1
81584D - GASKET, REAR LAMP
81584-22040

AXAA5#,AXAH54,AXAL54

 3
81585C - SOCKET & WIRE, REAR LAMP, RH
81585-42080

AXAA5#,AXAH54,AXAL54

 1
81589A - GASKET, REAR LAMP
81538-42200

AXAA5#,AXAH54,AXAL54

 1
81591B - LENS AND BODY, REAR LAMP, LH
81591-42121

AXAA5#,AXAH54,AXAL54

 1
81594A - GASKET, REAR LAMP LH
81594-42050

AXAA5#,AXAH54,AXAL54

 1
81595 - SOCKET & WIRE, REAR LAMP, LH
81585-42080

AXAA5#,AXAH54,AXAL54

 1
Common parts
8155A-42220
90159-60621
90178-A0092
90189-06242
90467-09206
