AXAL54L-CNXMBA (2020)

Toyota Rav4 (Nap)

Production Sep 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(1812- )

Click highlighted areas on diagram

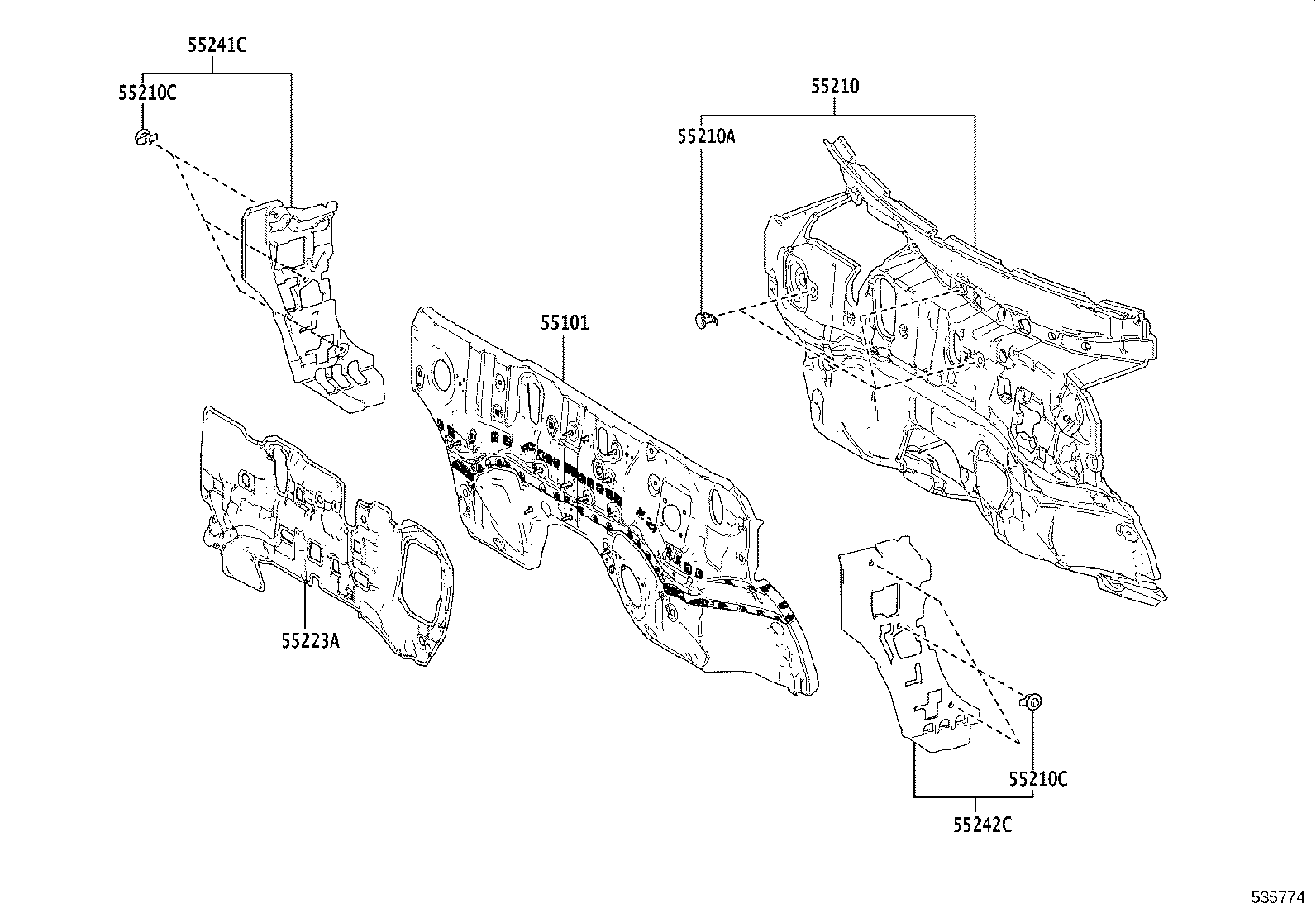

DASH PANEL

diagram 55101 55210 55210A 55210C 55210C 55223A 55241C 55242C
Part # Description Qty Price
55101 - PANEL SUB-ASSY, DASH
55101-0R120

AXAA5#,AXAH54,AXAL54

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-0R131

AXAA5#,AXAH54,AXAL54

 1
55210-0R120

AXAA5#,AXAH54,AXAL54

 1
55210A - CLIP
90467-11122

AXAA5#,AXAH54,AXAL54

 3
55210C - CLIP
90467-13079

AXAA5#,AXAH54,AXAL54

 3
90467-13079

AXAA5#,AXAH54,AXAL54

 6
55210C - CLIP
90467-13079

AXAA5#,AXAH54,AXAL54

 3
90467-13079

AXAA5#,AXAH54,AXAL54

 6
55223A - INSULATOR, DASH PANEL, OUTER
55223-0R100

AXAA5#,AXAH54,AXAL54

 1
55241C - SILENCER, FRONT PANEL SIDE, NO.1 RH
55241-0R010

AXAA5#,AXAH54,AXAL54

 1
55242C - SILENCER, FRONT PANEL SIDE, NO.1 LH
55242-0R010

AXAA5#,AXAH54,AXAL54

 1
