AXAL54L-CNXMBA (2020)

Toyota Rav4 (Nap)

Production Sep 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1812- )

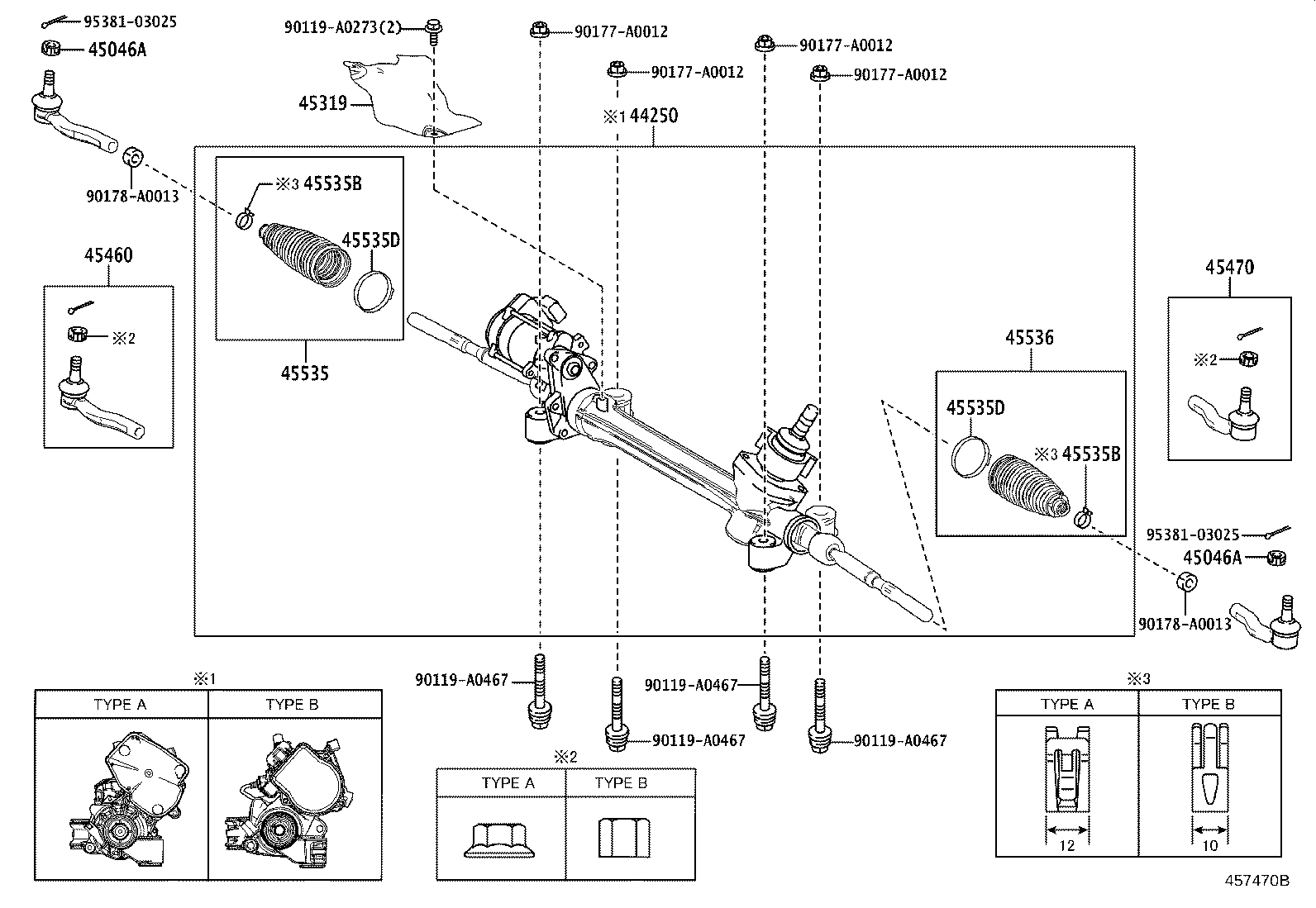

Click highlighted areas on diagram

diagram 44250 45046A 45046A 45319 45460 45470 45535 45535B 45535B 45535D 45535D 45536 90119A0273 90119A0467 90119A0467 90119A0467 90119A0467 90177A0012 90177A0012 90177A0012 90177A0012 90178A0013 90178A0013 9538103025 9538103025
Part # Description Qty Price
44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION)
44250-0R012

AXAA5#..M,X;AXAH54,AXAL54

 1
44250-0R011

AXAA5#..M,X;AXAH54,AXAL54

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12015

AXAA54..G,V,X;AXAH54,AXAL54

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12015

AXAA54..G,V,X;AXAH54,AXAL54

 2
45319 - INSULATOR, STEERING GEAR HEAT
45319-0R010

AXAA5#,AXAH54,AXAL54

 1
45460 - ROD ASSY, TIE, RH
45460-09310

AXAA5#,AXAH54,AXAL54

TYPE B:REFER ILLUST.

 1
45460-09300

AXAA5#,AXAH54,AXAL54

TYPE A:REFER ILLUST.

 1
45470 - ROD ASSY, TIE, LH
45460-09310

AXAA5#,AXAH54,AXAL54

TYPE B:REFER ILLUST.

 1
45460-09300

AXAA5#,AXAH54,AXAL54

TYPE A:REFER ILLUST.

 1
45535 - BOOT, STEERING RACK, NO.1
45535-09550

AXAA5#,AXAH54,AXAL54

 1
45535-09550

AXAA5#,AXAH54,AXAL54

PNC 45535B=TYPE A

 1
45535-09500

AXAA5#,AXAH54,AXAL54

PNC 45535B=TYPE B

 1
45535B - CLIP(FOR STEERING RACK BOOT)
45537-02020

AXAA5#,AXAH54,AXAL54

TYPE B:REFER ILLUST.

 2
45537-0R030

AXAA5#,AXAH54,AXAL54

 2
45537-0R030

AXAA5#,AXAH54,AXAL54

TYPE A:REFER ILLUST.

 2
45535B - CLIP(FOR STEERING RACK BOOT)
45537-02020

AXAA5#,AXAH54,AXAL54

TYPE B:REFER ILLUST.

 2
45537-0R030

AXAA5#,AXAH54,AXAL54

 2
45537-0R030

AXAA5#,AXAH54,AXAL54

TYPE A:REFER ILLUST.

 2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
45538-0T010

AXAA5#,AXAH54,AXAL54

PNC 45535B=TYPE B

 2
45538-0R010

AXAA5#,AXAH54,AXAL54

 2
45538-0R010

AXAA5#,AXAH54,AXAL54

PNC 45535B=TYPE A

 2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
45538-0T010

AXAA5#,AXAH54,AXAL54

PNC 45535B=TYPE B

 2
45538-0R010

AXAA5#,AXAH54,AXAL54

 2
45538-0R010

AXAA5#,AXAH54,AXAL54

PNC 45535B=TYPE A

 2
45536 - BOOT, STEERING RACK, NO.2
45535-09550

AXAA5#,AXAH54,AXAL54

PNC 45535B=TYPE A

 1
45535-09500

AXAA5#,AXAH54,AXAL54

PNC 45535B=TYPE B

 1
45535-09550

AXAA5#,AXAH54,AXAL54

 1
Common parts
90119-A0273
90119-A0467
90177-A0012
90178-A0013
95381-03025
