AXAL54L-CNXMBA (2020)
Toyota Rav4 (Nap)

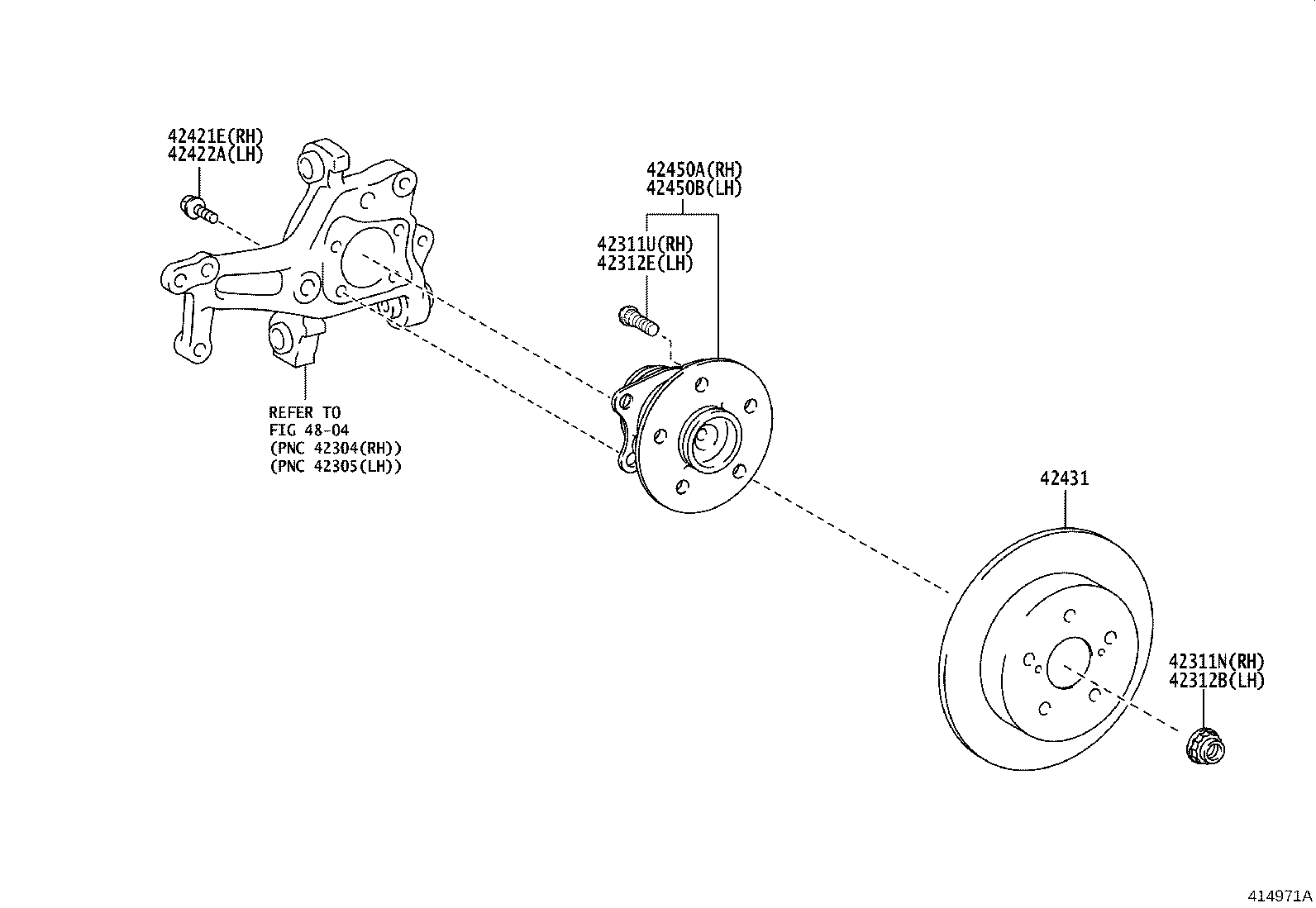

ILLUST NO. 1 OF 2(1812- )AXAA54,AXAH54,AXAL54
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311N - NUT (FOR REAR AXLE SHAFT RH) | ||||
| 90080-17238 |
AXAA54,AXAH54,AXAL54 |
1 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02049 |
AXAA5#,AXAH54,AXAL54 |
5 | ||
| 42312B - NUT (FOR REAR AXLE SHAFT LH) | ||||
| 90080-17238 |
AXAA54,AXAH54,AXAL54 |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02049 |
AXAA5#,AXAH54,AXAL54 |
5 | ||
| 42421E - BOLT (FOR REAR AXLE BEARING CASE RH) | ||||
| 90105-A0389 |
AXAA5#,AXAH54,AXAL54 |
4 | ||
| 42422A - BOLT (FOR REAR AXLE BEARING CASE LH) | ||||
| 90105-A0389 |
AXAA5#,AXAH54,AXAL54 |
4 | ||
| 42431 - DISC, REAR | ||||
| 42431-06180 |
AXAA5#,AXAH54,AXAL54 |
2 | ||
| 42450A - HUB & BEARING ASSY, REAR AXLE, RH | ||||
| 42410-0R030 |
AXAA54,AXAH54,AXAL54 |
1 | ||
| 42450B - HUB & BEARING ASSY, REAR AXLE, LH | ||||
| 42410-0R030 |
AXAA54,AXAH54,AXAL54 |
1 | ||
| Linked diagrams | ||||
| 4804 | ||||

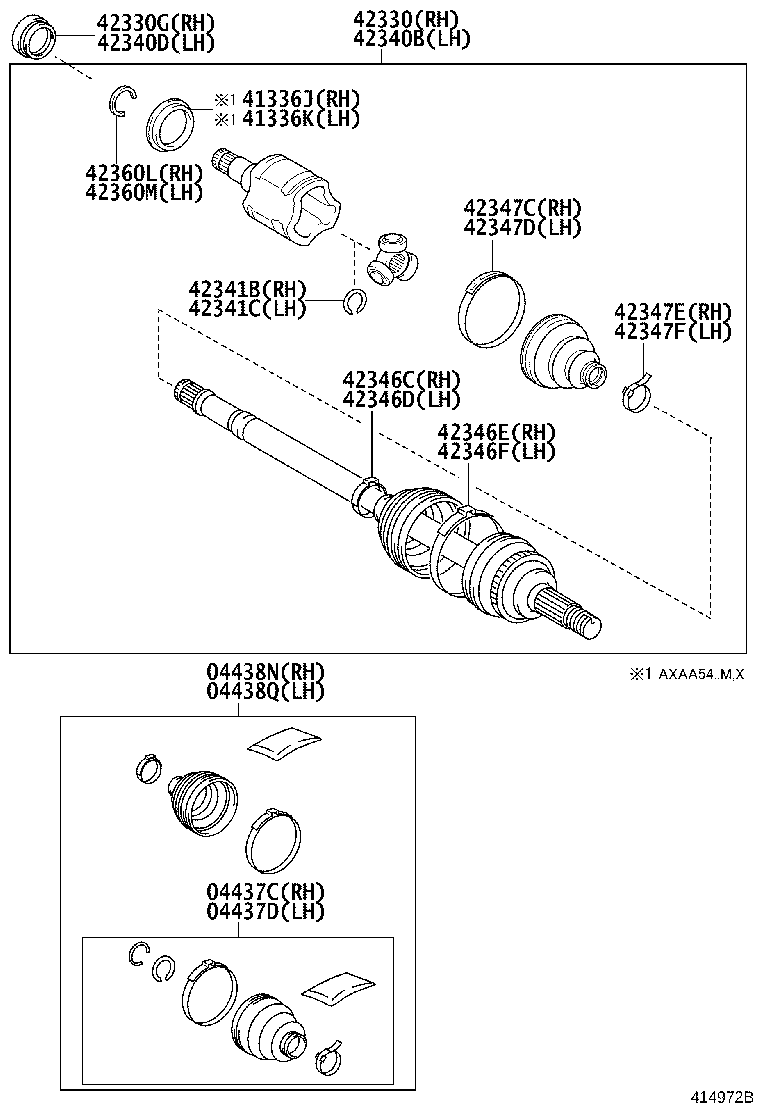

ILLUST NO. 2 OF 2(1812- )AXAA54,AXAH54,AXAL54
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04437C - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04439-0T012 |
AXAA54..G,V;AXAH54,AXAL54 |
1 | ||
| 04437D - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04439-0T012 |
AXAA54..G,V;AXAH54,AXAL54 |
1 | ||
| 04438N - BOOT KIT, REAR DRIVE SHAFT, IN & OUTBOARD JOINT, RH | ||||
| 04429-0E011 |
AXAA54..G,V;AXAH54,AXAL54 |
1 | ||
| 04438Q - BOOT KIT, REAR DRIVE SHAFT, IN & OUTBOARD JOINT, LH | ||||
| 04429-0E011 |
AXAA54..G,V;AXAH54,AXAL54 |
1 | ||
| 42330 - SHAFT ASSY, REAR DRIVE, RH | ||||
| 42330-0R050 |
AXAH54,AXAL54 |
1 | ||
| 42330G - OIL SEAL, REAR DRIVE SHAFT, RH | ||||
| 90311-42057 |
AXAH54,AXAL54 |
1 | ||
| 42340B - SHAFT ASSY, REAR DRIVE, LH | ||||
| 42340-0R030 |
AXAH54,AXAL54 |
1 | ||
| 42340D - OIL SEAL, REAR DRIVE SHAFT, LH | ||||
| 90311-42058 |
AXAH54,AXAL54 |
1 | ||
| 42341B - RING, SNAP (FOR REAR DRIVE SHAFT RH) | ||||
| 43425-0E070 |
AXAA54..G,V;AXAH54,AXAL54 |
1 | ||
| 42341C - RING, SNAP (FOR REAR DRIVE SHAFT LH) | ||||
| 43425-0E070 |
AXAA54..G,V;AXAH54,AXAL54 |
1 | ||
| 42346C - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH) | ||||
| 42345-0E090 |
AXAA54..G,V;AXAH54,AXAL54 ID=25.3 |
1 | ||
| 42346D - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH) | ||||
| 42345-0E090 |
AXAA54..G,V;AXAH54,AXAL54 ID=25.3 |
1 | ||
| 42346E - CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT R | ||||
| 42345-0E080 |
AXAA54..G,V;AXAH54,AXAL54 |
1 | ||
| 42346F - CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT L | ||||
| 42345-0E080 |
AXAA54..G,V;AXAH54,AXAL54 |
1 | ||
| 42347C - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH) | ||||
| 42345-0E060 |
AXAA54..G,V;AXAH54,AXAL54 ID=75.8 |
1 | ||
| 42347D - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH) | ||||
| 42345-0E060 |
AXAA54..G,V;AXAH54,AXAL54 ID=75.8 |
1 | ||
| 42347E - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH | ||||
| 42345-0E070 |
AXAA54..G,V;AXAH54,AXAL54 |
1 | ||
| 42347F - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH | ||||
| 42345-0E070 |
AXAA54..G,V;AXAH54,AXAL54 |
1 | ||
| 42360L - RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH | ||||
| 43425-0E050 |
AXAA54..G,V;AXAH54,AXAL54 |
1 | ||
| 42360M - RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT LH | ||||
| 43425-0E050 |
AXAA54..G,V;AXAH54,AXAL54 |
1 | ||
