AXAL54L-CNXMBA (2020)

Toyota Rav4 (Nap)

Production Sep 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1812- )

Click highlighted areas on diagram

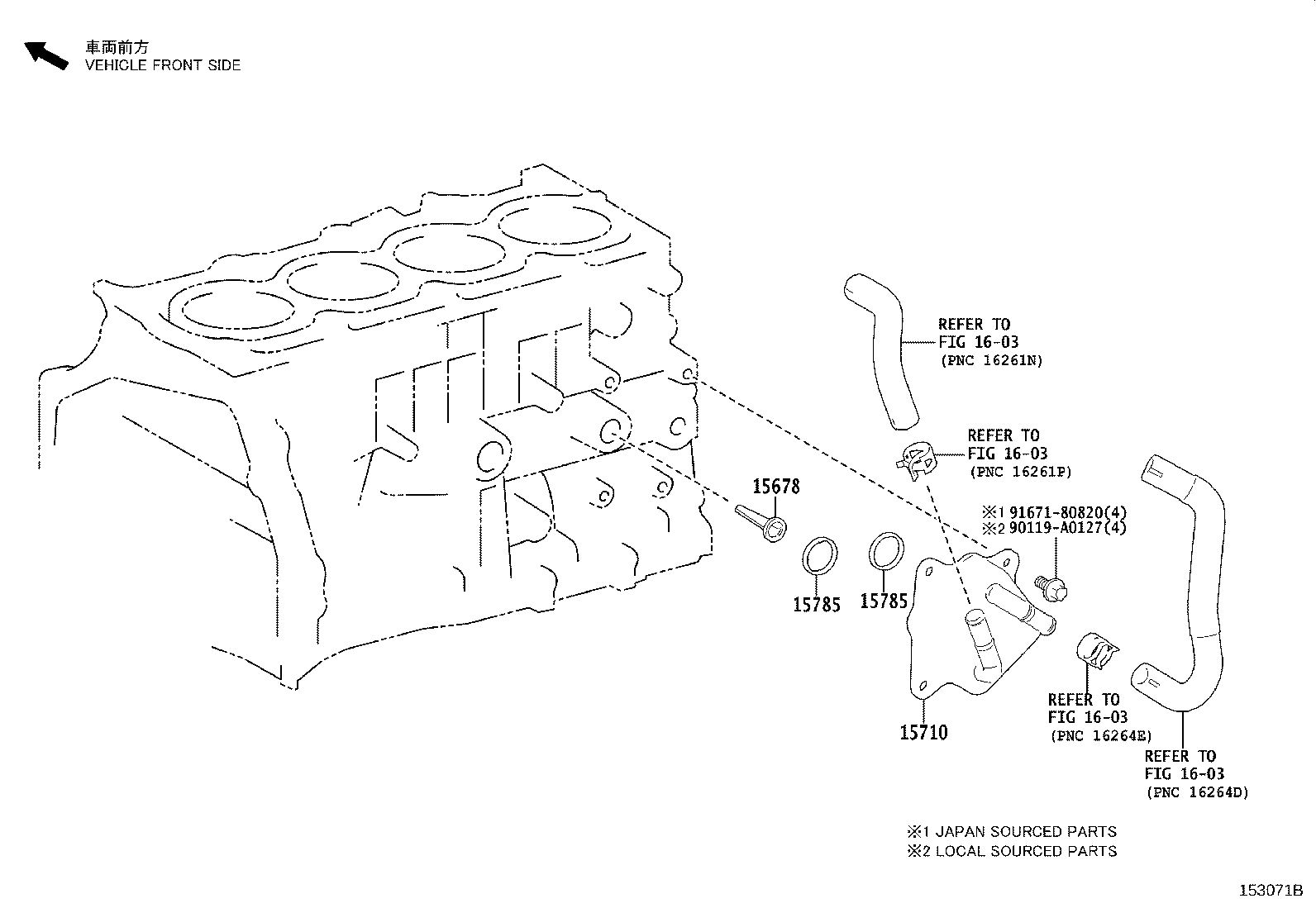

diagram 15678 15710 15785 15785 1603 1603 1603 1603 90119A0127 9167180820
Part # Description Qty Price
15678 - FILTER, OIL CONTROL VALVE
15678-25010

A25AFXS..AXAH54,AXAL54

*628

 1
15710 - COOLER ASSY, OIL
15710-25010

A25AFXS..AXAH54,AXAL54

*628

 1
15785 - GASKET, OIL COOLER
15785-25010

A25AFXS..AXAH54,AXAL54

*628

 2
15785 - GASKET, OIL COOLER
15785-25010

A25AFXS..AXAH54,AXAL54

*628

 2
Common parts
90119-A0127
91671-80820
Linked diagrams
1603
