AXAH54L-CNXMBK (2019)

Toyota Rav4 (Nap)

Production Mar 2019 - Sep 2020
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1903- )AXAH54,AXAL54

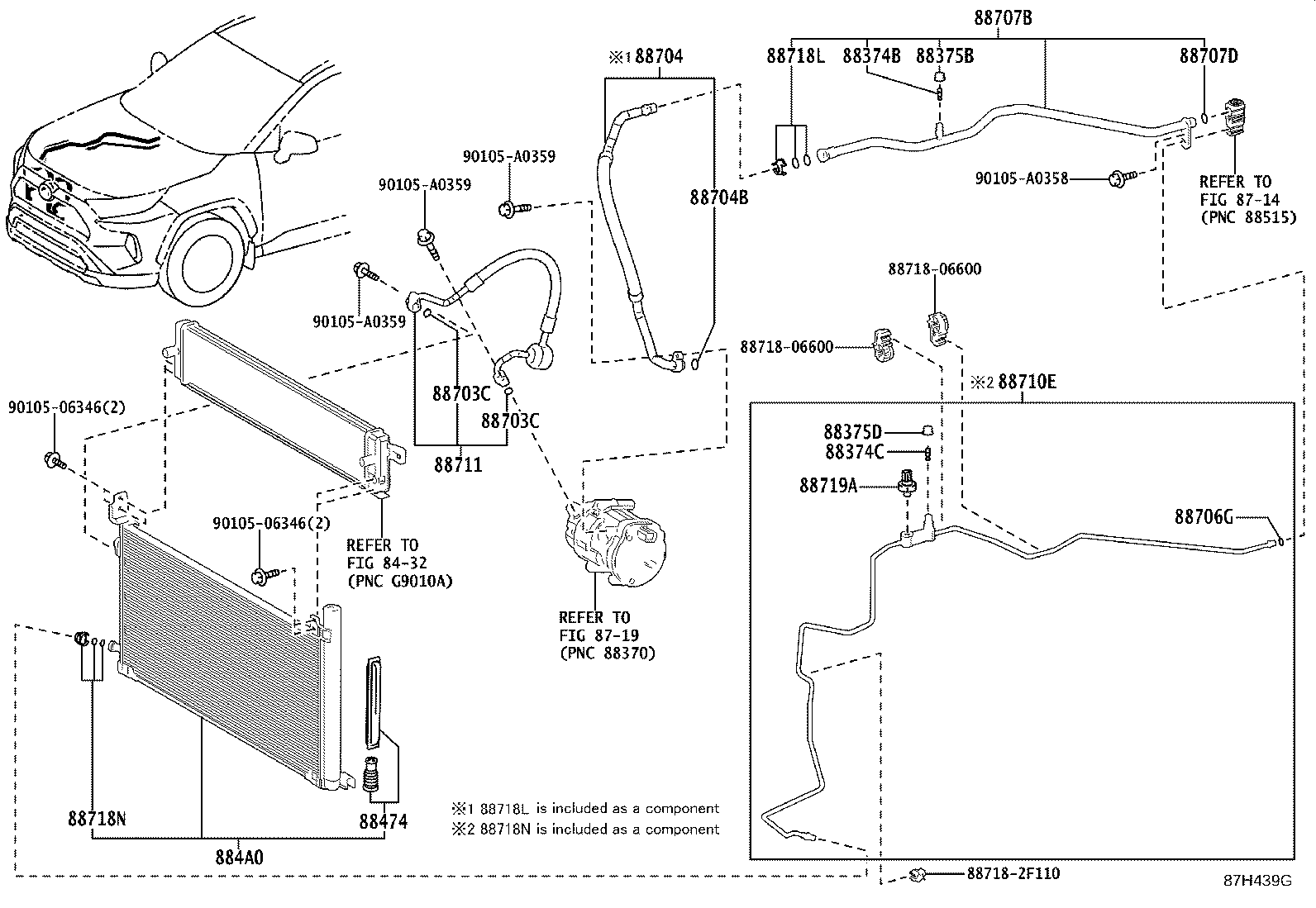

Click highlighted areas on diagram

diagram 8432 8714 8719 88374B 88374C 88375B 88375D 88474 884A0 88703C 88703C 88704 88704B 88706G 88707B 88707D 88710E 88711 8871806600 8871806600 887182F110 88718L 88718N 88719A 9010506346 9010506346 90105A0358 90105A0359 90105A0359 90105A0359
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

AXAA5#,AXAH54,AXAL54

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

AXAA5#,AXAH54,AXAL54

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30310

AXAA5#,AXAH54,AXAL54

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30320

AXAA5#,AXAH54,AXAL54

 1
88474 - DRYER, COOLER
88474-12020

AXAH54,AXAL54

 1
884A0 - CONDENSER ASSY, COOLER
884A0-42040

AXAH54,AXAL54

 1
88703C - RING, O(FOR DISCHARGE HOSE)
90069-08007

AXAA5#,AXAH54,AXAL54

ID=10.8,OD=15.6

 2
88703C - RING, O(FOR DISCHARGE HOSE)
90069-08007

AXAA5#,AXAH54,AXAL54

ID=10.8,OD=15.6

 2
88704 - HOSE SUB-ASSY, SUCTION
88704-0R100

AXAH54,AXAL54

 1
88704B - RING, O(FOR SUCTION HOSE)
90069-08009

AXAA5#,AXAH54,AXAL54

ID=13.4,OD=18.2

 1
88706G - RING, O(FOR LIQUID TUBE)
90069-08011

AXAA52..G,X;AXAA54..G,V;AXAH54,AXAL54;AXAA52..M..CND;AXAA54..(M,X)..CND

ID=6.7,OD=10.3

 1
88707B - TUBE SUB-ASSY, SUCTION, B
88707-0R070

AXAA52..G,X;AXAA54..G,V;AXAH54,AXAL54;AXAA52..M..CND;AXAA54..(M,X)..CND

 1
88707D - RING, O(FOR SUCTION TUBE)
90069-08009

AXAA5#,AXAH54,AXAL54

ID=13.4,OD=18.2

 1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-0R030

AXAH54,AXAL54

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0R020

AXAH54,AXAL54

 1
88718L - CLAMP, PIPING
88718-52280

AXAA5#,AXAH54,AXAL54

 1
88718N - CLAMP, PIPING
88718-1E150

AXAA5#,AXAH54,AXAL54

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-11010

AXAA5#,AXAH54,AXAL54

 1
Common parts
88718-06600
88718-2F110
90105-06346
90105-A0358
90105-A0359
Linked diagrams
8432
8714
8719
