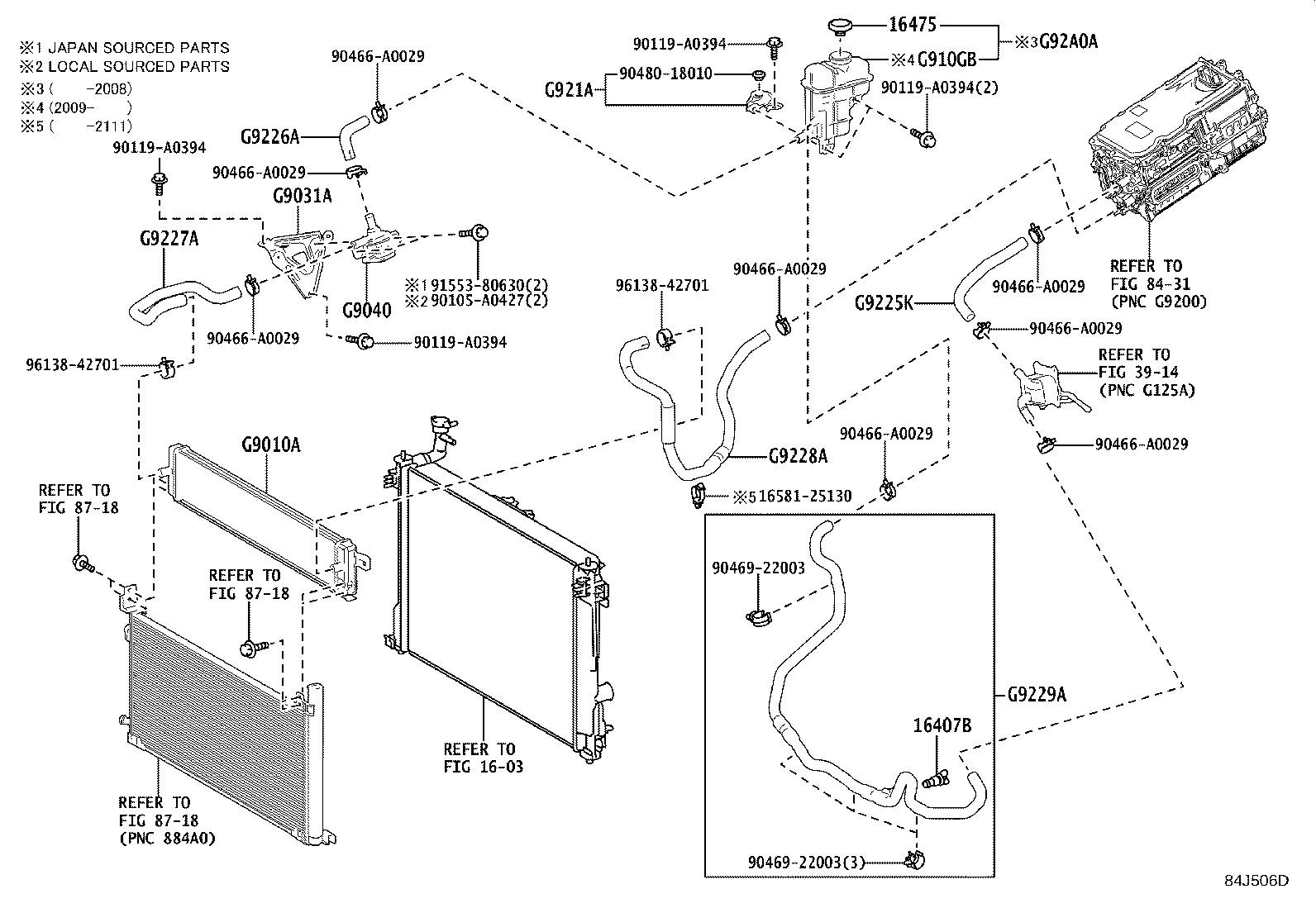

Toyota Rav4 (nap) AXAH54 INVERTER COOLING

Part #	Description	Period	Qty
16407B - COCK SUB-ASSY, RADIATOR DRAIN
16407-64010	A25AFXS..AXAH54,AXAL54	03/2019 - 09/2020	1
16475 - CAP, RESERVE TANK
16475-28140	A25AFXS..AXAH54,AXAL54	03/2019 - 09/2020	1
G9010A - RADIATOR ASSY
G9010-42030	AXAH54,AXAL54	03/2019 - 09/2020	1
G9031A - BRACKET SUB-ASSY, HV WATER PUMP
G9141-42010	AXAH54,AXAL54	03/2019 - 09/2020	1
G9040 - INVERTER WATER PUMP ASSY(W/MOTOR)
G9040-42010	AXAH54,AXAL54	03/2019 - 09/2020	1
G921A - BRACKET, INVERTER RESERVE TANK, NO.1
G91H2-0R010	AXAH54,AXAL54	03/2019 - 09/2020	1
G9225K - HOSE, INVERTER COOLING, NO.1
G9225-0R020	AXAH54,AXAL54	03/2019 - 09/2020	1
G9226A - HOSE, INVERTER COOLING, NO.2
G9226-0R020	AXAH54,AXAL54	03/2019 - 09/2020	1
G9227A - HOSE, INVERTER COOLING, NO.3
G9227-0R020	AXAH54,AXAL54	03/2019 - 09/2020	1
G9228A - HOSE, INVERTER COOLING, NO.4
G9228-0R020	AXAH54,AXAL54	03/2019 - 09/2020	1
G9229A - HOSE, INVERTER COOLING, NO.5
G9229-0R020	AXAH54,AXAL54	03/2019 - 09/2020	1
G92A0A - TANK ASSY, INVERTER RESERVE
G91H0-0R020	AXAH54,AXAL54	03/2019 - 09/2020	1
Common parts
16581-25130
90105-A0427
90119-A0394
90466-A0029
90469-22003
90480-18010
91553-80630
96138-42701
Linked diagrams
1603
3914
8431
8718

AXAH54L-CNXMBK (2019)
