AXAH54L-CNXMBK (2019)
Toyota Rav4 (Nap)
Production
Mar 2019
-
Sep 2020
Engine
A25AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

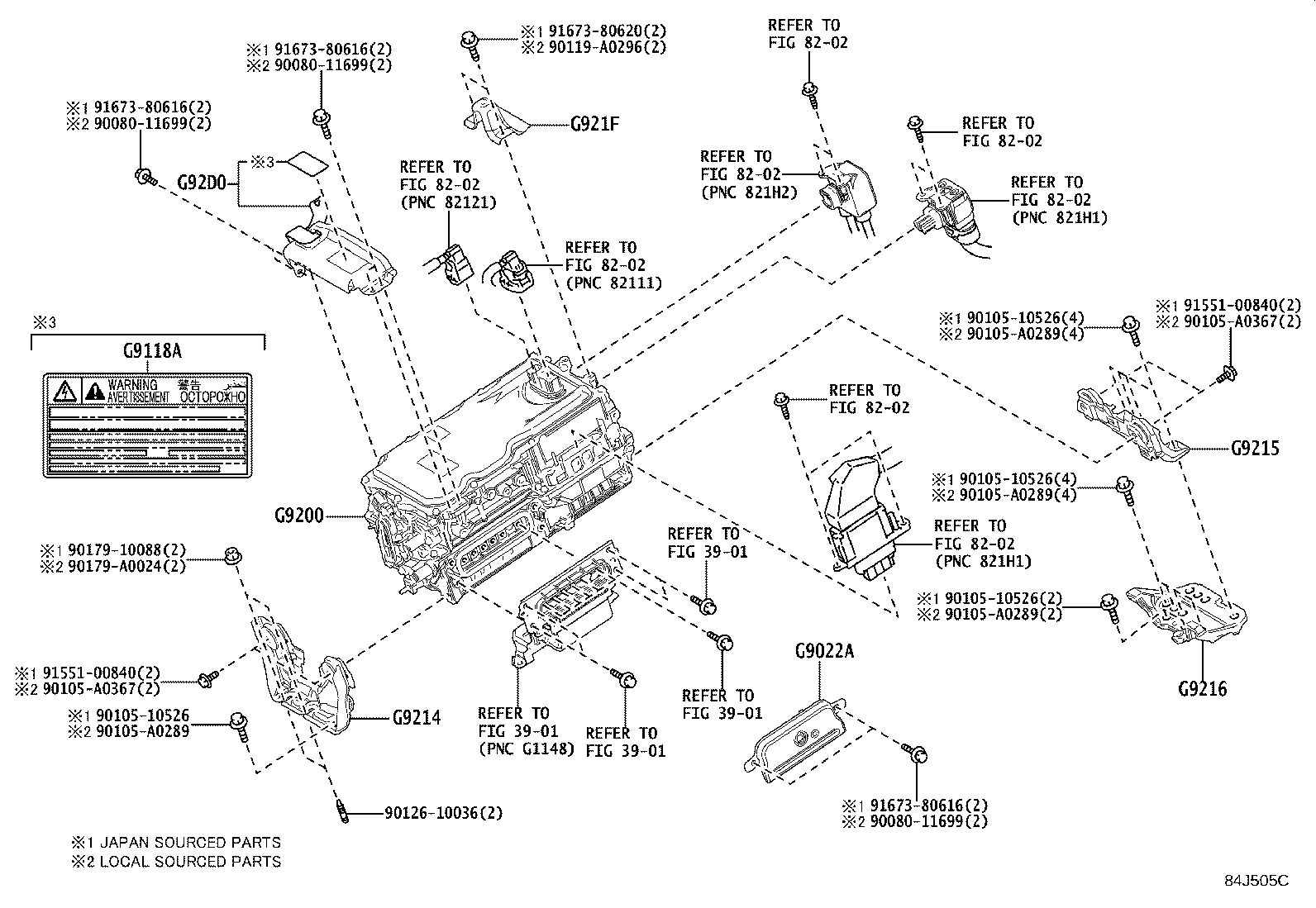

(1903-2006)AXAH54
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| G9022A - COVER SUB-ASSY, INVERTER, UPPER | ||||
| G9022-47050 |
AXAH54,AXAL54 |
1 | ||
| G9118A - LABEL, HV MOTOR CONTROL INVERTER CAUTION | ||||
| G9118-76010 |
AXAH54 |
1 | ||
| G9200 - INVERTER ASSY, W/CONVERTER | ||||
| G92A0-42070 |
AXAH54,AXAL54 |
1 | ||
| G9214 - BRACKET, INVERTER, NO.1 | ||||
| G9214-33040 |
AXAH54,AXAL54 |
1 | ||
| G9215 - BRACKET, INVERTER, NO.2 | ||||
| G9215-42010 |
AXAH54,AXAL54 |
1 | ||
| G9216 - BRACKET, INVERTER, NO.3 | ||||
| G9216-42010 |
AXAH54,AXAL54 |
1 | ||
| G921F - PROTECTOR, INVERTER, NO.2 | ||||
| G921F-42010 |
AXAH54 |
1 | ||
| G92D0 - PROTECTOR ASSY, HYBRID INVERTER | ||||
| G92D0-42010 |
AXAH54 |
1 | ||
| Common parts | ||||
| 90080-11699 | ||||
| 90105-10526 | ||||
| 90105-A0289 | ||||
| 90105-A0367 | ||||
| 90119-A0296 | ||||
| 90126-10036 | ||||
| 90179-10088 | ||||
| 90179-A0024 | ||||
| 91551-00840 | ||||
| 91673-80616 | ||||
| 91673-80620 | ||||
| Linked diagrams | ||||
| 3901 | ||||
| 8202 | ||||

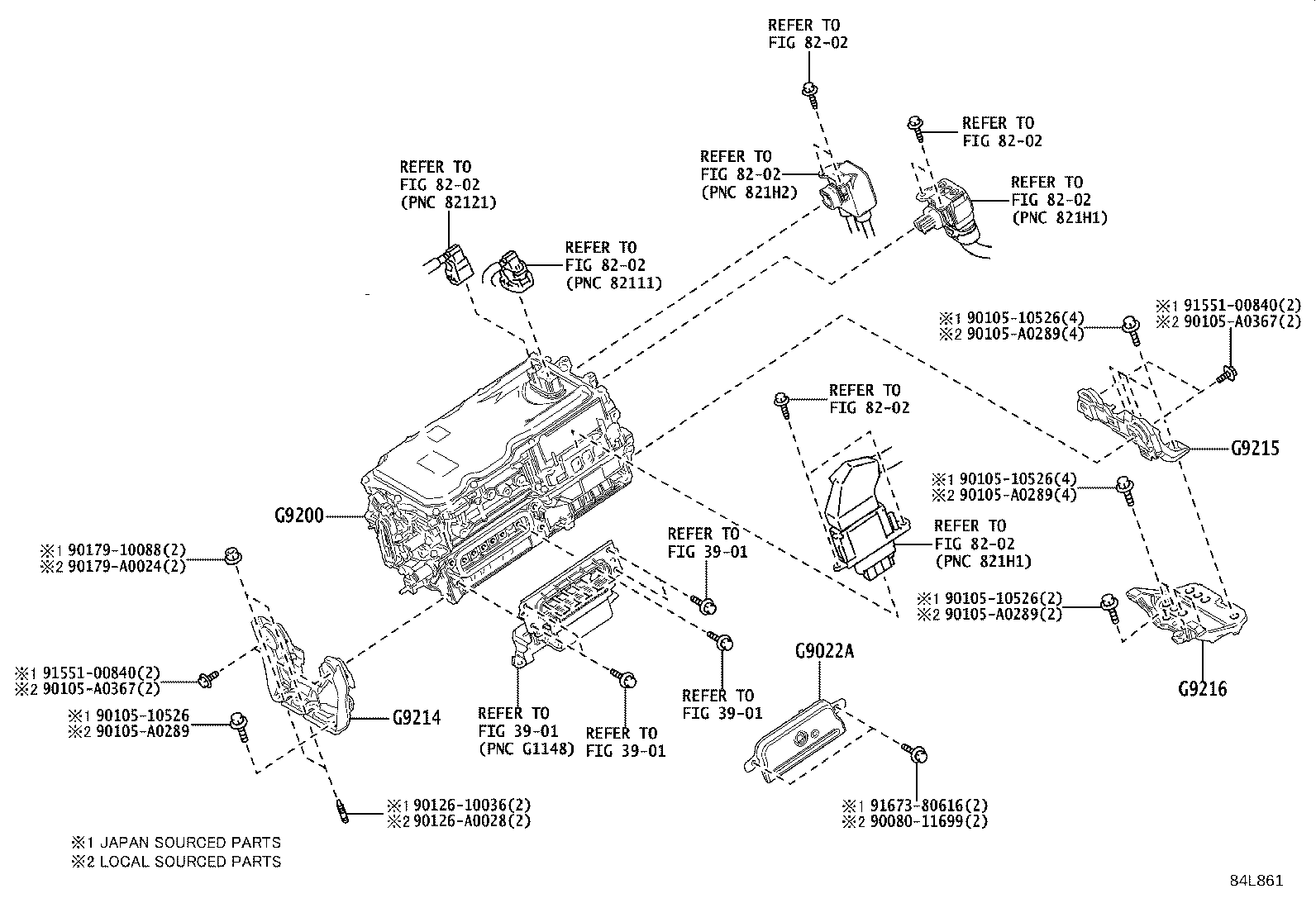

ILLUST NO. 1 OF 2(2006- )AXAH54,AXAL54
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| G9022A - COVER SUB-ASSY, INVERTER, UPPER | ||||
| G9022-47050 |
AXAH54,AXAL54 |
1 | ||
| G9200 - INVERTER ASSY, W/CONVERTER | ||||
| G92A0-42070 |
AXAH54,AXAL54 |
1 | ||
| G9214 - BRACKET, INVERTER, NO.1 | ||||
| G9214-33040 |
AXAH54,AXAL54 |
1 | ||
| G9215 - BRACKET, INVERTER, NO.2 | ||||
| G9215-42010 |
AXAH54,AXAL54 |
1 | ||
| G9216 - BRACKET, INVERTER, NO.3 | ||||
| G9216-42010 |
AXAH54,AXAL54 |
1 | ||
| Common parts | ||||
| 90080-11699 | ||||
| 90105-10526 | ||||
| 90105-A0289 | ||||
| 90105-A0367 | ||||
| 90126-10036 | ||||
| 90126-A0028 | ||||
| 90179-10088 | ||||
| 90179-A0024 | ||||
| 91551-00840 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 3901 | ||||
| 8202 | ||||
