AXAH54L-CNXMBK (2019)
Toyota Rav4 (Nap)

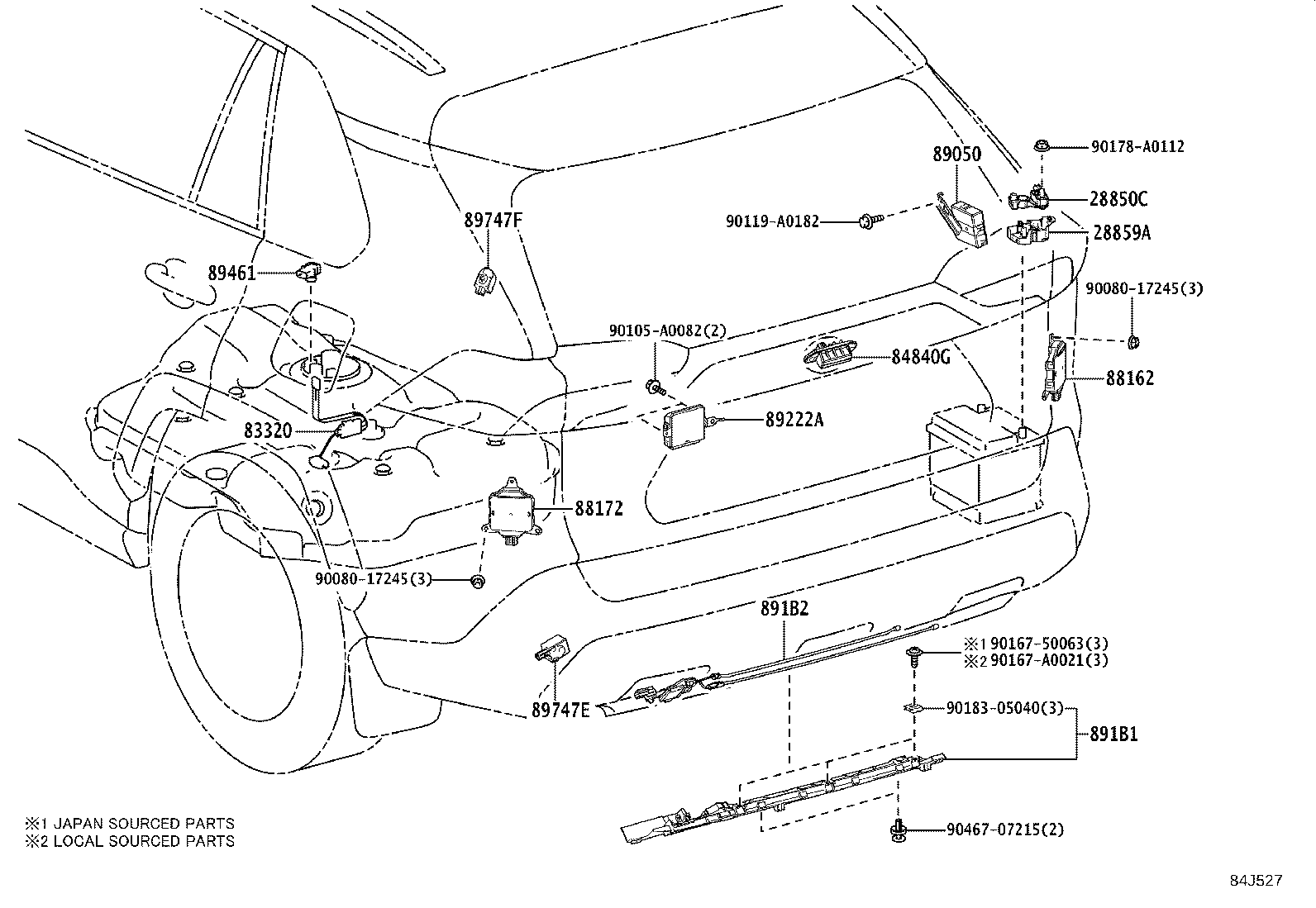

ILLUST NO.10 OF11(1903- )AXAH54,AXAL54
FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28850C - SENSOR ASSY, BATTERY STATE | ||||
| 28850-F0040 |
A25AFXS..AXAH54,AXAL54;A25AFKS..AXAA54..X..USA |
1 | ||
| 28859A - HOLDER, BATTERY CURRENT SENSOR | ||||
| 28859-F0040 |
A25AFXS..AXAH54,AXAL54 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-0R050 |
AXAH54,AXAL54 |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-47030 |
AXAA5#,AXAH54,AXAL54..X |
1 | ||
| 84840-47040 |
AXAA5#,AXAH54,AXAL54..G,M,V |
1 | ||
| 84840-47040 |
AXAA5#,AXAH54,AXAL54..X KEY PLATE-FOR SMART ENTRY |
1 | ||
| 88162 - SENSOR, BLIND SPOT MONITOR, RH | ||||
| 88162-0R030 |
AXAA5#,AXAH54..X BLIND SPOT MONITOR-WITH & *RCTA |
1 | ||
| 88162-0R032 |
AXAA5#,AXAH54..G,M,V |
1 | ||
| 88162-0R030 |
AXAA5#,AXAH54..G,M,V |
1 | ||
| 88162-0R031 |
AXAA5#,AXAH54..G,M,V |
1 | ||
| 88162-0R032 |
AXAA5#,AXAH54..X BLIND SPOT MONITOR-WITH & *RCTA |
1 | ||
| 88162-0R033 |
AXAA5#,AXAH54,AXAL54..G,M,V |
1 | ||
| 88162-0R031 |
AXAA5#,AXAH54..X BLIND SPOT MONITOR-WITH & *RCTA |
1 | ||
| 88162-0R033 |
AXAA5#,AXAH54,AXAL54..X BLIND SPOT MONITOR-WITH & *RCTA |
1 | ||
| 88172 - SENSOR, BLIND SPOT MONITOR, LH | ||||
| 88162-0R030 |
AXAA5#,AXAH54..X BLIND SPOT MONITOR-WITH & *RCTA |
1 | ||
| 88162-0R031 |
AXAA5#,AXAH54..X BLIND SPOT MONITOR-WITH & *RCTA |
1 | ||
| 88162-0R031 |
AXAA5#,AXAH54..G,M,V |
1 | ||
| 88162-0R033 |
AXAA5#,AXAH54,AXAL54..X BLIND SPOT MONITOR-WITH & *RCTA |
1 | ||
| 88162-0R030 |
AXAA5#,AXAH54..G,M,V |
1 | ||
| 88162-0R033 |
AXAA5#,AXAH54,AXAL54..G,M,V |
1 | ||
| 88162-0R032 |
AXAA5#,AXAH54..G,M,V |
1 | ||
| 88162-0R032 |
AXAA5#,AXAH54..X BLIND SPOT MONITOR-WITH & *RCTA |
1 | ||
| 89050 - COMPUTER ASSY, PARKING BRAKE | ||||
| 89050-42030 |
AXAH54,AXAL54 |
1 | ||
| 89050-42010 |
AXAH54 |
1 | ||
| 891B1 - BRACKET, KICK DOOR CONTROL | ||||
| 891B1-0R030 |
AXAH54,AXAL54..M POWER DOOR LOCK-W(TWO OPERATION) & W(*PBD(KICK SENSOR))&DOOR LOCK- SMART ENTRY(SMARTPHONE) & ID CODE BOX |
1 | ||
| 891B1-0R030 |
AXAA5#,AXAH54,AXAL54..G,V POWER DOOR LOCK-W(TWO OPERATION) & W(*PBD(KICK SENSOR)) |
1 | ||
| 891B2 - SENSOR, KICK DOOR CONTROL | ||||
| 891B2-0R030 |
AXAA5#,AXAH54,AXAL54..G,V POWER DOOR LOCK-W(TWO OPERATION) & W(*PBD(KICK SENSOR)) |
1 | ||
| 891B2-0R030 |
AXAH54,AXAL54..M POWER DOOR LOCK-W(TWO OPERATION) & W(*PBD(KICK SENSOR))&DOOR LOCK- SMART ENTRY(SMARTPHONE) & ID CODE BOX |
1 | ||
| 89222A - COMPUTER, MULTIPLEX NETWORK DOOR | ||||
| 89222-0R081 |
AXAH54,AXAL54..M POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&DOOR LOCK- SMART ENTRY(PANIC & *PBD) & ID CODE BOX |
1 | ||
| 89222-0R081 |
AXAH54,AXAL54..M POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&DOOR LOCK- SMART ENTRY(SMARTPHONE) & ID CODE BOX |
1 | ||
| 89222-0R081 |
AXAH54,AXAL54..M WITH(BODY STRIPE)&POWER DOOR LOCK-W(TWO OPERATION) & W(*PBD(KICK SENSOR))&DOOR LOCK- SMART ENTRY(SMARTPHONE) & ID CODE BOX |
1 | ||
| 89461 - SENSOR, VAPOR PRESSURE | ||||
| 89461-48020 |
AXAH54,AXAL54 |
1 | ||
| 89747E - BUZZER, POWER BACK DOOR WARNING | ||||
| 89747-0R020 |
AXAH54,AXAL54..M WITH(BODY STRIPE)&POWER DOOR LOCK-W(TWO OPERATION) & W(*PBD(KICK SENSOR))&DOOR LOCK- SMART ENTRY(SMARTPHONE) & ID CODE BOX |
1 | ||
| 89747-0R020 |
AXAH54,AXAL54..M POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&DOOR LOCK- SMART ENTRY(SMARTPHONE) & ID CODE BOX |
1 | ||
| 89747-0R020 |
AXAH54,AXAL54..M POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&DOOR LOCK- SMART ENTRY(PANIC & *PBD) & ID CODE BOX |
1 | ||
| 89747-0R020 |
AXAA5#,AXAH54,AXAL54..G |
1 | ||
| 89747F - BUZZER, BLIND SPOT MONITOR | ||||
| 89747-52010 |
AXAA5#,AXAH54,AXAL54..G,M,V |
1 | ||
| 89747-52010 |
AXAA5#,AXAH54,AXAL54..X BLIND SPOT MONITOR-WITH & *RCTA |
1 | ||
| Common parts | ||||
| 90080-17245 | ||||
| 90105-A0082 | ||||
| 90119-A0182 | ||||
| 90167-50063 | ||||
| 90167-A0021 | ||||
| 90178-A0112 | ||||
| 90183-05040 | ||||
| 90467-07215 | ||||

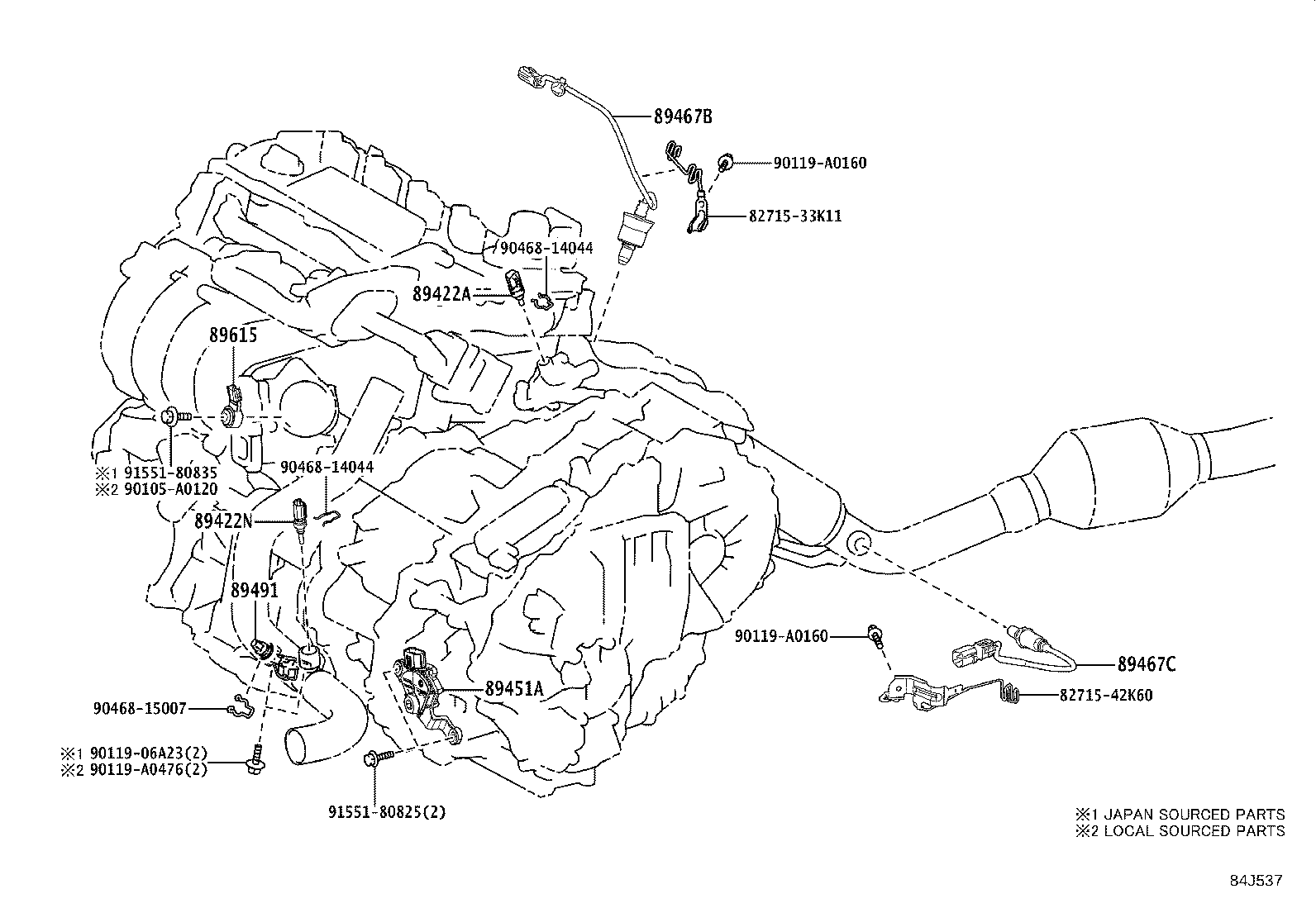

ILLUST NO. 1 OF11(1903- )AXAH54,AXAL54
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-33040 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 89422N - SENSOR, WATER TEMPERATURE, NO.2 | ||||
| 89422-33040 |
AXAA5#..G,V;AXAH54,AXAL54 |
1 | ||
| 89451A - SENSOR, SHIFT LEVER POSITION | ||||
| 89451-10010 |
AXAH54,AXAL54 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-06250 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 89467C - SENSOR, AIR FUEL RATIO, NO.2 | ||||
| 89467-0R100 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-33051 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
AXAA5#,AXAH54,AXAL54 (J) |
1 | ||
| 89615-06010 |
AXAA5#,AXAH54,AXAL54 (L) |
1 | ||
| Common parts | ||||
| 82715-33K11 | ||||
| 82715-42K60 | ||||
| 90105-A0120 | ||||
| 90119-06A23 | ||||
| 90119-A0160 | ||||
| 90119-A0476 | ||||
| 90468-14044 | ||||
| 90468-15007 | ||||
| 91551-80825 | ||||
| 91551-80835 | ||||

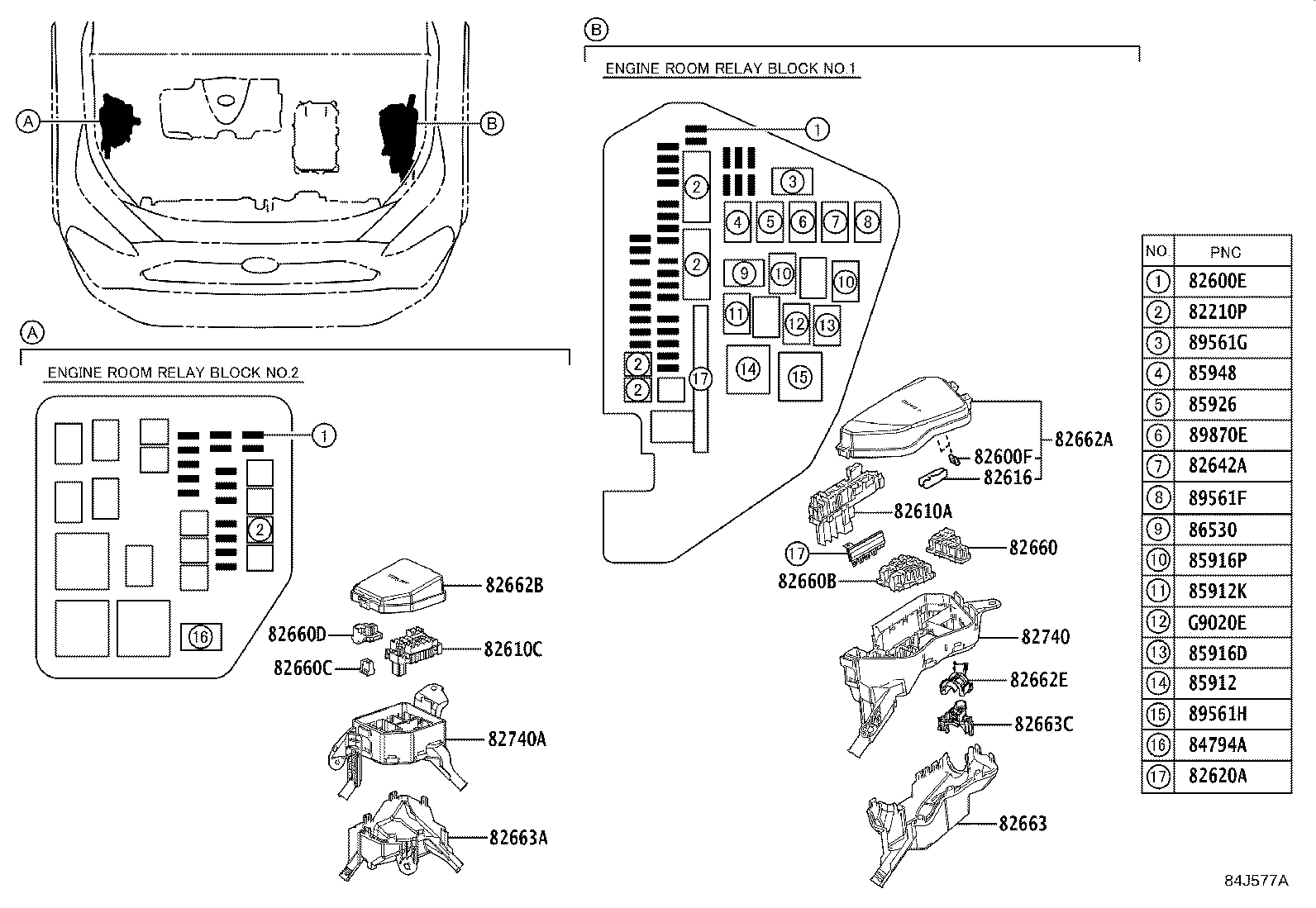

ILLUST NO. 3 OF11(1903- )AXAH54,AXAL54
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08285 |
AXAA5#,AXAH54,AXAL54 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08283 |
AXAA5#,AXAH54,AXAL54 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08302 |
AXAA5#,AXAH54,AXAL54 50A-30A-50A,FEMALE |
1 | ||
| 90982-08300 |
AXAH54,AXAL54 50A-30A-30A,FEMALE |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09019 |
AXAA5#,AXAH54,AXAL54 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
AXAA5#,AXAH54,AXAL54 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09025 |
AXAA5#,AXAH54,AXAL54 30A,MINI FUSE,GRN |
1 | ||
| 90982-09022 |
AXAA5#,AXAH54,AXAL54 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
AXAA5#,AXAH54,AXAL54 10A,MINI FUSE,RED |
1 | ||
| 90982-09024 |
AXAA5#,AXAH54,AXAL54 25A,MINI FUSE |
1 | ||
| 90982-09023 |
AXAA5#,AXAH54,AXAL54 20A,MINI FUSE,YELLOW |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09023 |
AXAA5#,AXAH54,AXAL54 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09025 |
AXAA5#,AXAH54,AXAL54 30A,MINI FUSE,GRN |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-42120 |
AXAH54,AXAL54 |
1 | ||
| 82610C - BLOCK ASSY, FUSE | ||||
| 82610-42090 |
AXAA52..G,X;AXAA52..M..CND;AXAA54,AXAH54..CND;AXAA54,AXAH54,AXAL54..G..USA |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-33130 |
AXAA52..G,X;AXAA54..G,V;AXAH54,AXAL54;AXAA52..M..CND;AXAA54..(M,X)..CND |
1 | ||
| 82642A - RELAY, RUNNING LIGHT | ||||
| 90080-87026 |
AXAH54,AXAL54..G,M |
1 | ||
| 90080-87026 |
AXAH54..G HEAD LAMP-PROJECTOR & WITH(*AHB) |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-42100 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-42110 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-0E010 |
AXAA52..G,X;AXAA52..M..CND;AXAA54,AXAH54..CND;AXAA54,AXAH54,AXAL54..G..USA |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-33050 |
AXAA52..G,X;AXAA52..M..CND;AXAA54,AXAH54..CND;AXAA54,AXAH54,AXAL54..G..USA |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-0R250 |
AXAH54,AXAL54 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-0R270 |
AXAH54..CND;AXAH54,AXAL54..G..USA |
1 | ||
| 82662E - COVER, RELAY BLOCK, UPPER, NO.7 | ||||
| 82662-42730 |
AXAH54,AXAL54 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-42190 |
AXAH54,AXAL54 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-42170 |
AXAA52..G,X;AXAA52..M..CND;AXAA54,AXAH54..CND;AXAA54,AXAH54,AXAL54..G..USA |
1 | ||
| 82663C - COVER, RELAY BLOCK LOWER, NO.4 | ||||
| 82663-42220 |
AXAH54,AXAL54 |
1 | ||
| 82740 - BLOCK ASSY, ENGINE ROOM RELAY | ||||
| 82740-42080 |
AXAH54,AXAL54 |
1 | ||
| 82740A - BLOCK ASSY, ENGINE ROOM RELAY, NO.2 | ||||
| 82740-42120 |
AXAA52..G,X;AXAA52..M..CND;AXAA54,AXAH54..CND;AXAA54,AXAH54,AXAL54..G..USA |
1 | ||
| 84794A - RELAY, FR WIPER DEICER | ||||
| 90080-87026 |
AXAA5#,AXAH54..CND |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90080-87025 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 85912K - RELAY, VVT | ||||
| 90080-87026 |
AXAH54,AXAL54 (L) |
1 | ||
| 90987-02027 |
AXAH54,AXAL54 (J) |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90080-87026 |
AXAA5#,AXAH54,AXAL54..G,M,V |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90080-87026 |
AXAA5#,AXAH54,AXAL54 |
2 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90080-87026 |
AXAH54,AXAL54..G,M |
1 | ||
| 90080-87026 |
AXAH54..G HEAD LAMP-PROJECTOR & WITH(*AHB) |
1 | ||
| 85948 - RELAY, WINDSHIELD WIPER | ||||
| 90080-87026 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90080-87026 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 89561F - RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1 | ||||
| 90987-02027 |
AXAH54,AXAL54 (J) |
1 | ||
| 90080-87026 |
AXAH54,AXAL54 (L) |
1 | ||
| 89561G - RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2 | ||||
| 90080-87026 |
AXAH54,AXAL54 (L) |
1 | ||
| 90987-02027 |
AXAH54,AXAL54 (J) |
1 | ||
| 89561H - RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.3 | ||||
| 90080-87024 |
AXAH54,AXAL54 (L) |
1 | ||
| 90987-02025 |
AXAH54,AXAL54 (J) |
1 | ||
| 89870E - RELAY, ELECTRONIC DRIVER UNIT | ||||
| 90987-02027 |
AXAH54,AXAL54 (J) |
1 | ||
| 90080-87026 |
AXAH54,AXAL54 (L) |
1 | ||
| G9020E - RELAY, HYBRID WATER PUMP | ||||
| 90080-87026 |
AXAH54,AXAL54 (L) |
1 | ||
| 90987-02027 |
AXAH54,AXAL54 (J) |
1 | ||
