AXAH54L-CNXMBK (2019)
Toyota Rav4 (Nap)
Production
Mar 2019
-
Sep 2020
Engine
A25AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

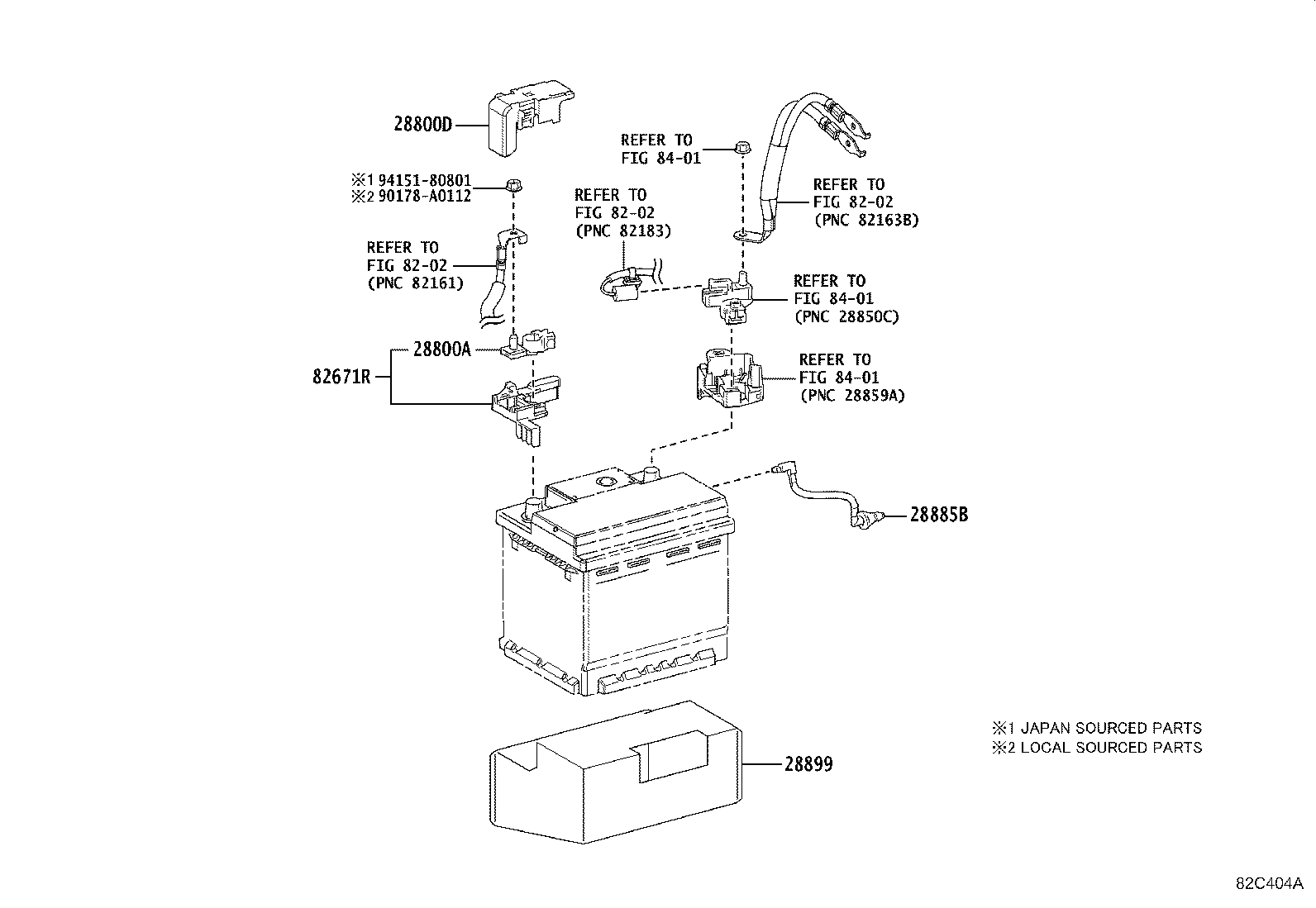

ILLUST NO. 1 OF 3(1903- )AXAH54,AXAL54
Click highlighted areas on diagram
12V BATTERY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28800A - TERMINAL, BATTERY POSITIVE | ||||
| 90982-05058 |
A25AFXS..AXAH54,AXAL54 |
1 | ||
| 28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL) | ||||
| 82621-42020 |
A25AFXS..AXAH54,AXAL54 |
1 | ||
| 28885B - HOSE, BATTERY | ||||
| 28885-F0030 |
A25AFXS..AXAH54,AXAL54 |
1 | ||
| 28899 - INSULATOR, BATTERY | ||||
| 28899-F0040 |
A25AFXS..AXAH54,AXAL54..G,M |
1 | ||
| 28899-F0030 |
A25AFXS..AXAH54,AXAL54..X |
1 | ||
| 28899-F0040 |
A25AFXS..AXAH54,AXAL54..X DOOR LOCK- SMART ENTRY(PANIC) & ID CODE BOX |
1 | ||
| 82671R - STOPPER, BATTERY TERMINAL | ||||
| 82670-42010 |
AXAH54,AXAL54 |
1 | ||
| Common parts | ||||
| 90178-A0112 | ||||
| 94151-80801 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||

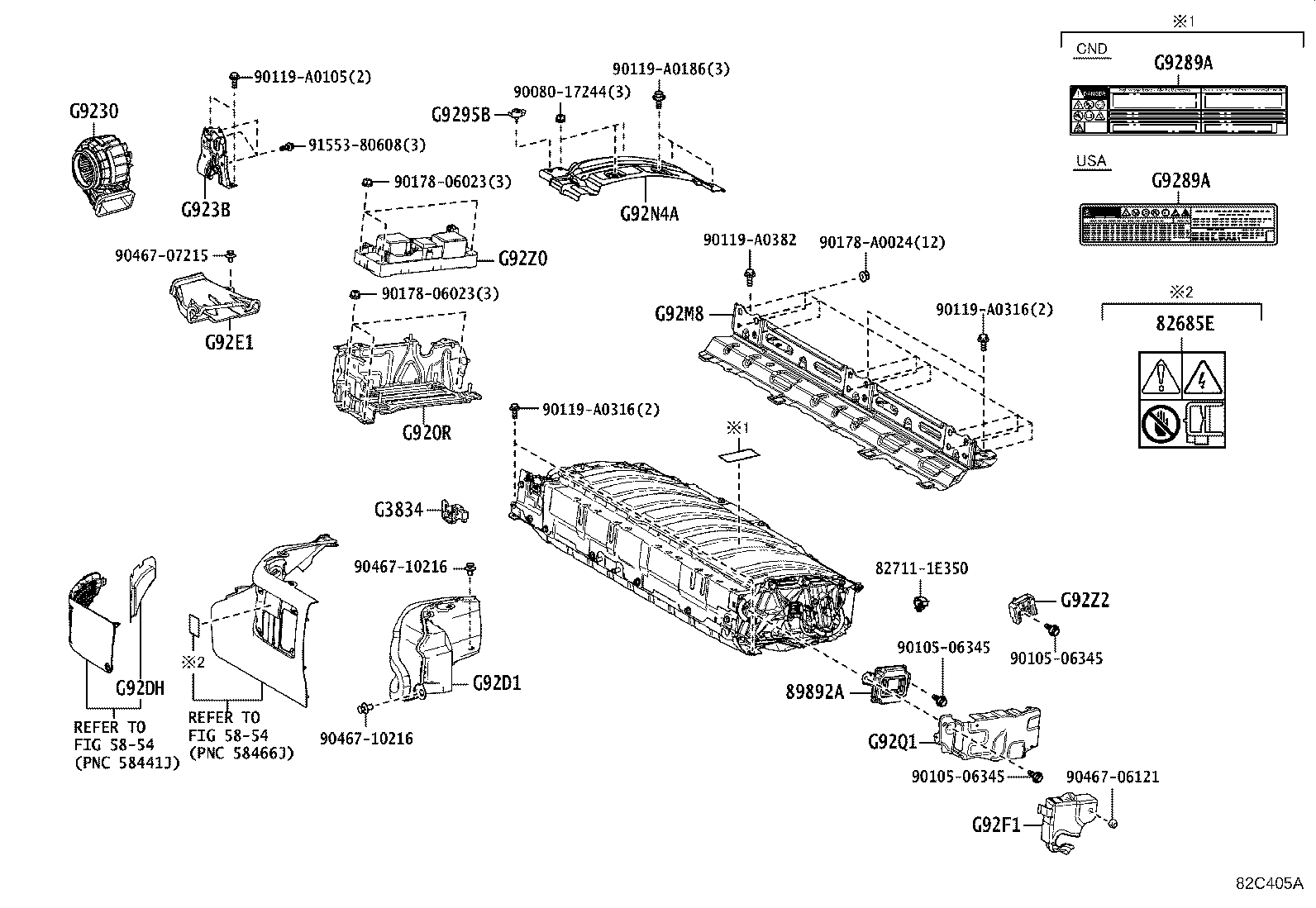

ILLUST NO. 2 OF 3(1903- )AXAH54
Click highlighted areas on diagram
HV BATTERY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82685E - PLATE, SERVICE PLUG CAUTION | ||||
| 82685-47110 |
AXAH54,AXAL54 |
1 | ||
| 89892A - SENSOR, BATTERY VOLTAGE | ||||
| 89892-33040 |
AXAH54 |
1 | ||
| G3834 - GRIP, SERVICE PLUG | ||||
| G3834-47050 |
AXAH54,AXAL54 |
1 | ||
| G920R - SHIELD SUB-ASSY, HYBRID BATTERY, NO.2 | ||||
| G920R-33030 |
AXAH54 |
1 | ||
| G9230 - BLOWER ASSY, BATTERY COOLING | ||||
| G9230-33050 |
AXAH54,AXAL54 |
1 | ||
| G923B - BRACKET, BATTERY COOLING BLOWER | ||||
| G923B-0R010 |
AXAH54,AXAL54 |
1 | ||
| G9289A - LABEL, BATTERY CAUTION | ||||
| G9288-0R020 |
AXAH54..CND |
1 | ||
| G9289A - LABEL, BATTERY CAUTION | ||||
| G9288-0R020 |
AXAH54..CND |
1 | ||
| G9295B - STRIKER, BATTERY COVER LOCK | ||||
| G9295-30020 |
AXAH54,AXAL54 |
1 | ||
| G92D1 - DUCT, HYBRID BATTERY INTAKE, NO.1 | ||||
| G92D1-0R010 |
AXAH54,AXAL54 |
1 | ||
| G92DH - FILTER, HV BATTERY INTAKE, NO.1 | ||||
| G92DH-42010 |
AXAH54,AXAL54 |
1 | ||
| G92E1 - DUCT, HV BATTERY COVER INTAKE, NO.1 | ||||
| G92E1-33020 |
AXAH54 |
1 | ||
| G92F1 - DUCT, HYBRID BATTERY EXHAUST, NO.1 | ||||
| G92F1-33020 |
AXAH54 |
1 | ||
| G92M8 - BRACKET, HV BATTERY UPPER CARRIER, NO.2 | ||||
| G92M8-0R010 |
AXAH54 |
1 | ||
| G92N4A - PANEL, HV BATTERY RH COVER, NO.1 | ||||
| G92N4-33040 |
AXAH54 |
1 | ||
| G92Q1 - PANEL, HV BATTERY SHIELD, NO.1 | ||||
| G92Q1-33050 |
AXAH54 |
1 | ||
| G92Z0 - BLOCK ASSY, HV BATTERY JUNCTION | ||||
| G92Z0-33041 |
AXAH54 |
1 | ||
| G92Z2 - BLOCK, HYBRID BATTERY TERMINAL | ||||
| G92Z2-47070 |
AXAH54,AXAL54 |
1 | ||
| Common parts | ||||
| 82711-1E350 | ||||
| 90080-17244 | ||||
| 90105-06345 | ||||
| 90119-A0105 | ||||
| 90119-A0186 | ||||
| 90119-A0316 | ||||
| 90119-A0382 | ||||
| 90178-06023 | ||||
| 90178-A0024 | ||||
| 90467-06121 | ||||
| 90467-07215 | ||||
| 90467-10216 | ||||
| 91553-80608 | ||||
| Linked diagrams | ||||
| 5854 | ||||

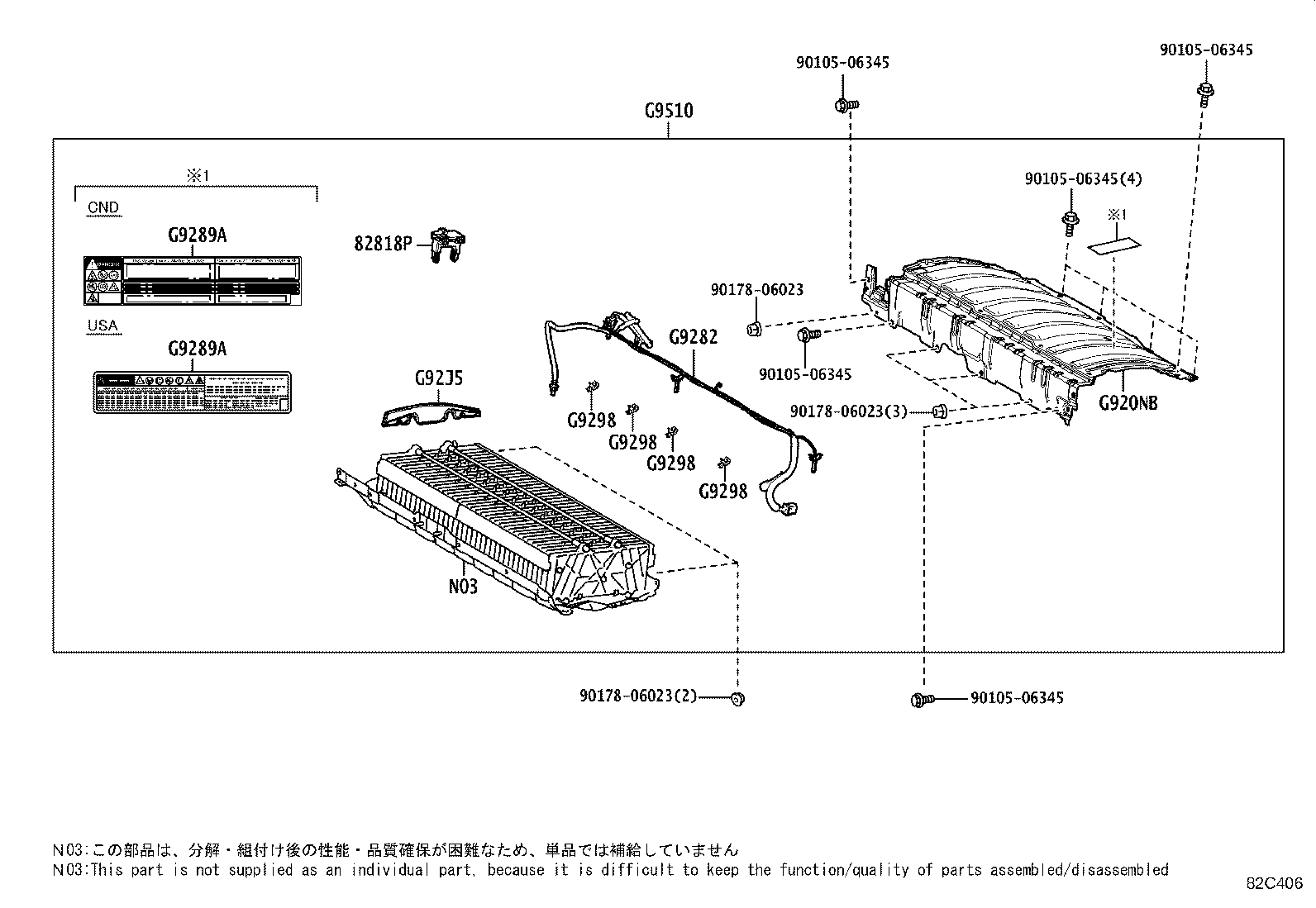

ILLUST NO. 3 OF 3(1903- )AXAH54
Click highlighted areas on diagram
HV BATTERY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82818P - PROTECTOR, WIRING HARNESS | ||||
| 82817-47Q60 |
AXAH54,AXAL54 |
1 | ||
| G920NB - COVER SUB-ASSY, HV BATTERY, UPPER | ||||
| G920N-33050 |
AXAH54 |
1 | ||
| G9282 - THERMISTOR, HYBRID BATTERY | ||||
| G9282-33030 |
AXAH54 |
1 | ||
| G9289A - LABEL, BATTERY CAUTION | ||||
| G9288-0R020 |
AXAH54..CND |
1 | ||
| G9289A - LABEL, BATTERY CAUTION | ||||
| G9288-0R020 |
AXAH54..CND |
1 | ||
| G9298 - CLAMP, HV BATTERY | ||||
| G928E-47010 |
AXAH54 |
4 | ||
| G9298 - CLAMP, HV BATTERY | ||||
| G928E-47010 |
AXAH54 |
4 | ||
| G9298 - CLAMP, HV BATTERY | ||||
| G928E-47010 |
AXAH54 |
4 | ||
| G9298 - CLAMP, HV BATTERY | ||||
| G928E-47010 |
AXAH54 |
4 | ||
| G92J5 - PACKING, HYBRID BATTERY, NO.1 | ||||
| G92J5-47030 |
AXAH54 |
1 | ||
| G9510 - BATTERY ASSY, HV SUPPLY | ||||
| G9510-33120 |
AXAH54 |
1 | ||
| Common parts | ||||
| 90105-06345 | ||||
| 90178-06023 | ||||
