AXAH54L-CNXMBK (2019)

Toyota Rav4 (Nap)

Production Mar 2019 - Sep 2020
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

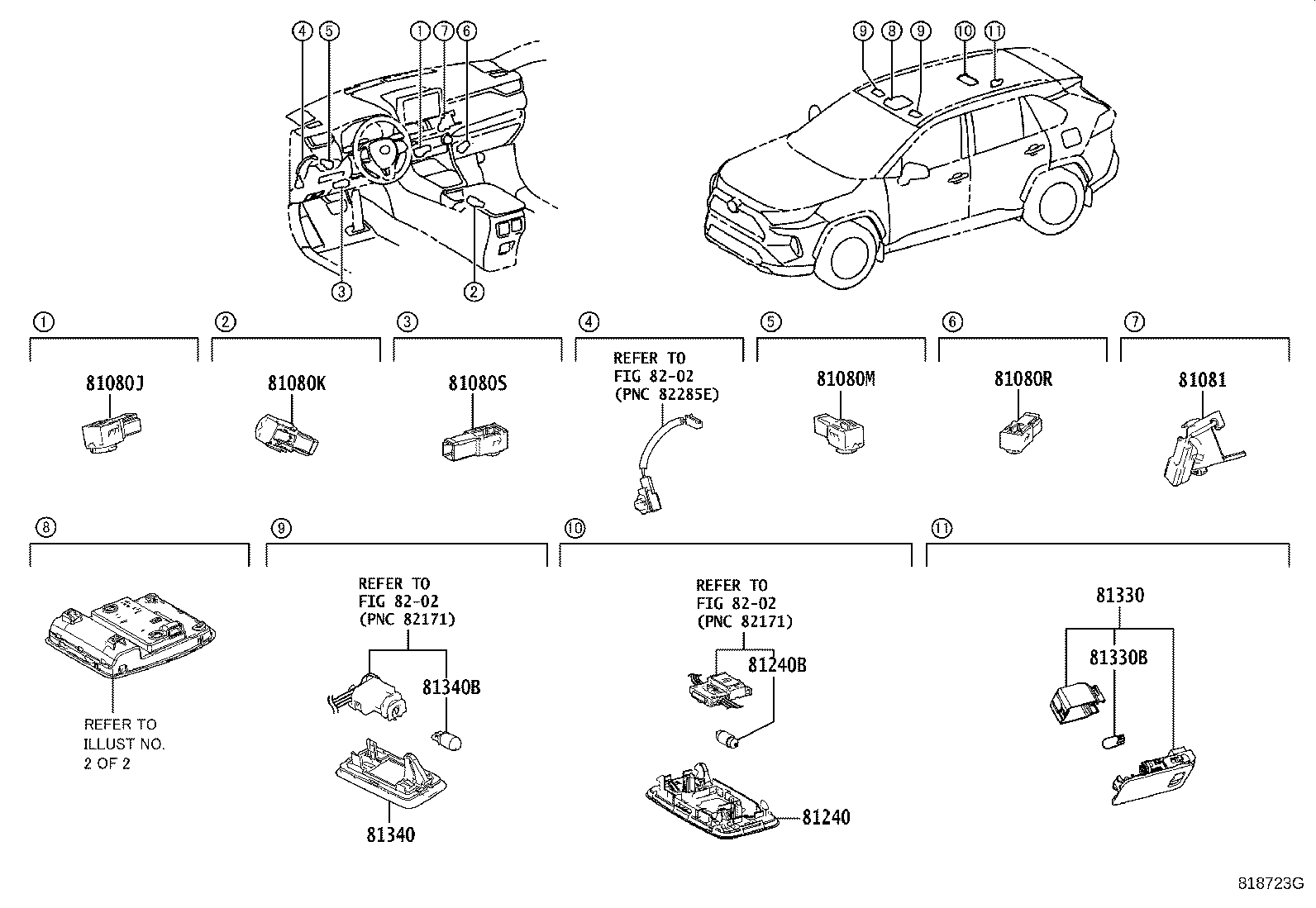

ILLUST NO. 1 OF 2(1812-2111)

Click highlighted areas on diagram

diagram 81080J 81080K 81080M 81080R 81080S 81081 81240 81240B 81330 81330B 81340 81340B 8202 8202 8202
Part # Description Qty Price
81080J - LAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080-42040

AXAH54..M..CND

WITH(BODY STRIPE)

 1
81080-42040

AXAA5#,AXAH54,AXAL54..G

 1
81080K - LAMP ASSY, CONSOLE BOX ILLUMINATION
81080-42040

AXAA5#,AXAH54,AXAL54..G,V

 1
81080-42040

AXAH54,AXAL54..M

WITH(BODY STRIPE)

 1
81080M - LAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080-42040

AXAA5#,AXAH54,AXAL54..G

 1
81080-42040

AXAH54,AXAL54..M

WITH(BODY STRIPE)

 1
81080R - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080-33280

AXAA5#,AXAH54,AXAL54..G,V

 1
81080-33280

AXAH54,AXAL54..M

WITH(BODY STRIPE)

 1
81080S - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81080-33280

AXAH54,AXAL54..M

WITH(BODY STRIPE)

 1
81080-33280

AXAA5#,AXAH54,AXAL54..G,V

 1
81081 - LAMP SUB-ASSY, INTERIOR ILLUMINATION
81081-42030

AXAH54,AXAL54..M

WITH(BODY STRIPE)

 1
81081-42030

AXAA5#,AXAH54,AXAL54..G

 1
81240 - LAMP ASSY, ROOM, NO.1
81360-42021B0

AXAH54,AXAL54..M

LT.GRAY,TRIM1#,20,4#

 1
81360-42021B0

AXAA5#..G,M;AXAH54,AXAL54..G

LT.GRAY,TRIM1#,2#,4#

 1
81240-35020B0

AXAH54..M

LT.GRAY,TRIM1#,20,4#

 1
81240-35020B0

AXAH54..G,X;AXAA5#..G,M,X

LT.GRAY,TRIM1#,2#,4#

 1
81360-42021C0

AXAH54,AXAL54..M

BLACK,TRIM20

 1
81360-42021B0

AXAA5#,AXAH54,AXAL54..V,X

LT.GRAY,TRIM2#,4#

 1
81240-35020C1

AXAH54..M

BLACK,TRIM20

 1
81240B - BULB, ROOM LAMP, NO.1
90981-14011

AXAA5#,AXAH54,AXAL54

12V 8W

 1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330-0E010

AXAA5#,AXAH54,AXAL54

 1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
99132-12050

AXAA5#,AXAH54,AXAL54

12V 5W

 1
81340 - LAMP ASSY, VANITY
81340-30110

AXAA5#,AXAH54,AXAL54

(J)

 2
81340-06030

AXAA5#,AXAH54,AXAL54

(L)

 2
81340B - BULB (FOR VANITY LAMP)
90981-11062

AXAA5#,AXAH54,AXAL54

12V 8W

 2
