Toyota Rav4 (nap) AXAH54 FOG LAMP

Part #	Description	Period	Qty

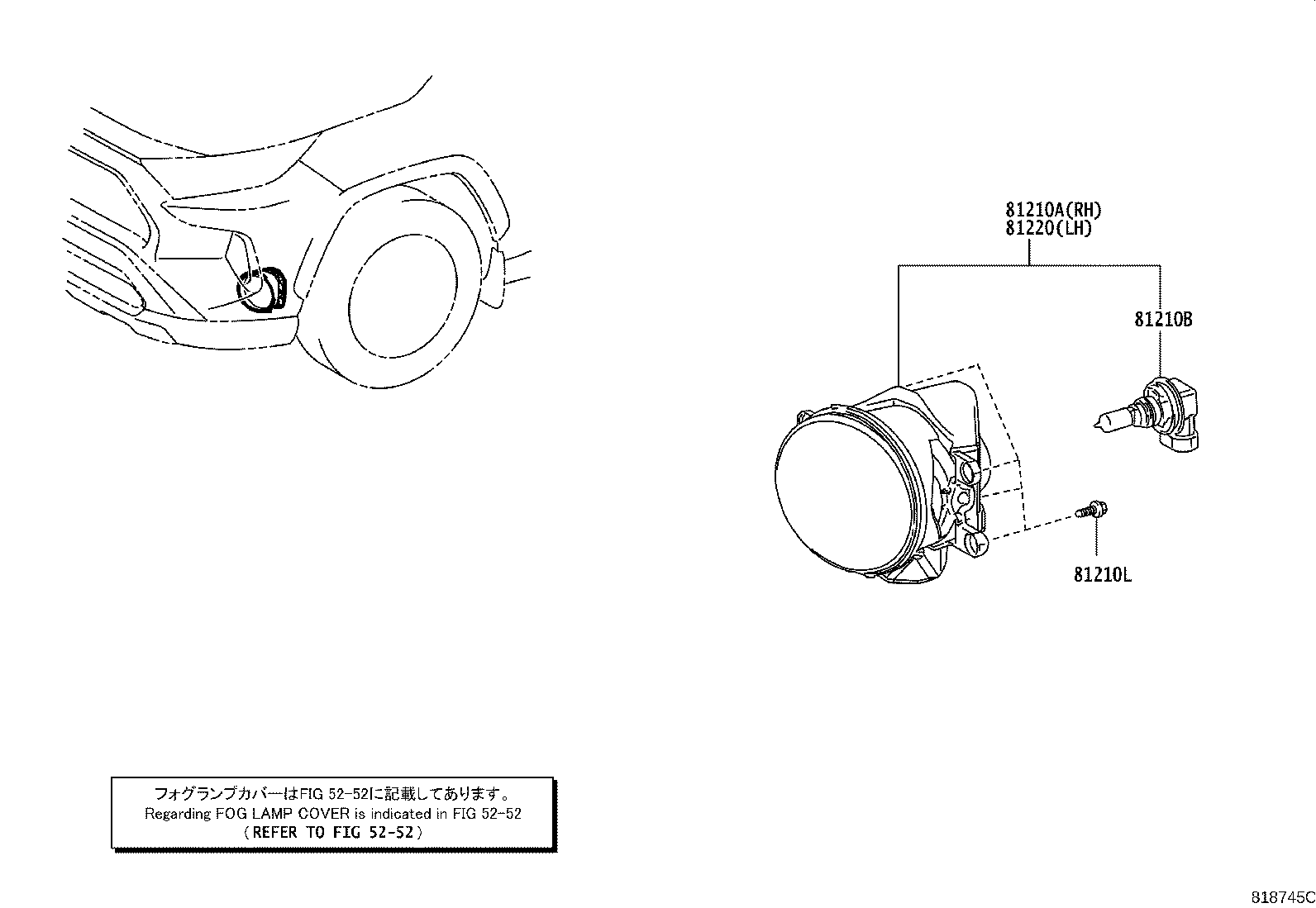

81210A - LAMP ASSY, FOG, RH
81210-02160	AXAH54,AXAL54..M FRONT FOG LAMP-WITH(LED TYPE)	03/2019 - 09/2020	1
81210-02160	AXAA5#,AXAH54,AXAL54..G,M FRONT FOG LAMP-WITH(LED TYPE)	12/2018 - 09/2020	1
81210-02160	AXAA5#,AXAH54,AXAL54..G,M,V	12/2018 - 09/2020	1
81210B - BULB, FOG LAMP
90981-13090	AXAA5#,AXAH54,AXAL54..G,M,V 12V 19W	12/2018 - 09/2020	2
90981-13090	AXAH54,AXAL54..M 12V 19W,FRONT FOG LAMP-WITH(LED TYPE)	03/2019 - 09/2020	2
90981-13090	AXAA5#,AXAH54,AXAL54..G,M 12V 19W,FRONT FOG LAMP-WITH(LED TYPE)	12/2018 - 09/2020	2
81210L - SCREW(FOR FRONT FOG LAMP)
90167-50063	AXAA5#,AXAH54,AXAL54..G,M FRONT FOG LAMP-WITH(LED TYPE),(J)	12/2018 - 09/2020	4
90167-50063	AXAA5#,AXAH54,AXAL54..G,M,V (J)	12/2018 - 09/2020	4
90167-50063	AXAH54,AXAL54..M FRONT FOG LAMP-WITH(LED TYPE),(J)	03/2019 - 09/2020	4
90167-A0021	AXAA5#,AXAH54,AXAL54..G,M,V (L)	12/2018 - 09/2020	4
81220 - LAMP ASSY, FOG, LH
81220-02160	AXAH54,AXAL54..M FRONT FOG LAMP-WITH(LED TYPE)	03/2019 - 09/2020	1
81220-02160	AXAA5#,AXAH54,AXAL54..G,M,V	12/2018 - 09/2020	1
81220-02160	AXAA5#,AXAH54,AXAL54..G,M FRONT FOG LAMP-WITH(LED TYPE)	12/2018 - 09/2020	1
Linked diagrams
5252

AXAH54L-CNXMBK (2019)
