AXAH54L-CNXMBK (2019)
Toyota Rav4 (Nap)

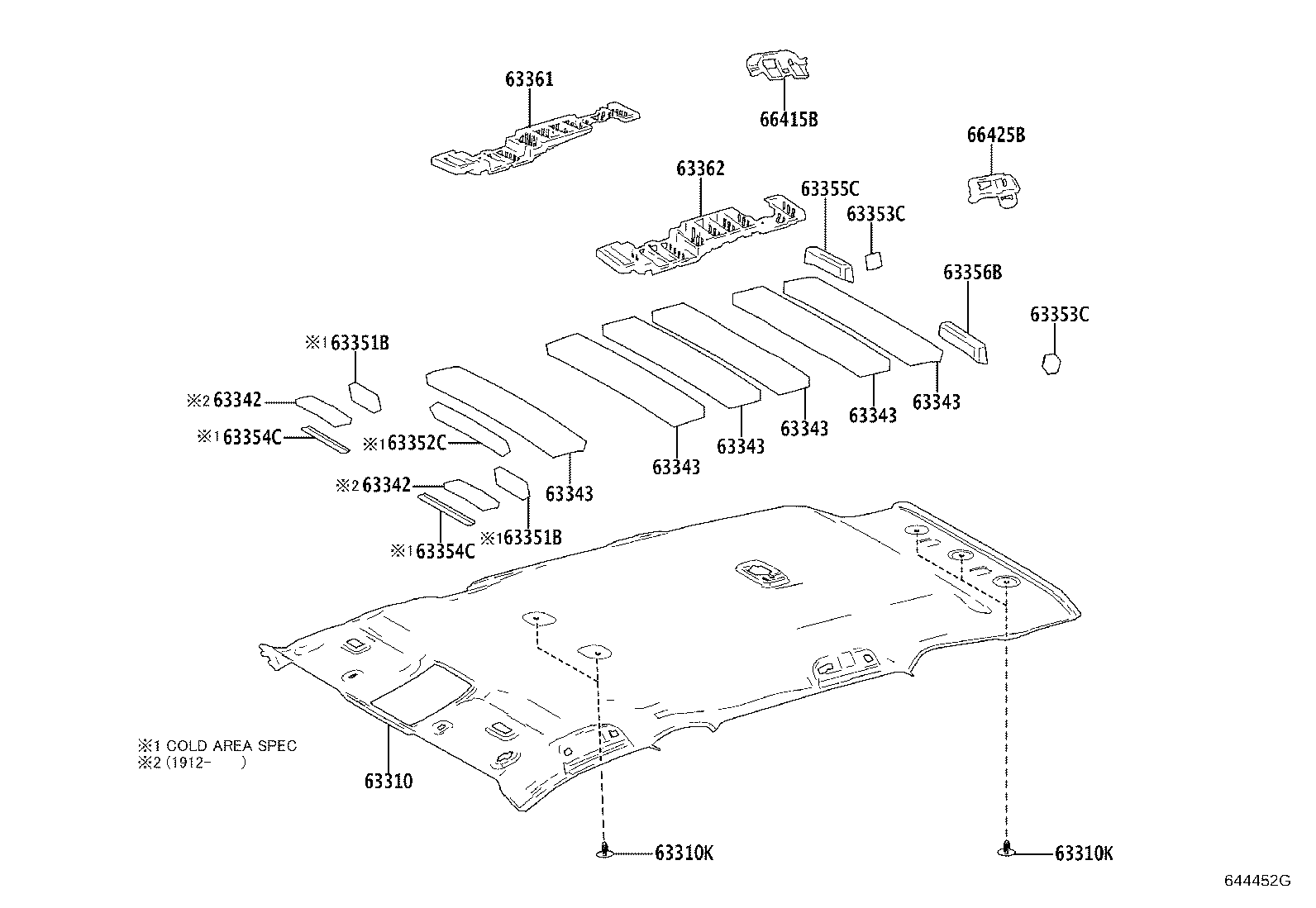

(1812-2008)
NORMAL ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-0R170C0 |
AXAH54,AXAL54..M BLACK,TRIM20 |
1 | ||
| 63310-0R160B0 |
AXAA5#,AXAH54..X..CND LT. GRAY,TRIM1#,2#,4# |
1 | ||
| 63310-0R160B0 |
AXAA5#,AXAH54,AXAL54..M COLD AREA SPEC,W(STEERING HEATER)&MOON ROOF-WITHOUT,LT. GRAY,TRIM1#,2#,4# |
1 | ||
| 63310-0R170B0 |
AXAA5#..G,M;AXAH54,AXAL54..G LT. GRAY,TRIM1#,2#,4# |
1 | ||
| 63310-0R160B0 |
AXAA5#,AXAH54,AXAL54..M MOON ROOF-WITHOUT,LT. GRAY,TRIM1#,2#,4# |
1 | ||
| 63310-0R170B0 |
AXAH54,AXAL54..M LT. GRAY,TRIM1#,20,4# |
1 | ||
| 63310K - CLIP | ||||
| 90467-05164B0 |
AXAA5#..G,M;AXAH54,AXAL54..G LT.GRAY,TRIM1#,2#,4# |
3 | ||
| 90467-05164B0 |
AXAA5#,AXAH54..X..CND LT.GRAY,TRIM1#,2#,4# |
5 | ||
| 90467-05164B0 |
AXAH54,AXAL54..M LT.GRAY,TRIM1#,20,4# |
3 | ||
| 90467-05164C7 |
AXAH54,AXAL54..M BLACK,TRIM20 |
3 | ||
| 90467-05164B0 |
AXAA5#,AXAH54,AXAL54..M MOON ROOF-WITHOUT,LT.GRAY,TRIM1#,2#,4# |
5 | ||
| 90467-05164B0 |
AXAA5#,AXAH54,AXAL54..M COLD AREA SPEC,W(STEERING HEATER)&MOON ROOF-WITHOUT,LT.GRAY,TRIM1#,2#,4# |
5 | ||
| 63310K - CLIP | ||||
| 90467-05164B0 |
AXAA5#..G,M;AXAH54,AXAL54..G LT.GRAY,TRIM1#,2#,4# |
3 | ||
| 90467-05164B0 |
AXAA5#,AXAH54..X..CND LT.GRAY,TRIM1#,2#,4# |
5 | ||
| 90467-05164B0 |
AXAH54,AXAL54..M LT.GRAY,TRIM1#,20,4# |
3 | ||
| 90467-05164C7 |
AXAH54,AXAL54..M BLACK,TRIM20 |
3 | ||
| 90467-05164B0 |
AXAA5#,AXAH54,AXAL54..M MOON ROOF-WITHOUT,LT.GRAY,TRIM1#,2#,4# |
5 | ||
| 90467-05164B0 |
AXAA5#,AXAH54,AXAL54..M COLD AREA SPEC,W(STEERING HEATER)&MOON ROOF-WITHOUT,LT.GRAY,TRIM1#,2#,4# |
5 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-42080 |
AXAA5#,AXAH54,AXAL54 |
2 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-42080 |
AXAA5#,AXAH54,AXAL54 |
2 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63343-0R030 |
AXAA5#,AXAH54..M COLD AREA SPEC,W(STEERING HEATER)&MOON ROOF-WITHOUT |
6 | ||
| 63343-0R030 |
AXAA5#,AXAH54..M MOON ROOF-WITHOUT |
6 | ||
| 63343-0R030 |
AXAA5#,AXAH54,AXAL54..G,M,V |
2 | ||
| 63343-0R030 |
AXAA5#,AXAH54,AXAL54..X |
6 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63343-0R030 |
AXAA5#,AXAH54..M COLD AREA SPEC,W(STEERING HEATER)&MOON ROOF-WITHOUT |
6 | ||
| 63343-0R030 |
AXAA5#,AXAH54..M MOON ROOF-WITHOUT |
6 | ||
| 63343-0R030 |
AXAA5#,AXAH54,AXAL54..G,M,V |
2 | ||
| 63343-0R030 |
AXAA5#,AXAH54,AXAL54..X |
6 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63343-0R030 |
AXAA5#,AXAH54..M COLD AREA SPEC,W(STEERING HEATER)&MOON ROOF-WITHOUT |
6 | ||
| 63343-0R030 |
AXAA5#,AXAH54..M MOON ROOF-WITHOUT |
6 | ||
| 63343-0R030 |
AXAA5#,AXAH54,AXAL54..G,M,V |
2 | ||
| 63343-0R030 |
AXAA5#,AXAH54,AXAL54..X |
6 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63343-0R030 |
AXAA5#,AXAH54..M COLD AREA SPEC,W(STEERING HEATER)&MOON ROOF-WITHOUT |
6 | ||
| 63343-0R030 |
AXAA5#,AXAH54..M MOON ROOF-WITHOUT |
6 | ||
| 63343-0R030 |
AXAA5#,AXAH54,AXAL54..G,M,V |
2 | ||
| 63343-0R030 |
AXAA5#,AXAH54,AXAL54..X |
6 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63343-0R030 |
AXAA5#,AXAH54..M COLD AREA SPEC,W(STEERING HEATER)&MOON ROOF-WITHOUT |
6 | ||
| 63343-0R030 |
AXAA5#,AXAH54..M MOON ROOF-WITHOUT |
6 | ||
| 63343-0R030 |
AXAA5#,AXAH54,AXAL54..G,M,V |
2 | ||
| 63343-0R030 |
AXAA5#,AXAH54,AXAL54..X |
6 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63343-0R030 |
AXAA5#,AXAH54..M COLD AREA SPEC,W(STEERING HEATER)&MOON ROOF-WITHOUT |
6 | ||
| 63343-0R030 |
AXAA5#,AXAH54..M MOON ROOF-WITHOUT |
6 | ||
| 63343-0R030 |
AXAA5#,AXAH54,AXAL54..G,M,V |
2 | ||
| 63343-0R030 |
AXAA5#,AXAH54,AXAL54..X |
6 | ||
| 63351B - PAD, ROOF HEADLINING | ||||
| 63351-0R020 |
AXAA5#,AXAH54..M COLD AREA SPEC,W(STEERING HEATER)&MOON ROOF-WITHOUT |
2 | ||
| 63351B - PAD, ROOF HEADLINING | ||||
| 63351-0R020 |
AXAA5#,AXAH54..M COLD AREA SPEC,W(STEERING HEATER)&MOON ROOF-WITHOUT |
2 | ||
| 63352C - PAD, ROOF HEADLINING, END | ||||
| 63352-0R030 |
AXAA5#,AXAH54..M COLD AREA SPEC,W(STEERING HEATER)&MOON ROOF-WITHOUT |
1 | ||
| 63353C - PAD, ROOF HEADLINING, CENTER | ||||
| 63353-0R010 |
AXAA5#,AXAH54,AXAL54 |
2 | ||
| 63353C - PAD, ROOF HEADLINING, CENTER | ||||
| 63353-0R010 |
AXAA5#,AXAH54,AXAL54 |
2 | ||
| 63354C - PAD, ROOF HEADLINING FRONT SIDE | ||||
| 63354-0R020 |
AXAA5#,AXAH54,AXAL54..G,M,V COLD AREA SPEC,W(STEERING HEATER) |
2 | ||
| 63354-0R020 |
AXAA5#,AXAH54..M COLD AREA SPEC,W(STEERING HEATER)&MOON ROOF-WITHOUT |
2 | ||
| 63354-0R020 |
AXAA5#,AXAH54,AXAL54..G *COS,W(STEERING HEATER&REAR SEAT HEATER) |
2 | ||
| 63354C - PAD, ROOF HEADLINING FRONT SIDE | ||||
| 63354-0R020 |
AXAA5#,AXAH54,AXAL54..G,M,V COLD AREA SPEC,W(STEERING HEATER) |
2 | ||
| 63354-0R020 |
AXAA5#,AXAH54..M COLD AREA SPEC,W(STEERING HEATER)&MOON ROOF-WITHOUT |
2 | ||
| 63354-0R020 |
AXAA5#,AXAH54,AXAL54..G *COS,W(STEERING HEATER&REAR SEAT HEATER) |
2 | ||
| 63355C - PAD, ROOF HEADLINING, RH | ||||
| 63355-0R030 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 63356B - PAD, ROOF HEADLINING, LH | ||||
| 63356-0R010 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 63361 - SUPPORT, ROOF HEADLINING, NO.1 | ||||
| 63361-0R040 |
AXAA5#,AXAH54,AXAL54..X |
1 | ||
| 63361-0R040 |
AXAA5#,AXAH54..M COLD AREA SPEC,W(STEERING HEATER)&MOON ROOF-WITHOUT |
1 | ||
| 63361-0R040 |
AXAA5#,AXAH54..M MOON ROOF-WITHOUT |
1 | ||
| 63362 - SUPPORT, ROOF HEADLINING, NO.2 | ||||
| 63362-0R040 |
AXAA5#,AXAH54..M COLD AREA SPEC,W(STEERING HEATER)&MOON ROOF-WITHOUT |
1 | ||
| 63362-0R040 |
AXAA5#,AXAH54..M MOON ROOF-WITHOUT |
1 | ||
| 63362-0R040 |
AXAA5#,AXAH54,AXAL54..X |
1 | ||
| 66415B - SPACER, SIDE RAIL, REAR NO.2 RH | ||||
| 66415-0R070 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 66425B - SPACER, SIDE RAIL, REAR NO.2 LH | ||||
| 66425-0R070 |
AXAA5#,AXAH54,AXAL54 |
1 | ||

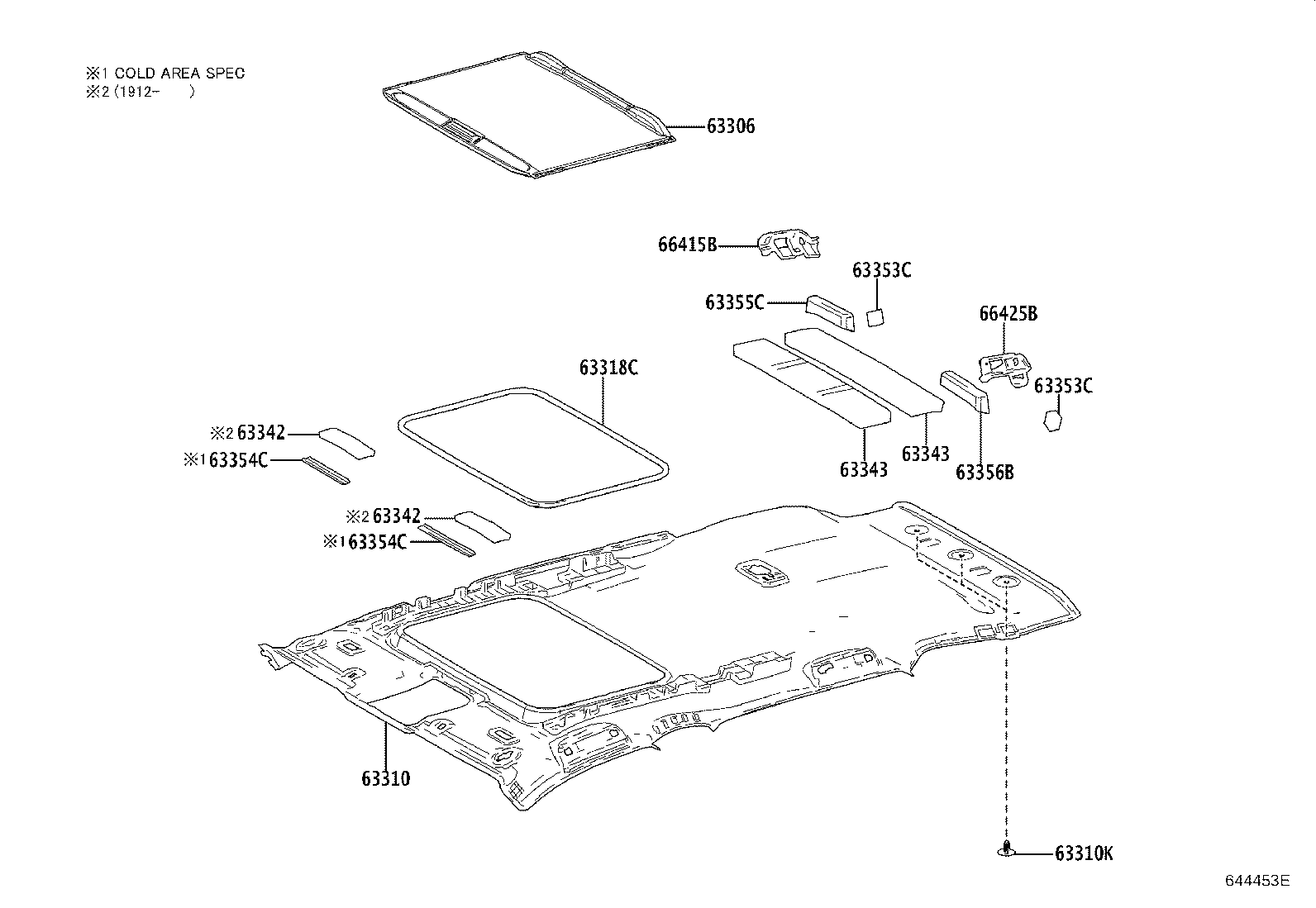

(1812-2008)
MOON ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63306 - TRIM SUB-ASSY, SUNSHADE | ||||
| 63306-0R060B1 |
AXAH54,AXAL54..M LT. GRAY,TRIM1#,20,4# |
1 | ||
| 63306-0R060B1 |
AXAA5#..G,M;AXAH54,AXAL54..G LT. GRAY,TRIM1#,2#,4# |
1 | ||
| 63306-0R060C1 |
AXAH54,AXAL54..M BLACK,TRIM20 |
1 | ||
| 63306-0R060B1 |
AXAH54,AXAL54..M MOON ROOF-WITHOUT,LT. GRAY,TRIM1#,20,4# |
1 | ||
| 63306-0R060C1 |
AXAH54,AXAL54..M MOON ROOF-WITHOUT,BLACK,TRIM20 |
1 | ||
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-0R170C0 |
AXAH54,AXAL54..M BLACK,TRIM20 |
1 | ||
| 63310-0R160B0 |
AXAA5#,AXAH54..X..CND LT. GRAY,TRIM1#,2#,4# |
1 | ||
| 63310-0R160B0 |
AXAA5#,AXAH54,AXAL54..M COLD AREA SPEC,W(STEERING HEATER)&MOON ROOF-WITHOUT,LT. GRAY,TRIM1#,2#,4# |
1 | ||
| 63310-0R170B0 |
AXAA5#..G,M;AXAH54,AXAL54..G LT. GRAY,TRIM1#,2#,4# |
1 | ||
| 63310-0R160B0 |
AXAA5#,AXAH54,AXAL54..M MOON ROOF-WITHOUT,LT. GRAY,TRIM1#,2#,4# |
1 | ||
| 63310-0R170B0 |
AXAH54,AXAL54..M LT. GRAY,TRIM1#,20,4# |
1 | ||
| 63310K - CLIP | ||||
| 90467-05164B0 |
AXAA5#..G,M;AXAH54,AXAL54..G LT.GRAY,TRIM1#,2#,4# |
3 | ||
| 90467-05164B0 |
AXAA5#,AXAH54..X..CND LT.GRAY,TRIM1#,2#,4# |
5 | ||
| 90467-05164B0 |
AXAH54,AXAL54..M LT.GRAY,TRIM1#,20,4# |
3 | ||
| 90467-05164C7 |
AXAH54,AXAL54..M BLACK,TRIM20 |
3 | ||
| 90467-05164B0 |
AXAA5#,AXAH54,AXAL54..M MOON ROOF-WITHOUT,LT.GRAY,TRIM1#,2#,4# |
5 | ||
| 90467-05164B0 |
AXAA5#,AXAH54,AXAL54..M COLD AREA SPEC,W(STEERING HEATER)&MOON ROOF-WITHOUT,LT.GRAY,TRIM1#,2#,4# |
5 | ||
| 63318C - MOULDING, SUN ROOF OPENING TRIM | ||||
| 63318-0R100B0 |
AXAA5#..G,M;AXAH54,AXAL54..G L=2250,LT. GRAY,TRIM1#,2#,4# |
1 | ||
| 63318-0R100B0 |
AXAA5#,AXAH54,AXAL54..G L=2250,*COS,W(STEERING HEATER&REAR SEAT HEATER),LT. GRAY,TRIM1#,2#,4# |
1 | ||
| 63318-0R100B0 |
AXAH54,AXAL54..M L=2250,LT. GRAY,TRIM1#,20,4# |
1 | ||
| 63318-0R100B0 |
AXAA5#..G,M;AXAH54,AXAL54..G L=2250,COLD AREA SPEC,W(STEERING HEATER),LT. GRAY,TRIM1#,2#,4# |
1 | ||
| 63318-0R100C0 |
AXAH54,AXAL54..M L=2250,BLACK,TRIM20 |
1 | ||
| 63318-0R100B0 |
AXAH54,AXAL54..M L=2250,COLD AREA SPEC,W(STEERING HEATER),LT. GRAY,TRIM1#,20,4# |
1 | ||
| 63318-0R100C0 |
AXAH54,AXAL54..M L=2250,COLD AREA SPEC,W(STEERING HEATER),BLACK,TRIM20 |
1 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-42080 |
AXAA5#,AXAH54,AXAL54 |
2 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-42080 |
AXAA5#,AXAH54,AXAL54 |
2 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63343-0R030 |
AXAA5#,AXAH54..M COLD AREA SPEC,W(STEERING HEATER)&MOON ROOF-WITHOUT |
6 | ||
| 63343-0R030 |
AXAA5#,AXAH54..M MOON ROOF-WITHOUT |
6 | ||
| 63343-0R030 |
AXAA5#,AXAH54,AXAL54..G,M,V |
2 | ||
| 63343-0R030 |
AXAA5#,AXAH54,AXAL54..X |
6 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63343-0R030 |
AXAA5#,AXAH54..M COLD AREA SPEC,W(STEERING HEATER)&MOON ROOF-WITHOUT |
6 | ||
| 63343-0R030 |
AXAA5#,AXAH54..M MOON ROOF-WITHOUT |
6 | ||
| 63343-0R030 |
AXAA5#,AXAH54,AXAL54..G,M,V |
2 | ||
| 63343-0R030 |
AXAA5#,AXAH54,AXAL54..X |
6 | ||
| 63353C - PAD, ROOF HEADLINING, CENTER | ||||
| 63353-0R010 |
AXAA5#,AXAH54,AXAL54 |
2 | ||
| 63353C - PAD, ROOF HEADLINING, CENTER | ||||
| 63353-0R010 |
AXAA5#,AXAH54,AXAL54 |
2 | ||
| 63354C - PAD, ROOF HEADLINING FRONT SIDE | ||||
| 63354-0R020 |
AXAA5#,AXAH54,AXAL54..G,M,V COLD AREA SPEC,W(STEERING HEATER) |
2 | ||
| 63354-0R020 |
AXAA5#,AXAH54..M COLD AREA SPEC,W(STEERING HEATER)&MOON ROOF-WITHOUT |
2 | ||
| 63354-0R020 |
AXAA5#,AXAH54,AXAL54..G *COS,W(STEERING HEATER&REAR SEAT HEATER) |
2 | ||
| 63354C - PAD, ROOF HEADLINING FRONT SIDE | ||||
| 63354-0R020 |
AXAA5#,AXAH54,AXAL54..G,M,V COLD AREA SPEC,W(STEERING HEATER) |
2 | ||
| 63354-0R020 |
AXAA5#,AXAH54..M COLD AREA SPEC,W(STEERING HEATER)&MOON ROOF-WITHOUT |
2 | ||
| 63354-0R020 |
AXAA5#,AXAH54,AXAL54..G *COS,W(STEERING HEATER&REAR SEAT HEATER) |
2 | ||
| 63355C - PAD, ROOF HEADLINING, RH | ||||
| 63355-0R030 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 63356B - PAD, ROOF HEADLINING, LH | ||||
| 63356-0R010 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 66415B - SPACER, SIDE RAIL, REAR NO.2 RH | ||||
| 66415-0R070 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 66425B - SPACER, SIDE RAIL, REAR NO.2 LH | ||||
| 66425-0R070 |
AXAA5#,AXAH54,AXAL54 |
1 | ||

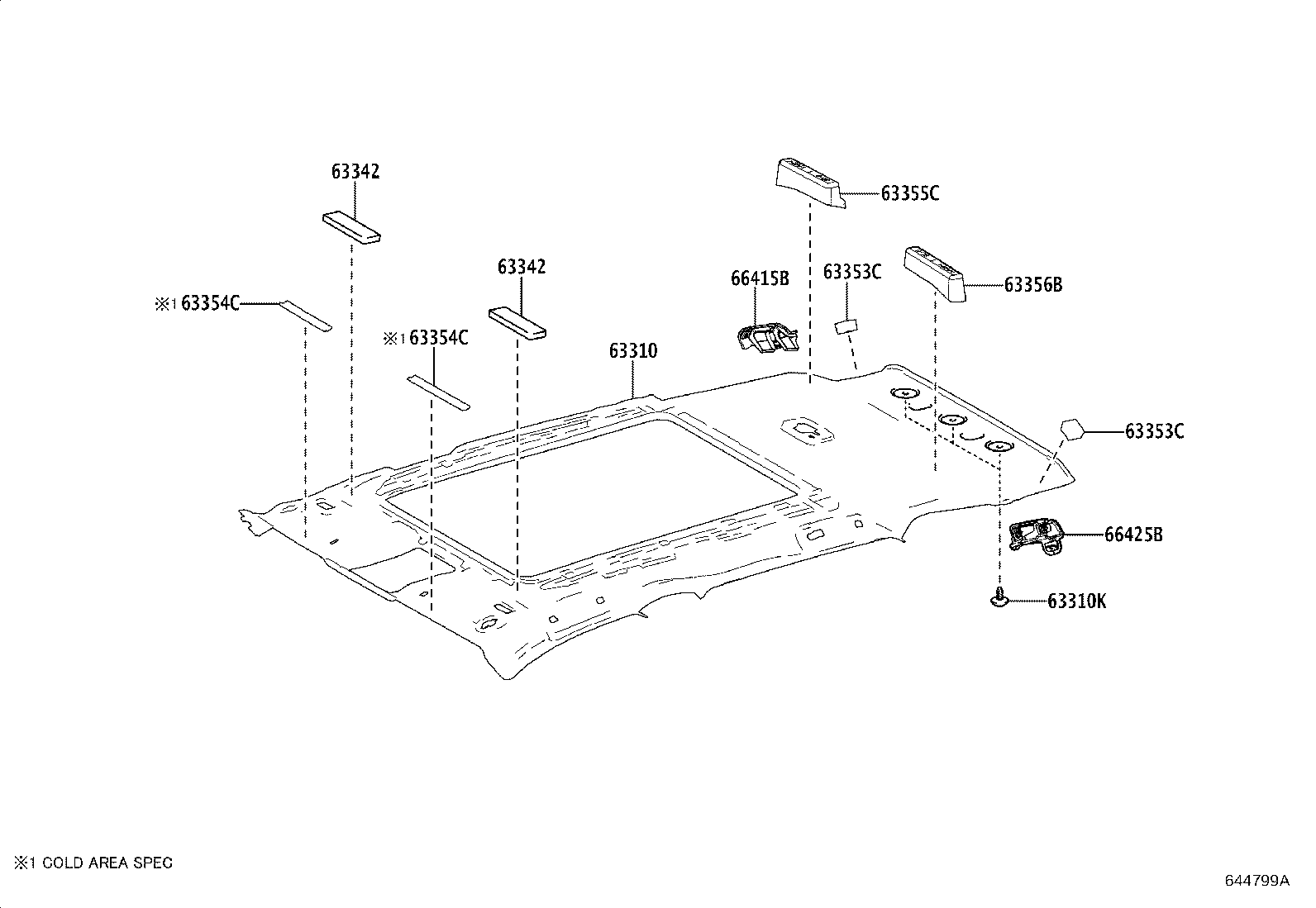

(2001-2008)
PANORAMA ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-0R170C0 |
AXAH54,AXAL54..M BLACK,TRIM20 |
1 | ||
| 63310-0R160B0 |
AXAA5#,AXAH54..X..CND LT. GRAY,TRIM1#,2#,4# |
1 | ||
| 63310-0R160B0 |
AXAA5#,AXAH54,AXAL54..M COLD AREA SPEC,W(STEERING HEATER)&MOON ROOF-WITHOUT,LT. GRAY,TRIM1#,2#,4# |
1 | ||
| 63310-0R170B0 |
AXAA5#..G,M;AXAH54,AXAL54..G LT. GRAY,TRIM1#,2#,4# |
1 | ||
| 63310-0R160B0 |
AXAA5#,AXAH54,AXAL54..M MOON ROOF-WITHOUT,LT. GRAY,TRIM1#,2#,4# |
1 | ||
| 63310-0R170B0 |
AXAH54,AXAL54..M LT. GRAY,TRIM1#,20,4# |
1 | ||
| 63310K - CLIP | ||||
| 90467-05164B0 |
AXAA5#..G,M;AXAH54,AXAL54..G LT.GRAY,TRIM1#,2#,4# |
3 | ||
| 90467-05164B0 |
AXAA5#,AXAH54..X..CND LT.GRAY,TRIM1#,2#,4# |
5 | ||
| 90467-05164B0 |
AXAH54,AXAL54..M LT.GRAY,TRIM1#,20,4# |
3 | ||
| 90467-05164C7 |
AXAH54,AXAL54..M BLACK,TRIM20 |
3 | ||
| 90467-05164B0 |
AXAA5#,AXAH54,AXAL54..M MOON ROOF-WITHOUT,LT.GRAY,TRIM1#,2#,4# |
5 | ||
| 90467-05164B0 |
AXAA5#,AXAH54,AXAL54..M COLD AREA SPEC,W(STEERING HEATER)&MOON ROOF-WITHOUT,LT.GRAY,TRIM1#,2#,4# |
5 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-42080 |
AXAA5#,AXAH54,AXAL54 |
2 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-42080 |
AXAA5#,AXAH54,AXAL54 |
2 | ||
| 63353C - PAD, ROOF HEADLINING, CENTER | ||||
| 63353-0R010 |
AXAA5#,AXAH54,AXAL54 |
2 | ||
| 63353C - PAD, ROOF HEADLINING, CENTER | ||||
| 63353-0R010 |
AXAA5#,AXAH54,AXAL54 |
2 | ||
| 63354C - PAD, ROOF HEADLINING FRONT SIDE | ||||
| 63354-0R020 |
AXAA5#,AXAH54,AXAL54..G,M,V COLD AREA SPEC,W(STEERING HEATER) |
2 | ||
| 63354-0R020 |
AXAA5#,AXAH54..M COLD AREA SPEC,W(STEERING HEATER)&MOON ROOF-WITHOUT |
2 | ||
| 63354-0R020 |
AXAA5#,AXAH54,AXAL54..G *COS,W(STEERING HEATER&REAR SEAT HEATER) |
2 | ||
| 63354C - PAD, ROOF HEADLINING FRONT SIDE | ||||
| 63354-0R020 |
AXAA5#,AXAH54,AXAL54..G,M,V COLD AREA SPEC,W(STEERING HEATER) |
2 | ||
| 63354-0R020 |
AXAA5#,AXAH54..M COLD AREA SPEC,W(STEERING HEATER)&MOON ROOF-WITHOUT |
2 | ||
| 63354-0R020 |
AXAA5#,AXAH54,AXAL54..G *COS,W(STEERING HEATER&REAR SEAT HEATER) |
2 | ||
| 63355C - PAD, ROOF HEADLINING, RH | ||||
| 63355-0R030 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 63356B - PAD, ROOF HEADLINING, LH | ||||
| 63356-0R010 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 66415B - SPACER, SIDE RAIL, REAR NO.2 RH | ||||
| 66415-0R070 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 66425B - SPACER, SIDE RAIL, REAR NO.2 LH | ||||
| 66425-0R070 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
