AXAH54L-CNXMBK (2019)
Toyota Rav4 (Nap)

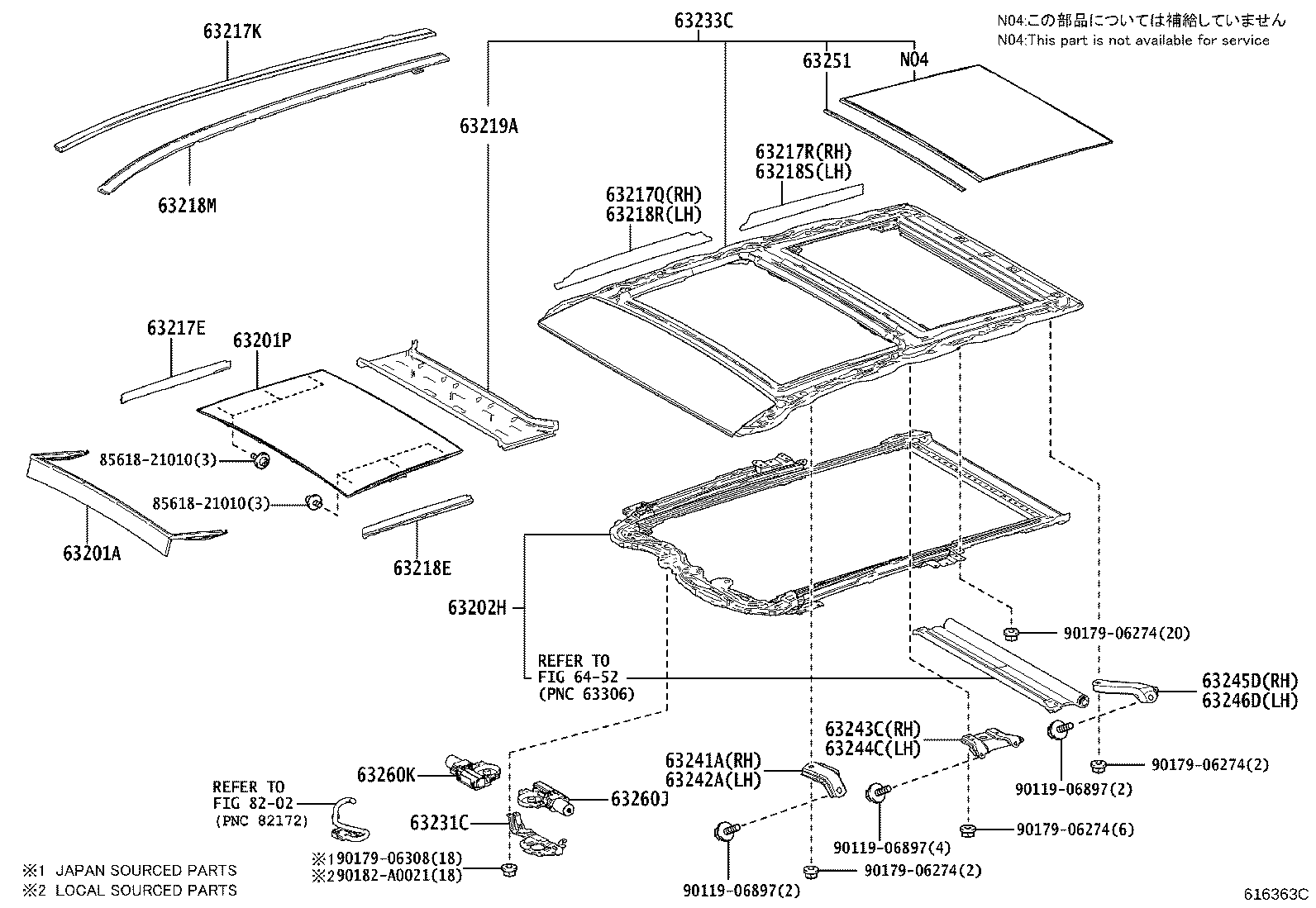

ILLUST NO. 2 OF 3(2001- )
PANORAMA ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63217K - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-0E070 |
AXAA5#,AXAH54,AXAL54..M,V MOON ROOF-WITHOUT |
1 | ||
| 63217-0E070 |
AXAA5#,AXAH54,AXAL54..G,M,V |
1 | ||
| 63218M - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63217-0E070 |
AXAA5#,AXAH54,AXAL54..M,V MOON ROOF-WITHOUT |
1 | ||
| 63217-0E070 |
AXAA5#,AXAH54,AXAL54..G,M,V |
1 | ||
| Common parts | ||||
| 85618-21010 | ||||
| 90119-06897 | ||||
| 90179-06274 | ||||
| 90179-06308 | ||||
| 90182-A0021 | ||||
| Linked diagrams | ||||
| 6452 | ||||
| 8202 | ||||

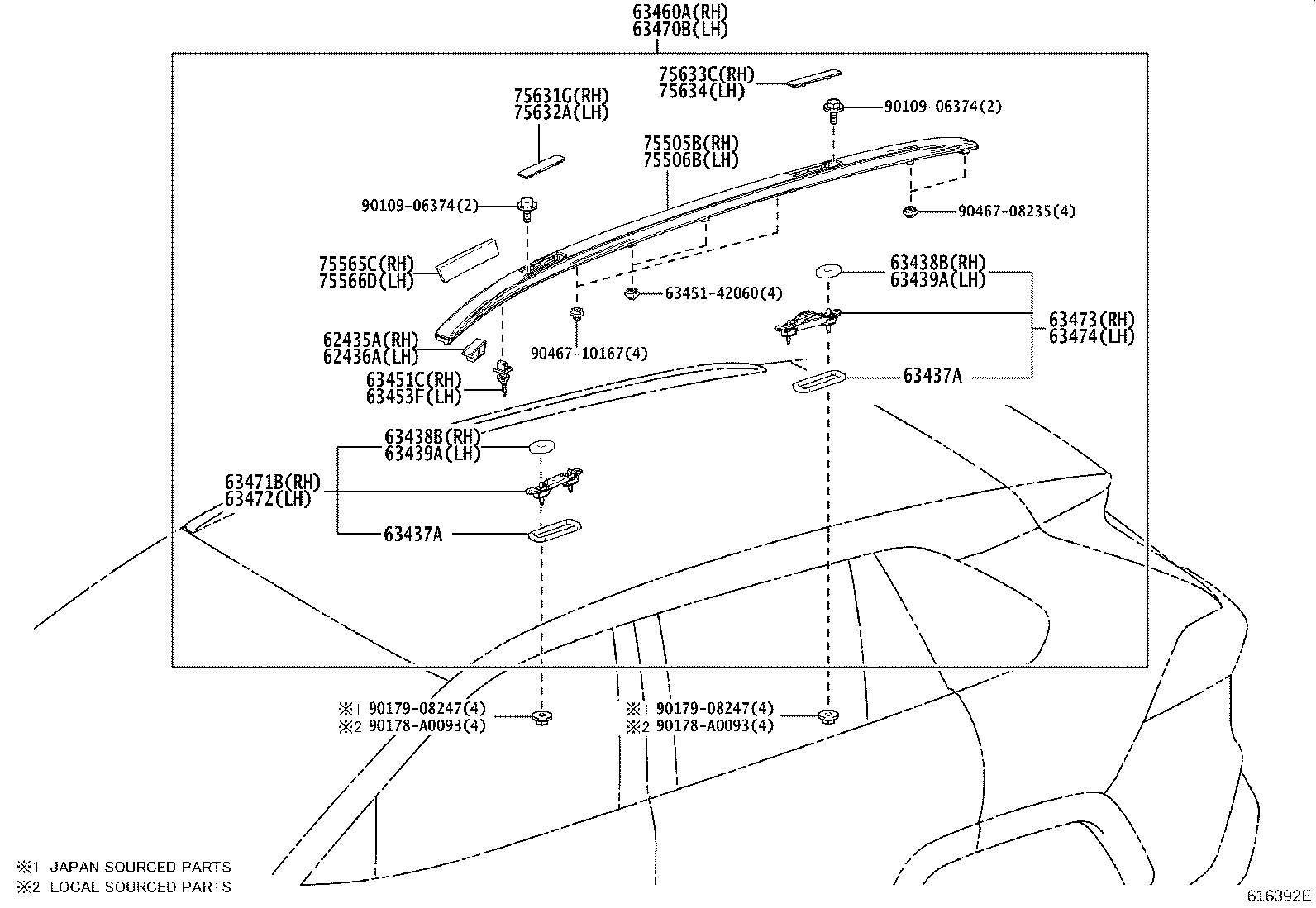

ILLUST NO. 3 OF 3(2001- )
ROOF RAIL(PANORAMA ROOF)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62435A - PAD, ROOF SIDE RAIL, FRONT RH | ||||
| 62435-0R010 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 62436A - PAD, ROOF SIDE RAIL, FRONT LH | ||||
| 62436-0R010 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 63451C - RETAINER, ROOF RACK, FRONT RH | ||||
| 63451-0R010 |
AXAA5#,AXAH54 |
1 | ||
| 63451-0R080 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 63453F - RETAINER, ROOF RACK, FRONT LH | ||||
| 63451-0R010 |
AXAA5#,AXAH54 |
1 | ||
| 63451-0R080 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 63460A - RACK ASSY, ROOF, RH | ||||
| 62403-0R010C3 |
AXAH54,AXAL54..M BLACK,040 ,1D6 ,1G3 ,218 ,2QJ ,2QY ,2QZ ,2RA ,3T3 ,6X3 ,8W9 ,8X8 |
1 | ||
| 62403-0R010C3 |
AXAA5#,AXAH54,AXAL54..G BLACK,070 ,1D6 ,1G3 ,218 ,3T3 ,8X8 |
1 | ||
| 62403-0R010C3 |
AXAA5#,AXAH54,AXAL54..X BLACK,040 ,1D6 ,1G3 ,218 ,3T3 ,8W9 |
1 | ||
| 63470B - RACK ASSY, ROOF, LH | ||||
| 62404-0R010C3 |
AXAH54,AXAL54..M BLACK,040 ,1D6 ,1G3 ,218 ,2QJ ,2QY ,2QZ ,2RA ,3T3 ,6X3 ,8W9 ,8X8 |
1 | ||
| 62404-0R010C3 |
AXAA5#,AXAH54,AXAL54..X BLACK,040 ,1D6 ,1G3 ,218 ,3T3 ,8W9 |
1 | ||
| 62404-0R010C3 |
AXAA5#,AXAH54,AXAL54..G BLACK,070 ,1D6 ,1G3 ,218 ,3T3 ,8X8 |
1 | ||
| 63471B - LEG, ROOF RACK, FRONT RH | ||||
| 63471-0R050 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 63472 - LEG, ROOF RACK, FRONT LH | ||||
| 63472-0R050 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 63473 - LEG, ROOF RACK, REAR RH | ||||
| 63473-0R050 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 63474 - LEG, ROOF RACK, REAR LH | ||||
| 63474-0R050 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 75505B - GARNISH SUB-ASSY, ROOF SIDE, FRONT RH | ||||
| 75505-0R010C3 |
AXAA5#,AXAH54,AXAL54..X BLACK,040 ,1D6 ,1G3 ,218 ,3T3 ,8W9 |
1 | ||
| 75505-0R010C3 |
AXAA5#,AXAH54,AXAL54..G BLACK,070 ,1D6 ,1G3 ,218 ,3T3 ,8X8 |
1 | ||
| 75505-0R010C3 |
AXAH54,AXAL54..M BLACK,040 ,1D6 ,1G3 ,218 ,2QJ ,2QY ,2QZ ,2RA ,3T3 ,6X3 ,8W9 ,8X8 |
1 | ||
| 75506B - GARNISH SUB-ASSY, ROOF SIDE, FRONT LH | ||||
| 75506-0R010C3 |
AXAA5#,AXAH54,AXAL54..X BLACK,040 ,1D6 ,1G3 ,218 ,3T3 ,8W9 |
1 | ||
| 75506-0R010C3 |
AXAA5#,AXAH54,AXAL54..G BLACK,070 ,1D6 ,1G3 ,218 ,3T3 ,8X8 |
1 | ||
| 75506-0R010C3 |
AXAH54,AXAL54..M BLACK,040 ,1D6 ,1G3 ,218 ,2QJ ,2QY ,2QZ ,2RA ,3T3 ,6X3 ,8W9 ,8X8 |
1 | ||
| 75631G - LID, ROOF SIDE GARNISH, NO.1 RH | ||||
| 75631-0R010C3 |
AXAA5#,AXAH54,AXAL54..G BLACK,070 ,1D6 ,1G3 ,218 ,3T3 ,8X8 |
1 | ||
| 75631-0R010C3 |
AXAH54,AXAL54..M BLACK,040 ,1D6 ,1G3 ,218 ,2QJ ,2QY ,2QZ ,2RA ,3T3 ,6X3 ,8W9 ,8X8 |
1 | ||
| 75631-0R010C3 |
AXAA5#,AXAH54,AXAL54..X BLACK,040 ,1D6 ,1G3 ,218 ,3T3 ,8W9 |
1 | ||
| 75633C - LID, ROOF SIDE GARNISH, NO.2 RH | ||||
| 75633-0R010C3 |
AXAH54,AXAL54..M BLACK,040 ,1D6 ,1G3 ,218 ,2QJ ,2QY ,2QZ ,2RA ,3T3 ,6X3 ,8W9 ,8X8 |
1 | ||
| 75633-0R010C3 |
AXAA5#,AXAH54,AXAL54..X BLACK,040 ,1D6 ,1G3 ,218 ,3T3 ,8W9 |
1 | ||
| 75633-0R010C3 |
AXAA5#,AXAH54,AXAL54..G BLACK,070 ,1D6 ,1G3 ,218 ,3T3 ,8X8 |
1 | ||
| Common parts | ||||
| 63451-42060 | ||||
| 90109-06374 | ||||
| 90178-A0093 | ||||
| 90179-08247 | ||||
| 90467-08235 | ||||
| 90467-10167 | ||||

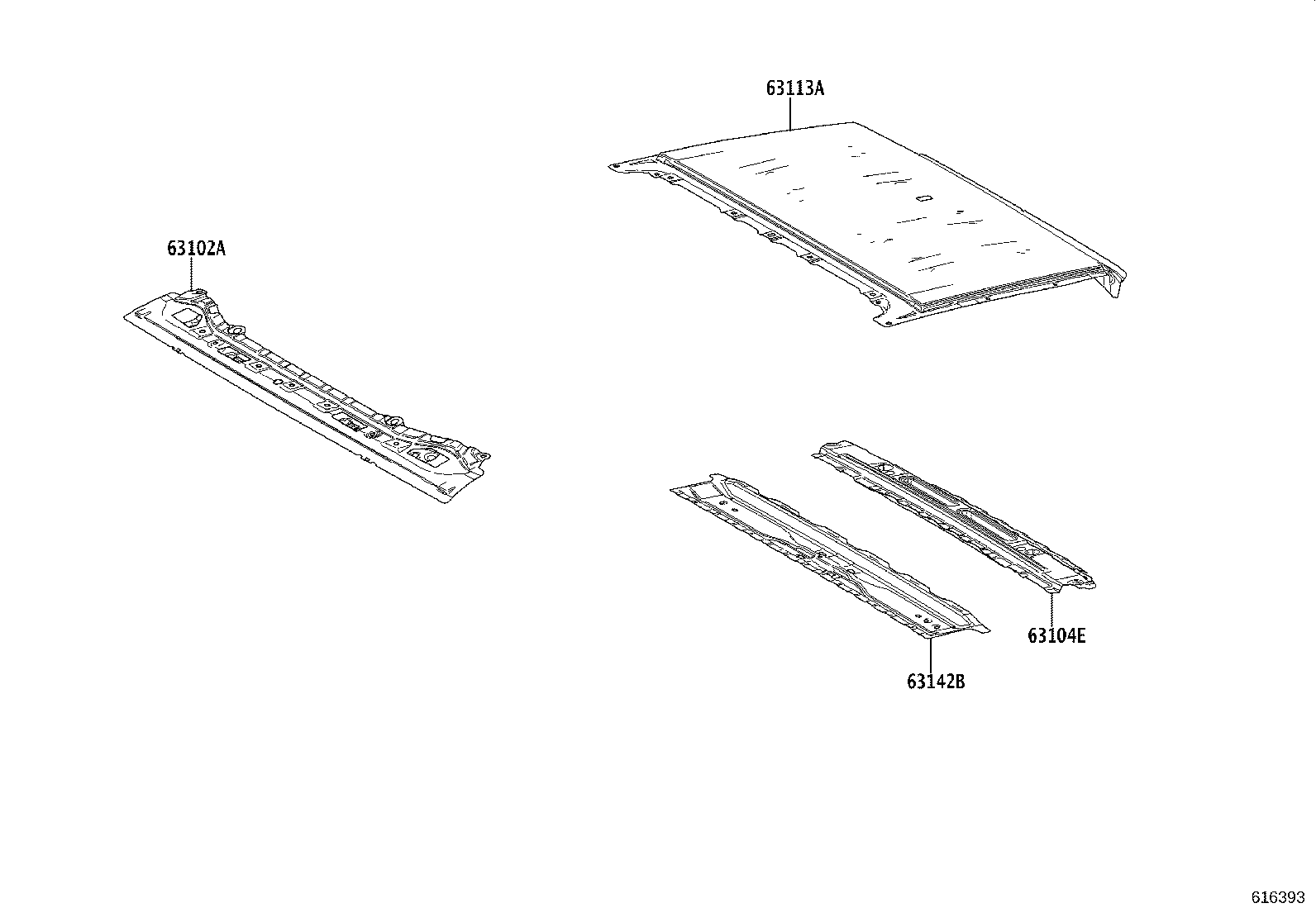

ILLUST NO. 1 OF 3(2001- )
ROOF PANEL(PANORAMA ROOF)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-0R907 |
AXAA5#,AXAH54,AXAL54..X |
1 | ||
| 63102-0R908 |
AXAA5#,AXAH54,AXAL54..G,M,V |
1 | ||
| 63102-0R907 |
AXAA5#,AXAH54..M MOON ROOF-WITHOUT |
1 | ||
| 63104E - REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR | ||||
| 63104-0R040 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
