AXAH54L-CNXMBK (2019)

Toyota Rav4 (Nap)

Production Mar 2019 - Sep 2020
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1903- )AXAH54,AXAL54

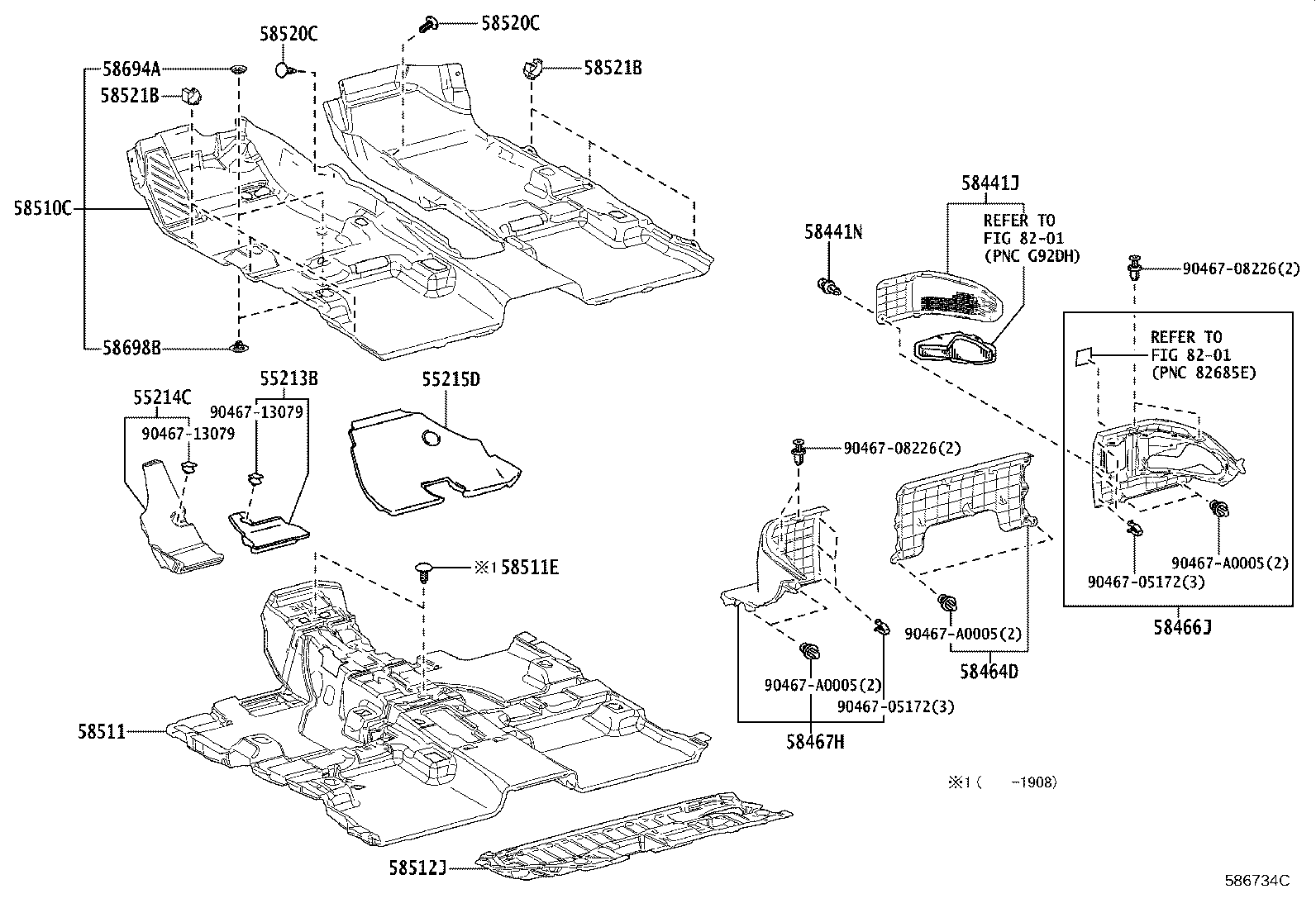

Click highlighted areas on diagram

diagram 55213B 55214C 55215D 58441J 58441N 58464D 58466J 58467H 58510C 58511 58511E 58512J 58520C 58520C 58521B 58521B 58694A 58698B 8201 8201 9046705172 9046705172 9046708226 9046708226 9046713079 9046713079 90467A0005 90467A0005 90467A0005
Part # Description Qty Price
55213B - PAD, DASH PANEL INSULATOR, NO.1
55213-0R010

AXAA5#,AXAH54,AXAL54

 1
55214C - PAD, DASH PANEL INSULATOR, NO.2
55214-0R050

AXAA5#,AXAH54,AXAL54

 1
55215D - PAD, DASH PANEL INSULATOR, NO.3
55215-0R010

AXAA5#,AXAH54,AXAL54

 1
58441J - COVER, BATTERY SERVICE HOLE
58441-0R010C0

AXAH54;AXAL54..G,M

BLACK,TRIM1#,2#,4#

 1
58441N - CLIP(FOR BATTERY SERVICE HOLE COVER)
90467-06165C3

AXAH54;AXAL54..G,M

BLACK,TRIM1#,2#,4#

 1
58464D - BOARD, BATTERY SERVICE COVER
58464-0R010C0

AXAH54;AXAL54..G,M

BLACK,TRIM1#,2#,4#

 1
58466J - BOARD, BATTERY SERVICE COVER, NO.2
58466-0R010C0

AXAH54;AXAL54..G,M

BLACK,TRIM1#,2#,4#

 1
58467H - BOARD, BATTERY SERVICE COVER, NO.3
58467-0R010C0

AXAH54;AXAL54..G,M

BLACK,TRIM1#,2#,4#

 1
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58510-0R150C1

AXAH54..CND;AXAH54,AXAL54..(G,M)..USA

BLACK,TRIM1#,2#,4#

 1
58511 - MAT, FLOOR, FRONT
58511-0R020

AXAH54,AXAL54

 1
58511E - CLIP(FOR FRONT FLOOR MAT)
90467-07042C4

AXAA5#,AXAH54

BLACK

 2
58512J - MAT, FLOOR, NO.2
58512-0R010

AXAH54,AXAL54

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-05164C7

AXAH54..CND;AXAH54,AXAL54..(G,M)..USA

BLACK,TRIM1#,2#,4#

 2
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-05164C7

AXAH54..CND;AXAH54,AXAL54..(G,M)..USA

BLACK,TRIM1#,2#,4#

 2
58521B - HOOK, FLOOR CARPET
58521-06140

AXAA5#,AXAH54,AXAL54

 6
58521-33060

AXAA5#,AXAH54

 6
58521B - HOOK, FLOOR CARPET
58521-06140

AXAA5#,AXAH54,AXAL54

 6
58521-33060

AXAA5#,AXAH54

 6
58694A - PLATE, MAT SET, UPPER
58694-33010

AXAA5#,AXAH54,AXAL54

 2
58698B - PLATE, MAT SET, LOWER
58698-33010

AXAA5#,AXAH54,AXAL54

 2
Common parts
90467-05172
90467-08226
90467-13079
90467-A0005
Linked diagrams
8201
