AXAH54L-CNXMBK (2019)

Toyota Rav4 (Nap)

Production Mar 2019 - Sep 2020
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1903- )AXAH54,AXAL54

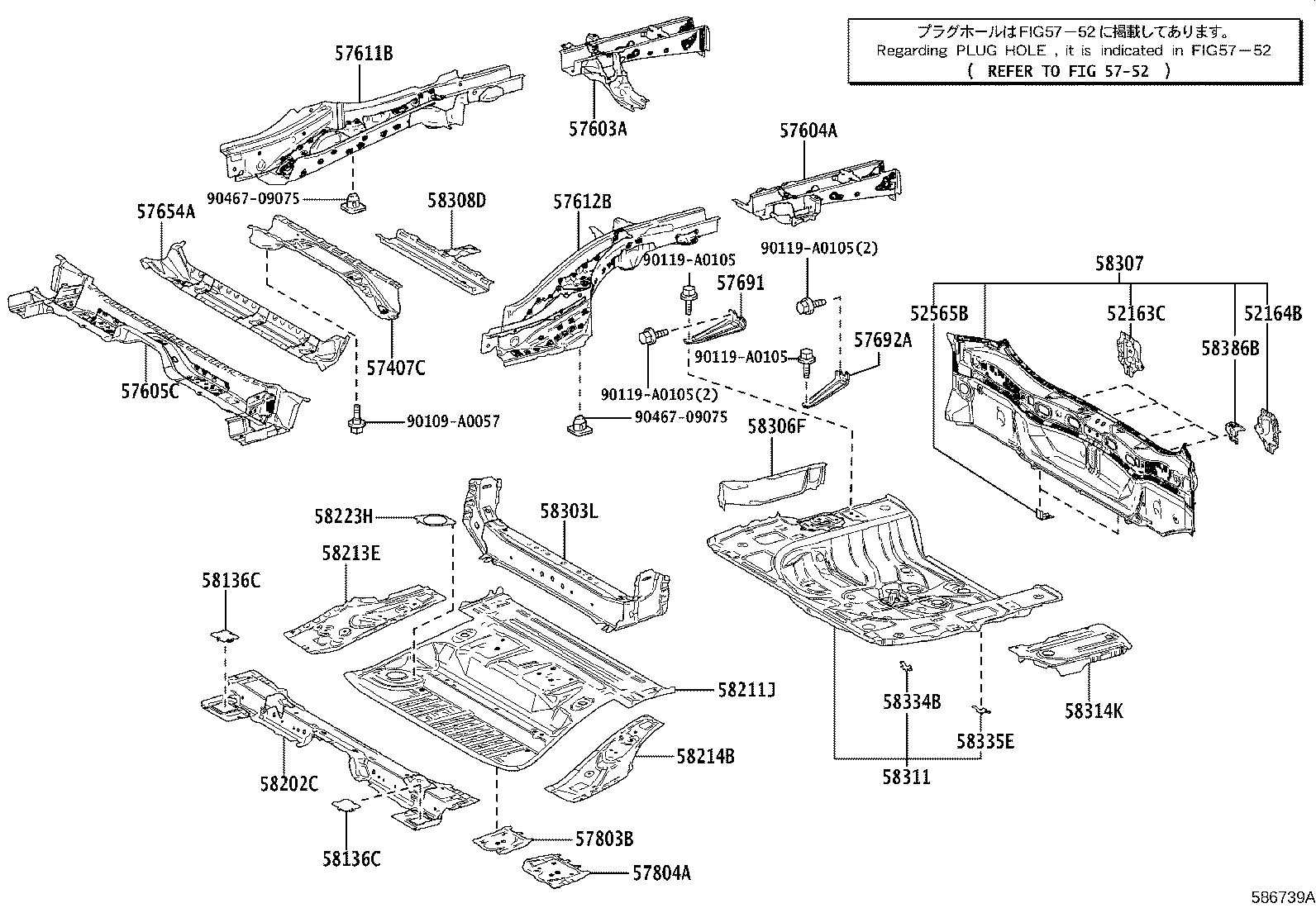

Click highlighted areas on diagram

diagram 52163C 52164B 52565B 57407C 5752 57603A 57604A 57605C 57611B 57612B 57654A 57691 57692A 57803B 57804A 58136C 58136C 58202C 58211J 58213E 58214B 58223H 58303L 58306F 58307 58308D 58311 58314K 58334B 58335E 58386B 90109A0057 90119A0105 90119A0105 90119A0105 90119A0105 9046709075 9046709075
Part # Description Qty Price
52163C - PLATE, REAR BUMPER REINFORCEMENT, RH
52163-0R030

AXAA5#,AXAH54,AXAL54

 1
52164B - PLATE, REAR BUMPER REINFORCEMENT, LH
52164-0R030

AXAA5#,AXAH54,AXAL54

 1
57407C - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1
57407-0R010

AXAA5#,AXAH54,AXAL54

 1
57603A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH
57603-0R030

AXAA5#,AXAH54,AXAL54

 1
57604A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH
57604-0R030

AXAA5#,AXAH54,AXAL54

 1
57605C - MEMBER SUB-ASSY, REAR FLOOR CROSS
57605-0R040

AXAH54,AXAL54

 1
57611B - MEMBER, REAR FLOOR SIDE, FRONT RH
57611-0R900

AXAA5#,AXAH54,AXAL54

 1
57612B - MEMBER, REAR FLOOR SIDE, FRONT LH
57612-0R900

AXAA5#,AXAH54,AXAL54

 1
57654A - MEMBER, REAR FLOOR CROSS, NO.3
57505-0R040

AXAH54,AXAL54

 1
57691 - BRACE, REAR FLOOR NO.2 CROSSMEMBER, INNER RH
57691-0R010

AXAA5#,AXAH54,AXAL54

 1
57692A - BRACE, REAR FLOOR NO.2 CROSSMEMBER, INNER LH
57692-0R010

AXAA5#,AXAH54,AXAL54

 1
57803B - REINFORCE SUB-ASSY, BELT ANCHOR, NO.2 RH
57803-0R030

AXAA5#,AXAH54,AXAL54

 1
57804A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.2 LH
57804-0R030

AXAA5#,AXAH54,AXAL54

 1
58136C - COVER, REAR FLOOR HOLE
58136-0R020

AXAA5#,AXAH54,AXAL54

 2
58136C - COVER, REAR FLOOR HOLE
58136-0R020

AXAA5#,AXAH54,AXAL54

 2
58202C - PAN SUB-ASSY, CENTER FLOOR, FRONT
58202-0R060

AXAH54,AXAL54

 1
58211J - PAN, CENTER FLOOR
58211-0R050

AXAH54,AXAL54

 1
58213E - PANEL, SEAT FLOOR SIDE, RH
58213-0R030

AXAA5#,AXAH54,AXAL54

 1
58214B - PANEL, SEAT FLOOR SIDE, LH
58214-0R030

AXAH54

 1
58214-0R060

AXAH54,AXAL54

 1
58223H - REINFORCEMENT, FLOOR PANEL SIDE, RH
58223-0R010

AXAH54,AXAL54

 1
58303L - PANEL SUB-ASSY, REAR FLOOR PARTITION
58303-0R030

AXAA5#,AXAH54,AXAL54

 1
58306F - PANEL SUB-ASSY, REAR FLOOR SIDE, LH
58306-0R010

AXAH54,AXAL54

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-0R070

AXAA5#,AXAH54,AXAL54

 1
58308D - BRACKET SUB-ASSY, REAR FLOOR CROSSMEMBER
58308-0R020

AXAA5#,AXAH54,AXAL54

 1
58311 - PAN, REAR FLOOR
58311-0R901

AXAH54,AXAL54

 1
58314K - PANEL, REAR FLOOR, CENTER
58314-0R030

AXAA5#,AXAH54,AXAL54

 1
58334B - PLATE, REAR FLOOR CROSSMEMBER, CENTER RH
58334-0R020

AXAA5#,AXAH54,AXAL54

 1
58335E - PLATE, REAR FLOOR CROSSMEMBER, CENTER LH
58334-0R020

AXAA5#,AXAH54,AXAL54

 1
58386B - BRACKET, REAR BUMPER COVER, NO.2
58386-0R030

AXAA5#,AXAH54,AXAL54

 4
Common parts
90109-A0057
90119-A0105
90467-09075
Linked diagrams
5752
