AXAH54L-CNXMBK (2019)
Toyota Rav4 (Nap)
Production
Mar 2019
-
Sep 2020
Engine
A25AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

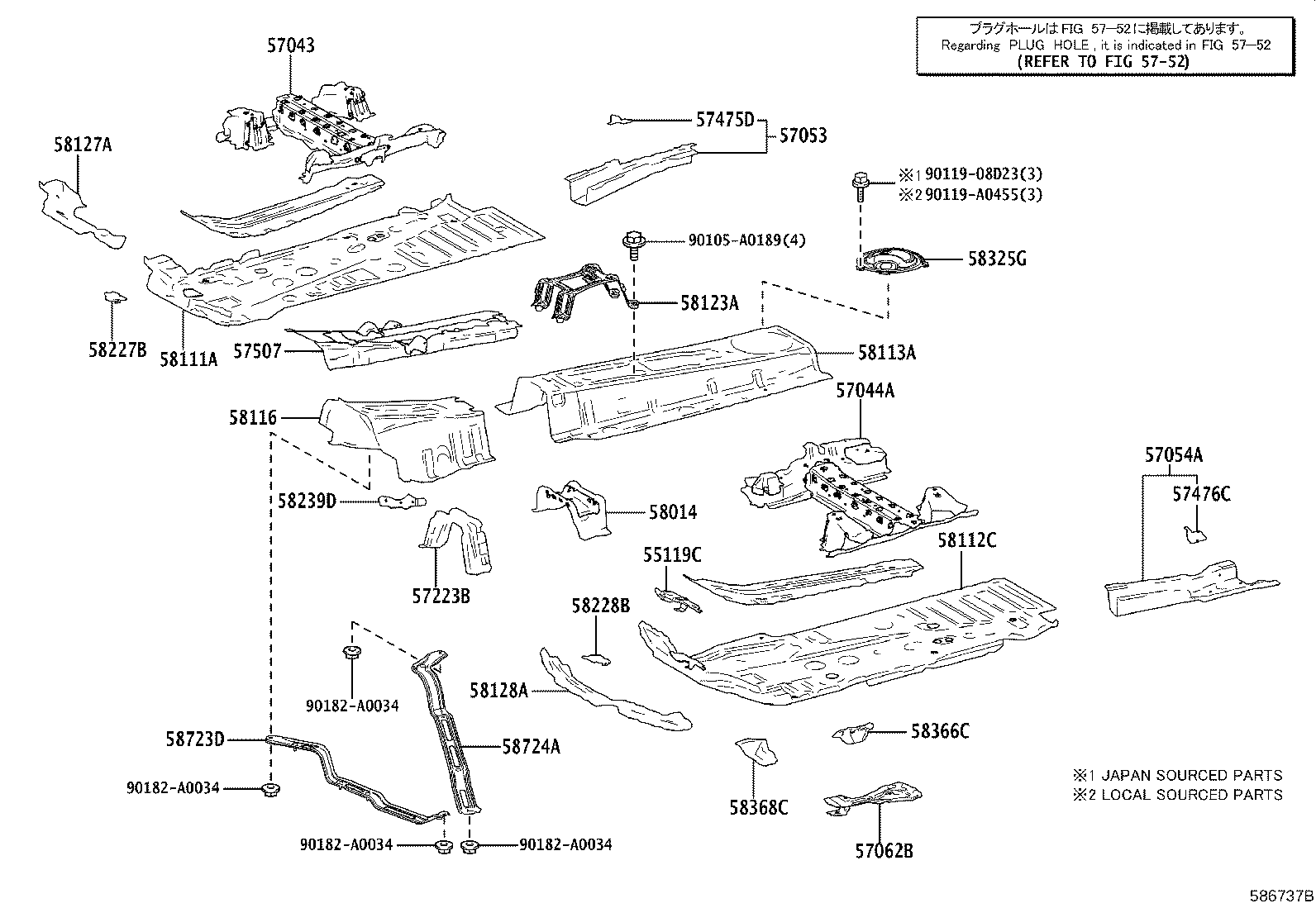

ILLUST NO. 2 OF 2(1903- )AXAH54,AXAL54
Click highlighted areas on diagram
FLOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55119C - BRACKET, CLUTCH BOOSTER | ||||
| 55119-0R010 |
AXAH54,AXAL54 |
1 | ||
| 57043 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH | ||||
| 57043-0R040 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 57044A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH | ||||
| 57044-0R030 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 57053 - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH | ||||
| 57053-0R030 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 57054A - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH | ||||
| 57054-0R040 |
AXAH54,AXAL54 |
1 | ||
| 57062B - BRACKET SUB-ASSY, FUEL TANK SUPPORT, LH | ||||
| 57062-0R020 |
AXAH54,AXAL54 |
1 | ||
| 57223B - BRACKET, FRONT MOUNTING | ||||
| 57225-0R010 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 57475D - PLATE, FRONT FLOOR CROSSMEMBER, RH | ||||
| 57475-0R010 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 57476C - PLATE, FRONT FLOOR CROSSMEMBER, LH | ||||
| 57476-0R010 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 57507 - REINFORCEMENT SUB-ASSY, PARKING BRAKE | ||||
| 58107-0R020 |
AXAH54,AXAL54 |
1 | ||
| 58014 - PANEL SUB-ASSY, FRONT FLOOR, REAR LOWER | ||||
| 58014-0R010 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 58111A - PAN, FRONT FLOOR, RH | ||||
| 58111-0R050 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 58112C - PAN, FRONT FLOOR, LH | ||||
| 58112-0R040 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 58113A - PANEL, FRONT FLOOR, CENTER | ||||
| 58113-0R050 |
AXAH54,AXAL54 |
1 | ||
| 58116 - PLATE, SHIFT CABLE MOUNTING | ||||
| 58116-0R010 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 58123A - SUPPORT, SHIFT & SELECT LEVER | ||||
| 58123-0R030 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 58127A - REINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH | ||||
| 58127-0R011 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 58127-0R010 |
AXAA5#,AXAH54 |
1 | ||
| 58128A - REINFORCEMENT, FRONT CROSS TO FRONT PANEL MEMBER, LH | ||||
| 58128-0R030 |
AXAA5#,AXAH54 |
1 | ||
| 58128-0R031 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 58227B - PLATE, FRONT FLOOR PANEL SIDE, RH | ||||
| 55238-0R010 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 58228B - PLATE, FRONT FLOOR PANEL SIDE, LH | ||||
| 55239-0R010 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 58239D - BRACKET, CABLE CLAMP | ||||
| 58239-0R010 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 58325G - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-0R010 |
AXAH54,AXAL54 |
1 | ||
| 58366C - REINFORCEMENT, FUEL TANK SUPPORT, REAR | ||||
| 58366-0R010 |
AXAH54,AXAL54 |
1 | ||
| 58368C - BRACKET, FUEL TUBE, NO.3 | ||||
| 58368-0R010 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 58723D - CUSHION, ENGINE SERVICE COVER | ||||
| 58723-0R070 |
AXAH54,AXAL54 |
1 | ||
| 58724A - CUSHION, ENGINE SERVICE COVER, NO.2 | ||||
| 58724-0R070 |
AXAH54,AXAL54 |
1 | ||
| Common parts | ||||
| 90105-A0189 | ||||
| 90119-08D23 | ||||
| 90119-A0455 | ||||
| 90182-A0034 | ||||
| Linked diagrams | ||||
| 5752 | ||||
