AXAH54L-CNXMBK (2019)
Toyota Rav4 (Nap)

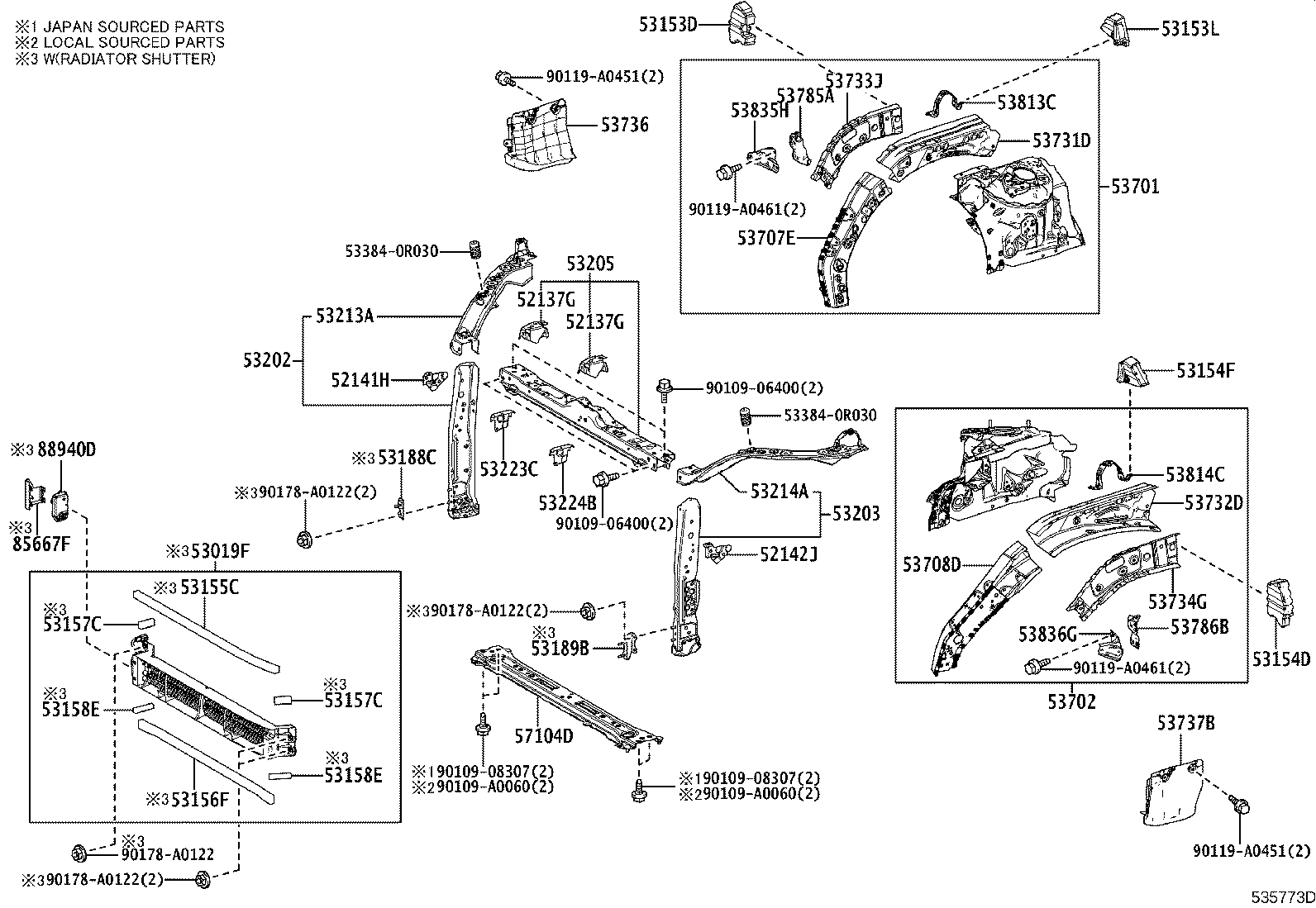

ILLUST NO. 2 OF 3(1903- )AXAH54,AXAL54
RADIATOR SUPPORT & FENDER APRON
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52137G - BRACKET, FRONT BUMPER ARM MOUNTING, NO.3 | ||||
| 52137-0R030 |
AXAA5#,AXAH54,AXAL54 |
2 | ||
| 52137G - BRACKET, FRONT BUMPER ARM MOUNTING, NO.3 | ||||
| 52137-0R030 |
AXAA5#,AXAH54,AXAL54 |
2 | ||
| 52141H - ARM, FRONT BUMPER, UPPER RH | ||||
| 52141-0R020 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 52142J - ARM, FRONT BUMPER, UPPER LH | ||||
| 52142-0R010 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 53019F - SHUTTER SUB-ASSY, RADIATOR | ||||
| 53019-0R020 |
AXAH54,AXAL54 |
1 | ||
| 53153D - GUIDE, RADIATOR GRILLE SIDE AIR, RH | ||||
| 53153-0R030 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 53153L - GUIDE, FRONT SIDE AIR, RH | ||||
| 53155-0R030 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 53154D - GUIDE, RADIATOR GRILLE SIDE AIR, LH | ||||
| 53154-0R030 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 53154F - GUIDE, FRONT SIDE AIR, LH | ||||
| 53156-0R030 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 53155C - SEAL, RADIATOR GRILLE, NO.1 | ||||
| 53155-0R060 |
AXAA5#..G,V;AXAH54,AXAL54 |
1 | ||
| 53156F - SEAL, RADIATOR GRILLE, NO.2 | ||||
| 53156-0R060 |
AXAH54,AXAL54 |
1 | ||
| 53157C - SEAL, RADIATOR GRILLE, NO.3 | ||||
| 53157-0R010 |
AXAA5#..G,V;AXAH54,AXAL54 |
2 | ||
| 53157C - SEAL, RADIATOR GRILLE, NO.3 | ||||
| 53157-0R010 |
AXAA5#..G,V;AXAH54,AXAL54 |
2 | ||
| 53158E - SEAL, RADIATOR GRILLE, NO.4 | ||||
| 53158-0R010 |
AXAA5#..G,V;AXAH54,AXAL54 |
2 | ||
| 53158E - SEAL, RADIATOR GRILLE, NO.4 | ||||
| 53158-0R010 |
AXAA5#..G,V;AXAH54,AXAL54 |
2 | ||
| 53188C - BRACKET, RADIATOR SHUTTER SUPPORT, RH | ||||
| 53188-0R050 |
AXAA5#..G,V;AXAH54,AXAL54 |
1 | ||
| 53189B - BRACKET, RADIATOR SHUTTER SUPPORT, LH | ||||
| 53189-0R010 |
AXAA5#..G,V;AXAH54,AXAL54 |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-0R050 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-0R050 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-0R070 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 53213A - SUPPORT, RADIATOR, UPPER RH | ||||
| 53213-0R900 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 53214A - SUPPORT, RADIATOR, UPPER LH | ||||
| 53214-0R900 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 53223C - BRACKET, RADIATOR GRILLE MOUNTING, RH | ||||
| 53223-0R050 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 53224B - BRACKET, RADIATOR GRILLE MOUNTING, LH | ||||
| 53223-0R050 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-0R060 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-0R060 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 53707E - APRON SUB-ASSY, FENDER SIDE, RH | ||||
| 53707-0R030 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 53708D - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53708-0R030 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-0R050 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-0R050 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 53733J - MEMBER, FRONT APRON TO COWL SIDE, OUTER FRONT RH | ||||
| 53733-0R020 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 53734G - MEMBER, FRONT APRON TO COWL SIDE, OUTER FRONT LH | ||||
| 53734-0R030 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 53736 - SEAL, FRONT FENDER APRON, RH | ||||
| 53736-0R040 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 53737B - SEAL, FRONT FENDER APRON, LH | ||||
| 53737-0R010 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 53785A - GUSSET, FRONT FENDER APRON, UPPER RH | ||||
| 53785-0R010 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 53786B - GUSSET, FRONT FENDER APRON, UPPER LH | ||||
| 53786-0R010 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 53813C - EXTENSION, FRONT FENDER, RH | ||||
| 53813-0R050 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 53814C - EXTENSION, FRONT FENDER, LH | ||||
| 53814-0R050 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 53835H - BRACE, FRONT FENDER TO EXTENSION, RH | ||||
| 53835-0R050 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 53836G - BRACE, FRONT FENDER TO EXTENSION, LH | ||||
| 53836-0R040 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 57104D - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-0R050 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 85667F - COVER, MOTOR | ||||
| 85667-0R010 |
AXAA5#..G,V;AXAH54,AXAL54 |
1 | ||
| 88940D - ACTUATOR ASSY, SWING GRILLE | ||||
| 88940-12040 |
AXAH54,AXAL54 |
1 | ||
| Common parts | ||||
| 53384-0R030 | ||||
| 90109-06400 | ||||
| 90109-08307 | ||||
| 90109-A0060 | ||||
| 90119-A0451 | ||||
| 90119-A0461 | ||||
| 90178-A0122 | ||||
