AXAH54L-CNXMBK (2019)
Toyota Rav4 (Nap)
Production
Mar 2019
-
Sep 2020
Engine
A25AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 2(1903- )AXAH54,AXAL54
Click highlighted areas on diagram

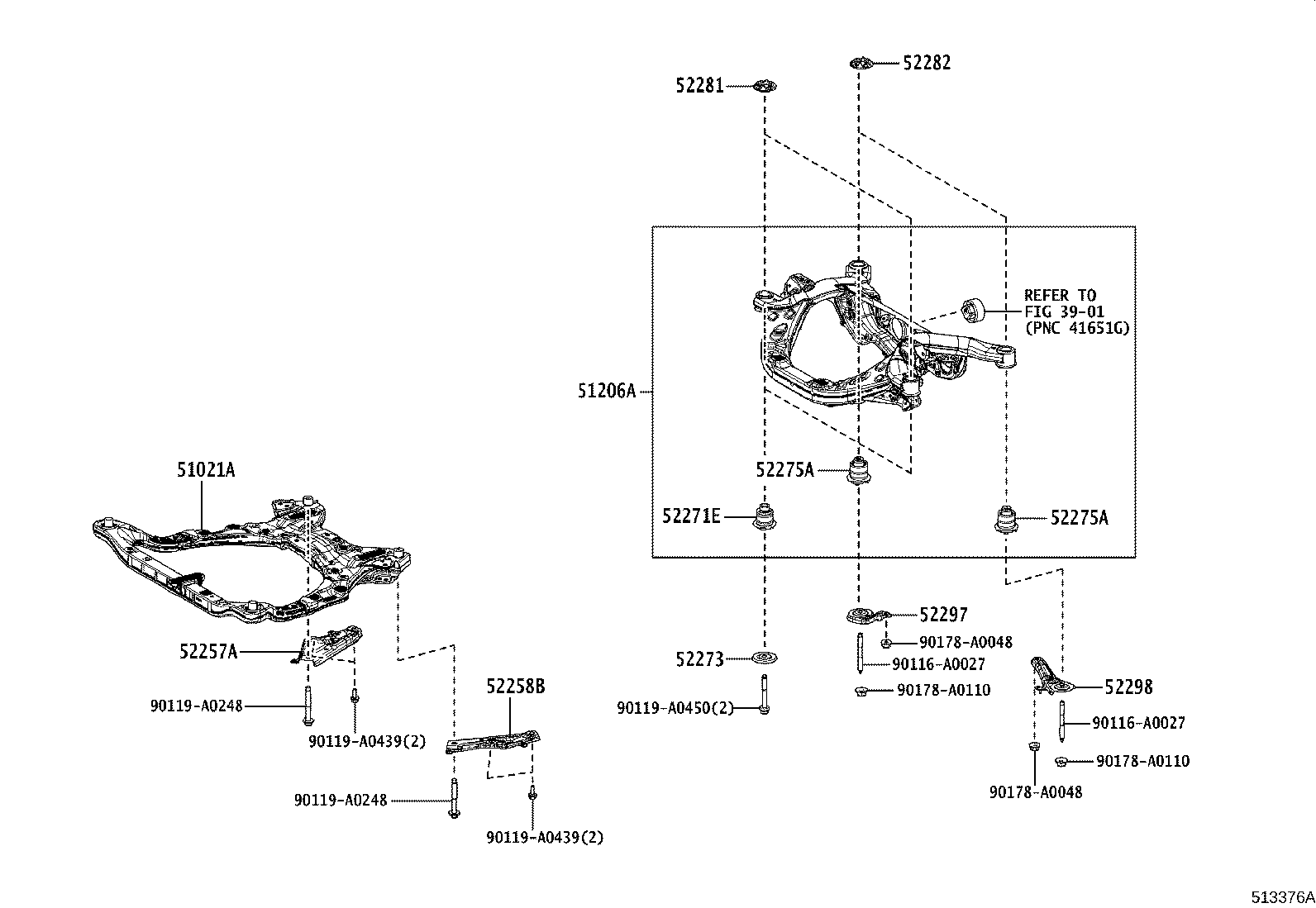

SUSPENSION MEMBER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51021A - MEMBER SUB-ASSY, ENGINE FRONT SUPPORT | ||||
| 51100-0R010 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 51206A - MEMBER SUB-ASSY, REAR SUSPENSION | ||||
| 51200-0R020 |
AXAH54,AXAL54 |
1 | ||
| 52257A - BRACE, FRONT SUSPENSION MEMBER, REAR RH | ||||
| 52257-0R040 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 52258B - BRACE, FRONT SUSPENSION MEMBER, REAR LH | ||||
| 52258-0R040 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 52271E - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH | ||||
| 52271-0R010 |
AXAA5#,AXAH54,AXAL54 |
2 | ||
| 52273 - STOPPER, REAR SUSPENSION MEMBER, LOWER | ||||
| 52273-06050 |
AXAA5#,AXAH54,AXAL54 |
2 | ||
| 52275A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52276-0R010 |
AXAA5#,AXAH54,AXAL54 LH |
1 | ||
| 52275-0R010 |
AXAA5#,AXAH54,AXAL54 RH |
1 | ||
| 52275A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52276-0R010 |
AXAA5#,AXAH54,AXAL54 LH |
1 | ||
| 52275-0R010 |
AXAA5#,AXAH54,AXAL54 RH |
1 | ||
| 52281 - CUSHION, DIFFERENTIAL SUPPORT MEMBER | ||||
| 52281-0R010 |
AXAA5#,AXAH54,AXAL54 |
2 | ||
| 52282 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER | ||||
| 52282-06110 |
AXAA5#,AXAH54,AXAL54 |
2 | ||
| 52297 - BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH | ||||
| 52297-0R040 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 52298 - BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH | ||||
| 52298-0R010 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| Common parts | ||||
| 90116-A0027 | ||||
| 90119-A0248 | ||||
| 90119-A0439 | ||||
| 90119-A0450 | ||||
| 90178-A0048 | ||||
| 90178-A0110 | ||||
| Linked diagrams | ||||
| 3901 | ||||
ILLUST NO. 2 OF 2(1903- )AXAH54,AXAL54
Click highlighted areas on diagram

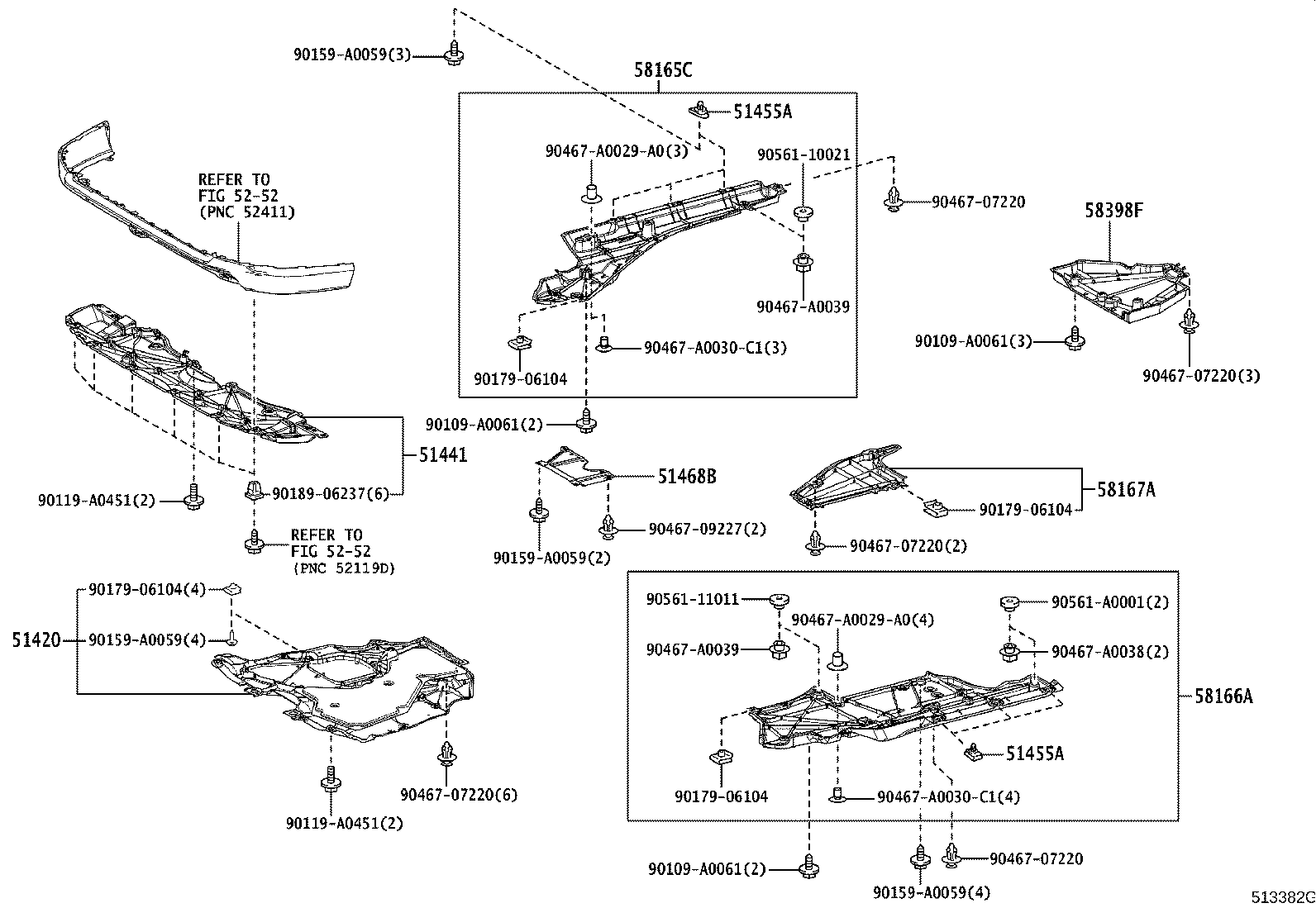

UNDER COVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51420 - COVER ASSY, ENGINE UNDER, NO.2 | ||||
| 51420-0R010 |
AXAA5#,AXAH54 |
1 | ||
| 51420-0R060 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51441-0R100 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 51455A - SEAL, ENGINE UNDER COVER, NO.1 | ||||
| 51455-0E020 |
AXAH54,AXAL54 |
6 | ||
| 51455A - SEAL, ENGINE UNDER COVER, NO.1 | ||||
| 51455-0E020 |
AXAH54,AXAL54 |
6 | ||
| 51468B - INSULATOR, ENGINE UNDER COVER HEAT | ||||
| 51468-0R010 |
AXAH54,AXAL54 |
1 | ||
| 58165C - COVER, FRONT FLOOR, RH | ||||
| 58165-0R050 |
AXAH54,AXAL54 |
1 | ||
| 58166A - COVER, FRONT FLOOR, LH | ||||
| 58166-0R020 |
AXAH54,AXAL54 |
1 | ||
| 58167A - COVER, FRONT FLOOR, CENTER | ||||
| 58167-0R010 |
AXAH54,AXAL54 |
1 | ||
| 58398F - COVER, FLOOR UNDER, NO.1 | ||||
| 58398-0R070 |
AXAH54,AXAL54 |
1 | ||
| Common parts | ||||
| 90109-A0061 | ||||
| 90119-A0451 | ||||
| 90159-A0059 | ||||
| 90179-06104 | ||||
| 90189-06237 | ||||
| 90467-07220 | ||||
| 90467-09227 | ||||
| 90467-A0029A0 | ||||
| 90467-A0030C1 | ||||
| 90467-A0038 | ||||
| 90467-A0039 | ||||
| 90561-10021 | ||||
| 90561-11011 | ||||
| 90561-A0001 | ||||
| Linked diagrams | ||||
| 5252 | ||||
