AXAH54L-CNXMBK (2019)

Toyota Rav4 (Nap)

Production Mar 2019 - Sep 2020
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1903- )AXAH54,AXAL54

Click highlighted areas on diagram

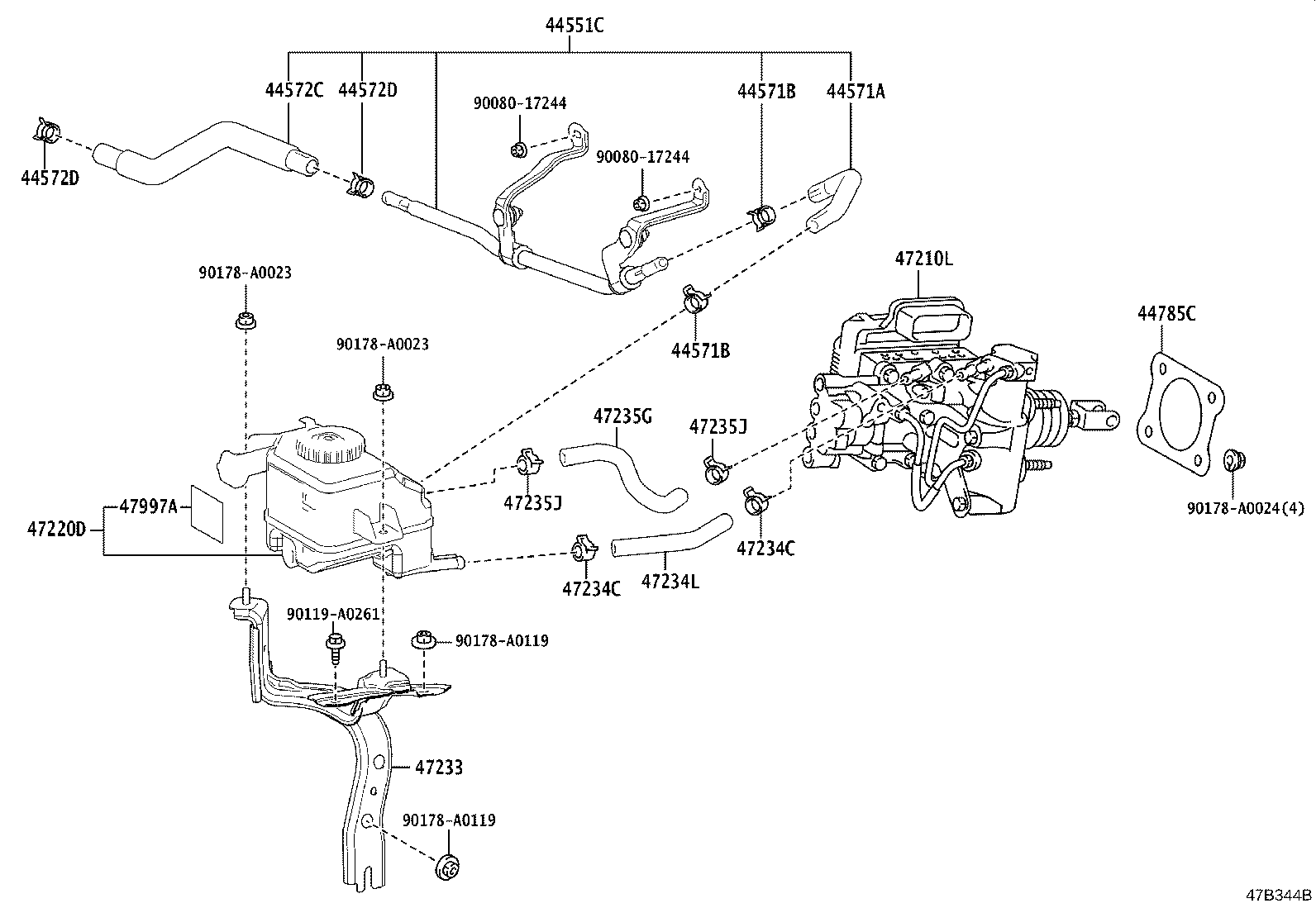

diagram 44551C 44571A 44571B 44571B 44572C 44572D 44572D 44785C 47210L 47220D 47233 47234C 47234C 47234L 47235G 47235J 47235J 47997A 9008017244 9008017244 90119A0261 90178A0023 90178A0023 90178A0024 90178A0119 90178A0119
Part # Description Qty Price
44551C - TUBE, BRAKE ACTUATOR, NO.1
44550-0R010

AXAH54,AXAL54

 1
44571A - HOSE, BRAKE ACTUATOR, NO.1
44571-0R010

AXAH54,AXAL54

 1
44571B - CLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.1)
90466-A0017

AXAH54,AXAL54

 2
44571B - CLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.1)
90466-A0017

AXAH54,AXAL54

 2
44572C - HOSE, BRAKE ACTUATOR, NO.2
44572-0R010

AXAH54,AXAL54

 1
44572D - CLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.2)
90466-A0017

AXAH54,AXAL54

 2
44572D - CLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.2)
90466-A0017

AXAH54,AXAL54

 2
44785C - GASKET, BRAKE BOOSTER
44785-02060

AXAH54,AXAL54

 1
47210L - BRAKE BOOSTER ASSY, W/MASTER CYLINDER
47050-42191

AXAH54,AXAL54

 1
47050-42190

AXAH54

 1
47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER
47220-42140

AXAH54,AXAL54

 1
47233 - BRACKET, RESERVOIR
47233-0R010

AXAH54,AXAL54

 1
47234C - CLIP(FOR RESERVOIR TUBE NO.1)
90466-A0017

AXAH54,AXAL54

 2
47234C - CLIP(FOR RESERVOIR TUBE NO.1)
90466-A0017

AXAH54,AXAL54

 2
47234L - HOSE, RESERVOIR, NO.1
47234-0R010

AXAH54,AXAL54

 1
47235G - HOSE, RESERVOIR, NO.2
47235-0R010

AXAH54,AXAL54

 1
47235J - CLIP(FOR RESERVOIR HOSE NO.2)
90466-A0017

AXAH54,AXAL54

 2
47235J - CLIP(FOR RESERVOIR HOSE NO.2)
90466-A0017

AXAH54,AXAL54

 2
47997A - LABEL, ACCUMULATOR CAUTION, NO.1
47997-76010

AXAH54,AXAL54

 1
Common parts
90080-17244
90119-A0261
90178-A0023
90178-A0024
90178-A0119
