AXAH54L-CNXMBK (2019)

Toyota Rav4 (Nap)

Production Mar 2019 - Sep 2020
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1903- )AXAH54,AXAL54

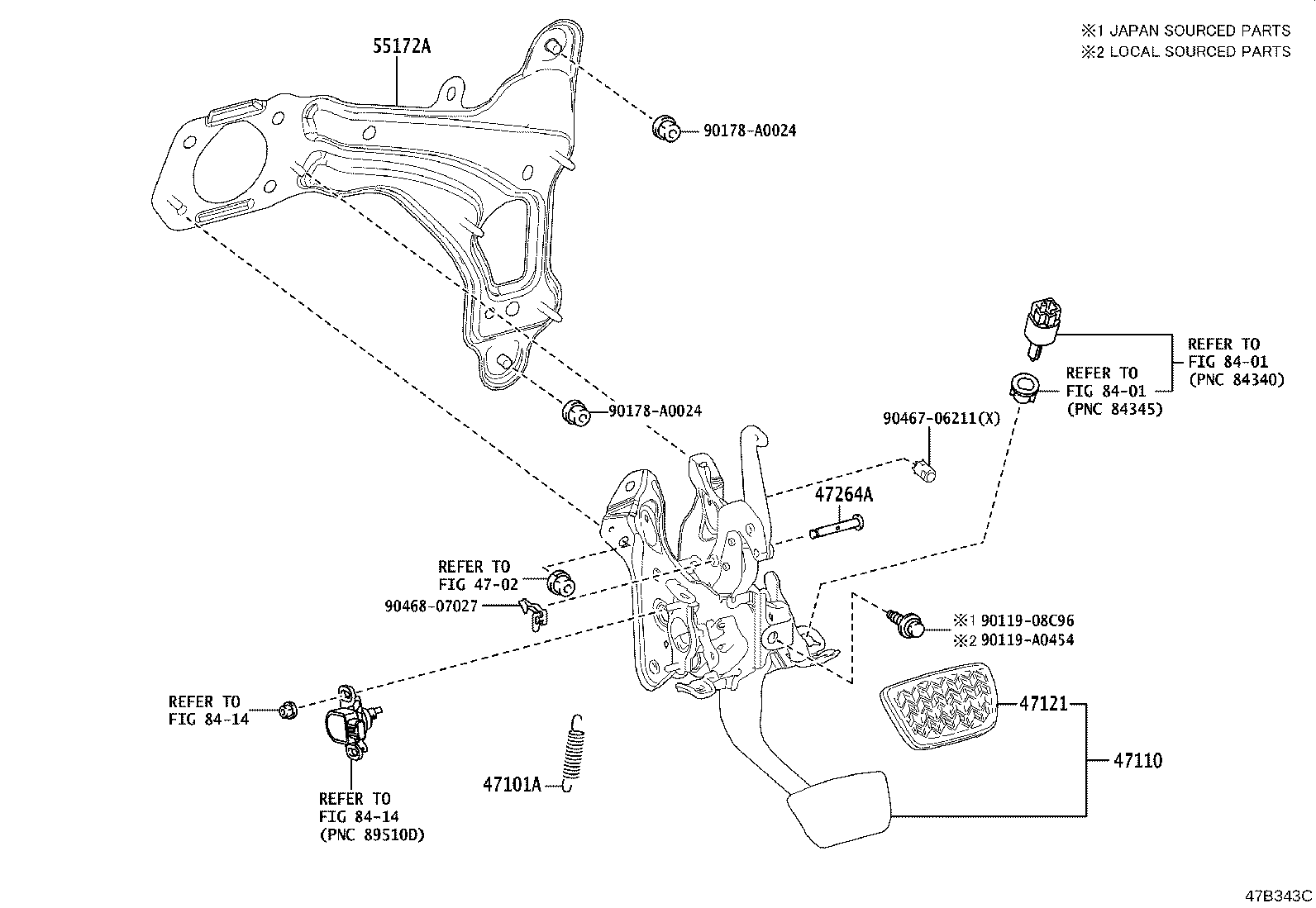

Click highlighted areas on diagram

diagram 47101A 47110 47121 47264A 55172A 8401 8401 8414 8414 9011908C96 90119A0454 90178A0024 90178A0024 9046706211 9046807027
Part # Description Qty Price
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90507-12046

AXAA5#,AXAH54,AXAL54

 1
47110 - SUPPORT ASSY, BRAKE PEDAL
47110-0R120

AXAH54,AXAL54

 1
47121 - PAD, BRAKE PEDAL
47121-48010

AXAA5#,AXAH54,AXAL54

 1
47264A - PIN(FOR PUSH ROD)
90240-08082

AXAH54,AXAL54

 1
55172A - BASE, BRAKE PEDAL SUPPORT
55172-0R010

AXAA5#,AXAH54,AXAL54

 1
Common parts
90119-08C96
90119-A0454
90178-A0024
90467-06211
90468-07027
Linked diagrams
8401
8414
