AXAH54L-CNXMBK (2019)

Toyota Rav4 (Nap)

Production Mar 2019 - Sep 2020
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1903- )AXAH54,AXAL54

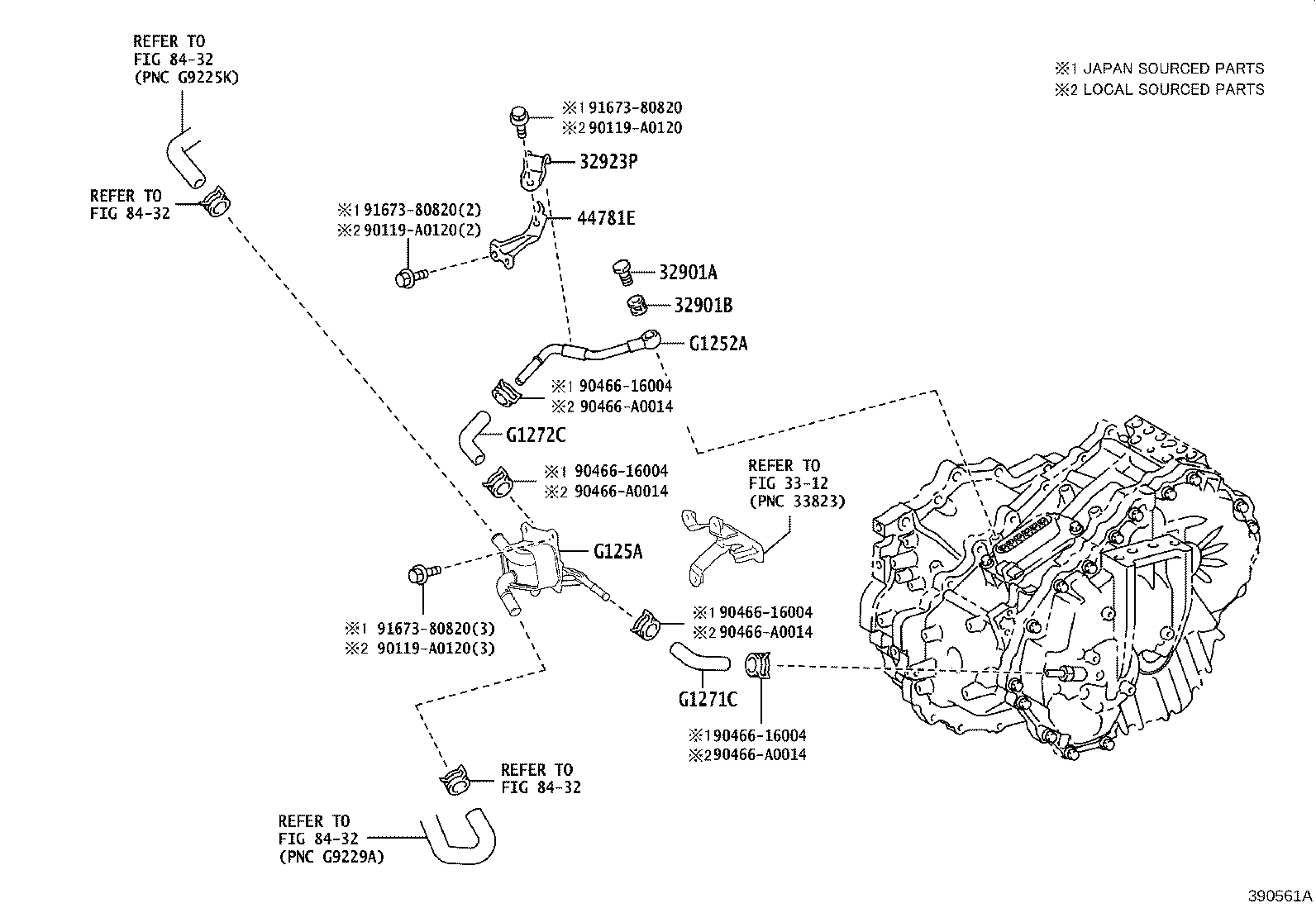

Click highlighted areas on diagram

diagram 32901A 32901B 32923P 3312 44781E 8432 8432 8432 8432 90119A0120 90119A0120 90119A0120 9046616004 9046616004 9046616004 9046616004 90466A0014 90466A0014 90466A0014 90466A0014 9167380820 9167380820 9167380820 G1252A G125A G1271C G1272C
Part # Description Qty Price
32901A - BOLT, UNION(FOR OIL COOLER)
90401-12039

AXAH54,AXAL54

 1
32901B - GASKET(FOR OIL COOLER UNION)
90430-12037

AXAH54,AXAL54

 1
32923P - CLAMP, OIL COOLER TUBE, NO.1
32923-52040

AXAH54,AXAL54

 1
44781E - BRACKET, HOSE
44781-33020

AXAH54,AXAL54

 1
G1252A - PIPE, MOTOR COOLING, NO.2
G1252-33010

AXAH54,AXAL54

(J)

 1
G1252-06010

AXAH54,AXAL54

(L)

 1
G125A - COOLER, MOTOR COOLING
G125A-42010

AXAH54,AXAL54

 1
G1271C - HOSE, MOTOR COOLING, NO.1
G1271-33010

AXAH54,AXAL54

(J)

 1
G1271-06010

AXAH54,AXAL54

(L)

 1
G1272C - HOSE, MOTOR COOLING, NO.2
G1272-06010

AXAH54,AXAL54

(L)

 1
G1272-33010

AXAH54,AXAL54

(J)

 1
Common parts
90119-A0120
90466-16004
90466-A0014
91673-80820
Linked diagrams
3312
8432
