AXAH54L-CNXMBK (2019)
Toyota Rav4 (Nap)
Production
Mar 2019
-
Sep 2020
Engine
A25AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

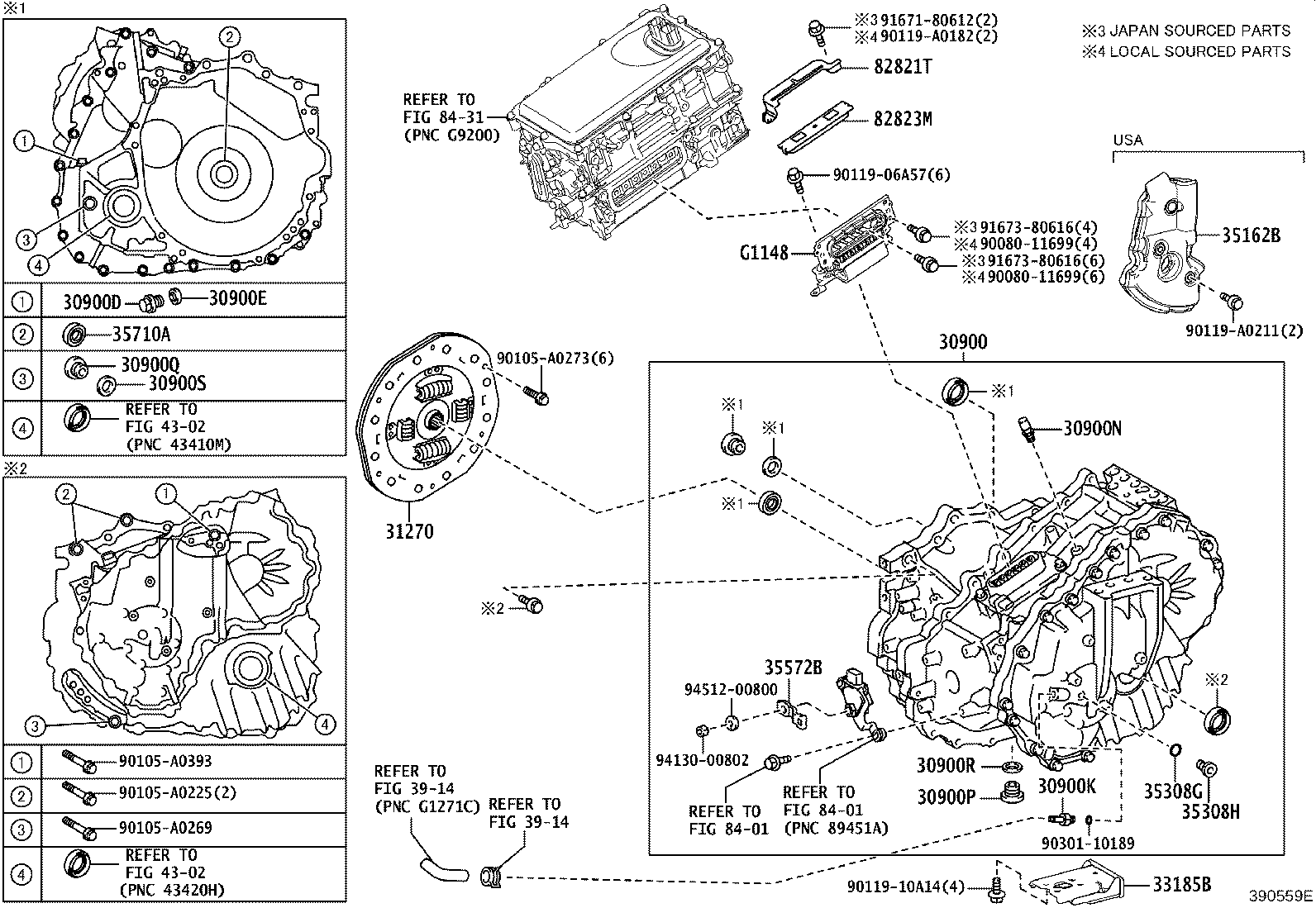

ILLUST NO. 1 OF 2(1903- )AXAH54,AXAL54
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30900 - TRANSAXLE ASSY, HYBRID VEHICLE | ||||
| 30900-42020 |
AXAH54,AXAL54 |
1 | ||
| 30900D - PLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CAS | ||||
| 90341-18060 |
AXAH54,AXAL54 |
1 | ||
| 30900E - GASKET(FOR TRANSAXLE HOUSING & CASE) | ||||
| 90430-18008 |
AXAH54,AXAL54 |
1 | ||
| 30900K - CONNECTOR, TUBE(FOR TRANSAXLE HOUSING) | ||||
| 90404-13010 |
AXAH54,AXAL54 |
1 | ||
| 30900N - PLUG, BREATHER(FOR TRANSAXLE) | ||||
| 90930-03201 |
AXAH54,AXAL54 |
1 | ||
| 30900P - PLUG, DRAIN(HV) | ||||
| 90341-18016 |
AXAH54,AXAL54 |
1 | ||
| 30900Q - PLUG, FILLER(HV) | ||||
| 90341-18016 |
AXAH54,AXAL54 |
1 | ||
| 30900R - GASKET, DRAIN PLUG(HV) | ||||
| 90430-18008 |
AXAH54,AXAL54 |
1 | ||
| 30900S - GASKET, FILLER PLUG(HV) | ||||
| 90430-18008 |
AXAH54,AXAL54 |
1 | ||
| 31270 - DAMPER ASSY, TRANSMISSION INPUT | ||||
| 31270-33030 |
AXAH54,AXAL54 |
1 | ||
| 33185B - BRACKET, TRANSAXLE UNDER STOPPER | ||||
| 33185-42020 |
AXAH54,AXAL54 |
1 | ||
| 35308G - RING, O, NO.2 (FOR TRANSMISSION OIL PUMP COVER) | ||||
| 90301-06196 |
AXAH54,AXAL54 |
1 | ||
| 35308H - PLUG (FOR TRANSMISSION OIL PUMP COVER) | ||||
| 90341-08001 |
AXAH54,AXAL54 |
1 | ||
| 35572B - LEVER, TRANSMISSION, OUTER | ||||
| 35572-33070 |
AXAH54,AXAL54 |
1 | ||
| 35710A - SEAL, TYPE T OIL(FOR INPUT SHAFT) | ||||
| 90311-27011 |
AXAH54,AXAL54 |
1 | ||
| 82821T - COVER, CONNECTOR | ||||
| 82821-47240 |
AXAH54,AXAL54 |
1 | ||
| 82823M - CAP, TERMINAL | ||||
| 82823-47040 |
AXAH54,AXAL54 |
1 | ||
| G1148 - CABLE, MOTOR | ||||
| G1148-33050 |
AXAH54,AXAL54 |
1 | ||
| Common parts | ||||
| 90080-11699 | ||||
| 90105-A0225 | ||||
| 90105-A0269 | ||||
| 90105-A0273 | ||||
| 90105-A0393 | ||||
| 90119-06A57 | ||||
| 90119-10A14 | ||||
| 90119-A0182 | ||||
| 90119-A0211 | ||||
| 90301-10189 | ||||
| 91671-80612 | ||||
| 91673-80616 | ||||
| 94130-00802 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 3914 | ||||
| 4302 | ||||
| 8401 | ||||
| 8431 | ||||

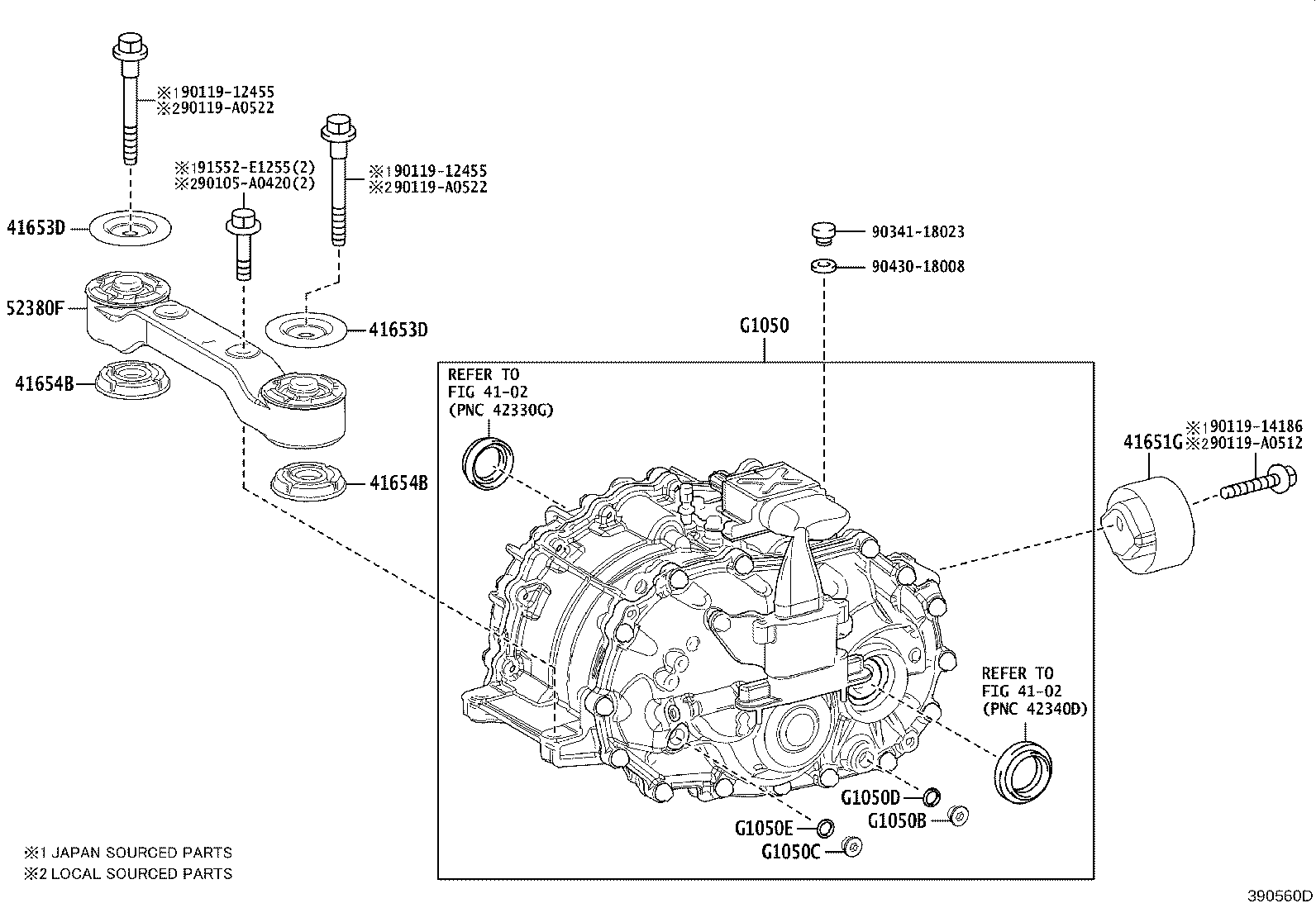

ILLUST NO. 2 OF 2(1903- )AXAH54,AXAL54
Click highlighted areas on diagram
REAR TRACTION MOTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41651G - CUSHION, DIFFERENTIAL MOUNT | ||||
| 41651-0R080 |
AXAH54,AXAL54 |
1 | ||
| 41653D - STOPPER, DIFFERENTIAL MOUNT,UPPER | ||||
| 41653-0R020 |
AXAH54,AXAL54 |
2 | ||
| 41653D - STOPPER, DIFFERENTIAL MOUNT,UPPER | ||||
| 41653-0R020 |
AXAH54,AXAL54 |
2 | ||
| 41654B - STOPPER, DIFFERENTIAL MOUNT,LOWER | ||||
| 41654-0R020 |
AXAH54,AXAL54 |
2 | ||
| 41654B - STOPPER, DIFFERENTIAL MOUNT,LOWER | ||||
| 41654-0R020 |
AXAH54,AXAL54 |
2 | ||
| 52380F - SUPPORT ASSY, DIFFERENTIAL, FRONT | ||||
| 52380-0R080 |
AXAH54,AXAL54 |
1 | ||
| G1050 - MOTOR ASSY, RR TRACTION W/TRANSAXLE | ||||
| G1050-42010 |
AXAH54,AXAL54 |
1 | ||
| G1050B - PLUG, DRAIN(FOR REAR TRACTION MOTOR) | ||||
| 90341-18051 |
AXAH54,AXAL54 |
1 | ||
| G1050C - PLUG, FILLER(FOR REAR TRACTION MOTOR) | ||||
| 90341-18023 |
AXAH54,AXAL54 |
1 | ||
| G1050D - GASKET, DRAIN PLUG(FOR REAR TRACTION MOTOR) | ||||
| 90430-18008 |
AXAH54,AXAL54 |
1 | ||
| G1050E - GASKET, FILLER PLUG(FOR REAR TRACTION MOTOR) | ||||
| 90430-18008 |
AXAH54,AXAL54 |
1 | ||
| Common parts | ||||
| 90105-A0420 | ||||
| 90119-12455 | ||||
| 90119-14186 | ||||
| 90119-A0512 | ||||
| 90119-A0522 | ||||
| 90341-18023 | ||||
| 90430-18008 | ||||
| 91552-E1255 | ||||
| Linked diagrams | ||||
| 4102 | ||||
