AXAH54L-CNXMBK (2019)

Toyota Rav4 (Nap)

Production Mar 2019 - Sep 2020
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1903- )A25AFXS

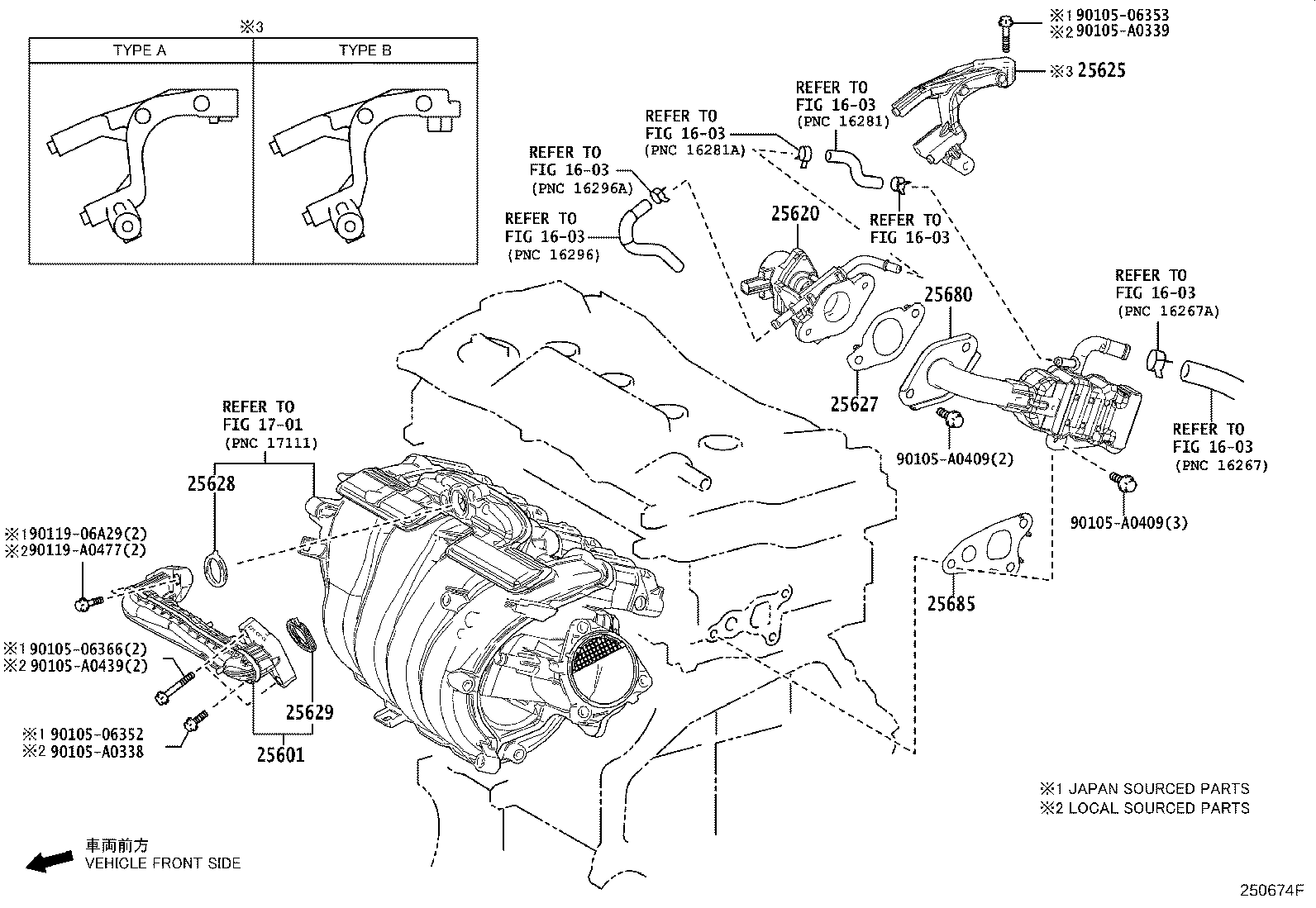

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 1603 1603 1603 1701 25601 25620 25625 25627 25628 25629 25680 25685 9010506352 9010506353 9010506366 90105A0338 90105A0339 90105A0409 90105A0409 90105A0439 9011906A29 90119A0477
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-F0010

A25#..AXAA5#,AXAH54,AXAL54

*628

 1
25601-25011

A25#..AXAA5#,AXAH54,AXAL54

*584

 1
25620 - VALVE ASSY, EGR
25620-25040

A25#..AXAA5#,AXAH54,AXAL54

*584

 1
25625 - BRACKET, EGR VALVE
25625-F0010

A25#..AXAA5#,AXAH54

*628T/P A:REF.ILLUST

 1
25625-F0020

A25#..AXAA5#,AXAH54,AXAL54

*628T/P B:REF.ILLUST

 1
25625-25010

A25#..AXAA5#,AXAH54

*584T/P A:REF.ILLUST

 1
25627 - GASKET, EGR VALVE
25627-F0010

A25#..AXAA5#,AXAH54,AXAL54

*628

 1
25627-25010

A25#..AXAA5#,AXAH54,AXAL54

*584

 1
25628 - GASKET, EGR INLET
25628-25010

A25#..AXAA5#,AXAH54,AXAL54

*628

 1
25629 - GASKET, EGR VALVE ADAPTER
25629-25010

A25#..AXAA5#,AXAH54,AXAL54

*628,*584

 1
25680 - COOLER ASSY, EGR
25680-F0020

A25AFXS..AXAH54,AXAL54

*628

 1
25685 - GASKET, EGR COOLER, NO.1
25685-25011

A25#..AXAA5#,AXAH54,AXAL54

*628

 1
Common parts
90105-06352
90105-06353
90105-06366
90105-A0338
90105-A0339
90105-A0409
90105-A0439
90119-06A29
90119-A0477
Linked diagrams
1603
1701
