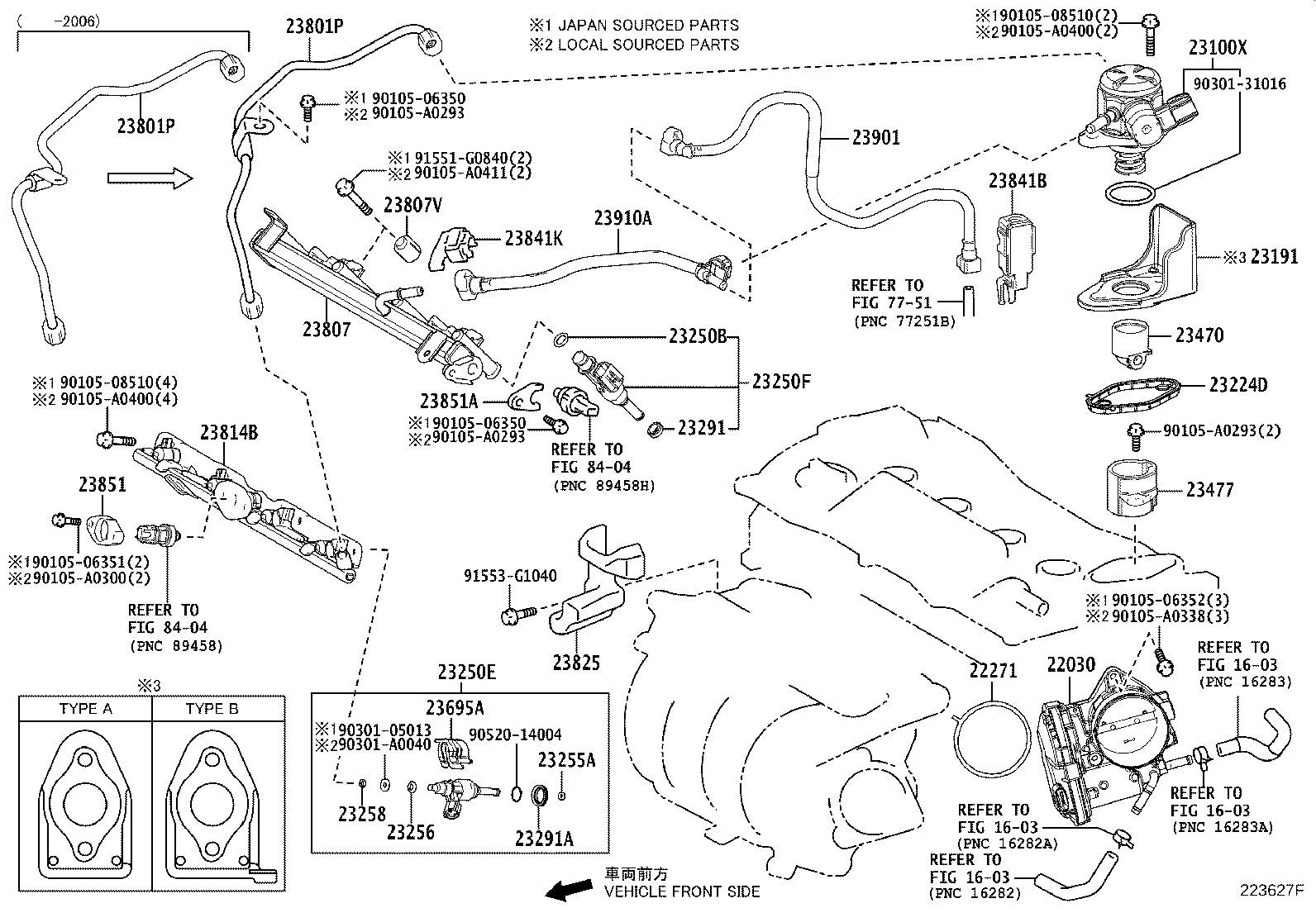

AXAH54L-CNXMBK (2019)
Toyota Rav4 (Nap)
(1903- )A25AFXS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR | ||||
| 22030-25020 |
A25AFXS..AXAH54,AXAL54 *584 |
1 | ||
| 22030-F0020 |
A25AFXS..AXAH54,AXAL54 *628 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-F0020 |
A25AFXS..AXAH54,AXAL54 *628 |
1 | ||
| 23100X - PUMP ASSY, FUEL (ENGINE ROOM SIDE) | ||||
| 23101-25040 |
A25#..AXAA5#,AXAH54,AXAL54 *584 |
1 | ||
| 23101-F0010 |
A25#..AXAA5#,AXAH54,AXAL54 *628 |
1 | ||
| 23191 - FLANGE, FUEL PUMP | ||||
| 23191-25050 |
A25#..AXAA5#,AXAH54,AXAL54 *628,*584 |
1 | ||
| 23224D - GASKET, FUEL PUMP SPACER | ||||
| 23224-25010 |
A25#..AXAA5#,AXAH54,AXAL54 *584 |
1 | ||
| 23224-F0010 |
A25#..AXAA5#,AXAH54,AXAL54 *628 |
1 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-A0036 |
A25#..AXAA5#,AXAH54,AXAL54 *628 |
4 | ||
| 90301-A0036 |
A25#..AXAA5#,AXAH54,AXAL54 (L),*584 |
4 | ||
| 90301-07037 |
A25#..AXAA5#,AXAH54 *584 |
4 | ||
| 90301-07037 |
A25#..AXAA5#,AXAH54,AXAL54 (J),*584 |
4 | ||
| 23250E - INJECTOR ASSY, FUEL(FOR DIRECT) | ||||
| 23209-2501005 |
A25#..AXAA5#,AXAH54,AXAL54 MARK 5,*584:REFER R/M |
4 | ||
| 23209-2501003 |
A25#..AXAA5#,AXAH54,AXAL54 MARK 3,*584:REFER R/M |
4 | ||
| 23209-F001001 |
A25#..AXAA5#,AXAH54,AXAL54 MARK 1,*628:REFER R/M |
4 | ||
| 23209-2501006 |
A25#..AXAA5#,AXAH54,AXAL54 MARK 6,*584:REFER R/M |
4 | ||
| 23209-2501001 |
A25#..AXAA5#,AXAH54,AXAL54 MARK 1,*584:REFER R/M |
4 | ||
| 23209-2501007 |
A25#..AXAA5#,AXAH54,AXAL54 MARK 7,*584:REFER R/M |
4 | ||
| 23209-2501004 |
A25#..AXAA5#,AXAH54,AXAL54 MARK 4,*584:REFER R/M |
4 | ||
| 23209-F001004 |
A25#..AXAA5#,AXAH54,AXAL54 MARK 4,*628:REFER R/M |
4 | ||
| 23209-2501002 |
A25#..AXAA5#,AXAH54,AXAL54 MARK 2,*584:REFER R/M |
4 | ||
| 23209-2501008 |
A25#..AXAA5#,AXAH54,AXAL54 MARK 8,*584:REFER R/M |
4 | ||
| 23209-F001003 |
A25#..AXAA5#,AXAH54,AXAL54 MARK 3,*628:REFER R/M |
4 | ||
| 23209-F001005 |
A25#..AXAA5#,AXAH54,AXAL54 MARK 5,*628:REFER R/M |
4 | ||
| 23209-2501009 |
A25#..AXAA5#,AXAH54,AXAL54 MARK 9,*584:REFER R/M |
4 | ||
| 23209-F001002 |
A25#..AXAA5#,AXAH54,AXAL54 MARK 2,*628:REFER R/M |
4 | ||
| 23209-F001006 |
A25#..AXAA5#,AXAH54,AXAL54 MARK 6,*628:REFER R/M |
4 | ||
| 23209-F001009 |
A25#..AXAA5#,AXAH54,AXAL54 MARK 9,*628:REFER R/M |
4 | ||
| 23209-F001007 |
A25#..AXAA5#,AXAH54,AXAL54 MARK 7,*628:REFER R/M |
4 | ||
| 23209-F001008 |
A25#..AXAA5#,AXAH54,AXAL54 MARK 8,*628:REFER R/M |
4 | ||
| 23250F - INJECTOR ASSY, FUEL(FOR PORT) | ||||
| 23209-29105 |
A25#..AXAA5#,AXAH54 *584 |
4 | ||
| 23209-29175 |
A25#..AXAA5#,AXAH54,AXAL54 *628,*584 |
4 | ||
| 23209-F9000 |
A25#..AXAA5#,AXAH54 *628 |
4 | ||
| 23255A - SEAL, FUEL INJECTOR | ||||
| 23255-F0010 |
A25#..AXAA5#,AXAH54,AXAL54 (L),*628 |
4 | ||
| 23255-25010 |
A25#..AXAA5#,AXAH54,AXAL54 *584,(J),*628 |
4 | ||
| 23256 - RING, FUEL INJECTOR BACK-UP, NO.1 | ||||
| 23256-F0010 |
A25#..AXAA5#,AXAH54,AXAL54 (L),*628 |
4 | ||
| 23256-25010 |
A25#..AXAA5#,AXAH54,AXAL54 *584,(J),*628 |
4 | ||
| 23258 - RING, FUEL INJECTOR BACK-UP, NO.3 | ||||
| 23258-36010 |
A25#..AXAA5#,AXAH54,AXAL54 *628 |
4 | ||
| 23258-31010 |
A25#..AXAA5#,AXAH54,AXAL54 *584 |
4 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-0V020 |
A25#..AXAA5#,AXAH54,AXAL54 *628 |
4 | ||
| 23291-28020 |
A25#..AXAA5#,AXAH54,AXAL54 *584 |
4 | ||
| 23291A - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-31020 |
A25#..AXAA5#,AXAH54,AXAL54 *628,*584 |
4 | ||
| 23470 - LIFTER ASSY, FUEL PUMP | ||||
| 23470-F0010 |
A25#..AXAA5#,AXAH54,AXAL54 *628 |
1 | ||
| 23470-25010 |
A25#..AXAA5#,AXAH54,AXAL54 *584 |
1 | ||
| 23477 - GUIDE, FUEL PUMP LIFTER | ||||
| 23477-25010 |
A25#..AXAA5#,AXAH54,AXAL54 (J),*628 |
1 | ||
| 23477-F2010 |
A25#..AXAA5#,AXAH54,AXAL54 (L),*628 |
1 | ||
| 23695A - CLAMP, NOZZLE HOLDER | ||||
| 23695-25010 |
A25#..AXAA5#,AXAH54,AXAL54 *628,*584 |
4 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-F0011 |
A25#..AXAA5#,AXAH54,AXAL54 *628 |
1 | ||
| 23801-25030 |
A25#..AXAA5#,AXAH54 *584 |
1 | ||
| 23801-25031 |
A25#..AXAA5#,AXAH54,AXAL54 *584 |
1 | ||
| 23801-F0010 |
A25#..AXAA5#,AXAH54 *628 |
1 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-F0011 |
A25#..AXAA5#,AXAH54,AXAL54 *628 |
1 | ||
| 23801-25030 |
A25#..AXAA5#,AXAH54 *584 |
1 | ||
| 23801-25031 |
A25#..AXAA5#,AXAH54,AXAL54 *584 |
1 | ||
| 23801-F0010 |
A25#..AXAA5#,AXAH54 *628 |
1 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23814-F0021 |
A25#..AXAA5#,AXAH54 *628 |
1 | ||
| 23814-F0022 |
A25#..AXAA5#,AXAH54,AXAL54 *628 |
1 | ||
| 23814-25021 |
A25#..AXAA5#,AXAH54 *584 |
1 | ||
| 23814-25022 |
A25#..AXAA5#,AXAH54,AXAL54 *584 |
1 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 23891-25010 |
A25#..AXAA5#,AXAH54,AXAL54 *628,*584 |
2 | ||
| 23814B - PIPE, FUEL DELIVERY | ||||
| 23814-25010 |
A25#..AXAA5#,AXAH54,AXAL54 *628,*584 |
1 | ||
| 23825 - GUARD, FUEL DELIVERY | ||||
| 23825-25010 |
A25#..AXAA5#,AXAH54,AXAL54 |
1 | ||
| 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) | ||||
| 23841-31070 |
A25#..AXAA5#,AXAH54,AXAL54 |
1 | ||
| 23841K - CLAMP, FUEL PIPE | ||||
| 23841-F0010 |
A25#..AXAA5#,AXAH54,AXAL54 |
1 | ||
| 23851 - HOLDER, FUEL PRESSURE SENSOR, NO.1 | ||||
| 23851-F2010 |
A25#..AXAA5#,AXAH54,AXAL54 *628 |
1 | ||
| 23851-25020 |
A25#..AXAA5#,AXAH54,AXAL54 *584 |
1 | ||
| 23851A - HOLDER, FUEL PRESSURE SENSOR, NO.2 | ||||
| 23851-25030 |
A25#..AXAA5#,AXAH54,AXAL54 *628,*584 |
1 | ||
| 23901 - TUBE SUB-ASSY, FUEL | ||||
| 23901-F0131 |
A25AFXS..AXAH54,AXAL54 |
1 | ||
| 23901-F0130 |
A25AFXS..AXAH54 |
1 | ||
| 23910A - TUBE SUB-ASSY, FUEL | ||||
| 23901-F0110 |
A25#..AXAA5#,AXAH54 |
1 | ||
| 23901-F0111 |
A25#..AXAA5#,AXAH54,AXAL54 |
1 | ||
| Common parts | ||||
| 90105-06350 | ||||
| 90105-06351 | ||||
| 90105-06352 | ||||
| 90105-08510 | ||||
| 90105-A0293 | ||||
| 90105-A0300 | ||||
| 90105-A0338 | ||||
| 90105-A0400 | ||||
| 90105-A0411 | ||||
| 90301-05013 | ||||
| 90301-31016 | ||||
| 90301-A0040 | ||||
| 90520-14004 | ||||
| 91551-G0840 | ||||
| 91553-G1040 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 7751 | ||||
| 8404 | ||||
