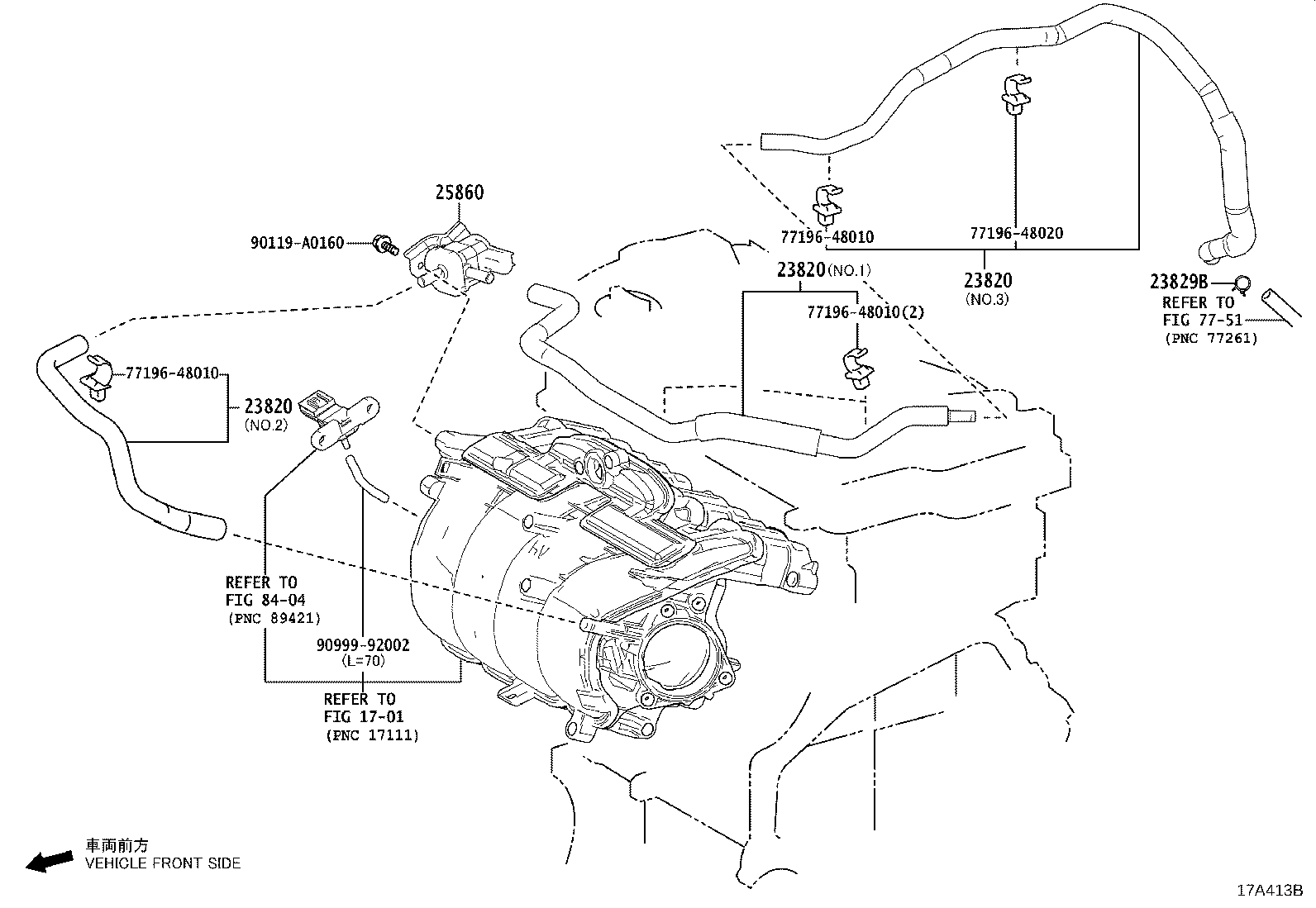

Toyota Rav4 (nap) AXAH54 VACUUM PIPING

Part #	Description	Period	Qty
23820 - HOSE ASSY, FUEL VAPOR FEED
23820-F0081	A25AFXS..AXAH54,AXAL54 NO.1:REFER ILLUST.	03/2019 - 09/2020	1
23820-F0140	A25AFXS..AXAH54,AXAL54 NO.3:REFER ILLUST.	03/2019 - 09/2020	1
23820-F0150	A25AFXS..AXAH54,AXAL54 NO.2:REFER ILLUST.	03/2019 - 09/2020	1
23820 - HOSE ASSY, FUEL VAPOR FEED
23820-F0081	A25AFXS..AXAH54,AXAL54 NO.1:REFER ILLUST.	03/2019 - 09/2020	1
23820-F0140	A25AFXS..AXAH54,AXAL54 NO.3:REFER ILLUST.	03/2019 - 09/2020	1
23820-F0150	A25AFXS..AXAH54,AXAL54 NO.2:REFER ILLUST.	03/2019 - 09/2020	1
23820 - HOSE ASSY, FUEL VAPOR FEED
23820-F0081	A25AFXS..AXAH54,AXAL54 NO.1:REFER ILLUST.	03/2019 - 09/2020	1
23820-F0140	A25AFXS..AXAH54,AXAL54 NO.3:REFER ILLUST.	03/2019 - 09/2020	1
23820-F0150	A25AFXS..AXAH54,AXAL54 NO.2:REFER ILLUST.	03/2019 - 09/2020	1
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
96133-41501	A25#..AXAA5#,AXAH54,AXAL54	12/2018 - 09/2020	1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-F0020	A25AFXS..AXAH54,AXAL54	03/2019 - 09/2020	1
Common parts
77196-48010
77196-48020
90119-A0160
90999-92002
Linked diagrams
1701
7751
8404

AXAH54L-CNXMBK (2019)
