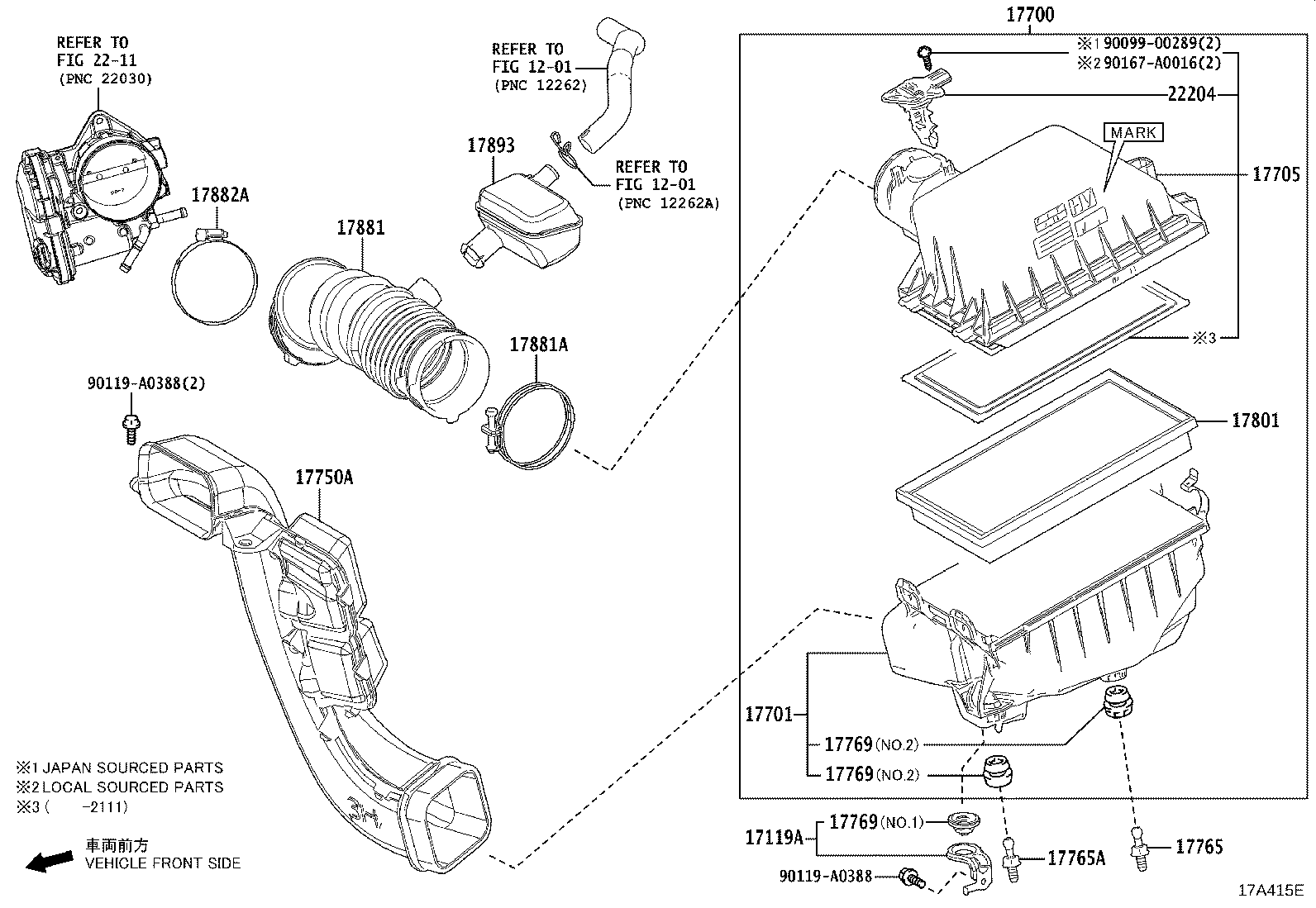

Toyota Rav4 (nap) AXAH54 AIR CLEANER

Part #	Description	Period	Qty
17119A - BRACKET, AIR CLEANER
17119-F0010	A25#..AXAA5#,AXAH54,AXAL54	12/2018 - 09/2020	1
17700 - CLEANER ASSY, AIR
17700-F0020	A25AFXS..AXAH54,AXAL54	03/2019 - 09/2020	1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-F0020	A25AFXS..AXAH54,AXAL54	03/2019 - 09/2020	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-F0020	A25AFXS..AXAH54,AXAL54	03/2019 - 09/2020	1
17750A - INLET ASSY, AIR CLEANER
17750-F0080	A25AFXS..AXAH54,AXAL54	03/2019 - 09/2020	1
17765 - STAY, AIR CLEANER, NO.1
17765-25010	A25AFXS..AXAH54,AXAL54	03/2019 - 09/2020	1
17765A - STAY, AIR CLEANER, NO.1
17765-25010	A25AFXS..AXAH54,AXAL54	03/2019 - 09/2020	1
17769 - SUPPORT, AIR CLEANER
17769-25030	A25AFXS..AXAH54,AXAL54 NO.2:REFER ILLUST.	03/2019 - 09/2020	2
17769-25020	A25AFXS..AXAH54,AXAL54 NO.1:REFER ILLUST.	03/2019 - 09/2020	1
17769 - SUPPORT, AIR CLEANER
17769-25030	A25AFXS..AXAH54,AXAL54 NO.2:REFER ILLUST.	03/2019 - 09/2020	2
17769-25020	A25AFXS..AXAH54,AXAL54 NO.1:REFER ILLUST.	03/2019 - 09/2020	1
17769 - SUPPORT, AIR CLEANER
17769-25030	A25AFXS..AXAH54,AXAL54 NO.2:REFER ILLUST.	03/2019 - 09/2020	2
17769-25020	A25AFXS..AXAH54,AXAL54 NO.1:REFER ILLUST.	03/2019 - 09/2020	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-77050	A25AFXS..AXAH54,AXAL54 (J)	03/2019 - 09/2020	1
17801-F0020	A25AFXS..AXAH54,AXAL54 (L)	03/2019 - 09/2020	1
17881 - HOSE, AIR CLEANER, NO.1
17881-F0080	A25AFXS..AXAH54,AXAL54	03/2019 - 09/2020	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10850	A25AFXS..AXAH54,AXAL54	03/2019 - 09/2020	1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
17891-31010	A25AFXS..AXAH54,AXAL54	03/2019 - 09/2020	1
17893 - RESONATOR, INTAKE AIR
17893-F0140	A25AFXS..AXAH54,AXAL54	03/2019 - 09/2020	1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-75040	A25#..AXAA5#,AXAH54,AXAL54	12/2018 - 09/2020	1
Common parts
90099-00289
90119-A0388
90167-A0016
Linked diagrams
1201
2211

AXAH54L-CNXMBK (2019)

(1903- )A25AFXS
