AXAH54L-CNXMBK (2019)

Toyota Rav4 (Nap)

Production Mar 2019 - Sep 2020
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1903- )A25AFXS

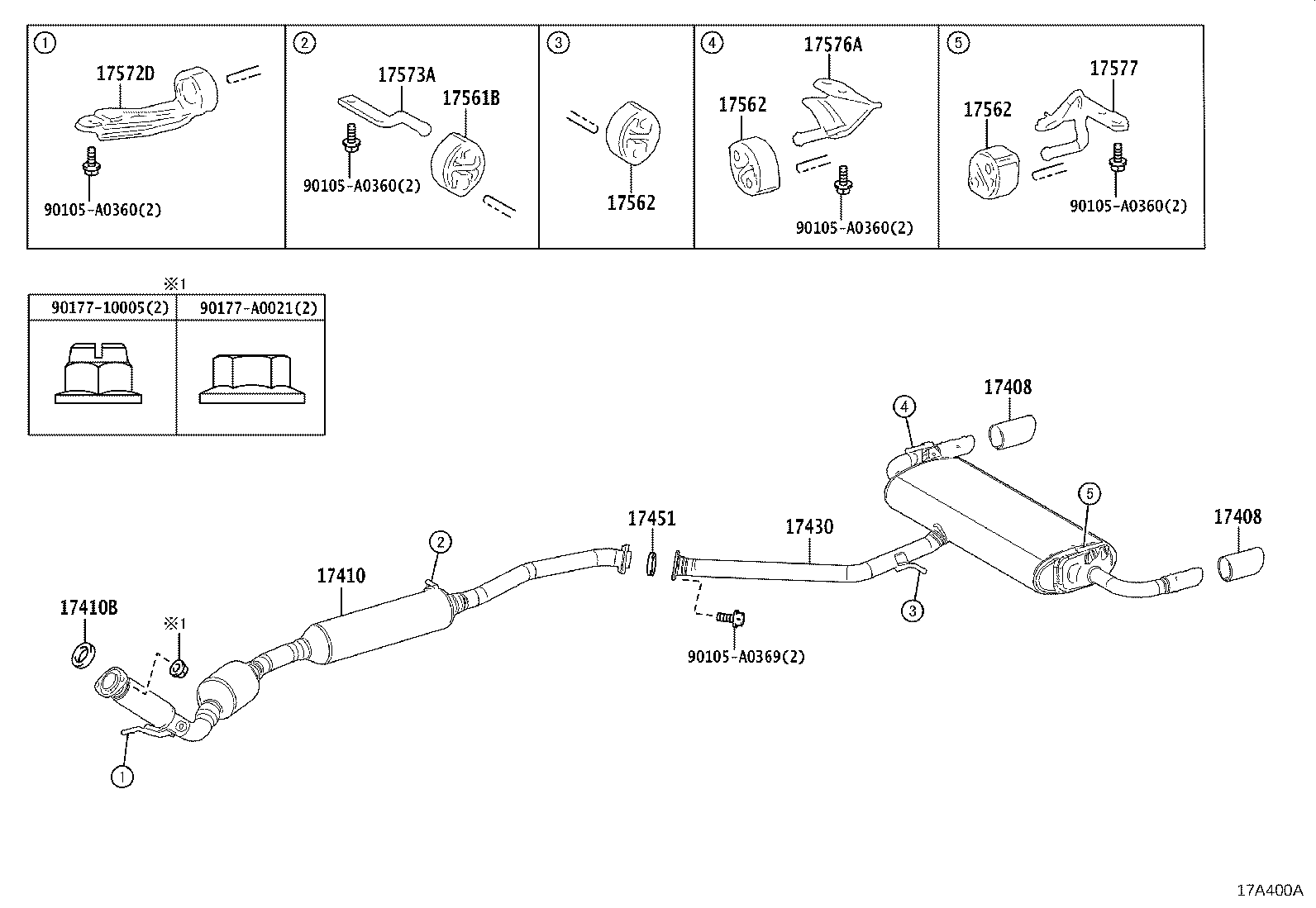

Click highlighted areas on diagram

diagram 17408 17408 17410 17410B 17430 17451 17561B 17562 17562 17562 17572D 17573A 17576A 17577 90105A0360 90105A0360 90105A0360 90105A0360 90105A0369 9017710005 90177A0021
Part # Description Qty Price
17408 - BAFFLE SUB ASSY, EXHAUST TAIL PIPE
17408-F0030

A25#..AXAA5#,AXAH54..G,M,V

(L)

 2
17408-25030

A25#..AXAA5#,AXAH54..X

(J)

 2
17408-25040

A25#..AXAA5#,AXAH54..G,M,V

(J)

 2
17408-F0040

A25#..AXAA5#,AXAH54..X

(L)

 2
17408-F0040

A25#..AXAA5#,AXAH54,AXAL54..X

 2
17408-F0030

A25#..AXAA5#,AXAH54,AXAL54..G,M,V

 2
17408 - BAFFLE SUB ASSY, EXHAUST TAIL PIPE
17408-F0030

A25#..AXAA5#,AXAH54..G,M,V

(L)

 2
17408-25030

A25#..AXAA5#,AXAH54..X

(J)

 2
17408-25040

A25#..AXAA5#,AXAH54..G,M,V

(J)

 2
17408-F0040

A25#..AXAA5#,AXAH54..X

(L)

 2
17408-F0040

A25#..AXAA5#,AXAH54,AXAL54..X

 2
17408-F0030

A25#..AXAA5#,AXAH54,AXAL54..G,M,V

 2
17410 - PIPE ASSY, EXHAUST, FRONT
17410-F0170

A25AFXS..AXAH54,AXAL54

 1
17410B - GASKET, EXHAUST PIPE
90917-A6002

A25#..AXAA5#,AXAH54,AXAL54

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-F0170

A25AFXS..AXAH54,AXAL54

 1
17451 - GASKET, EXHAUST PIPE
17451-F0100

A25#..AXAA5#,AXAH54,AXAL54

(L)

 1
17451-25040

A25#..AXAA5#,AXAH54,AXAL54

(J)

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-0P041

A25#..AXAA5#,AXAH54,AXAL54

 1
17562 - SUPPORT, EXHAUST PIPE, NO.2
17565-0S011

A25#..AXAA5#,AXAH54,AXAL54

 3
17562 - SUPPORT, EXHAUST PIPE, NO.2
17565-0S011

A25#..AXAA5#,AXAH54,AXAL54

 3
17562 - SUPPORT, EXHAUST PIPE, NO.2
17565-0S011

A25#..AXAA5#,AXAH54,AXAL54

 3
17572D - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17572-F0040

A25#..AXAA5#,AXAH54,AXAL54

 1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17573-F0050

A25AFXS..AXAH54,AXAL54

 1
17576A - BRACKET, EXHAUST PIPE SUPPORT, NO.6
17576-25020

A25#..AXAA5#,AXAH54,AXAL54

 1
17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7
17577-25010

A25#..AXAA5#,AXAH54,AXAL54

 1
Common parts
90105-A0360
90105-A0369
90177-10005
90177-A0021
