AXAH54L-CNXMBK (2019)
Toyota Rav4 (Nap)

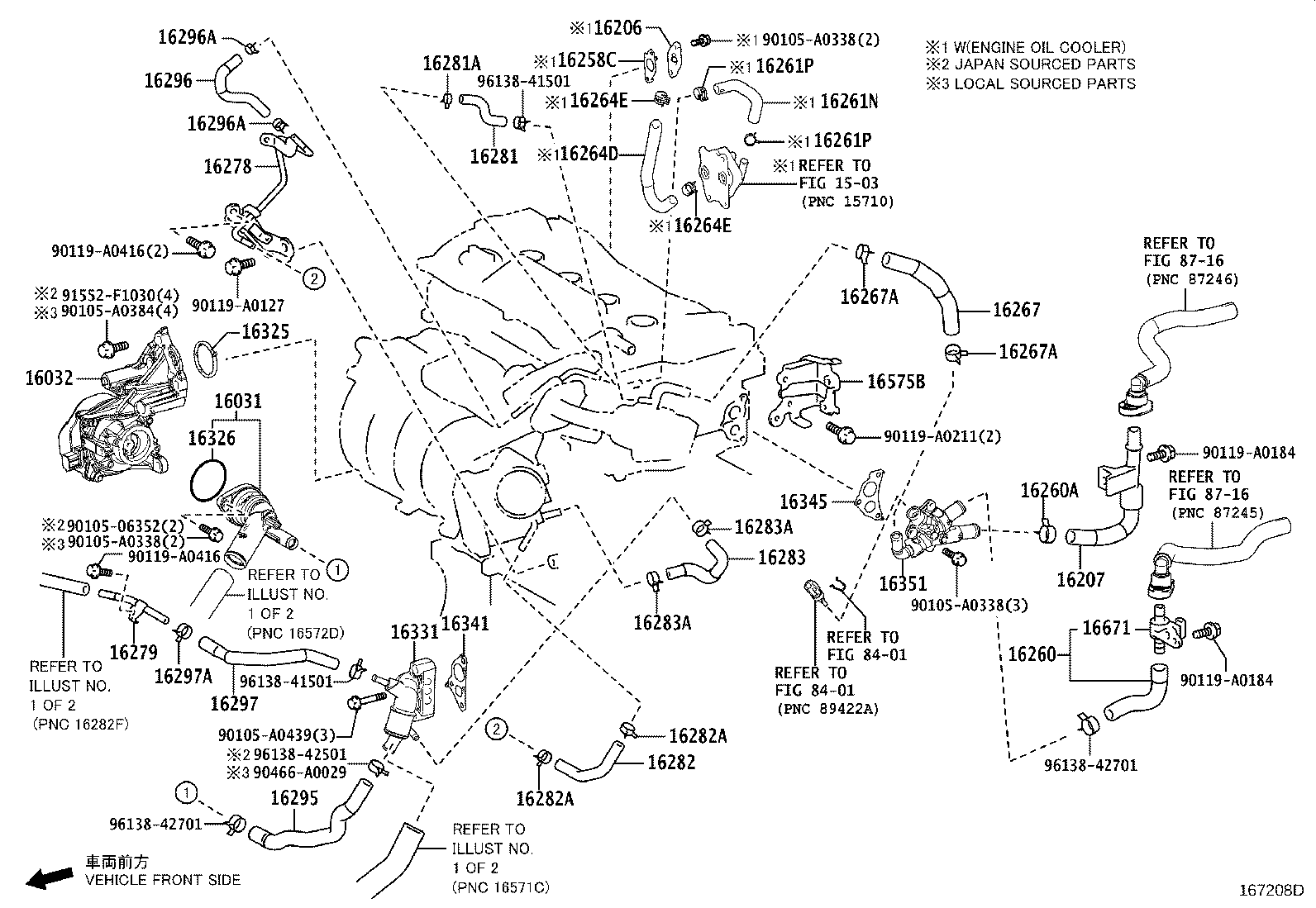

ILLUST NO. 2 OF 2(1903- )A25AFXS
ENGINE SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16031 - WATER INLET SUB-ASSY, W/THERMOSTAT | ||||
| 16031-25010 |
A25#..AXAA5#,AXAH54 *628,*584 |
1 | ||
| 16031-25011 |
A25#..AXAA5#,AXAH54,AXAL54 *584 |
1 | ||
| 16031-25011 |
A25#..AXAA5#,AXAH54,AXAL54 *628 |
1 | ||
| 16032 - HOUSING SUB-ASSY, WATER INLET W/WATER PUMP | ||||
| 16032-25010 |
A25#..AXAA5#,AXAH54,AXAL54 *584 |
1 | ||
| 16032-F0010 |
A25#..AXAA5#,AXAH54,AXAL54 *628 |
1 | ||
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-25030 |
A25AFXS..AXAH54,AXAL54 *628 |
1 | ||
| 16207 - PIPE SUB-ASSY, WATER BY-PASS, NO.2 | ||||
| 16207-F0010 |
A25#..AXAA5#,AXAH54,AXAL54 |
1 | ||
| 16258C - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-F0010 |
A25AFXS..AXAH54,AXAL54 *628 |
1 | ||
| 16260 - HOSE ASSY, WATER BY-PASS | ||||
| 16260-F0021 |
A25AFXS..AXAH54,AXAL54 |
1 | ||
| 16260A - CLIP(FOR WATER BY-PASS HOSE ASSY) | ||||
| 96138-42701 |
A25AFXS..AXAH54,AXAL54 |
1 | ||
| 16261N - HOSE, WATER BY-PASS, NO.2 | ||||
| 16261-25050 |
A25AFXS..AXAH54,AXAL54 *628 |
1 | ||
| 16261P - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96138-42101 |
A25AFXS..AXAH54,AXAL54 *628 |
2 | ||
| 16261P - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96138-42101 |
A25AFXS..AXAH54,AXAL54 *628 |
2 | ||
| 16264D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-25030 |
A25AFXS..AXAH54,AXAL54 *628 |
1 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96138-42101 |
A25AFXS..AXAH54,AXAL54 *628 |
2 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96138-42101 |
A25AFXS..AXAH54,AXAL54 *628 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-25020 |
A25AFXS..AXAH54,AXAL54 *628 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96138-42101 |
A25#..AXAA5#,AXAH54,AXAL54 *628 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96138-42101 |
A25#..AXAA5#,AXAH54,AXAL54 *628 |
2 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-25030 |
A25AFXS..AXAH54,AXAL54 *628 |
1 | ||
| 16279 - PIPE, WATER BY-PASS, NO.3 | ||||
| 16279-25020 |
A25AFXS..AXAH54,AXAL54 *628 |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-25021 |
A25#..AXAA5#,AXAH54,AXAL54 *628 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96138-41501 |
A25#..AXAA5#,AXAH54,AXAL54 *628 |
1 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-25040 |
A25AFXS..AXAH54,AXAL54 *628 |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96138-41501 |
A25#..AXAA5#,AXAH54,AXAL54 *628 |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96138-41501 |
A25#..AXAA5#,AXAH54,AXAL54 *628 |
2 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-25020 |
A25AFXS..AXAH54,AXAL54 *628 |
1 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96138-41501 |
A25#..AXAA5#,AXAH54,AXAL54 *628 |
2 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96138-41501 |
A25#..AXAA5#,AXAH54,AXAL54 *628 |
2 | ||
| 16295 - HOSE, WATER BY-PASS, NO.7 | ||||
| 16295-25010 |
A25#..AXAA5#,AXAH54,AXAL54 *628 |
1 | ||
| 16296 - HOSE, WATER BY-PASS, NO.8 | ||||
| 16296-25020 |
A25AFXS..AXAH54,AXAL54 *628 |
1 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 96138-41501 |
A25#..AXAA5#,AXAH54,AXAL54 *628 |
2 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 96138-41501 |
A25#..AXAA5#,AXAH54,AXAL54 *628 |
2 | ||
| 16297 - HOSE, WATER BY-PASS, NO.9 | ||||
| 16297-25020 |
A25AFXS..AXAH54,AXAL54 *628 |
1 | ||
| 16297A - CLIP(FOR WATER BY-PASS HOSE NO.9) | ||||
| 90467-15022 |
A25#..AXAA5#,AXAH54,AXAL54 *628 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-25010 |
A25#..AXAA5#,AXAH54,AXAL54 *628,*584 |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-47020 |
A25#..AXAA5#,AXAH54,AXAL54 *628,*584 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-25030 |
A25AFXS..AXAH54,AXAL54 *628 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-F0010 |
A25#..AXAA5#,AXAH54,AXAL54 *628 |
1 | ||
| 16345 - GASKET, WATER OUTLET PIPE | ||||
| 16345-F0020 |
A25AFXS..AXAH54,AXAL54 *628 |
1 | ||
| 16351 - OUTLET, WATER BY-PASS | ||||
| 16351-25040 |
A25AFXS..AXAH54,AXAL54 *628 |
1 | ||
| 16575B - BRACKET, WATER HOSE CLAMP, NO.2 | ||||
| 16575-25050 |
A25AFXS..AXAH54,AXAL54 (J) |
1 | ||
| 16575-F0090 |
A25AFXS..AXAH54 |
1 | ||
| 16575-F0090 |
A25AFXS..AXAH54,AXAL54 (L) |
1 | ||
| 16671 - VALVE, WATER | ||||
| 16671-F0020 |
A25AFXS..AXAH54,AXAL54 (L) |
1 | ||
| 16671-25010 |
A25AFXS..AXAH54,AXAL54 (J) |
1 | ||
| Common parts | ||||
| 90105-06352 | ||||
| 90105-A0338 | ||||
| 90105-A0384 | ||||
| 90105-A0439 | ||||
| 90119-A0127 | ||||
| 90119-A0184 | ||||
| 90119-A0211 | ||||
| 90119-A0416 | ||||
| 90466-A0029 | ||||
| 91552-F1030 | ||||
| 96138-41501 | ||||
| 96138-42501 | ||||
| 96138-42701 | ||||
| Linked diagrams | ||||
| 1503 | ||||
| 8401 | ||||
| 8716 | ||||
