AXAH54L-CNXMBK (2019)

Toyota Rav4 (Nap)

Production Mar 2019 - Sep 2020
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1903- )A25AFXS

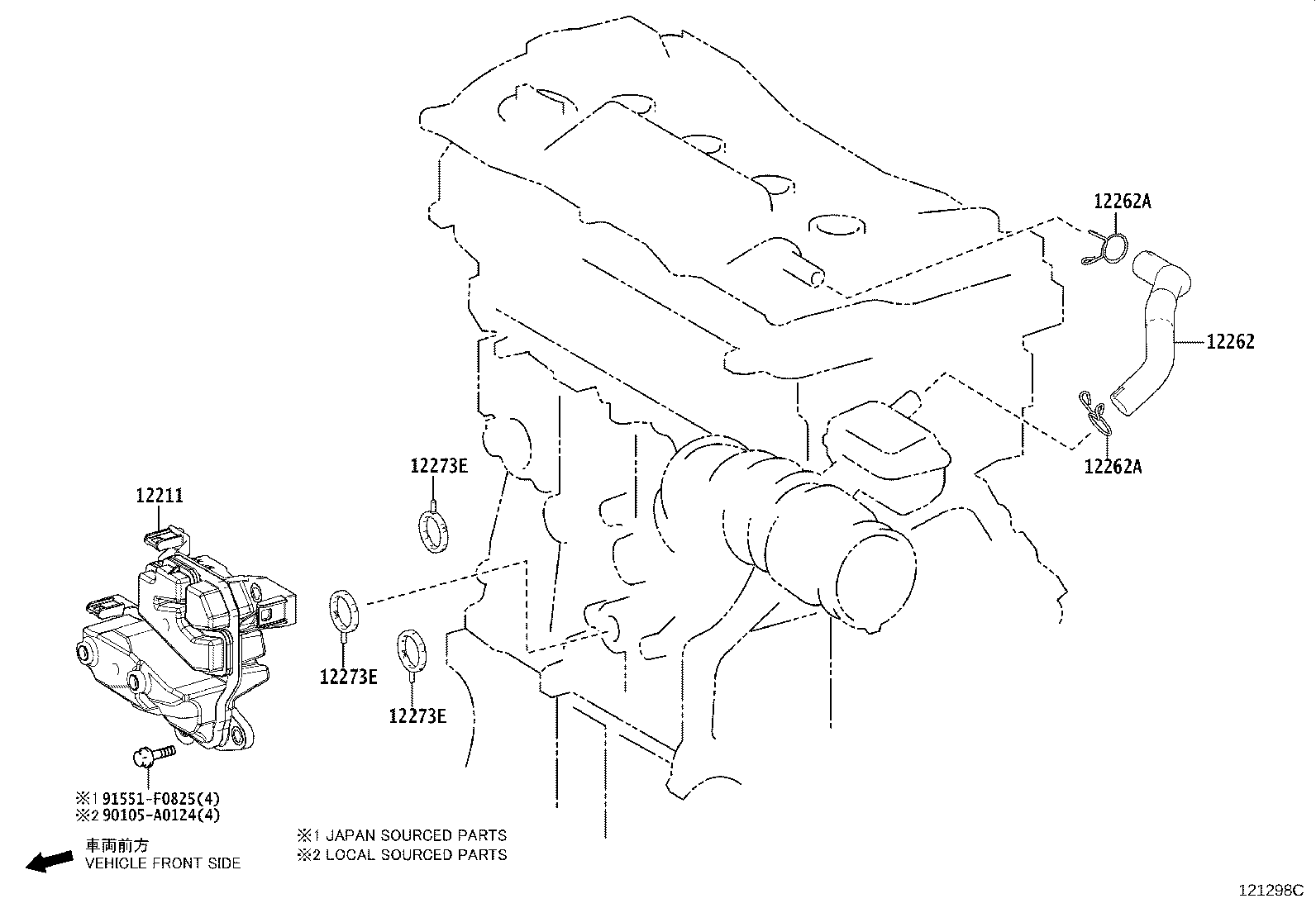

Click highlighted areas on diagram

diagram 12211 12262 12262A 12262A 12273E 12273E 12273E 90105A0124 91551F0825
Part # Description Qty Price
12211 - CASE, VENTILATION, NO.1
12211-25010

A25#..AXAA5#,AXAH54,AXAL54

*584

 1
12211-F0010

A25#..AXAA5#,AXAH54,AXAL54

*628

 1
12262 - HOSE, VENTILATION, NO.2
12262-25080

A25AFXS..AXAH54,AXAL54

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90466-A0028

A25#..AXAA5#,AXAH54,AXAL54

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90466-A0028

A25#..AXAA5#,AXAH54,AXAL54

 2
12273E - GASKET(FOR VENTILATION CASE)
12273-24010

A25#..AXAA5#,AXAH54,AXAL54

*628,*584

 3
12273E - GASKET(FOR VENTILATION CASE)
12273-24010

A25#..AXAA5#,AXAH54,AXAL54

*628,*584

 3
12273E - GASKET(FOR VENTILATION CASE)
12273-24010

A25#..AXAA5#,AXAH54,AXAL54

*628,*584

 3
Common parts
90105-A0124
91551-F0825
