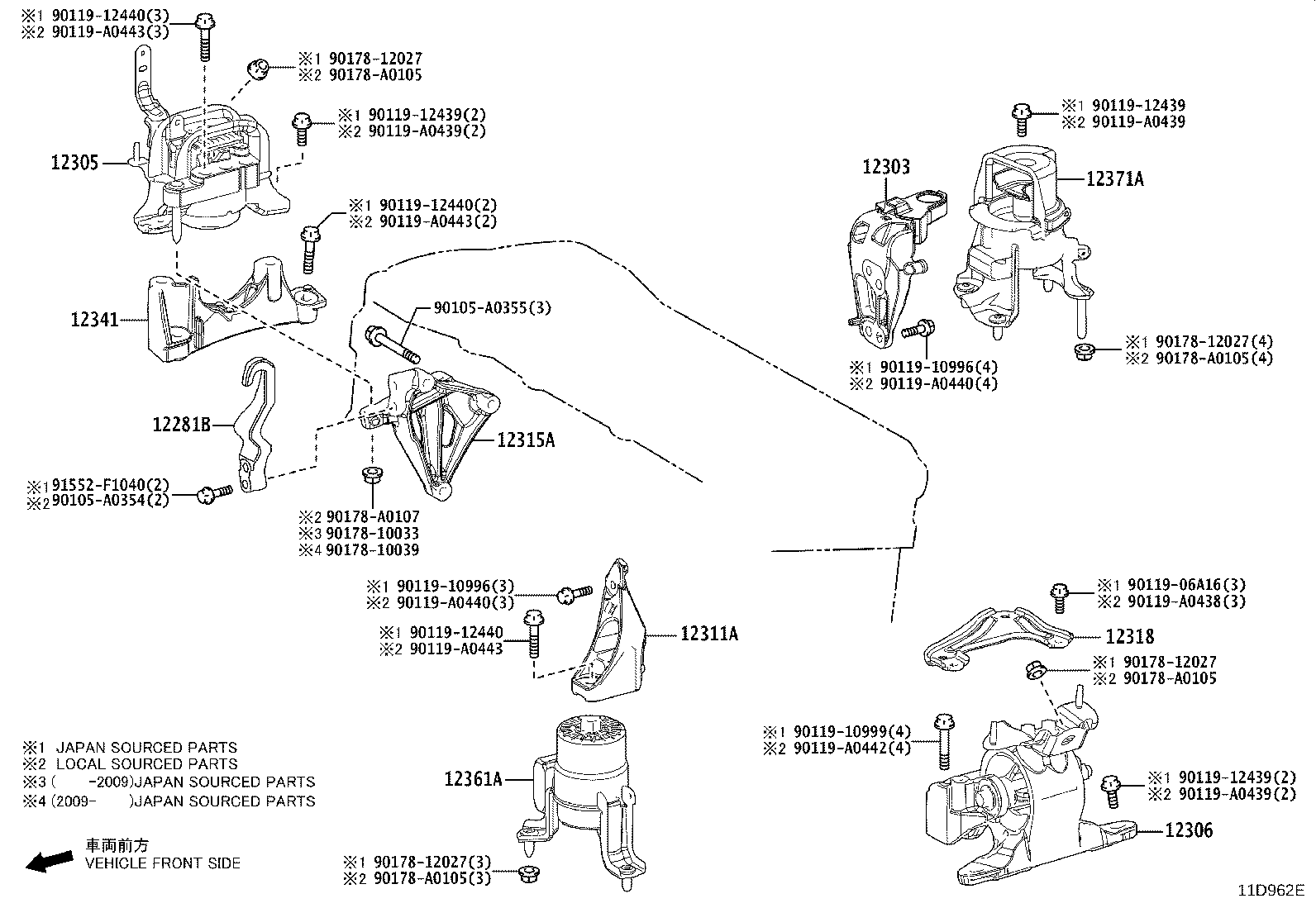

Toyota Rav4 (nap) AXAH54 MOUNTING

Part #	Description	Period	Qty
12281B - HANGER, ENGINE, NO.1
12281-25030	A25#..AXAA5#,AXAH54,AXAL54 628,584	12/2018 - 09/2020	1
12303 - BRACKET SUB-ASSY, ENGINE MOUNTING, REAR
12303-F0160	A25AFXS..AXAH54,AXAL54	03/2019 - 09/2020	1
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-F0090	A25AFXS..AXAH54,AXAL54	03/2019 - 09/2020	1
12306 - INSULATOR SUB-ASSY, ENGINE MOUNTING, LH
12306-F0050	A25AFXS..AXAH54,AXAL54	03/2019 - 09/2020	1
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-F0020	A25AFXS..AXAH54,AXAL54	03/2019 - 09/2020	1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-25031	A25#..AXAA5#,AXAH54,AXAL54 *628	03/2020 - 09/2020	1
12315-25030	A25#..AXAA5#,AXAH54 *628	12/2018 - 03/2020	1
12318 - STAY, ENGINE MOUNTING, LH
12318-F0020	A25AFXS..AXAH54,AXAL54	03/2019 - 09/2020	1
12341 - SPACER, ENGINE MOUNTING
12341-F0010	A25#..AXAA5#,AXAH54,AXAL54	12/2018 - 09/2020	1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-F0090	A25AFXS..AXAH54,AXAL54	03/2019 - 09/2020	1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-F0100	A25AFXS..AXAH54,AXAL54	03/2019 - 09/2020	1
Common parts
90105-A0354
90105-A0355
90119-06A16
90119-10996
90119-10999
90119-12439
90119-12440
90119-A0438
90119-A0439
90119-A0440
90119-A0442
90119-A0443
90178-10033
90178-10039
90178-12027
90178-A0105
90178-A0107
91552-F1040

AXAH54L-CNXMBK (2019)
