AXAH54L-CNXMBK (2019)

Toyota Rav4 (Nap)

Production Mar 2019 - Sep 2020
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1903- )A25AFXS

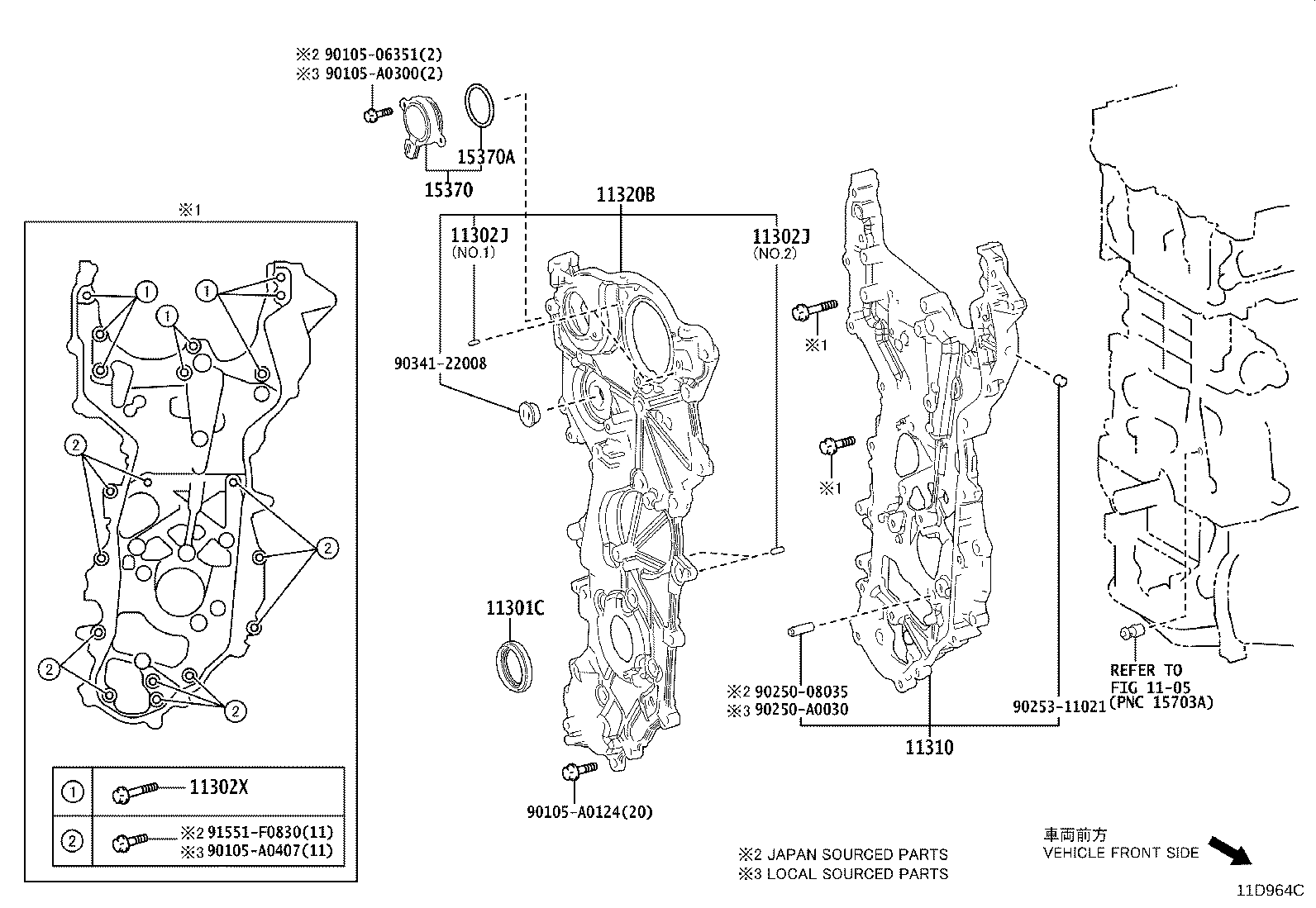

Click highlighted areas on diagram

diagram 1105 11301C 11302J 11302J 11302X 11310 11320B 15370 15370A 9010506351 90105A0124 90105A0300 90105A0407 9025008035 90250A0030 9025311021 9034122008 91551F0830
Part # Description Qty Price
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-40044

A25#..AXAA5#,AXAH54,AXAL54

*584

 1
90311-A0033

A25#..AXAA5#,AXAH54,AXAL54

*628

 1
11302J - PIN, STRAIGHT(FOR TIMING CHAIN COVER)
90250-A0028

A25#..AXAA5#,AXAH54,AXAL54

*628,NO.2:REFER ILL.

 2
90250-A0029

A25#..AXAA5#,AXAH54,AXAL54

*628,NO.1:REFER ILL.

 2
11302J - PIN, STRAIGHT(FOR TIMING CHAIN COVER)
90250-A0028

A25#..AXAA5#,AXAH54,AXAL54

*628,NO.2:REFER ILL.

 2
90250-A0029

A25#..AXAA5#,AXAH54,AXAL54

*628,NO.1:REFER ILL.

 2
11302X - BOLT, FLANGE
90105-A0408

A25#..AXAA5#,AXAH54,AXAL54

*628

 8
91551-F0845

A25#..AXAA5#,AXAH54,AXAL54

*584

 8
11310 - COVER ASSY, TIMING CHAIN
11310-F0010

A25#..AXAA5#,AXAH54,AXAL54

*628

 1
11310-25030

A25#..AXAA5#,AXAH54,AXAL54

*584

 1
11320B - COVER ASSY, TIMING CHAIN, NO.2
11320-F0010

A25#..AXAA5#,AXAH54,AXAL54

*628

 1
15370 - SOLENOID ASSY, CAM TIMING OIL CONTROL
15370-25020

A25#..AXAA5#,AXAH54,AXAL54

*584

 1
15370-F0020

A25#..AXAA5#,AXAH54,AXAL54

*628

 1
15370A - RING, O(FOR CAM TIMING OIL CONTROL SOLENOID)
90301-44006

A25#..AXAA5#,AXAH54,AXAL54

*584

 1
90301-T0079

A25#..AXAA5#,AXAH54,AXAL54

*628

 1
Common parts
90105-06351
90105-A0124
90105-A0300
90105-A0407
90250-08035
90250-A0030
90253-11021
90341-22008
91551-F0830
Linked diagrams
1105
