AXAH54L-CNXGBA (2019)

Toyota Rav4 (Nap)

Production Mar 2019 - Sep 2020
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1903- )AXAH54,AXAL54

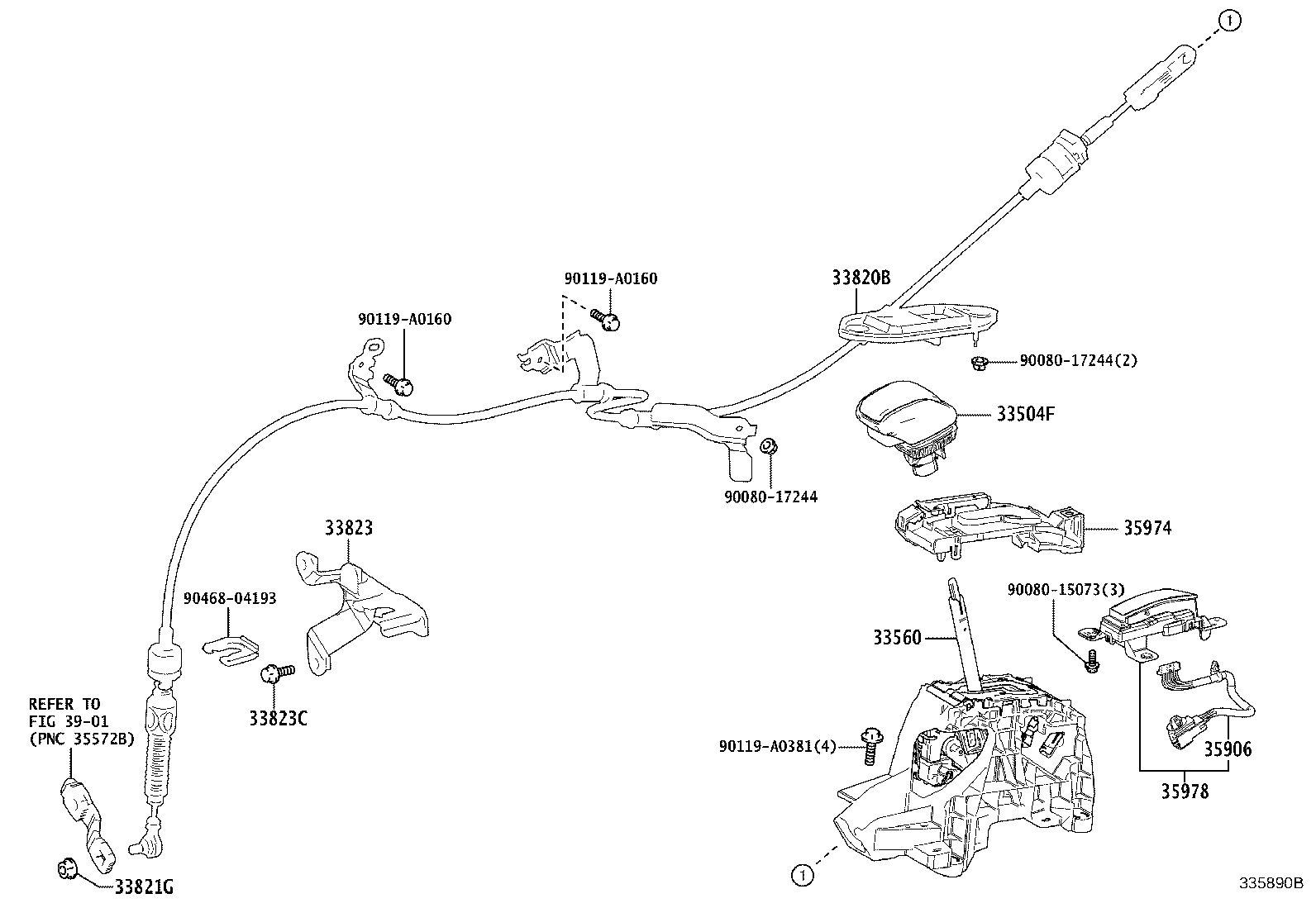

Click highlighted areas on diagram

diagram 33504F 33560 33820B 33821G 33823 33823C 35906 35974 35978 3901 9008015073 9008017244 9008017244 90119A0160 90119A0160 90119A0381 9046804193
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-0R120C0

AXAA5#,AXAH54,AXAL54..G

BLACK,TRIM1#,2#,4#

 1
33504-0R110C0

AXAA5#,AXAH54,AXAL54..X..USA

BLACK,TRIM2#,4#

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-0R060

AXAA5#,AXAH54,AXAL54..X

 1
33560-0R070

AXAA5#,AXAH54,AXAL54..X

KEY PLATE-FOR SMART ENTRY

 1
33560-0R070

AXAA5#,AXAH54,AXAL54..G,M,V

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-0R170

AXAH54,AXAL54

 1
33821G - NUT (FOR TRANSMISSION CONTROL CABLE)
90178-A0024

AXAH54,AXAL54

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-0R100

AXAH54,AXAL54

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
90119-A0127

AXAA5#,AXAH54,AXAL54

 2
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-0R050

AXAH54,AXAL54

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-0R010

AXAA5#,AXAH54,AXAL54

 1
35978 - INDICATOR, SHIFT POSITION
35978-0R020

AXAH54,AXAL54

 1
Common parts
90080-15073
90080-17244
90119-A0160
90119-A0381
90468-04193
Linked diagrams
3901
