AXAA54L-CNZXBK (2018)
Toyota Rav4 (Nap)
Production
Dec 2018
-
Sep 2020
Engine
A25AFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1812- )AXAA5#

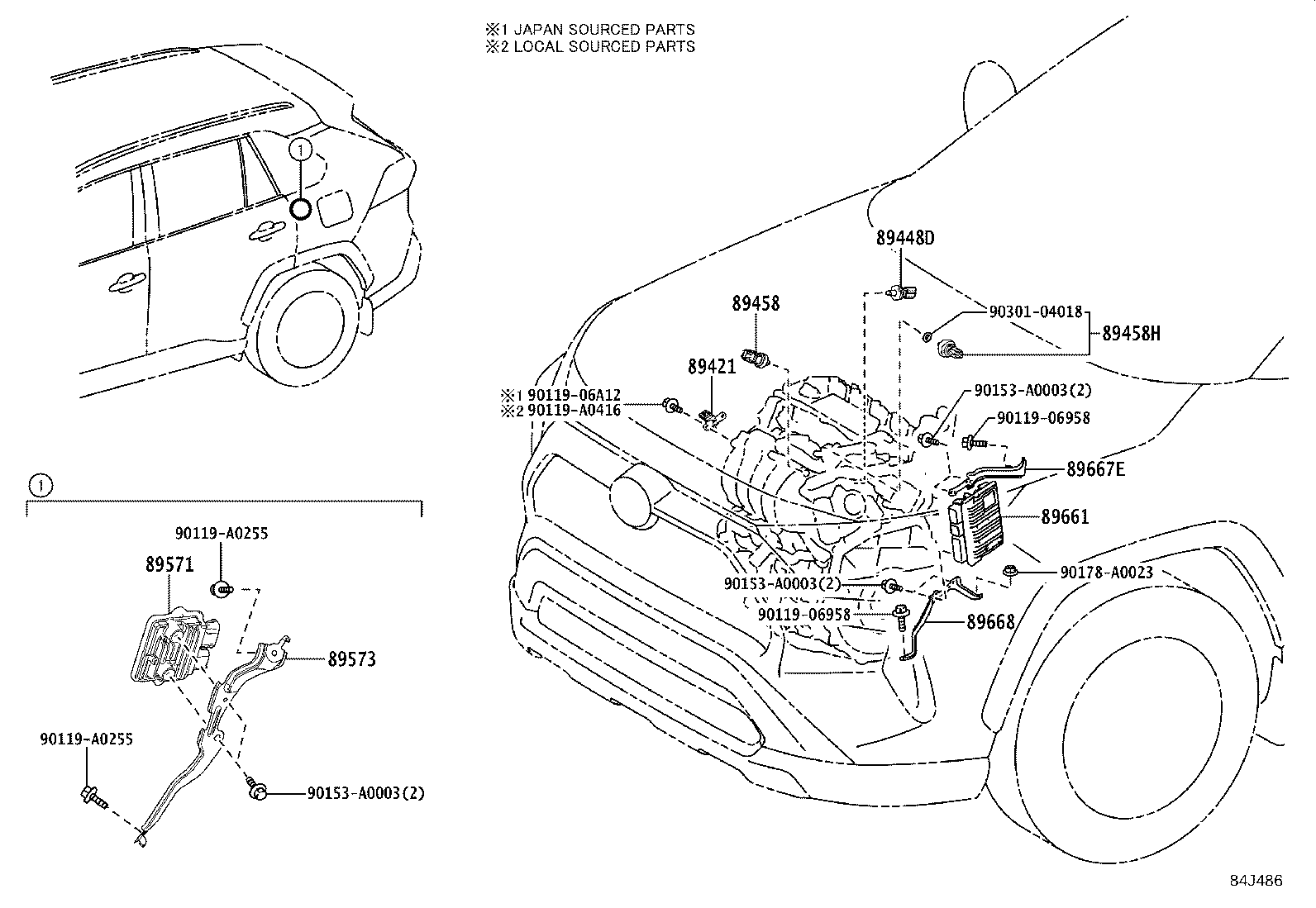

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89421 - SENSOR ASSY, VACUUM (FOR E.F.I.) | ||||
| 89421-33010 |
AXAA5#,AXAH54,AXAL54 (J) |
1 | ||
| 89421-06020 |
AXAA5#,AXAH54,AXAL54 (L) |
1 | ||
| 89448D - SENSOR, OIL PRESSURE & TEMPERATURE | ||||
| 89448-06010 |
AXAA5#,AXAH54,AXAL54 (L) |
1 | ||
| 89448-33010 |
AXAA5#,AXAH54,AXAL54 (J) |
1 | ||
| 89458 - SENSOR, FUEL PRESSURE | ||||
| 89458-06010 |
AXAA5#,AXAH54,AXAL54 (L) |
1 | ||
| 89458-33030 |
AXAA5#,AXAH54,AXAL54 (J) |
1 | ||
| 89458H - SENSOR, FUEL PRESSURE, NO.2 | ||||
| 89458-06021 |
AXAA5#,AXAH54,AXAL54 (L) |
1 | ||
| 89458-33041 |
AXAA5#,AXAH54,AXAL54 (J) |
1 | ||
| 89571 - COMPUTER, FUEL PUMP CONTROL | ||||
| 89571-42010 |
AXAA5# |
1 | ||
| 89571-0R010 |
AXAA5#,AXAH54,AXAL54 (L) |
1 | ||
| 89573 - BRACKET, FUEL PUMP CONTROL COMPUTER | ||||
| 89573-0R010 |
AXAA5#,AXAH54,AXAL54 |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-0RA21 |
AXAA54..(M,X)..CND DENSO |
1 | ||
| 89661-0R410 |
AXAA54..G,V DENSO |
1 | ||
| 89661-0R730 |
AXAA54..M..USA;AXAA54..(M,X)..CND DENSO |
1 | ||
| 89661-0RA30 |
AXAA54..G,V DENSO |
1 | ||
| 89661-0RA20 |
AXAA54..(M,X)..CND DENSO |
1 | ||
| 89661-0RA31 |
AXAA54..G,V DENSO |
1 | ||
| 89667E - BRACKET, ENGINE CONTROL COMPUTER, NO.1 | ||||
| 89667-06240 |
AXAA5# |
1 | ||
| 89667-33190 |
AXAA5# (J) |
1 | ||
| 89667-06240 |
AXAA5# (L) |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-0R030 |
AXAA5# |
1 | ||
| Common parts | ||||
| 90119-06958 | ||||
| 90119-06A12 | ||||
| 90119-A0255 | ||||
| 90119-A0416 | ||||
| 90153-A0003 | ||||
| 90178-A0023 | ||||
| 90301-04018 | ||||
