AXAA54L-CNZXBK (2018)

Toyota Rav4 (Nap)

Production Dec 2018 - Sep 2020
Engine A25AFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(1812- )AXAA5#

Click highlighted areas on diagram

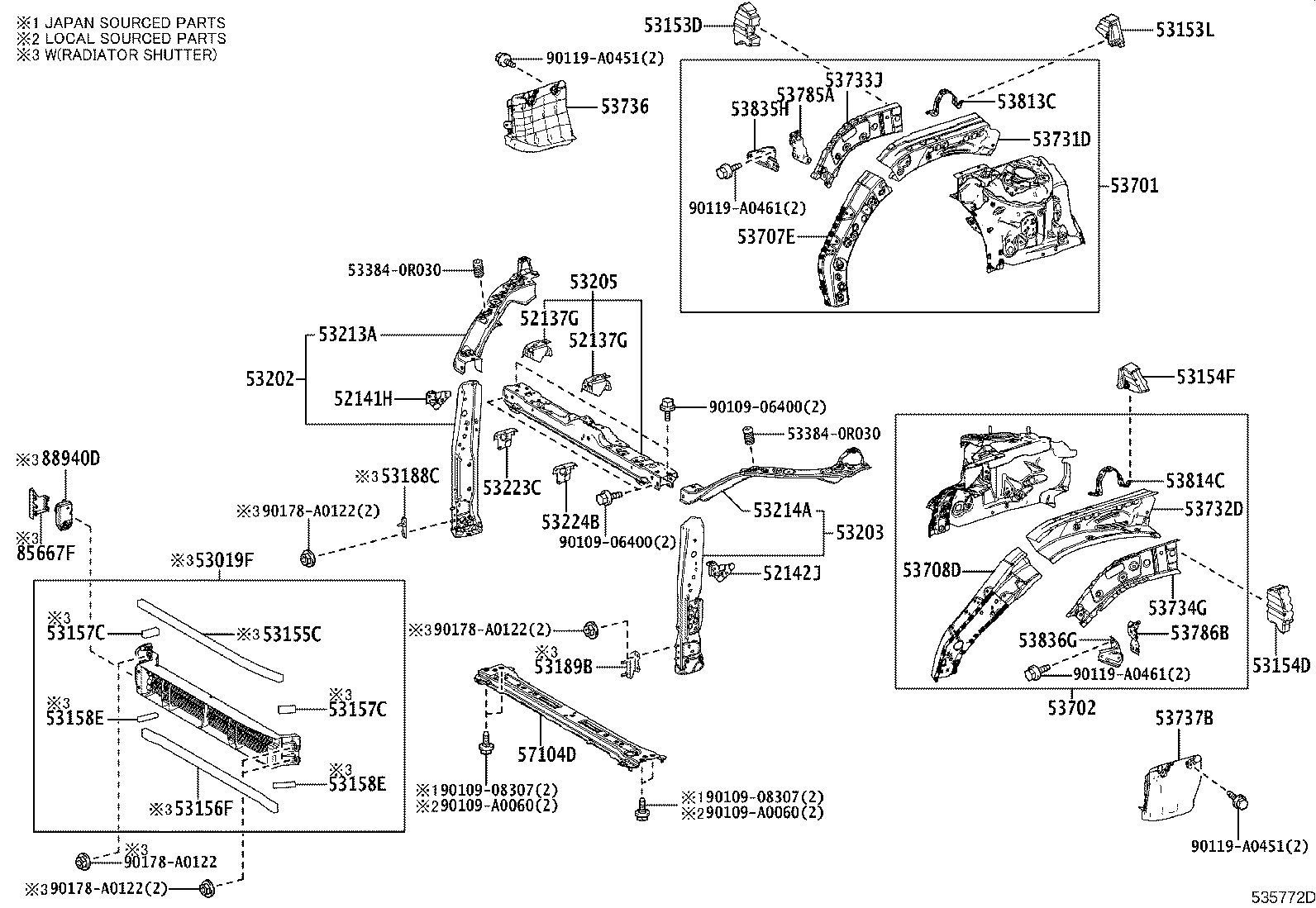

RADIATOR SUPPORT & FENDER APRON

diagram 52137G 52137G 52141H 52142J 53019F 53153D 53153L 53154D 53154F 53155C 53156F 53157C 53157C 53158E 53158E 53188C 53189B 53202 53203 53205 53213A 53214A 53223C 53224B 533840R030 533840R030 53701 53702 53707E 53708D 53731D 53732D 53733J 53734G 53736 53737B 53785A 53786B 53813C 53814C 53835H 53836G 57104D 85667F 88940D 9010906400 9010906400 9010908307 9010908307 90109A0060 90109A0060 90119A0451 90119A0451 90119A0461 90119A0461 90178A0122 90178A0122 90178A0122 90178A0122
Part # Description Qty Price
52137G - BRACKET, FRONT BUMPER ARM MOUNTING, NO.3
52137-0R030

AXAA5#,AXAH54,AXAL54

 2
52137G - BRACKET, FRONT BUMPER ARM MOUNTING, NO.3
52137-0R030

AXAA5#,AXAH54,AXAL54

 2
52141H - ARM, FRONT BUMPER, UPPER RH
52141-0R020

AXAA5#,AXAH54,AXAL54

 1
52142J - ARM, FRONT BUMPER, UPPER LH
52142-0R010

AXAA5#,AXAH54,AXAL54

 1
53019F - SHUTTER SUB-ASSY, RADIATOR
53019-0R010

AXAA5#..G,V

 1
53153D - GUIDE, RADIATOR GRILLE SIDE AIR, RH
53153-0R030

AXAA5#,AXAH54,AXAL54

 1
53153L - GUIDE, FRONT SIDE AIR, RH
53155-0R030

AXAA5#,AXAH54,AXAL54

 1
53154D - GUIDE, RADIATOR GRILLE SIDE AIR, LH
53154-0R030

AXAA5#,AXAH54,AXAL54

 1
53154F - GUIDE, FRONT SIDE AIR, LH
53156-0R030

AXAA5#,AXAH54,AXAL54

 1
53155C - SEAL, RADIATOR GRILLE, NO.1
53155-0R060

AXAA5#..G,V;AXAH54,AXAL54

 1
53156F - SEAL, RADIATOR GRILLE, NO.2
53156-0R070

AXAA5#..G,V

 1
53157C - SEAL, RADIATOR GRILLE, NO.3
53157-0R010

AXAA5#..G,V;AXAH54,AXAL54

 2
53157C - SEAL, RADIATOR GRILLE, NO.3
53157-0R010

AXAA5#..G,V;AXAH54,AXAL54

 2
53158E - SEAL, RADIATOR GRILLE, NO.4
53158-0R010

AXAA5#..G,V;AXAH54,AXAL54

 2
53158E - SEAL, RADIATOR GRILLE, NO.4
53158-0R010

AXAA5#..G,V;AXAH54,AXAL54

 2
53188C - BRACKET, RADIATOR SHUTTER SUPPORT, RH
53188-0R050

AXAA5#..G,V;AXAH54,AXAL54

 1
53189B - BRACKET, RADIATOR SHUTTER SUPPORT, LH
53189-0R010

AXAA5#..G,V;AXAH54,AXAL54

 1
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53202-0R050

AXAA5#,AXAH54,AXAL54

 1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53203-0R050

AXAA5#,AXAH54,AXAL54

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53205-0R070

AXAA5#,AXAH54,AXAL54

 1
53213A - SUPPORT, RADIATOR, UPPER RH
53213-0R900

AXAA5#,AXAH54,AXAL54

 1
53214A - SUPPORT, RADIATOR, UPPER LH
53214-0R900

AXAA5#,AXAH54,AXAL54

 1
53223C - BRACKET, RADIATOR GRILLE MOUNTING, RH
53223-0R050

AXAA5#,AXAH54,AXAL54

 1
53224B - BRACKET, RADIATOR GRILLE MOUNTING, LH
53223-0R050

AXAA5#,AXAH54,AXAL54

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-0R060

AXAA5#,AXAH54,AXAL54

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-0R060

AXAA5#,AXAH54,AXAL54

 1
53707E - APRON SUB-ASSY, FENDER SIDE, RH
53707-0R030

AXAA5#,AXAH54,AXAL54

 1
53708D - APRON SUB-ASSY, FENDER SIDE, LH
53708-0R030

AXAA5#,AXAH54,AXAL54

 1
53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53731-0R050

AXAA5#,AXAH54,AXAL54

 1
53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53732-0R050

AXAA5#,AXAH54,AXAL54

 1
53733J - MEMBER, FRONT APRON TO COWL SIDE, OUTER FRONT RH
53733-0R020

AXAA5#,AXAH54,AXAL54

 1
53734G - MEMBER, FRONT APRON TO COWL SIDE, OUTER FRONT LH
53734-0R030

AXAA5#,AXAH54,AXAL54

 1
53736 - SEAL, FRONT FENDER APRON, RH
53736-0R040

AXAA5#,AXAH54,AXAL54

 1
53737B - SEAL, FRONT FENDER APRON, LH
53737-0R010

AXAA5#,AXAH54,AXAL54

 1
53785A - GUSSET, FRONT FENDER APRON, UPPER RH
53785-0R010

AXAA5#,AXAH54,AXAL54

 1
53786B - GUSSET, FRONT FENDER APRON, UPPER LH
53786-0R010

AXAA5#,AXAH54,AXAL54

 1
53813C - EXTENSION, FRONT FENDER, RH
53813-0R050

AXAA5#,AXAH54,AXAL54

 1
53814C - EXTENSION, FRONT FENDER, LH
53814-0R050

AXAA5#,AXAH54,AXAL54

 1
53835H - BRACE, FRONT FENDER TO EXTENSION, RH
53835-0R050

AXAA5#,AXAH54,AXAL54

 1
53836G - BRACE, FRONT FENDER TO EXTENSION, LH
53836-0R040

AXAA5#,AXAH54,AXAL54

 1
57104D - MEMBER SUB-ASSY, FRONT CROSS
57104-0R050

AXAA5#,AXAH54,AXAL54

 1
85667F - COVER, MOTOR
85667-0R010

AXAA5#..G,V;AXAH54,AXAL54

 1
88940D - ACTUATOR ASSY, SWING GRILLE
88940-12010

AXAA5#..G,V

 1
Common parts
53384-0R030
90109-06400
90109-08307
90109-A0060
90119-A0451
90119-A0461
90178-A0122

ILLUST NO. 3 OF 3(1812- )

Click highlighted areas on diagram

DASH PANEL

diagram 55101 55210 55210A 55210C 55210C 55223A 55241C 55242C
Part # Description Qty Price
55101 - PANEL SUB-ASSY, DASH
55101-0R120

AXAA5#,AXAH54,AXAL54

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-0R120

AXAA5#,AXAH54

 1
55210-0R060

AXAA5#,AXAH54

 1
55210A - CLIP
90467-11122

AXAA5#,AXAH54,AXAL54

 3
90467-11122

AXAA5#,AXAH54,AXAL54

 6
55210C - CLIP
90467-13079

AXAA5#,AXAH54,AXAL54

 6
55210C - CLIP
90467-13079

AXAA5#,AXAH54,AXAL54

 6
55223A - INSULATOR, DASH PANEL, OUTER
55223-0R040

AXAA5#,AXAH54

 1
55223-0R100

AXAA5#,AXAH54,AXAL54

 1
55241C - SILENCER, FRONT PANEL SIDE, NO.1 RH
55241-0R010

AXAA5#,AXAH54,AXAL54

 1
55242C - SILENCER, FRONT PANEL SIDE, NO.1 LH
55242-0R010

AXAA5#,AXAH54,AXAL54

 1

ILLUST NO. 1 OF 3(1812-2111)AXAA5#

Click highlighted areas on diagram

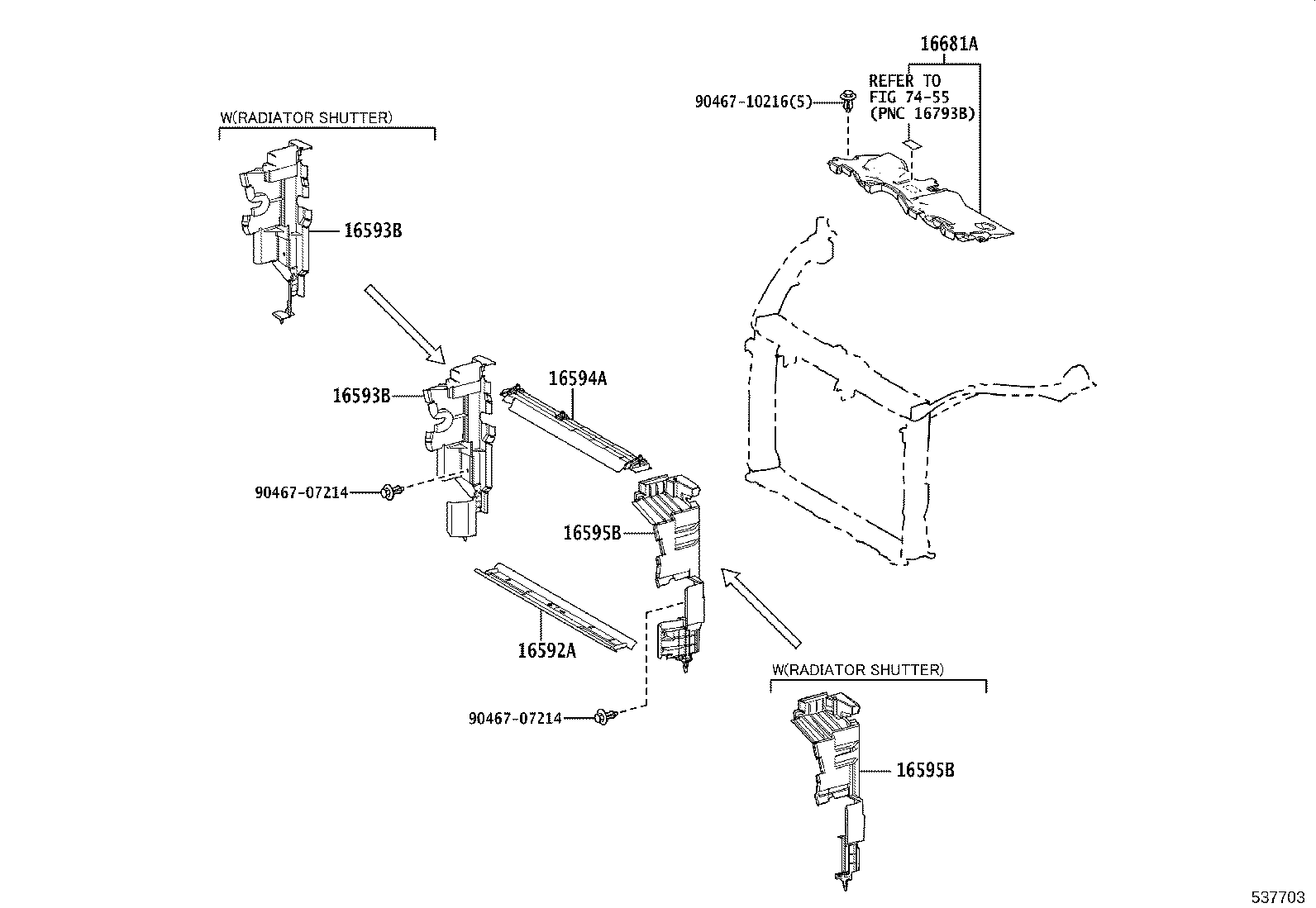

AIRGUIDE & RADIATOR SUPPORT COVER

diagram 16592A 16593B 16593B 16594A 16595B 16595B 16681A 7455 9046707214 9046707214 9046710216
Part # Description Qty Price
16592A - GUIDE, RADIATOR AIR, NO.3
16592-F0080

A25AFKS..AXAA5#

 1
16593B - GUIDE, RADIATOR AIR, NO.1 RH
16593-F0140

A25AFKS..AXAA5#..M,X

 1
16593-F0130

A25AFKS..AXAA5#..G,V;A25AFXS..AXAH54,AXAL54

 1
16593B - GUIDE, RADIATOR AIR, NO.1 RH
16593-F0140

A25AFKS..AXAA5#..M,X

 1
16593-F0130

A25AFKS..AXAA5#..G,V;A25AFXS..AXAH54,AXAL54

 1
16594A - GUIDE, RADIATOR AIR, NO.2
16594-F0080

A25#..AXAA5#,AXAH54,AXAL54

 1
16595B - GUIDE, RADIATOR AIR, NO.1 LH
16595-F0140

A25AFKS..AXAA5#..M,X

 1
16595-F0220

A25AFKS..AXAA5#..G,V

 1
16595B - GUIDE, RADIATOR AIR, NO.1 LH
16595-F0140

A25AFKS..AXAA5#..M,X

 1
16595-F0220

A25AFKS..AXAA5#..G,V

 1
16681A - PLATE, RADIATOR UPPER AIR GUIDE
16681-F0020

A25AFKS..AXAA5#

 1
Common parts
90467-07214
90467-10216
Linked diagrams
7455
