AXAA54L-CNZXBK (2018)

Toyota Rav4 (Nap)

Production Dec 2018 - Sep 2020
Engine A25AFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1812- )A25AFKS

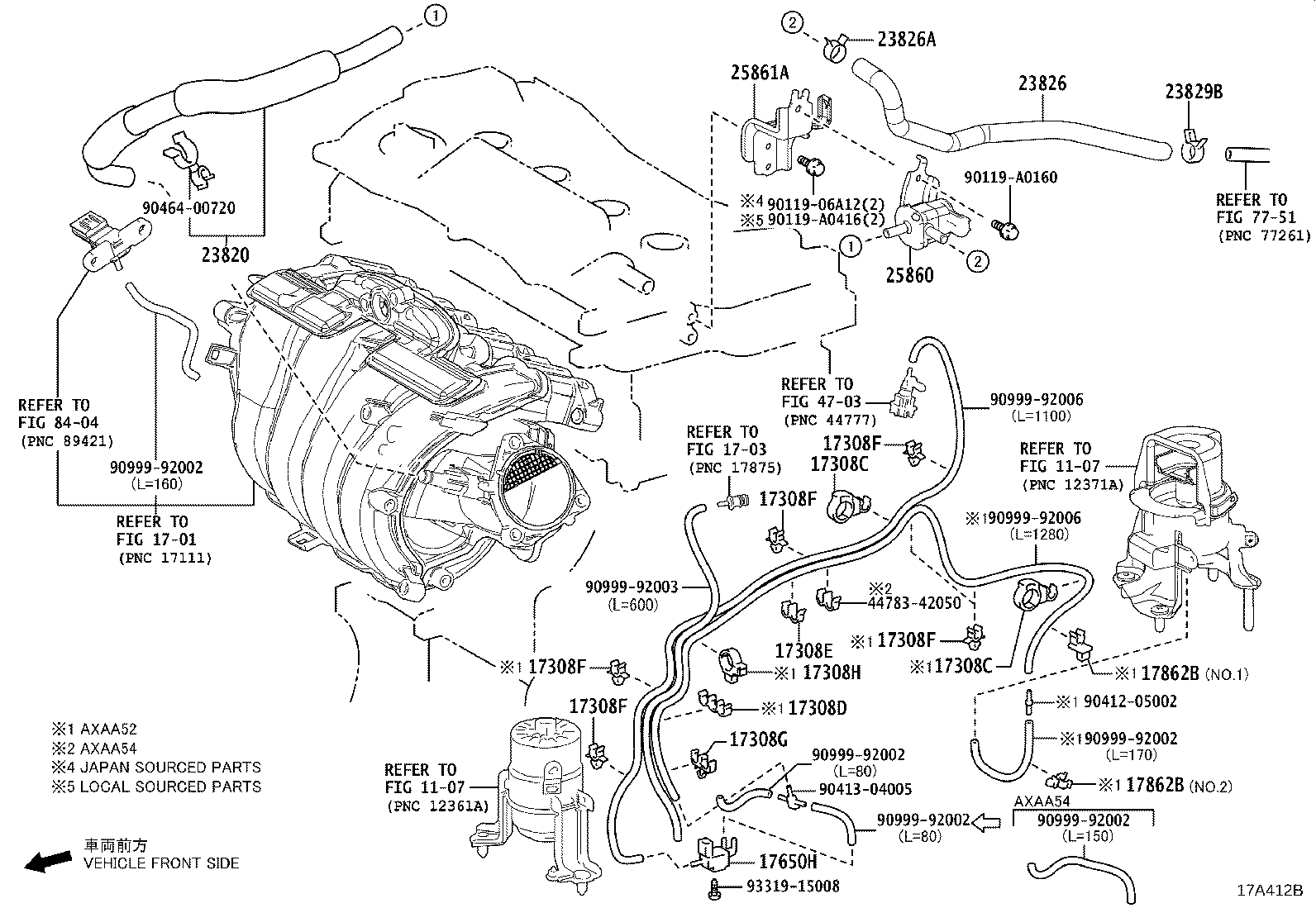

Click highlighted areas on diagram

diagram 1107 1107 1701 1703 17308C 17308C 17308D 17308E 17308F 17308F 17308F 17308F 17308F 17308G 17308H 17650H 17862B 17862B 23820 23826 23826A 23829B 25860 25861A 4478342050 4703 7751 8404 9011906A12 90119A0160 90119A0416 9041205002 9041304005 9046400720 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 9099992006 9099992006 9331915008
Part # Description Qty Price
17308C - CLAMP(FOR VACUUM HOSE)
44783-33060

A25AFKS..AXAA54

 1
17308C - CLAMP(FOR VACUUM HOSE)
44783-33060

A25AFKS..AXAA54

 1
17308E - CLAMP, NO.3(FOR VACUUM HOSE)
44783-42080

A25AFKS..AXAA5#

 1
17308F - CLAMP, NO.4(FOR VACUUM HOSE)
44783-42040

A25AFKS..AXAA54

 3
17308F - CLAMP, NO.4(FOR VACUUM HOSE)
44783-42040

A25AFKS..AXAA54

 3
17308F - CLAMP, NO.4(FOR VACUUM HOSE)
44783-42040

A25AFKS..AXAA54

 3
17308F - CLAMP, NO.4(FOR VACUUM HOSE)
44783-42040

A25AFKS..AXAA54

 3
17308F - CLAMP, NO.4(FOR VACUUM HOSE)
44783-42040

A25AFKS..AXAA54

 3
17308G - CLAMP, NO.5(FOR VACUUM HOSE)
90469-07012

A25AFKS..AXAA5#

 1
17650H - VALVE, VACUUM SWITCHING
90910-12059

A25AFKS..AXAA5#

 1
23820 - HOSE ASSY, FUEL VAPOR FEED
23820-F0110

A25AFKS..AXAA5#

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-F0120

A25AFKS..AXAA5#

 1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96133-41501

A25AFKS..AXAA5#

 1
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
96133-41501

A25#..AXAA5#,AXAH54,AXAL54

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-F0010

A25AFKS..AXAA5#

 1
25861A - BRACKET, VACUUM SWITCHING VALVE, NO.2
25862-25011

A25AFKS..AXAA5#

*628,*584

 1
Common parts
44783-42050
90119-06A12
90119-A0160
90119-A0416
90412-05002
90413-04005
90464-00720
90999-92002
90999-92003
90999-92006
93319-15008
