AXAA54L-CNZXBA (2018)

Toyota Rav4 (Nap)

Production Dec 2018 - Sep 2020
Engine A25AFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1812- )AXAA5#

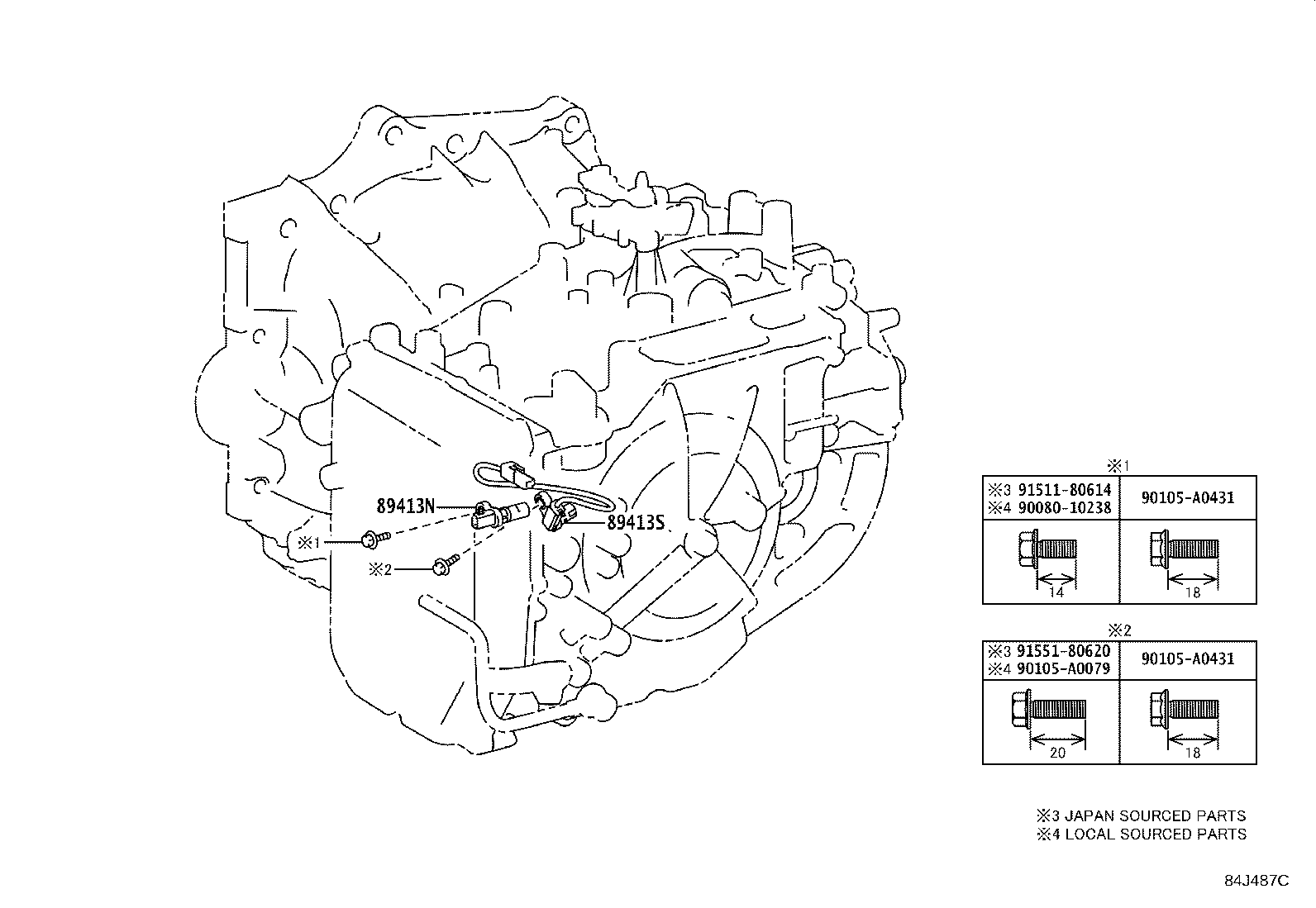

Click highlighted areas on diagram

UB80E,UB80F

diagram 89413N 89413S 9008010238 90105A0079 90105A0431 90105A0431 9151180614 9155180620
Part # Description Qty Price
89413N - SENSOR, TRANSMISSION REVOLUTION, (NT)
89413-06021

AXAA5#

(L)

 1
89413-33041

AXAA5#

(J)

 1
89413S - SENSOR, TRANSMISSION REVOLUTION (NC)
89413-33051

AXAA5#

(J)

 1
89413-06031

AXAA5#

(L)

 1
Common parts
90080-10238
90105-A0079
90105-A0431
91511-80614
91551-80620
