AXAA54L-CNZXBA (2018)

Toyota Rav4 (Nap)

Production Dec 2018 - Sep 2020
Engine A25AFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1812- )AXAA5#

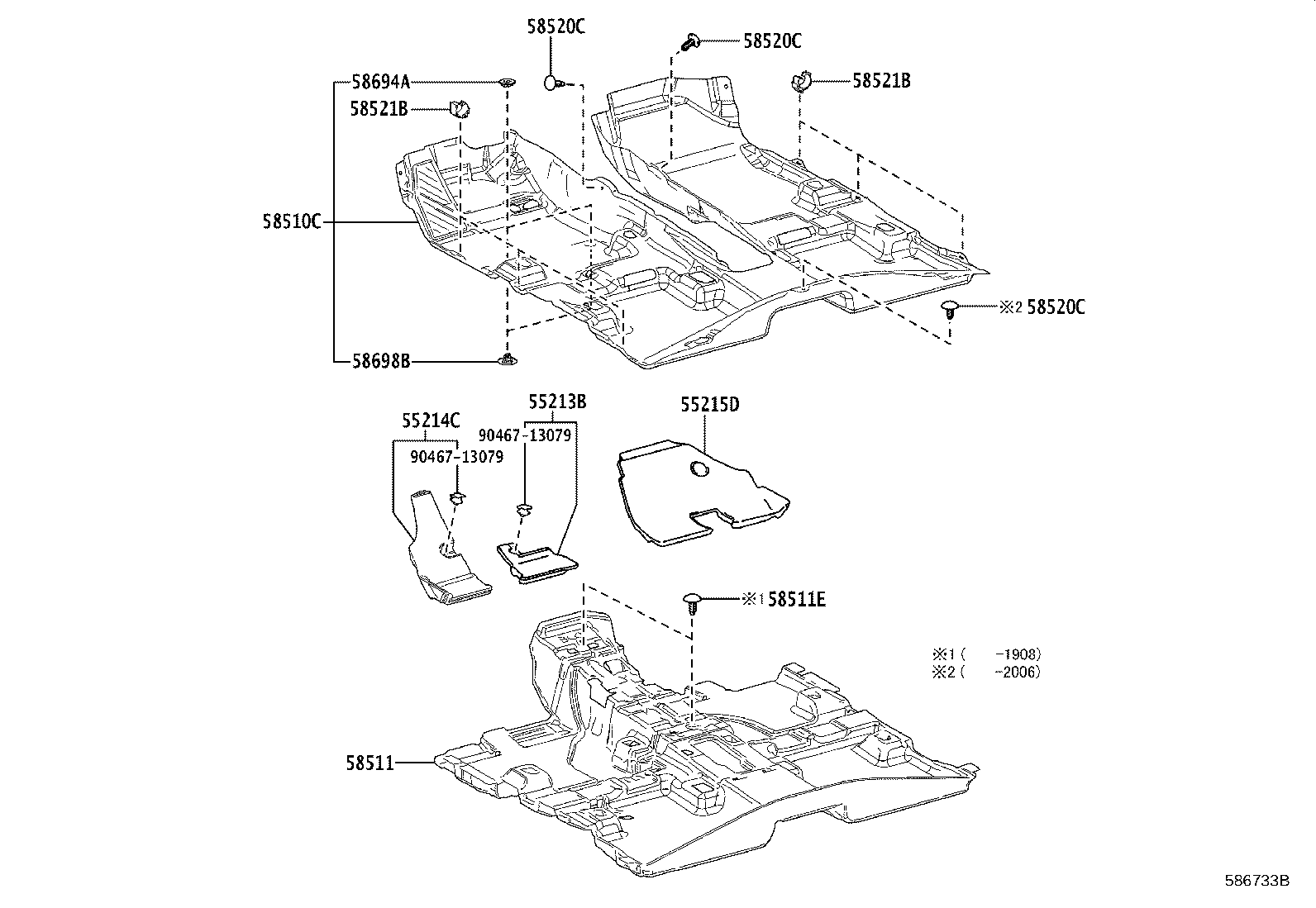

Click highlighted areas on diagram

diagram 55213B 55214C 55215D 58510C 58511 58511E 58520C 58520C 58520C 58521B 58521B 58694A 58698B 9046713079 9046713079
Part # Description Qty Price
55213B - PAD, DASH PANEL INSULATOR, NO.1
55213-0R010

AXAA5#,AXAH54,AXAL54

 1
55214C - PAD, DASH PANEL INSULATOR, NO.2
55214-0R050

AXAA5#,AXAH54,AXAL54

 1
55215D - PAD, DASH PANEL INSULATOR, NO.3
55215-0R010

AXAA5#,AXAH54,AXAL54

 1
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58510-0R130C1

AXAA5#..(G,M)..USA;AXAA5#..(G,M,X)..CND

BLACK,TRIM1#,2#,4#

 1
58510-0R130C1

AXAA54..V;AXAA5#..X..USA

BLACK,TRIM2#,4#

 1
58511 - MAT, FLOOR, FRONT
58511-0R010

AXAA5#

 1
58511E - CLIP(FOR FRONT FLOOR MAT)
90467-07042C4

AXAA5#,AXAH54

BLACK

 2
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-05164C7

AXAA54..V;AXAA5#..X..USA

BLACK,TRIM2#,4#

 3
90467-05164C7

AXAA5#..(G,M)..USA;AXAA5#..(G,M,X)..CND

BLACK,TRIM1#,2#,4#

 3
90467-05164C7

AXAA54..V;AXAA5#..X..USA

BLACK,TRIM2#,4#

 2
90467-05164C7

AXAA5#..(G,M)..USA;AXAA5#..(G,M,X)..CND

BLACK,TRIM1#,2#,4#

 2
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-05164C7

AXAA54..V;AXAA5#..X..USA

BLACK,TRIM2#,4#

 3
90467-05164C7

AXAA5#..(G,M)..USA;AXAA5#..(G,M,X)..CND

BLACK,TRIM1#,2#,4#

 3
90467-05164C7

AXAA54..V;AXAA5#..X..USA

BLACK,TRIM2#,4#

 2
90467-05164C7

AXAA5#..(G,M)..USA;AXAA5#..(G,M,X)..CND

BLACK,TRIM1#,2#,4#

 2
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-05164C7

AXAA54..V;AXAA5#..X..USA

BLACK,TRIM2#,4#

 3
90467-05164C7

AXAA5#..(G,M)..USA;AXAA5#..(G,M,X)..CND

BLACK,TRIM1#,2#,4#

 3
90467-05164C7

AXAA54..V;AXAA5#..X..USA

BLACK,TRIM2#,4#

 2
90467-05164C7

AXAA5#..(G,M)..USA;AXAA5#..(G,M,X)..CND

BLACK,TRIM1#,2#,4#

 2
58521B - HOOK, FLOOR CARPET
58521-06140

AXAA5#,AXAH54,AXAL54

 6
58521-33060

AXAA5#,AXAH54

 6
58521B - HOOK, FLOOR CARPET
58521-06140

AXAA5#,AXAH54,AXAL54

 6
58521-33060

AXAA5#,AXAH54

 6
58694A - PLATE, MAT SET, UPPER
58694-33010

AXAA5#,AXAH54,AXAL54

 2
58698B - PLATE, MAT SET, LOWER
58698-33010

AXAA5#,AXAH54,AXAL54

 2
Common parts
90467-13079
