AXAA54L-CNZXBA (2018)

Toyota Rav4 (Nap)

Production Dec 2018 - Sep 2020
Engine A25AFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1812- )AXAA54

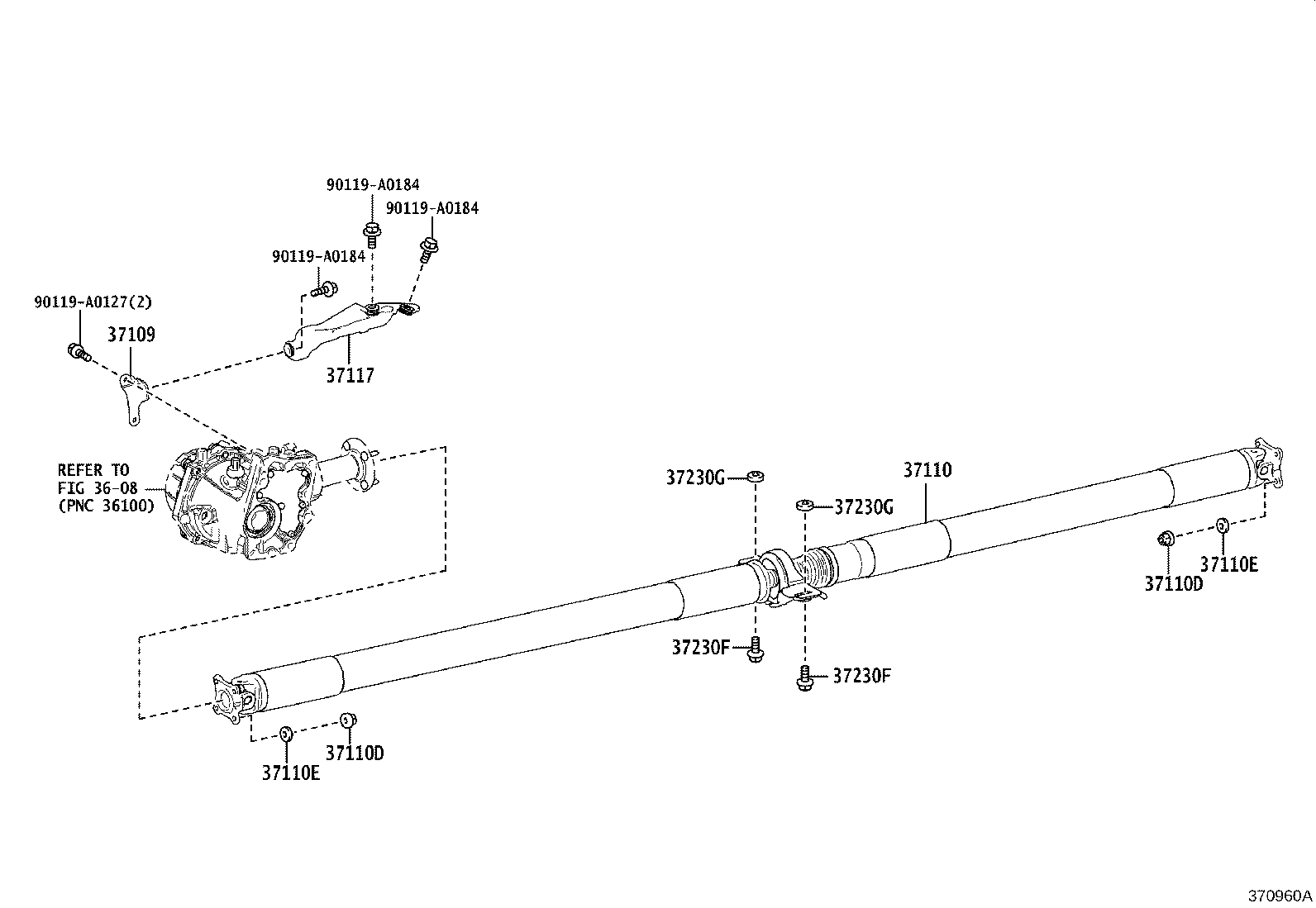

Click highlighted areas on diagram

diagram 3608 37109 37110 37110D 37110D 37110E 37110E 37117 37230F 37230F 37230G 37230G 90119A0127 90119A0184 90119A0184 90119A0184
Part # Description Qty Price
37109 - BRACKET SUB-ASSY, PROPELLER SHAFT HEAT INSULATOR, NO.1
37109-0R010

AXAA54

 1
37110 - SHAFT ASSY, PROPELLER
37100-42070

AXAA54..M,X

 1
37100-42100

AXAA54..G,V

 1
37110D - NUT (FOR PROPELLER SHAFT)
90179-08197

AXAA54

 8
37110D - NUT (FOR PROPELLER SHAFT)
90179-08197

AXAA54

 8
37110E - WASHER (FOR PROPELLER SHAFT)
90201-08097

AXAA54

 8
37110E - WASHER (FOR PROPELLER SHAFT)
90201-08097

AXAA54

 8
37117 - INSULATOR, PROPELLER SHAFT HEAT
37117-0R010

AXAA54

 1
37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING)
90119-A0246

AXAA54

*10-1.25PX35-35

 2
37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING)
90119-A0246

AXAA54

*10-1.25PX35-35

 2
37230G - WASHER, NO.2 (FOR CENTER SUPPORT BEARING)
90201-10081

AXAA54

T=4.5

 1
90201-10083

AXAA54

T=6.5

 1
90201-10123

AXAA54

T=2.0

 1
37230G - WASHER, NO.2 (FOR CENTER SUPPORT BEARING)
90201-10081

AXAA54

T=4.5

 1
90201-10083

AXAA54

T=6.5

 1
90201-10123

AXAA54

T=2.0

 1
Common parts
90119-A0127
90119-A0184
Linked diagrams
3608
