Toyota Rav4 (nap) AXAA54 VALVE BODY & OIL STRAINER (ATM)

Manufacturers Home
Toyota
US
RAV4 (NAP)
AXAA54L-CNZVBK (2018)
3512 - VALVE BODY & OIL STRAINER (ATM)

AXAA54L-CNZVBK (2018)

Toyota Rav4 (Nap)

Production Dec 2018 - Sep 2020

Engine A25AFKS

Transmission 8FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(1812- )AXAA5#

Click highlighted areas on diagram

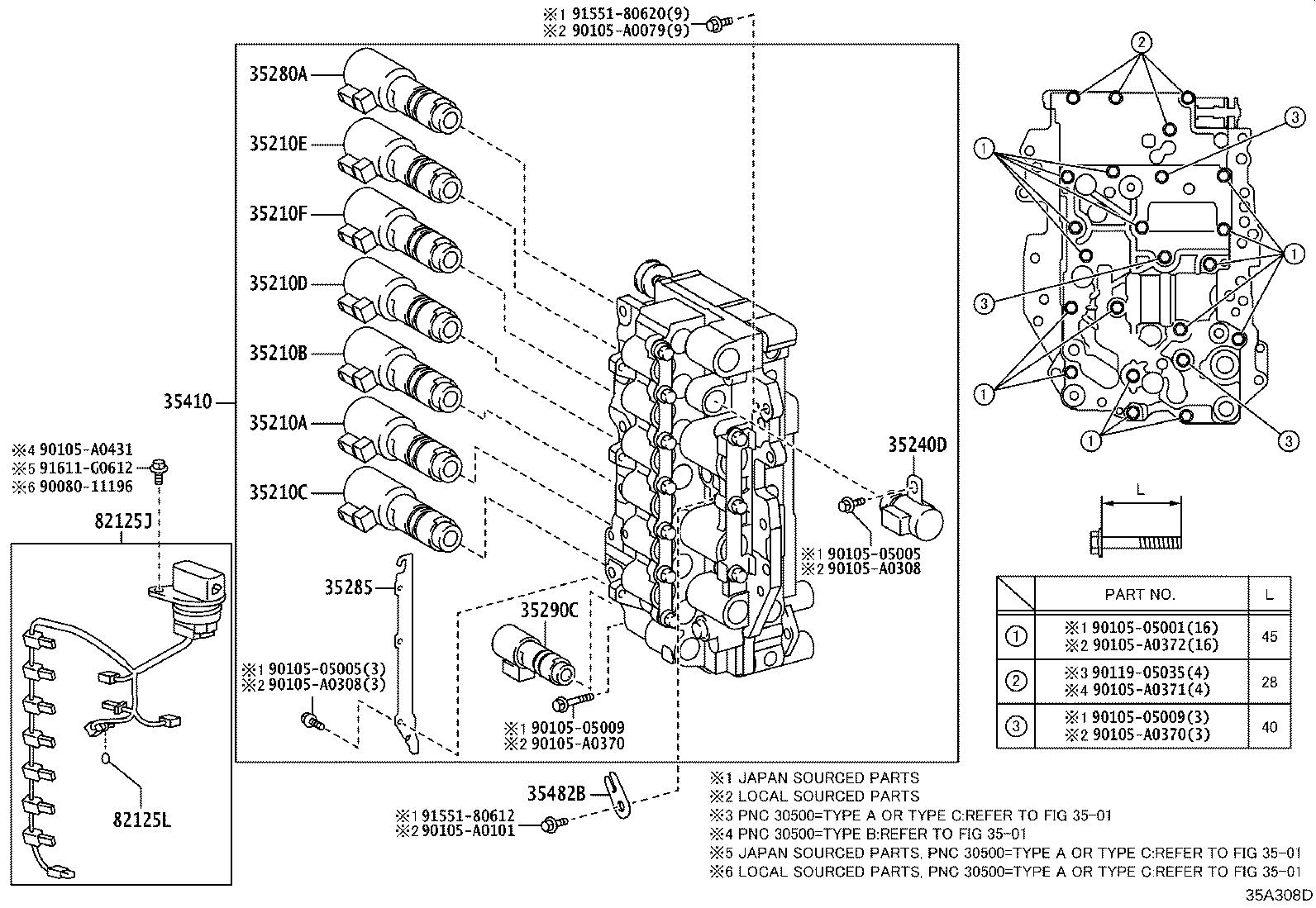

UB80E,UB80F W/O(STOP&START SYSTEM)

Part #	Description	Period	Qty
35210A - VALVE, SOLENOID(SL1)
35210-48020	AXAA54;AXAA52..G,X;AXAA52..M..CND TYPE A:REFER 35-01	12/2018 - 09/2020	1
35210-06020	AXAA5# TYPE B:REFER 35-01	12/2018 - 09/2020	1
35210B - VALVE, SOLENOID(SL3)
35210-06020	AXAA5# TYPE B:REFER 35-01	12/2018 - 09/2020	1
35210-48020	AXAA54;AXAA52..G,X;AXAA52..M..CND TYPE A:REFER 35-01	12/2018 - 09/2020	1
35210C - VALVE, SOLENOID(SL2)
35210-06020	AXAA5# TYPE B:REFER 35-01	12/2018 - 09/2020	1
35210-48020	AXAA54;AXAA52..G,X;AXAA52..M..CND TYPE A:REFER 35-01	12/2018 - 09/2020	1
35210D - VALVE, SOLENOID(SL4)
35210-48020	AXAA54;AXAA52..G,X;AXAA52..M..CND TYPE A:REFER 35-01	12/2018 - 09/2020	1
35210-06020	AXAA5# TYPE B:REFER 35-01	12/2018 - 09/2020	1
35210E - VALVE, SOLENOID(SL5)
35210-06020	AXAA5# TYPE B:REFER 35-01	12/2018 - 09/2020	1
35210-48020	AXAA54;AXAA52..G,X;AXAA52..M..CND TYPE A:REFER 35-01	12/2018 - 09/2020	1
35210F - VALVE, SOLENOID(SL6)
35210-06020	AXAA5# TYPE B:REFER 35-01	12/2018 - 09/2020	1
35210-48020	AXAA54;AXAA52..G,X;AXAA52..M..CND TYPE A:REFER 35-01	12/2018 - 09/2020	1
35240D - VALVE, SOLENOID(SL)
35240-48020	AXAA5# TYPE B:REFER 35-01	12/2018 - 09/2020	1
35240-48020	AXAA54;AXAA52..G,X;AXAA52..M..CND TYPE A:REFER 35-01	12/2018 - 09/2020	1
35280A - VALVE, SOLENOID(SLU)
35280-48030	AXAA54;AXAA52..G,X;AXAA52..M..CND TYPE A:REFER 35-01	12/2018 - 09/2020	1
35280-06020	AXAA5# TYPE B:REFER 35-01	12/2018 - 09/2020	1
35285 - PLATE, SOLENOID LOCK
35285-48030	AXAA5# TYPE B:REFER 35-01	12/2018 - 09/2020	1
35285-48030	AXAA54;AXAA52..G,X;AXAA52..M..CND TYPE A:REFER 35-01	12/2018 - 09/2020	1
35290C - VALVE, SOLENOID(SLT)
35290-48030	AXAA54;AXAA52..G,X;AXAA52..M..CND TYPE A:REFER 35-01	12/2018 - 09/2020	1
35290-06010	AXAA5# TYPE B:REFER 35-01	12/2018 - 09/2020	1
35410 - BODY ASSY, TRANSMISSION VALVE
35410-0R020	AXAA52..G,X;AXAA54..G,V;AXAA52..M..CND;AXAA54..(M,X)..CND TYPE B:REFER 35-01	12/2018 - 09/2020	1
35410-48090	AXAA52..G,X;AXAA54..G,V;AXAA52..M..CND;AXAA54..(M,X)..CND TYPE A:REFER 35-01	12/2018 - 09/2020	1
35482B - CLAMP, TEMPERATURE SENSOR
35482-73010	AXAA5# TYPE B:REFER 35-01	12/2018 - 09/2020	1
35482-73010	AXAA54;AXAA52..G,X;AXAA52..M..CND TYPE A:REFER 35-01	12/2018 - 09/2020	1
82125J - WIRE, TRANSMISSION
82125-06281	AXAA52..G,X;AXAA54..G,V;AXAA52..M..CND;AXAA54..(M,X)..CND (L)	12/2018 - 09/2020	1
82125-33171	AXAA52..G,X;AXAA54..G,V;AXAA52..M..CND;AXAA54..(M,X)..CND (J)	12/2018 - 09/2020	1
82125L - RING, O(FOR TRANSMISSION WIRE)
90301-06025	AXAA5#	12/2018 - 09/2020	1
Common parts
90080-11196
90105-05001
90105-05005
90105-05009
90105-A0079
90105-A0101
90105-A0308
90105-A0370
90105-A0371
90105-A0372
90105-A0431
90119-05035
91551-80612
91551-80620
91611-G0612

(1812- )AXAA5#

Click highlighted areas on diagram

UB80F W(STOP&START SYSTEM)

Part #	Description	Period	Qty

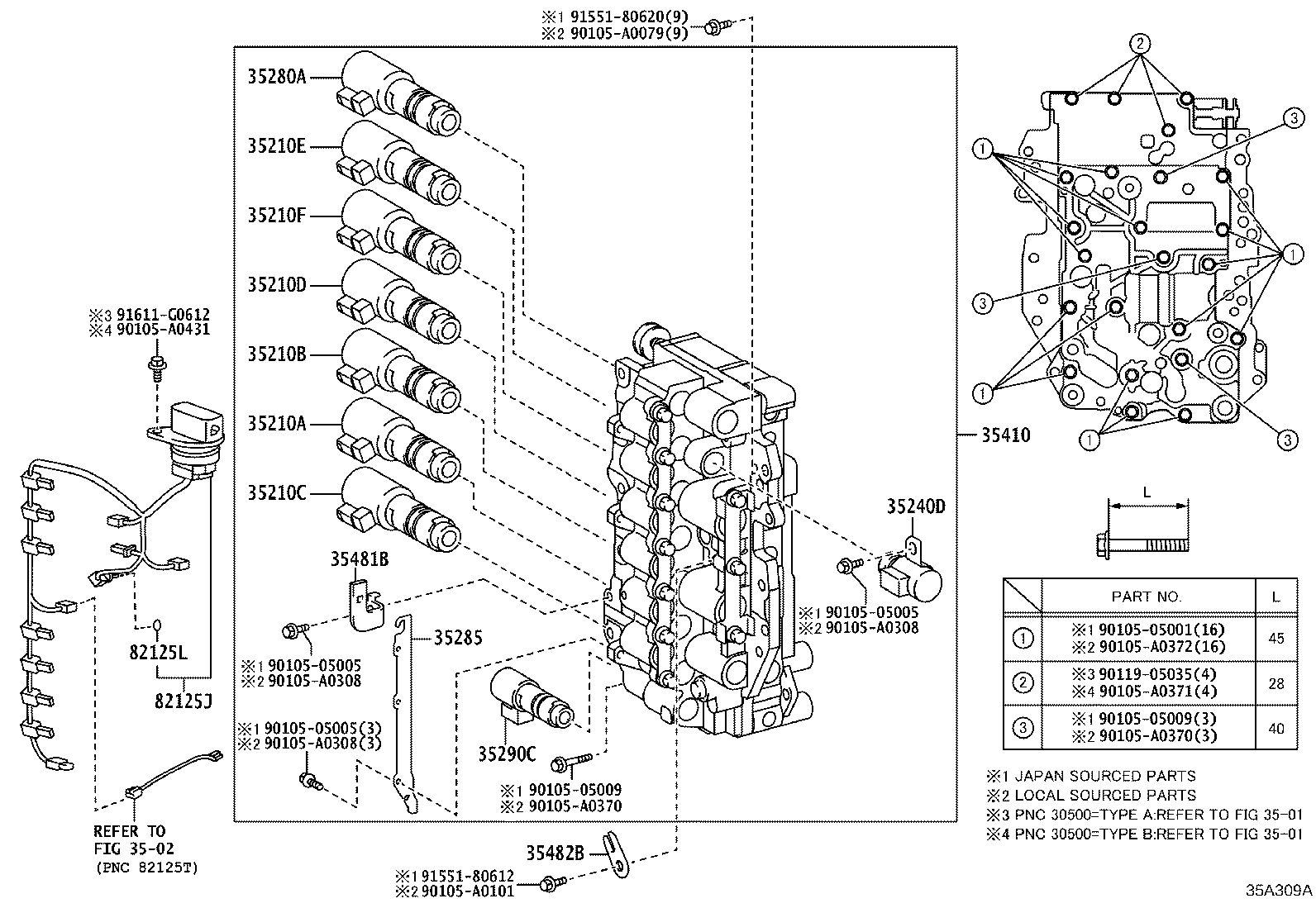

35210A - VALVE, SOLENOID(SL1)
35210-48020	AXAA54;AXAA52..G,X;AXAA52..M..CND TYPE A:REFER 35-01	12/2018 - 09/2020	1
35210-06020	AXAA5# TYPE B:REFER 35-01	12/2018 - 09/2020	1
35210B - VALVE, SOLENOID(SL3)
35210-06020	AXAA5# TYPE B:REFER 35-01	12/2018 - 09/2020	1
35210-48020	AXAA54;AXAA52..G,X;AXAA52..M..CND TYPE A:REFER 35-01	12/2018 - 09/2020	1
35210C - VALVE, SOLENOID(SL2)
35210-06020	AXAA5# TYPE B:REFER 35-01	12/2018 - 09/2020	1
35210-48020	AXAA54;AXAA52..G,X;AXAA52..M..CND TYPE A:REFER 35-01	12/2018 - 09/2020	1
35210D - VALVE, SOLENOID(SL4)
35210-48020	AXAA54;AXAA52..G,X;AXAA52..M..CND TYPE A:REFER 35-01	12/2018 - 09/2020	1
35210-06020	AXAA5# TYPE B:REFER 35-01	12/2018 - 09/2020	1
35210E - VALVE, SOLENOID(SL5)
35210-06020	AXAA5# TYPE B:REFER 35-01	12/2018 - 09/2020	1
35210-48020	AXAA54;AXAA52..G,X;AXAA52..M..CND TYPE A:REFER 35-01	12/2018 - 09/2020	1
35210F - VALVE, SOLENOID(SL6)
35210-06020	AXAA5# TYPE B:REFER 35-01	12/2018 - 09/2020	1
35210-48020	AXAA54;AXAA52..G,X;AXAA52..M..CND TYPE A:REFER 35-01	12/2018 - 09/2020	1
35240D - VALVE, SOLENOID(SL)
35240-48020	AXAA5# TYPE B:REFER 35-01	12/2018 - 09/2020	1
35240-48020	AXAA54;AXAA52..G,X;AXAA52..M..CND TYPE A:REFER 35-01	12/2018 - 09/2020	1
35280A - VALVE, SOLENOID(SLU)
35280-48030	AXAA54;AXAA52..G,X;AXAA52..M..CND TYPE A:REFER 35-01	12/2018 - 09/2020	1
35280-06020	AXAA5# TYPE B:REFER 35-01	12/2018 - 09/2020	1
35285 - PLATE, SOLENOID LOCK
35285-48030	AXAA5# TYPE B:REFER 35-01	12/2018 - 09/2020	1
35285-48030	AXAA54;AXAA52..G,X;AXAA52..M..CND TYPE A:REFER 35-01	12/2018 - 09/2020	1
35290C - VALVE, SOLENOID(SLT)
35290-48030	AXAA54;AXAA52..G,X;AXAA52..M..CND TYPE A:REFER 35-01	12/2018 - 09/2020	1
35290-06010	AXAA5# TYPE B:REFER 35-01	12/2018 - 09/2020	1
35410 - BODY ASSY, TRANSMISSION VALVE
35410-0R020	AXAA52..G,X;AXAA54..G,V;AXAA52..M..CND;AXAA54..(M,X)..CND TYPE B:REFER 35-01	12/2018 - 09/2020	1
35410-48090	AXAA52..G,X;AXAA54..G,V;AXAA52..M..CND;AXAA54..(M,X)..CND TYPE A:REFER 35-01	12/2018 - 09/2020	1
35482B - CLAMP, TEMPERATURE SENSOR
35482-73010	AXAA5# TYPE B:REFER 35-01	12/2018 - 09/2020	1
35482-73010	AXAA54;AXAA52..G,X;AXAA52..M..CND TYPE A:REFER 35-01	12/2018 - 09/2020	1
82125J - WIRE, TRANSMISSION
82125-06281	AXAA52..G,X;AXAA54..G,V;AXAA52..M..CND;AXAA54..(M,X)..CND (L)	12/2018 - 09/2020	1
82125-33171	AXAA52..G,X;AXAA54..G,V;AXAA52..M..CND;AXAA54..(M,X)..CND (J)	12/2018 - 09/2020	1
82125L - RING, O(FOR TRANSMISSION WIRE)
90301-06025	AXAA5#	12/2018 - 09/2020	1
Common parts
90105-05001
90105-05005
90105-05009
90105-A0079
90105-A0101
90105-A0308
90105-A0370
90105-A0371
90105-A0372
90105-A0431
90119-05035
91551-80612
91551-80620
91611-G0612
