Toyota Rav4 (nap) AXAA54 MANIFOLD

AXAA54L-CNZVBA (2020)

Toyota Rav4 (Nap)

Production Sep 2020 - Sep 9999

Engine A25AFKS

Transmission 8FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

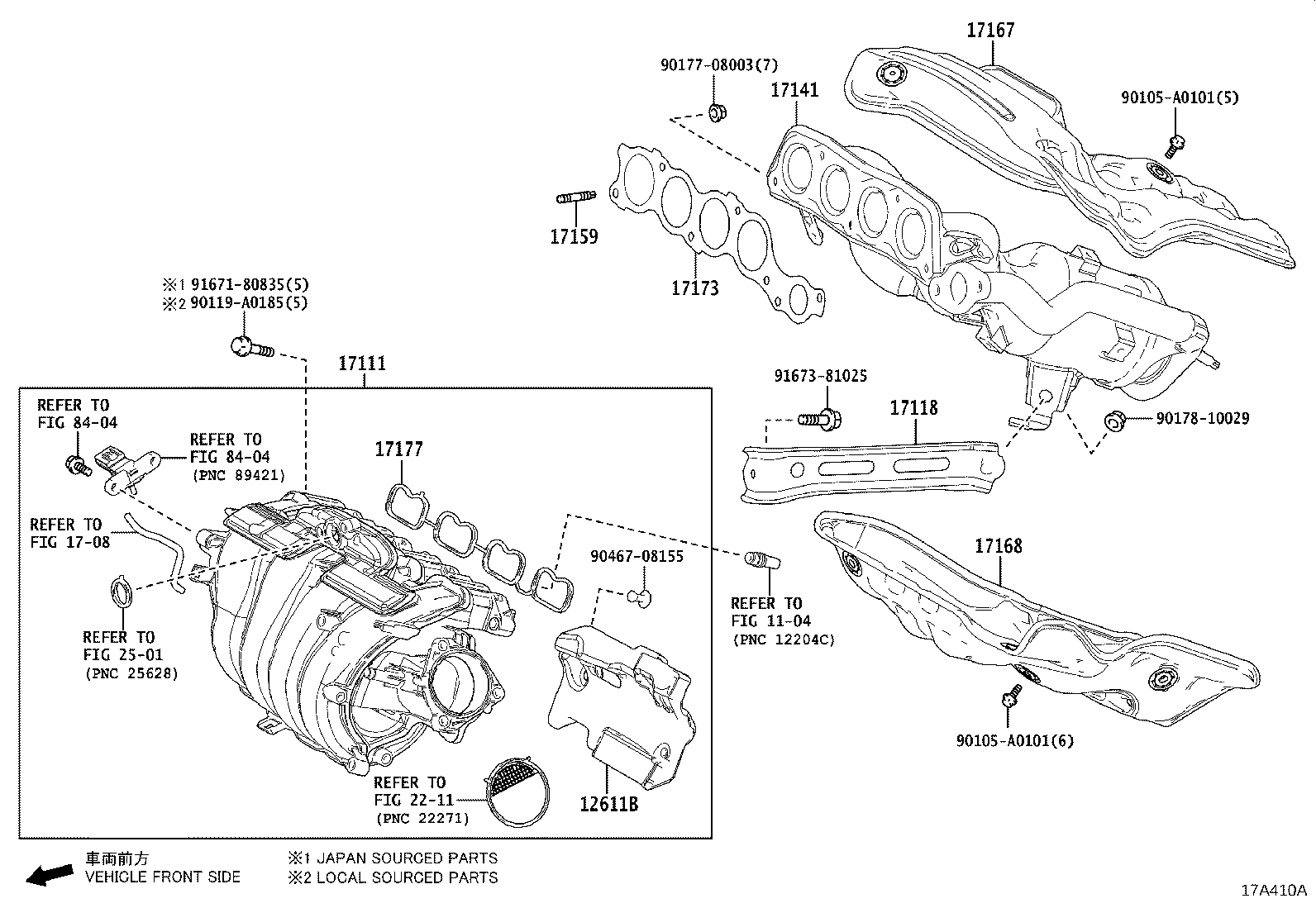

Click highlighted areas on diagram

Part #	Description	Period	Qty
12611B - COVER, ENGINE, NO.1
12613-F0010	A25AFKS..AXAA5# *628	09/2020 - 12/2999	1
12613-25010	A25AFKS..AXAA5# *584	09/2020 - 12/2999	1
17111 - MANIFOLD, INTAKE
17120-25010	A25AFKS..AXAA5# *584	09/2020 - 12/2999	1
17120-F0060	A25AFKS..AXAA5# *628	09/2020 - 12/2999	1
17118 - STAY, MANIFOLD
17118-25030	A25#..AXAA5#,AXAH54,AXAL54	09/2020 - 12/2999	1
17141 - MANIFOLD, EXHAUST
17141-F0010	A25#..AXAA5#,AXAH54,AXAL54	09/2020 - 03/2021	1
17141-F0011	A25#..AXAA54,AXAH54,AXAL54	03/2021 - 12/2999	1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08052	A25AFKS..AXAA5# *584	09/2020 - 12/2999	7
90126-A0019	A25#..AXAA5#,AXAH54,AXAL54 *628	09/2020 - 12/2999	7
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-F0010	A25#..AXAA5#,AXAH54,AXAL54	09/2020 - 03/2021	1
17167-25040	A25#..AXAA5#,AXAH54,AXAL54	03/2021 - 12/2999	1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-F0010	A25#..AXAA5#,AXAH54,AXAL54	09/2020 - 03/2021	1
17168-25040	A25#..AXAA5#,AXAH54,AXAL54	03/2021 - 12/2999	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-F0010	A25#..AXAA5#,AXAH54,AXAL54 (L)	03/2021 - 12/2999	1
17173-F0010	A25#..AXAA5#,AXAH54,AXAL54	09/2020 - 03/2021	1
17173-25020	A25#..AXAA5#,AXAH54,AXAL54 (J)	03/2021 - 12/2999	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17171-25010	A25#..AXAA5#,AXAH54,AXAL54 *628	09/2020 - 12/2999	1
17171-25010	A25AFKS..AXAA5# *584	09/2020 - 12/2999	1
Common parts
90105-A0101
90119-A0185
90177-08003
90178-10029
90467-08155
91671-80835
91673-81025
Linked diagrams
1104
1708
2211
2501
8404

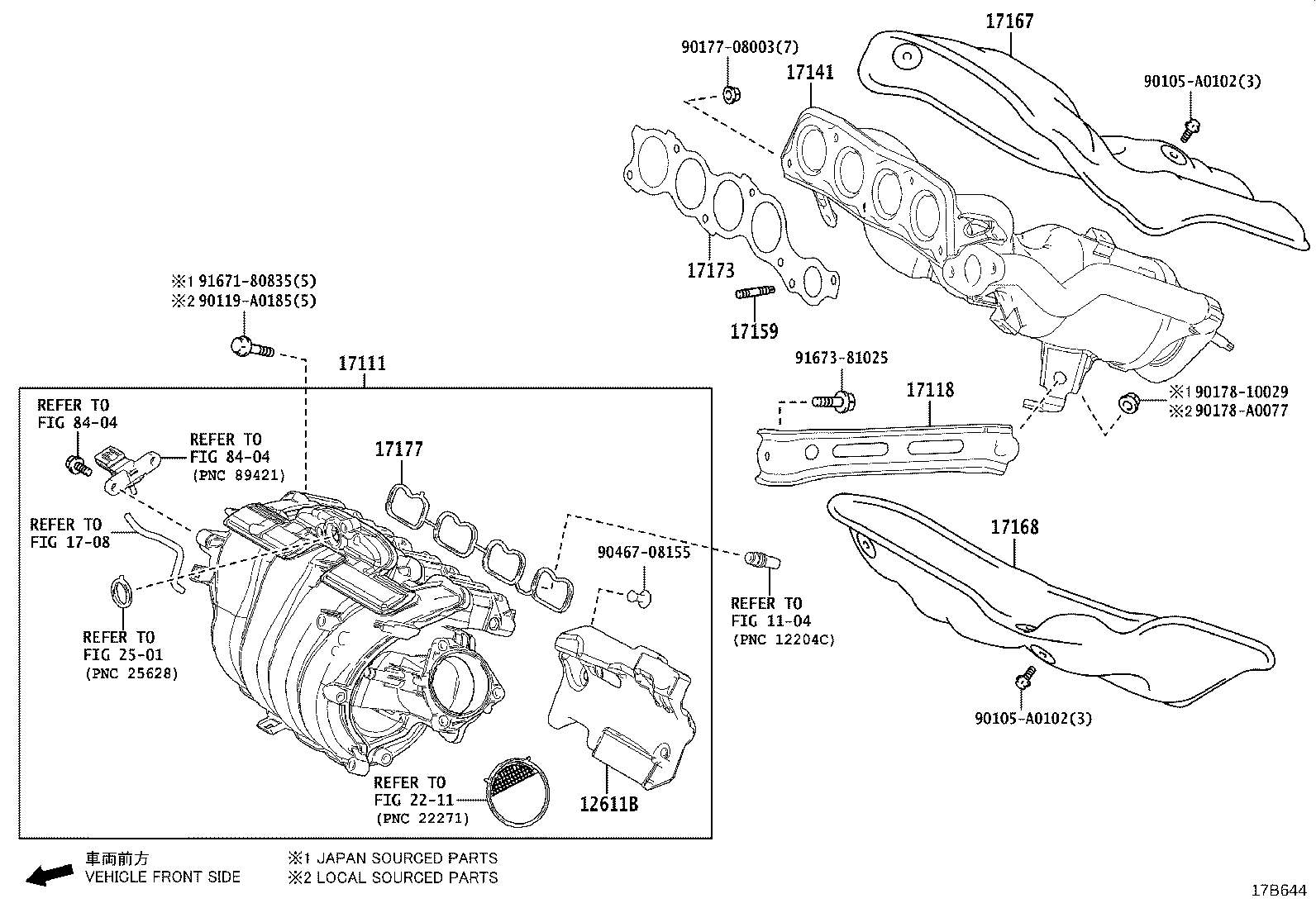

Click highlighted areas on diagram

Part #	Description	Period	Qty
12611B - COVER, ENGINE, NO.1
12613-F0010	A25AFKS..AXAA5# *628	09/2020 - 12/2999	1
12613-25010	A25AFKS..AXAA5# *584	09/2020 - 12/2999	1
17111 - MANIFOLD, INTAKE
17120-25010	A25AFKS..AXAA5# *584	09/2020 - 12/2999	1
17120-F0060	A25AFKS..AXAA5# *628	09/2020 - 12/2999	1
17118 - STAY, MANIFOLD
17118-25030	A25#..AXAA5#,AXAH54,AXAL54	09/2020 - 12/2999	1
17141 - MANIFOLD, EXHAUST
17141-F0010	A25#..AXAA5#,AXAH54,AXAL54	09/2020 - 03/2021	1
17141-F0011	A25#..AXAA54,AXAH54,AXAL54	03/2021 - 12/2999	1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08052	A25AFKS..AXAA5# *584	09/2020 - 12/2999	7
90126-A0019	A25#..AXAA5#,AXAH54,AXAL54 *628	09/2020 - 12/2999	7
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-F0010	A25#..AXAA5#,AXAH54,AXAL54	09/2020 - 03/2021	1
17167-25040	A25#..AXAA5#,AXAH54,AXAL54	03/2021 - 12/2999	1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-F0010	A25#..AXAA5#,AXAH54,AXAL54	09/2020 - 03/2021	1
17168-25040	A25#..AXAA5#,AXAH54,AXAL54	03/2021 - 12/2999	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-F0010	A25#..AXAA5#,AXAH54,AXAL54 (L)	03/2021 - 12/2999	1
17173-F0010	A25#..AXAA5#,AXAH54,AXAL54	09/2020 - 03/2021	1
17173-25020	A25#..AXAA5#,AXAH54,AXAL54 (J)	03/2021 - 12/2999	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17171-25010	A25#..AXAA5#,AXAH54,AXAL54 *628	09/2020 - 12/2999	1
17171-25010	A25AFKS..AXAA5# *584	09/2020 - 12/2999	1
Common parts
90105-A0102
90119-A0185
90177-08003
90178-10029
90178-A0077
90467-08155
91671-80835
91673-81025
Linked diagrams
1104
1708
2211
2501
8404
