AXAA54L-CNZMBK (2018)
Toyota Rav4 (Nap)
Production
Dec 2018
-
Sep 2020
Engine
A25AFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1812- )A25AFKS..AXAA54

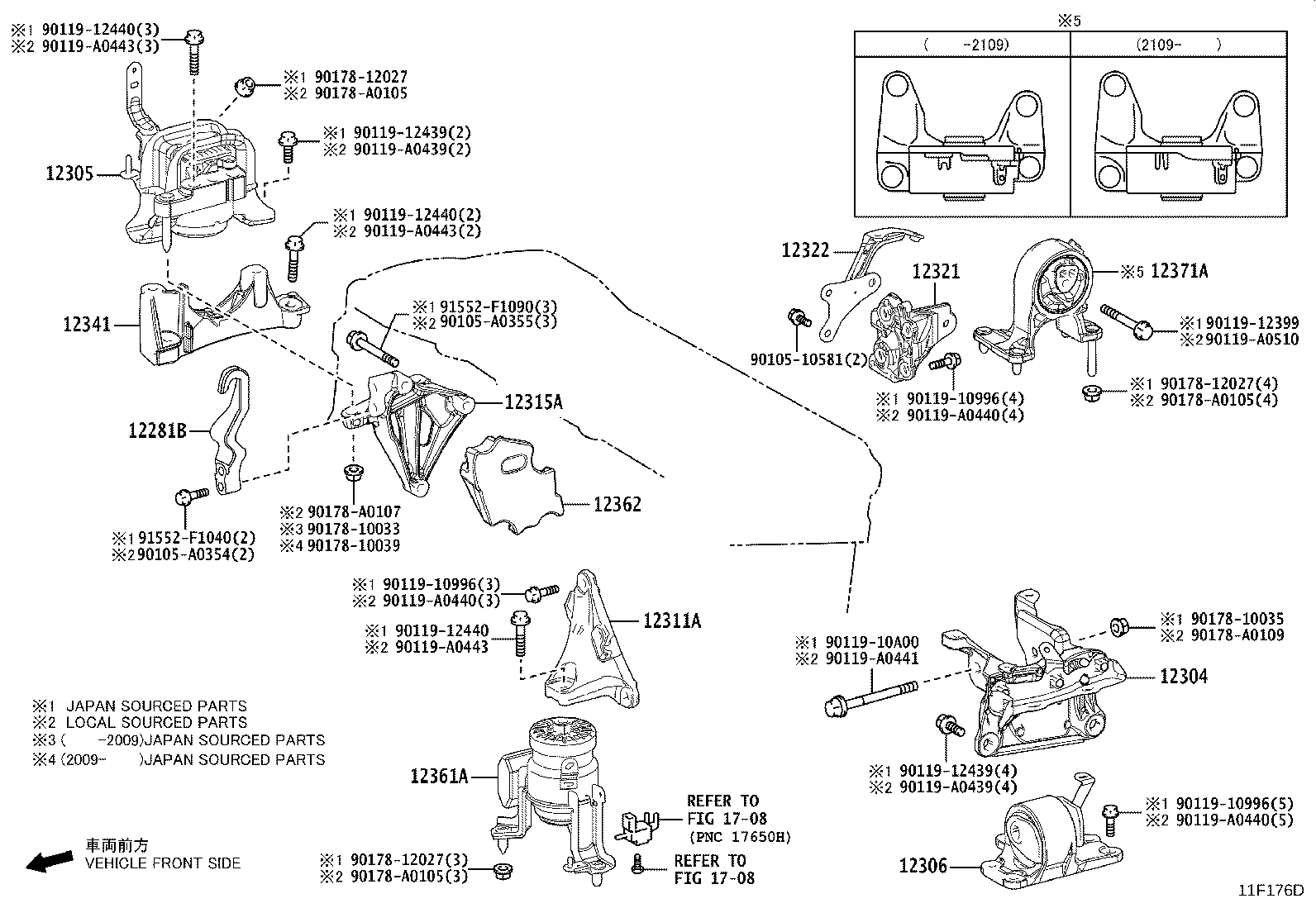

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12281B - HANGER, ENGINE, NO.1 | ||||
| 12281-25030 |
A25#..AXAA5#,AXAH54,AXAL54 *628,*584 |
1 | ||
| 12304 - BRACKET SUB-ASSY, ENGINE MOUNTING, LH | ||||
| 12304-F0010 |
A25AFKS..AXAA5# |
1 | ||
| 12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH | ||||
| 12305-F0080 |
A25AFKS..AXAA5# |
1 | ||
| 12306 - INSULATOR SUB-ASSY, ENGINE MOUNTING, LH | ||||
| 12372-F0090 |
A25AFKS..AXAA54 |
1 | ||
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-F0010 |
A25AFKS..AXAA5# |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-25030 |
A25AFKS..AXAA5# *584 |
1 | ||
| 12315-25031 |
A25AFKS..AXAA5# *584 |
1 | ||
| 12315-25031 |
A25#..AXAA5#,AXAH54,AXAL54 *628 |
1 | ||
| 12315-25030 |
A25#..AXAA5#,AXAH54 *628 |
1 | ||
| 12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1 | ||||
| 12321-25030 |
A25AFKS..AXAA54 |
1 | ||
| 12322 - BRACKET, ENGINE MOUNTING, REAR NO.2 | ||||
| 12322-25010 |
A25AFKS..AXAA54 |
1 | ||
| 12341 - SPACER, ENGINE MOUNTING | ||||
| 12341-F0010 |
A25#..AXAA5#,AXAH54,AXAL54 |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-F0080 |
A25AFKS..AXAA54 |
1 | ||
| 12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12362-F0011 |
A25AFKS..AXAA5# *628 |
1 | ||
| 12362-F0010 |
A25AFKS..AXAA5# *628 |
1 | ||
| 12362-25010 |
A25AFKS..AXAA5# *584 |
1 | ||
| 12362-25011 |
A25AFKS..AXAA5# *584 |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-F0090 |
A25AFKS..AXAA54 |
1 | ||
| Common parts | ||||
| 90105-10581 | ||||
| 90105-A0354 | ||||
| 90105-A0355 | ||||
| 90119-10996 | ||||
| 90119-10A00 | ||||
| 90119-12399 | ||||
| 90119-12439 | ||||
| 90119-12440 | ||||
| 90119-A0439 | ||||
| 90119-A0440 | ||||
| 90119-A0441 | ||||
| 90119-A0443 | ||||
| 90119-A0510 | ||||
| 90178-10033 | ||||
| 90178-10035 | ||||
| 90178-10039 | ||||
| 90178-12027 | ||||
| 90178-A0105 | ||||
| 90178-A0107 | ||||
| 90178-A0109 | ||||
| 91552-F1040 | ||||
| 91552-F1090 | ||||
| Linked diagrams | ||||
| 1708 | ||||
